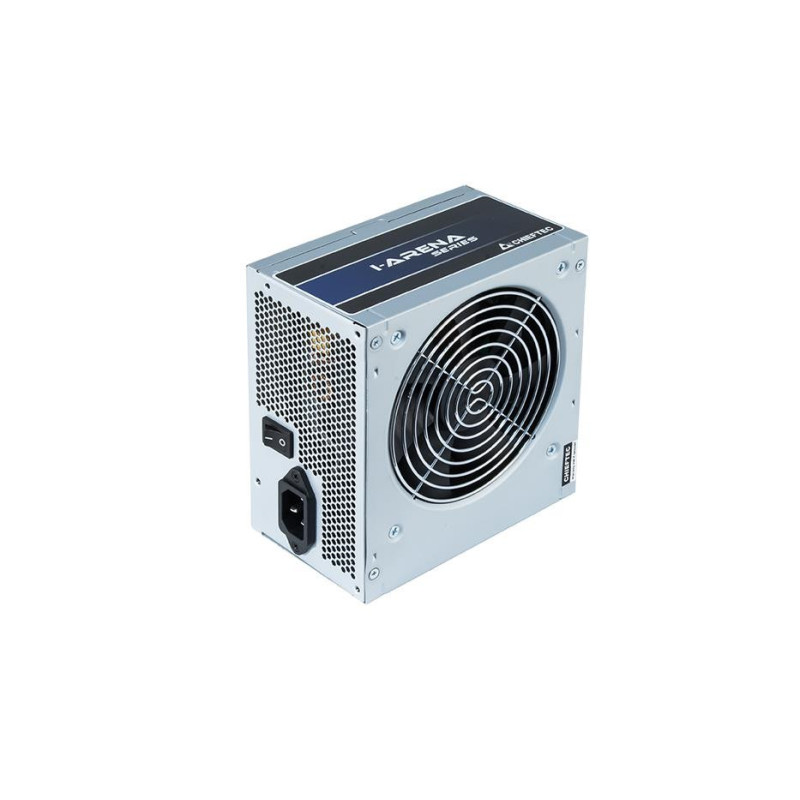

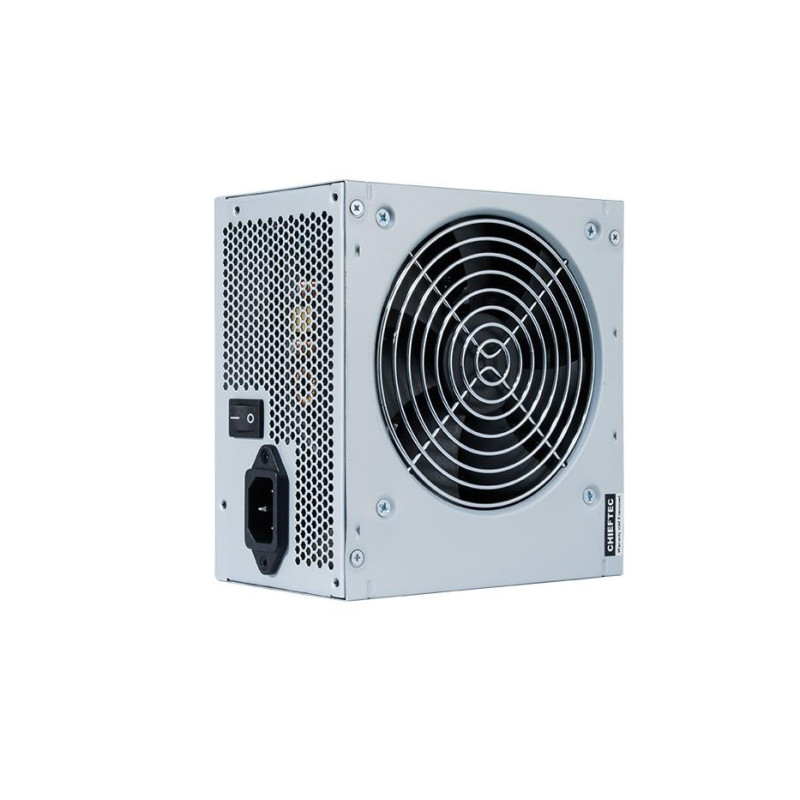

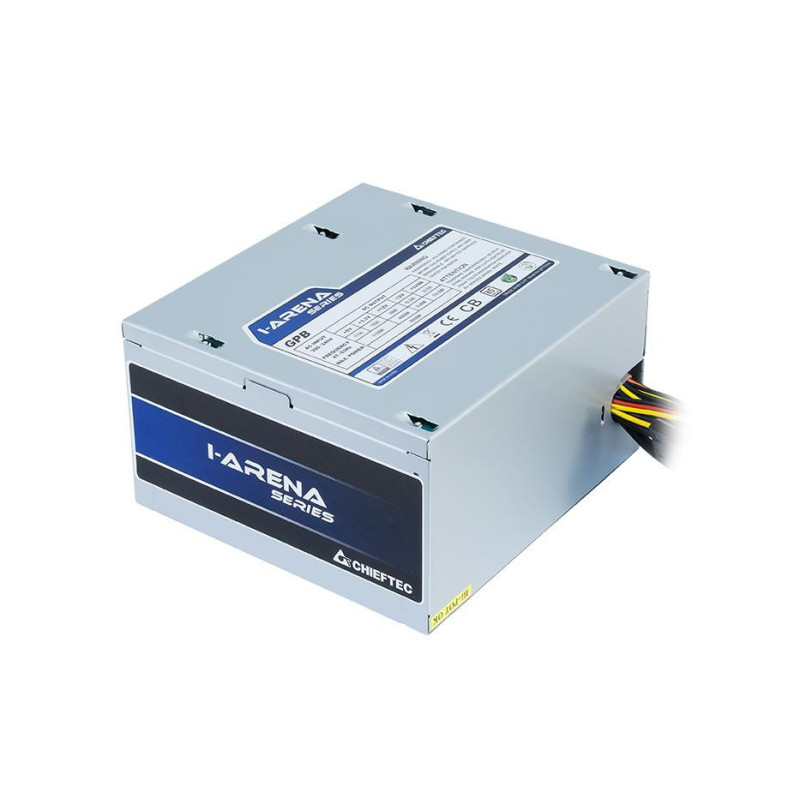

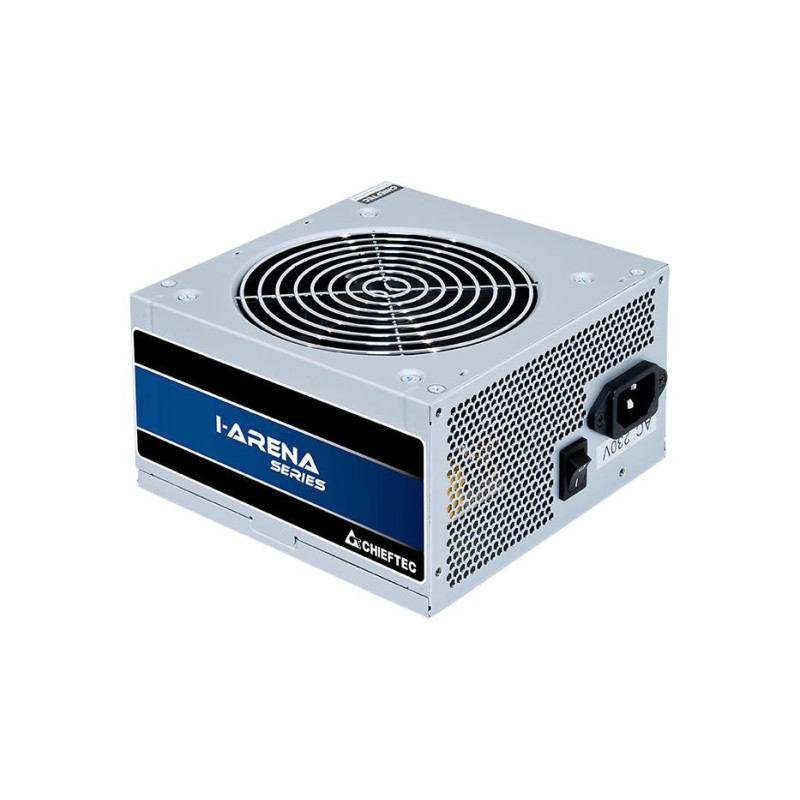

Korpuso maitinimo blokas ATX 500W / GPB-500S CHIEFTEC
Prekės kodas: 2-4710713233645
CASE PSU ATX 500W / GPB-500S CHIEFTEC
CASE PSU ATX 500W / GPB-500S CHIEFTEC
CASE PSU ATX 500W / GPB-500S CHIEFTEC
CASE PSU ATX 500W / GPB-500S CHIEFTEC
CASE PSU ATX 500W / GPB-500S CHIEFTEC

Korpuso maitinimo blokas ATX 500W / GPB-500S CHIEFTEC

Prekės kodas: 2-4710713233645
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
34,24 €
Prekė sandelyje

Garantija
24 mėn.

Pristatymas iš Lietuvos
per 3 - 5*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*
Netaikoma

High efficiency and a highly competitive pricing coupled with the latest "state-of-the-art" PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.


AC input frequency 47 - 63 Hz
AC input voltage 200 - 240 V
ATX version 2.3
Cabling type Non-Modular
Combined power (+12V) 456 W
Combined power (+3.3V) 110 W
Combined power (+5V) 110 W
Combined power (+5Vsb) 12.5 W
Combined power (-12V) 3.6 W
Compliance certificates RoHS
Cooling type Active
Depth 150 mm
Efficiency 85 %
Fan diameter 120 mm
Fan location Top
Harmonized System (HS) code 84733020
Height 87 mm
Input current 4 A
Manual Yes
Max output current (+12V1) 38 A
Max output current (+3.3V) 18 A
Max output current (+5V) 17 A
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
Motherboard power connector 20+4 pin ATX
Number of fans 1 fan(s)
Number of SATA power connectors 5
On/off switch Yes
Package type Box
PCI Express power connectors (6+2 pin) 1
Peripheral (Molex) power connectors (4-pin) 3
Power factor 0.9
Power Factor Correction (PFC) type Active
Power protection features Over voltage/Overload/Short circuit/Under voltage
Power supply unit (PSU) form factor PS/2
Product colour Silver
Purpose PC
Summary Chieftec GPB-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS
Total power 500 W
Unit Box Height 0.155
Unit Box Length 0.2
Unit Box Width 0.09
Unit Calculated Volume 0.004455 cubm
Unit Calculated Weight 1.36 kg
Units per Shipping Box 10
Vendor Homepage https://www.chieftec.eu/en/psus/iarena-series/gpb-500s.html
Warranty card Yes
Width 140 mm
