GR 650/750/850W
ATX 3.1 Compatible, Reliable Power
The COUGAR GR series is an 80 PLUS Gold-certified power supply, delivering reliable performance even
at 40°C. Designed with a native PCIe 12V-2X6 connector, it meets Intel ATX 3.1 and PCIe 5.1
standards. As a modular PSU, it efficiently supports next-gen GPUs with a single 12+4-pin cable,
reaching up to 91% efficiency. This reduces energy consumption, lowers electricity costs, and
ensures stable power delivery.
- Supports PCI Express 5.1 Graphics Cards with 12+4 Pin Connector for true 200% power excursion
dynamic outputs. - 80 PLUS Gold Certified for up to 91% efficiency in power conversion, reducing electricity bills.
- Groundbreaking grooved blade, rifle bearing fan design lets you experience noiseless gaming.
- 105°C Japanese capacitor for main power.
- Designed for current and next-generation multi-core CPU platforms, is compatible with the latest
PC technology. - Powerful performance even at 40°C ambient temperature.
ATX 3.1 Certified
Designed to support next-generation systems, the COUGAR GR series conforms to the ATX 3.1 standard.
Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a
single 12+4-pin cable. With an 80 PLUS Gold efficiency rating, it offers high-quality stability,
durability, and reliability.
The COUGAR GR series passes the four strict power excursion tests from PSU ATX 3.1 Guide, in which
the spike power consumption must bear up to 200% of the rated power for 100μs.
Designed for the Next Generation of GPUs
The COUGAR GR series supports the latest PCIe 5.1 specification: its powerful and stable performance
meets the needs of next-generation GPUs, delivering perfect power for next-gen graphics cards.
Equipped with a modular native PCIe 12V-2X6 connector, the 600mm length provides sufficient slack to
reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adaptor.
Notice: Before using the PCIe 12+4pin cable, please visit the GPU
manufacturer's official website to check recommended wattage requirements.
Efficiency
The GR series features a highly efficient design that surpasses the 80 PLUS Gold standard, to help
you save money on your electricity bill.
Perfect Fan Speed to Noise Ratio
Using COUGAR's exclusive 120mm rifle bearing fan , the advanced fan blade design enhances airflow
smoothness and optimizes silent performance.
More Stability, Less Noise
Crafted for quiet operation, COUGAR's exclusive 120mm rifle bearing fan achieves an ideal equilibrium
between efficient cooling and minimal noise. Optimized, grooved fan blades are molded with an
integrated stabilizing ring, minimizing flex during rotation and reducing turbulence for an optimal
and silent cooling experience.
Highly durable and consistently reliable 105°C Japanese main capacitor.
- The GR's LLC, DC-DC and Tri-Sense (3.3V, 5V, and 12V) design provides high-quality outputs, with
an extremely tight 5% voltage regulation to deliver ultra-stable operation. - Optimally perform in 40ºC working temperature environments.
Stylish Design
Featuring a sleek embossed black design with ample cable length for easy and aesthetically pleasing
PC installation.

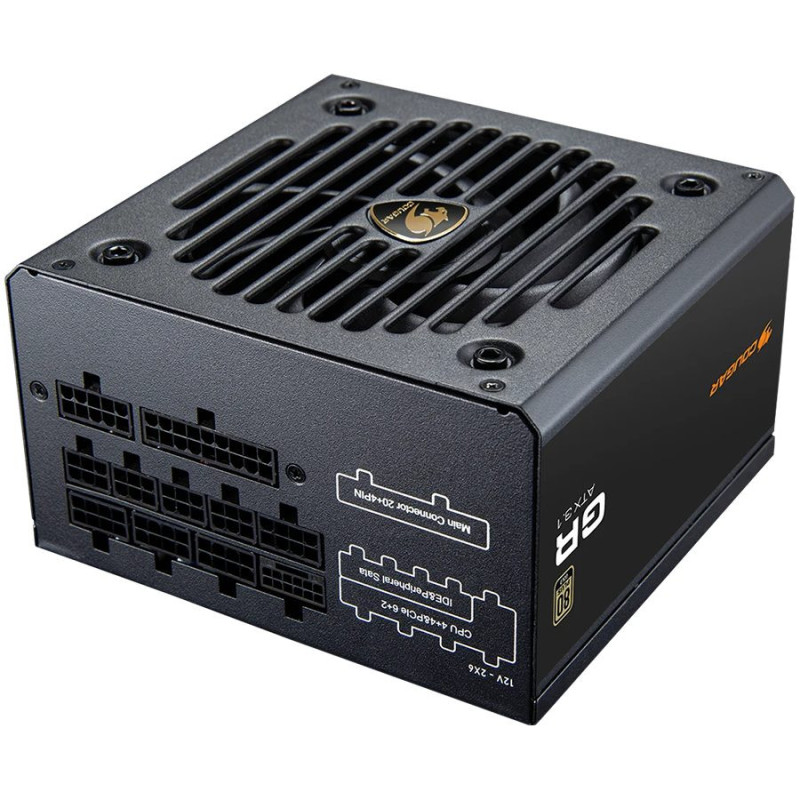

Fully Modular Cables / Embossed black cables
Connect only the cables you need, reducing cable clutter and friction and improving the airflow and
the ease of installation of DIY solutions.
Features
Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector
Connect the 12V-2X6 with true 200% power excursion dynamic outputs.
Compact PSU Size
140mm length fits most PC cases and makes installation easy.
Full Protections
SCP, OCP, OVP, UVP, OPP, OTP
Compatible with The Lastest PC Technology
CCreated for user with current and next-generation multi-core CPU platforms.
80 PLUS Gold Certified
Up to 91% efficiency power conversion to cut down your electricity bill.
Japanese Main Capacitors
Highly durable and consistently reliable 105°C Japanese main capacitors.
Silent Spin
Groundbreaking grooved blade, rifle bearing fan design lets you experience noiseless gaming.
Flawless Operation at 40°C
Powerful performance at 40°C ambient temperature.
Protection
UVP (Under Voltage Protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.
SCP (Short-Circuit Protection)
In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.
OTP (Over Temperature Protection)
If the temperature gets too high, the PSU automatically switches off.
OCP (Overcurrent Protection)
If the current on a single line is higher than indicated, the PSU automatically switches off.
OVP (Over Voltage Protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.
OPP (Over Power Protection)
If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.
Safety Standards
| Power Device Type | Power Supply |
| Power Device Location | Internal |
| Input Voltage | AC 100-240 V |
| Input Frequency | 50/60 Hz |
| Rated Input Current | 10 A |
| Input Power Connectors Quantity | 1 |
| Input Power Connectors Type | IEC-320 C14 |
| Maximum Output Power | 850 W |
| Circuit Protection | Over Voltage Undervoltage Over Temperature Over Current Short Circuit Protection Over Power |
| Modular Power Supply | Yes |
| Built-in Devices | Power Button |
| 80 Plus Certification | 80 Plus Gold |
| Efficiency | 91% |
| +3.3V | 20 A |
| +5V | 20 A |
| +12V | 70.8 A (849.6 W) |
| -12V | 0.3 A (3.6 W) |
| +5VSB | 3 A (15 W) |
| 20+4-pin Main Connector | 1 |
| 4/8-pin +12V Power Connector | 2 |
| 4-pin Peripheral Power Connector | 2 |
| S-ATA Connector | 6 |
| 6/8-pin PCI Express Connector | 3 |
| 16-pin PCI Express 5.0 (12VHPWR) Connector | 1 |
| External Color | Black |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Nominal Weight | 2.4 kg |
| Warranty Term (month) | 60 month(s) |
| Warranty Validation Criteria | Serial Number |
| Pack Length (mm) | 305 mm |
| Pack Width (mm) | 210 mm |
| Pack Height (mm) | 105 mm |
| Weight | 2.75 kg |
| Pack Weight Netto (kg) | 2.4 kg |
| Pieces in pack | 1 |
| Package Type | Retail |
| EAN Code | 4710483779169 |
