Epson EB-X49

Epson EB-X49. Projector brightness: 3600 ANSI lumens, Projection technology: 3LCD, Projector native resolution: XGA (1024x768). Light source type: Lamp, Service life of light source: 6000 h, Service life of light source (economic mode): 12000 h. Focus: Manual, Focal length range: 16.9 - 20.28 mm, Aperture range (F-F): 1.49 - 1.72. Video processing: 10 bit, Video colour modes: Blackboard, Dynamic, Presentation, sRGB, Theatre. Serial interface type: RS-232C, HDMI connector type: Full-size

Compact display, optional wireless
Presentations become effortless, with the sharp, stylish EB-X49, which offers great performance in a remarkably versatile package. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.

Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content, on screen sizes up to 300 inches. 3,600-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.

Years of uninterrupted meetings
With a lamp life of up to 12,000 hours in Eco mode.

Installation and placement flexibility
Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.

Network and wireless (optional)
Network capability (via RJ45) and optional wireless connectivity mean the EB-X49 can be added to a company network or upgraded for wireless device access at a later stage.

High-quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.

Projector

Supported aspect ratios: 4:3
Screen size compatibility: 762 - 7620 mm (30 - 300")
Projector brightness: 3600 ANSI lumens
Projection technology: 3LCD
Projector native resolution: XGA (1024x768)
Contrast ratio (typical): 16000:1
Native aspect ratio: 4:3
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 2400 ANSI lumens
Vertical scan range: 100 - 120 Hz
Keystone correction, horizontal: ±30°
Keystone correction, vertical: ±30°
Matrix size: 1.4 cm (0.55")

Light source

Light source type: Lamp
Service life of light source: 6000 h
Service life of light source (economic mode): 12000 h
Lamp type: UHE
Lamp power: 210 W

Lens system

Focus: Manual
Focal length range: 16.9 - 20.28 mm
Aperture range (F-F): 1.49 - 1.72
Feature: Zoom capability
Zoom type: Manual
Zoom ratio: 1.2:1
Throw ratio: 1.48 - 1.77:1

Video

Video processing: 10 bit
Video colour modes: Blackboard, Dynamic, Presentation, sRGB, Theatre

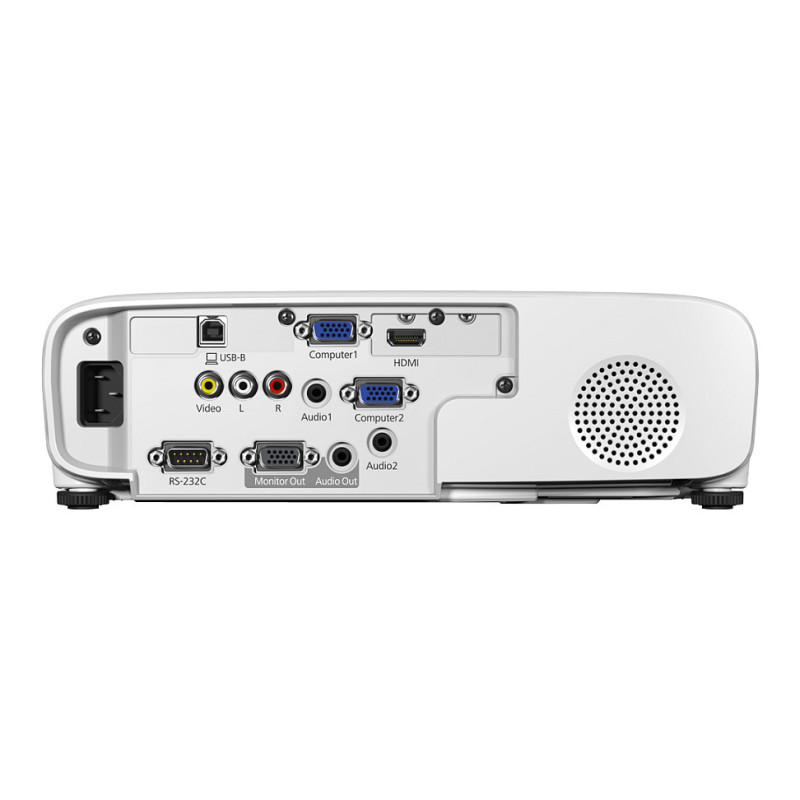

Ports & interfaces

HDMI connector type: Full-size
USB 2.0 Type-B ports quantity: 1
Serial interface type: RS-232C
Feature: PC Audio in
Feature: PC Audio out
Feature: PC in (D-Sub)
VGA (D-Sub) ports quantity: 3
HDMI ports quantity: 1
Composite video in: 1
Feature: AC (power) in

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1

Features

Noise level (economic mode): 28 dB
Preset modes: Blackboard, Dynamic, Presentation, Theatre, sRGB

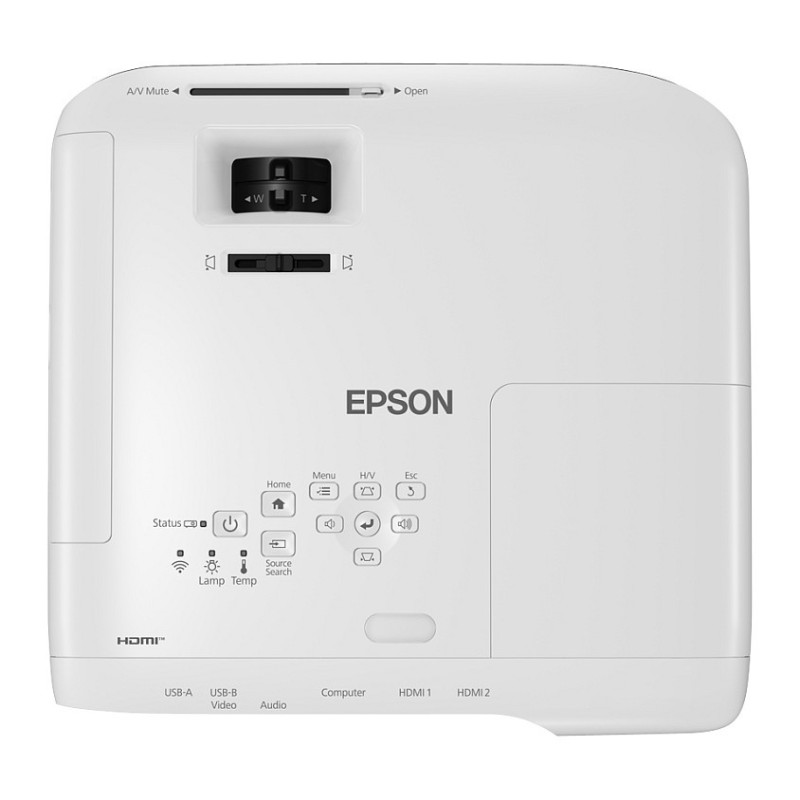

Feature: On Screen Display (OSD)
Noise level: 37 dB
Country of origin: Philippines

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 5 W
Number of built-in speakers: 1

Design

Market positioning: Portable
Product colour: White

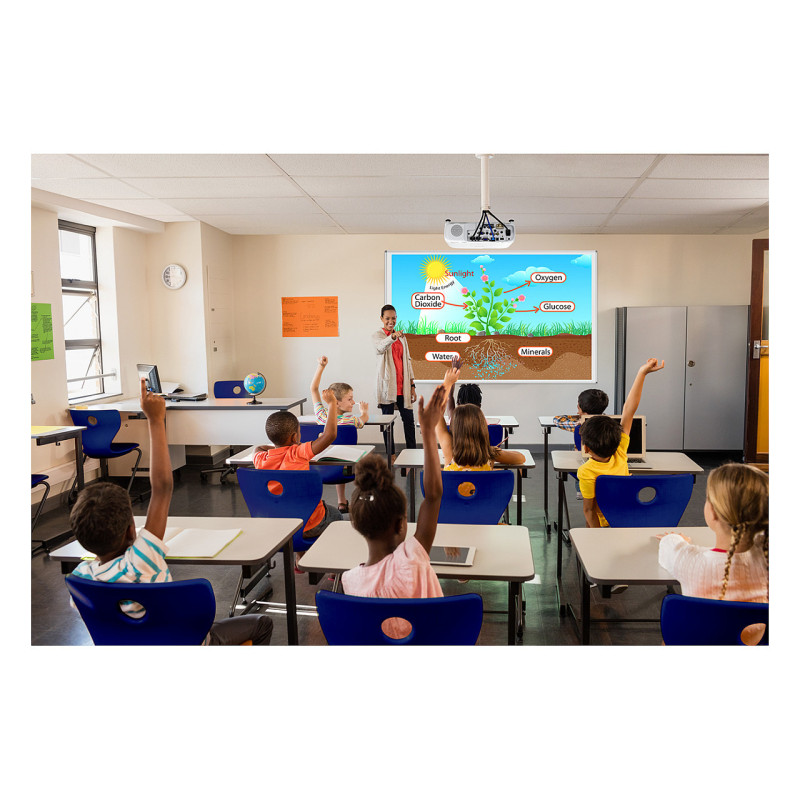

Placement: Ceiling, Desktop
Feature: Cable lock slot
Cable lock slot type: Kensington

Power

Power source: AC
Power consumption (typical): 327 W
Power consumption (economy mode): 225 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Software

Software support: via: AMX, Crestron (Network), Control4, Extron

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 302 mm
Depth: 249 mm
Height: 87 mm
Weight: 2.7 kg
Package width: 355 mm
Package depth: 380 mm
Package height: 160 mm
Package weight: 4.12 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI
Feature: Quick start guide
Feature: WLAN adapter included
Bundled software: EasyMP Multi PC Projection, Epson Projector Management

Technical details

USB display function: 2 in 1: Image/ Sound
Feature: Mobile app support

Logistics data

Quantity per pack: 1 pc(s)
Products per pallet: 78 pc(s)
Pallet gross weight: 0 g
Products per pallet (UK): 78 pc(s)
Pallet weight (UK): 0 g
Harmonized System (HS) code: 85286200

Other features

Control panel: 0.55 inch with C2 Fine
Supported network protocols: PJLink
Box contents: HDMI Cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User Manual (CD-ROM), Warranty document
Security features: Kensington lock, Security cable hole, Wireless LAN unit lock
