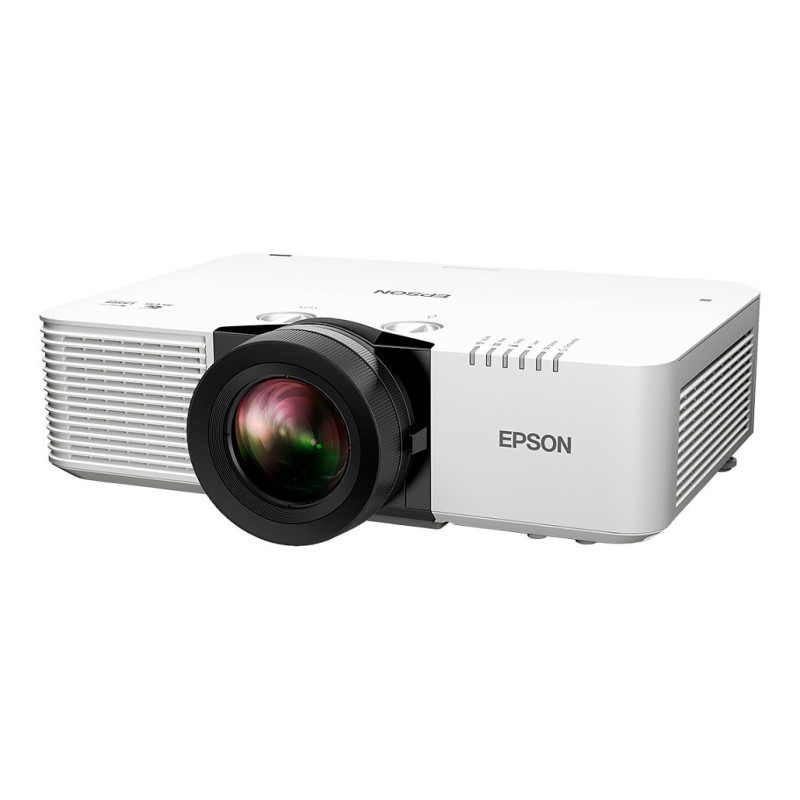

Epson EB-L690SU

Epson EB-L690SU. Projector brightness: 6200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 11.6 - 19.9 mm, Aperture range (F-F): 1.7 - 2.1. Video processing: 10 bit, Video colour modes: BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation. Serial interface type: RS-232C

Outstanding short-throw professional projector for immersive spaces
Designed for compact spaces, the EB-L690SU short-throw offers 6,200 lumens of bright WUXGA resolution, HDR and advanced installation features. It provides up to 30,000 hours of maintenance-free projection in Eco mode, lens shift, 1.7x zoom and 10W speakers. Ideal for professional applications with flexible control options via HDBaseT, LAN, and wireless.

Spectacular short throw professional projector
Create stunning, shadow-free presentations in compact spaces with a short throw ratio of 0.79-1.36:1, built-in lens shift and WUXGA resolution. Featuring 1.7x optical zoom, corner focus and display sizes up to 400", this high-performance display is ideal for sports simulators, visitor attractions, retail and more. Its compact design, low noise and sleek white chassis deliver bright, vibrant, crystal-clear images, even in well-lit environments, ensuring exceptional visuals.

Flexible installation for professional setups
Designed for easy installation, the EB-L690SU can be quickly configured to deliver optimal performance in any room layout. Features such as lens shift, horizontal and vertical keystone correction, and 360° projection ensure precise image positioning. Options like split-screen capabilities, edge blending, and geometry correction, along with the optional ELPEC01 camera and Epson Projector Professional Tool, provide fast setup and calibration, offering flexibility for complex installations.

Smart control for seamless experience
Enhance usability with NFC for easy large-scale rollouts using the Epson Projector Config Tool. The user-friendly OSD menu simplifies navigation, while Epson's EPMC cloud monitoring allows effortless remote management. Fully compatible with Crestron XiO Cloud, it offers centralised control, and OTA firmware updates ensure the display remains up-to-date for a seamless experience.

Peace of mind with high durability and support
Engineered for long-lasting performance, the EB-L690SU features fit-and-forget laser technology, backed by a 3-year warranty. It minimises maintenance needs, reduces downtime, and offers peace of mind with Epson's renowned after-sales support.

Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity{s2 and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.

Stream and share easily
With Apple AirPlay 2 and Miracast connectivity{s1 , sharing content is quick and simple - users can wirelessly mirror their device screens to the display for seamless collaboration. The USB-A port also enables PC-free streaming, while additional options like HDBaseT and HDMI daisy-chaining further enhance flexibility.

Projector

Supported aspect ratios: 16:10, 16:6, 21:9
Screen size compatibility: 1524 - 10160 mm (60 - 400")
Projection distance: 1.02 - 11.89 m
Projection distance (wide): 1 - 7 m
Projection distance (tele): 1.8 - 11.9 m
Contrast ratio (dynamic): 5000000:1
Projector brightness: 6200 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WUXGA (1920x1200)
Contrast ratio (typical): 5000000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 4340 ANSI lumens
Keystone correction, horizontal: ±30°
Keystone correction, vertical: ±30°

Light source

Light source type: Laser
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h

Lens system

Focus: Manual
Focal length range: 11.6 - 19.9 mm
Aperture range (F-F): 1.7 - 2.1
Feature: Zoom capability
Zoom type: Manual
Zoom ratio: 1.7:1
Throw ratio: 0.79 - 1.36:1
Horizontal lens shift range: -20 - 20%
Vertical lens shift range: -50 - 50%

Video

Analog signal format system: Not supported
Feature: Full HD
Video processing: 10 bit
Video colour modes: BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

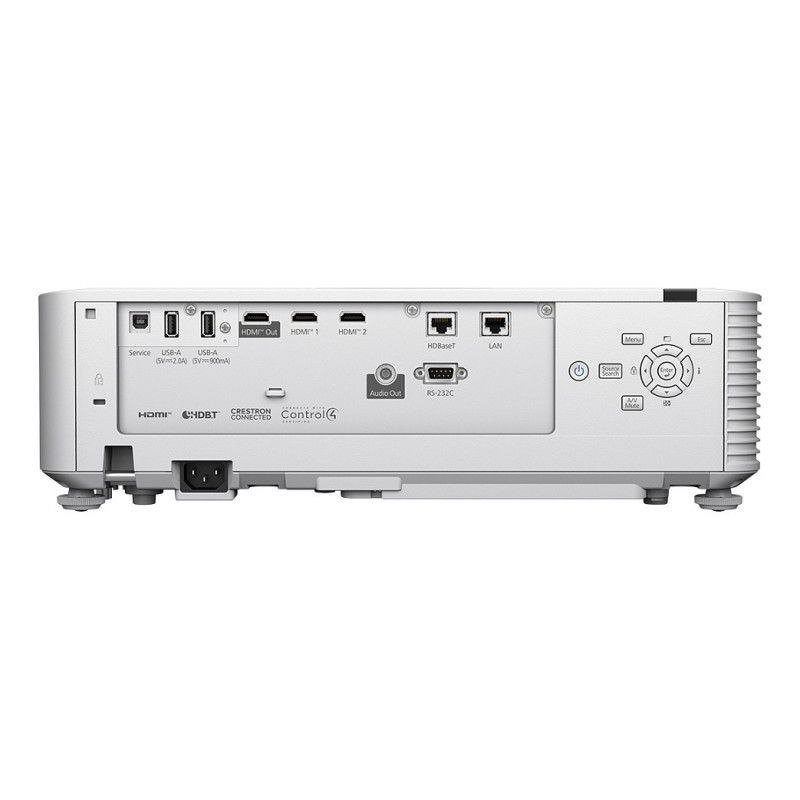

Ports & interfaces

Feature: HDBaseT port
USB 2.0 ports quantity: 3
USB 2.0 Type-A ports quantity: 2
USB 2.0 Type-B ports quantity: 1
Serial interface type: RS-232C
HDMI ports quantity: 2

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Feature: Miracast
Feature: Apple AirPlay 2 support

Features

Noise level (economic mode): 25 dB
Feature: HDCP
Preset modes: Cinema, Dynamic, Presentation
Feature: On Screen Display (OSD)
HDCP version: 2.3
Noise level: 34 dB
Country of origin: Philippines
Feature: Password protection

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 10 W

Design

Market positioning: Education
Product type: Short throw projector
Product colour: White
Placement: Ceiling, Desktop
Feature: Cable lock slot
Cable lock slot type: Kensington

Display

Feature: Built-in display
Display: LCD
Display diagonal: 1.7 cm (0.67")

Power

Power source: AC
Power consumption (typical): 336 W
Power consumption (standby): 0.4 W
Power consumption (max): 399 W
Power consumption (economy mode): 233 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
AC adapter output voltage: 100 - 240 V

Operational conditions

Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 440 mm
Depth: 362 mm
Height: 151 mm
Weight: 8.9 kg
Package width: 510 mm
Package depth: 545 mm
Package height: 230 mm
Package weight: 12.3 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: Power

Technical details

Warranty period: 3 year(s)
Feature: Mobile app support

Logistics data

Quantity per pack: 1 pc(s)
Products per pallet: 14 pc(s)
Products per pallet layer: 2 pc(s)
Products per pallet layer (UK): 2 pc(s)
Products per pallet (UK): 14 pc(s)

Other features

Control panel: 0.67 inch with C2 Fine
Supported network protocols: HTTPS, SNMP, ESC/VP.net, PJLink
Box contents: Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty document
Security features: Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
Feature: RS-232C
