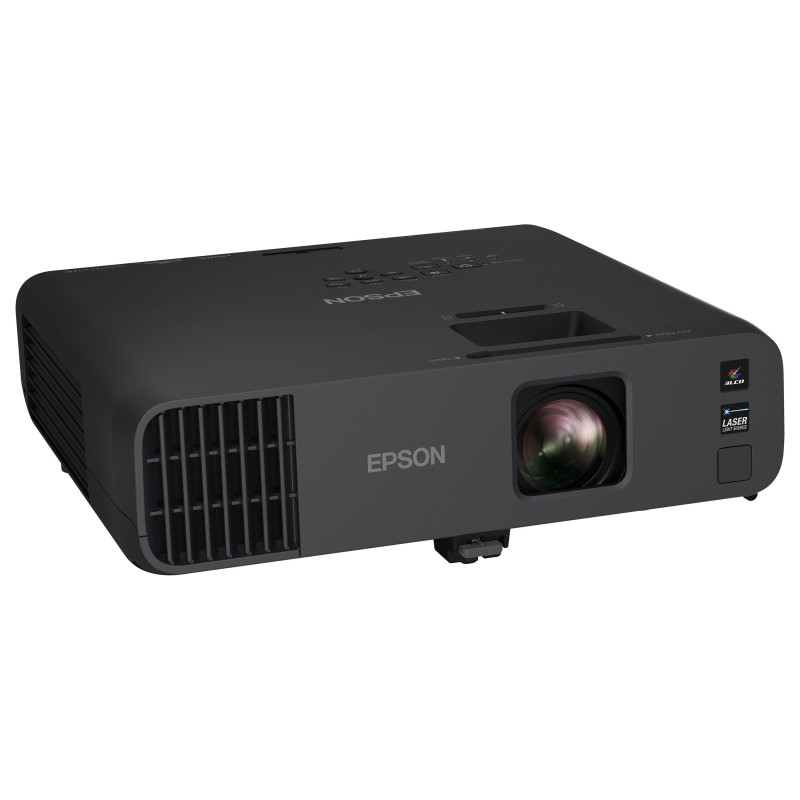

Epson EB-L265F

Epson EB-L265F. Projector brightness: 4600 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 18.2 - 29.1 mm, Aperture range (F-F): 1.51 - 1.77. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Multi-projection, Presentation, sRGB. Serial interface type: RS-232C, Service port type: USB Type-B

Digital signage projector

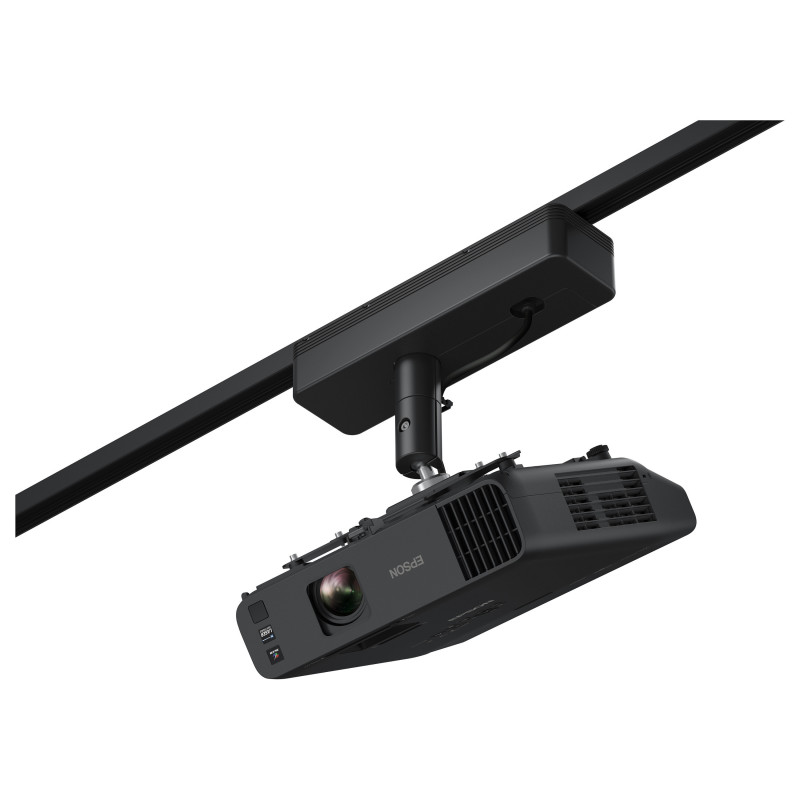

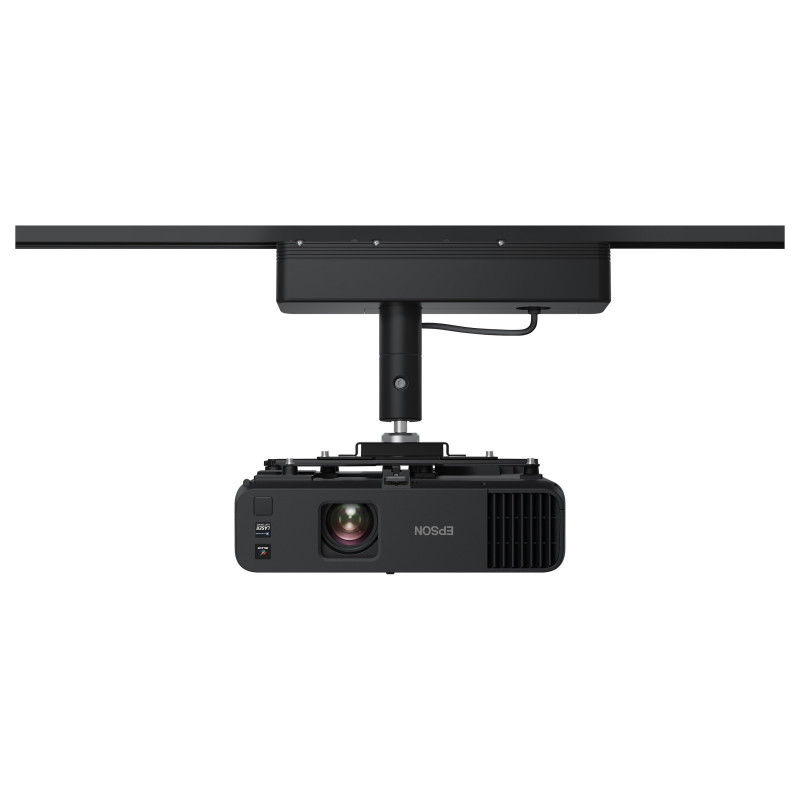

The EB-L265F is a cost-effective laser display solution with easy and flexible installation. It can be installed on floor, wall or ceiling (including on a lighting track). A single projector can create a display of up to 310" with a range of flexible content source options including local content playback support (via a memory card), Miracast wireless connectivity and HDMI.

Innovative and cost effective
Epson's advanced laser technology is bright, robust and reliable for a flexible and easy to use digital signage solution. It offers bright and vivid colours in a cost-effective solution capable of creating large displays or even projecting onto 3D objects.

Flexible display options
The EB-L265F enables scalable display sizes of up to 310 inches with a single projector - even larger when edge-blending 2 units. Full HD, 4,600 lumen brightness and 3LCD technology offer bright colours and high quality - perfect for creating engaging and informative displays, even in bright spaces.

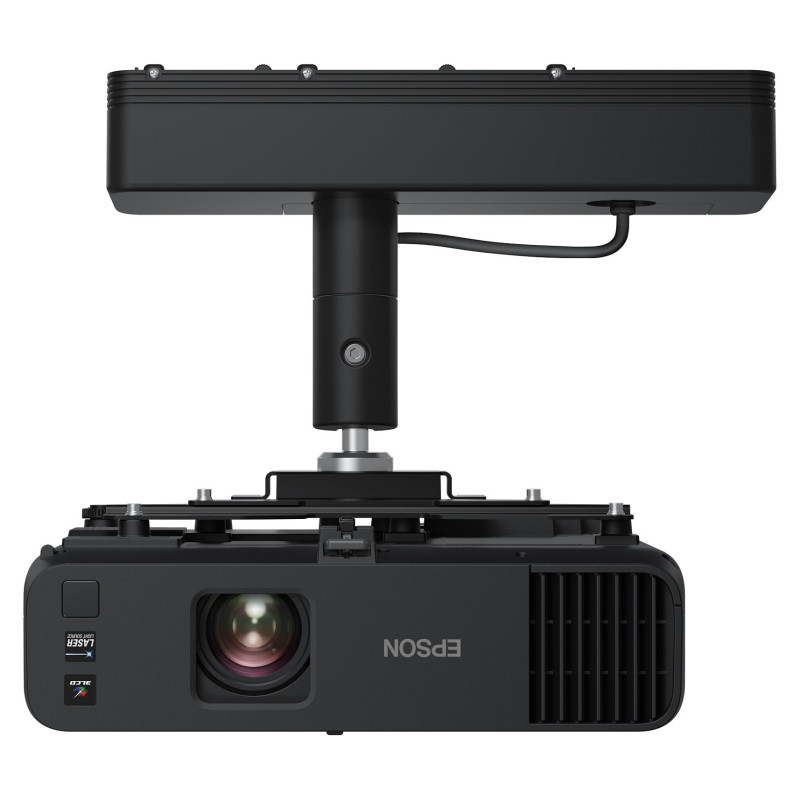

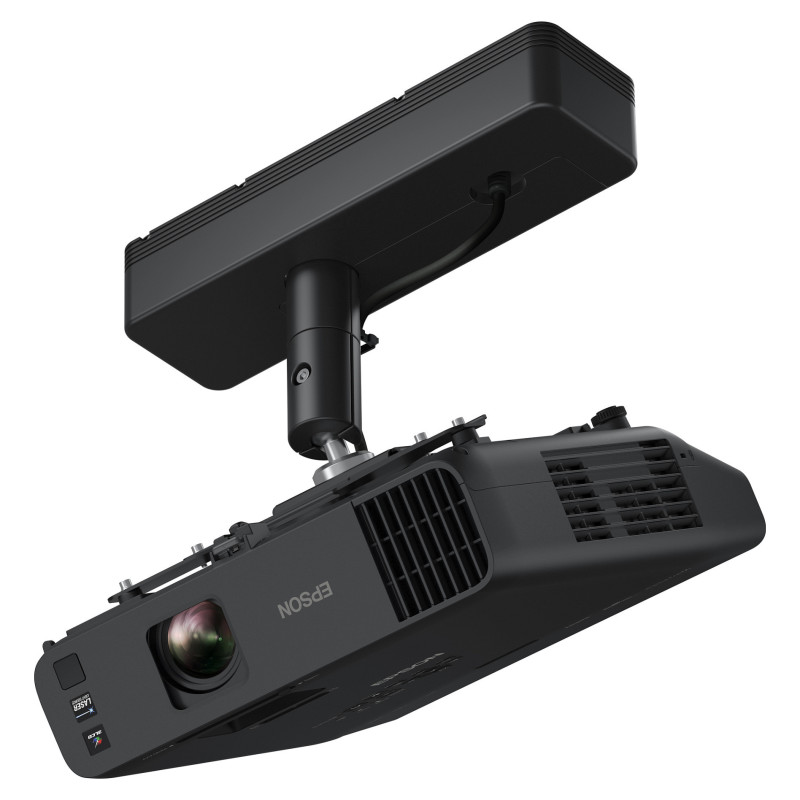

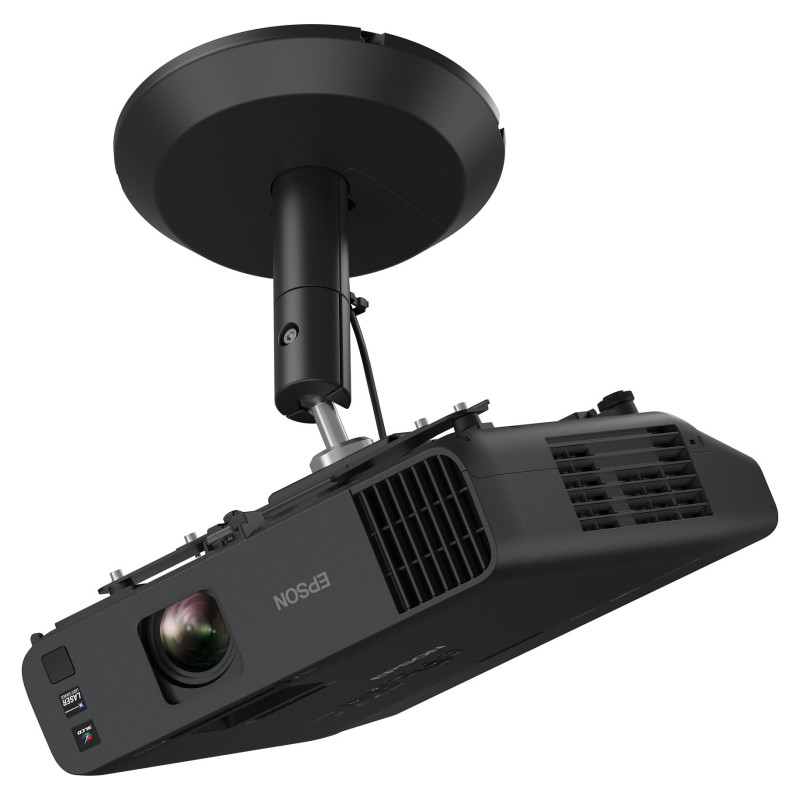

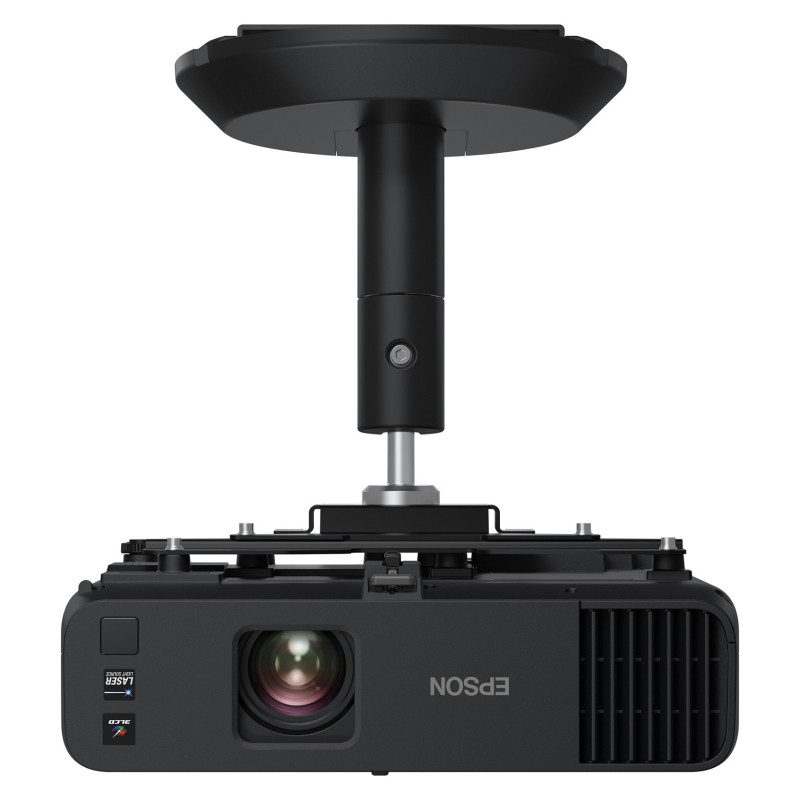

It can be mounted wherever needed - wall, floor or ceiling (inc.on a lighting track) with optional accessories. A white model is also available (EB-L260F) to ensure the projector is as discrete as possible.

Create dynamic content
Epson offers free apps for content creation (Epson Creative Projection & Epson Projector Content Management). Content can be played directly from USB (including playlists, videos, and signage content) using the built-in playback feature. Users can even upload and playback content wirelessly with built-in Wi-Fi and Miracast functionality.

Low maintenance and high reliability
Up to 20,000 hours maintenance-free use using a laser light source with a 5 year warranty make this a cost-effective fit-and-forget display solution you can rely on.

Projector

Screen size compatibility: 787.4 - 7874 mm (31 - 310")
Contrast ratio (dynamic): 5000000:1
Projector brightness: 4600 ANSI lumens
Projection technology: 3LCD
Projector native resolution: 1080p (1920x1080)
Contrast ratio (typical): 2500000:1
Native aspect ratio: 16:9
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 3200 ANSI lumens
Vertical scan range: 192 - 240 Hz
Keystone correction, horizontal: ±30°
Keystone correction, vertical: ±30°
Matrix size: 1.57 cm (0.62")

Light source

Light source type: Laser
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h

Lens system

Focus: Manual
Focal length range: 18.2 - 29.1 mm
Aperture range (F-F): 1.51 - 1.77
Feature: Zoom capability
Zoom type: Manual
Zoom ratio: 1:1.62
Throw ratio: 1.32 - 2.12:1

Video

Analog signal format system: Not supported
Feature: Full HD
Feature: 3D
Video processing: 10 bit
Video colour modes: Blackboard, Cinema, Dynamic, Multi-projection, Presentation, sRGB

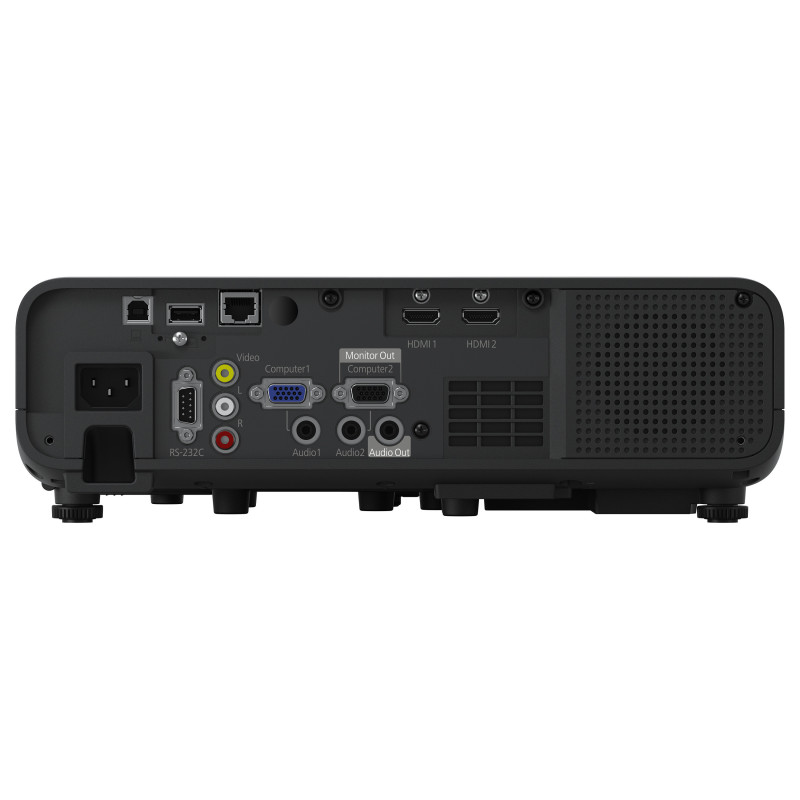

Ports & interfaces

Service port type: USB Type-B
USB 2.0 ports quantity: 1
Headphone outputs: 3
Serial interface type: RS-232C
VGA (D-Sub) ports quantity: 3
HDMI ports quantity: 2
Composite video in: 1

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Features

Noise level (economic mode): 27 dB
Feature: HDCP
Noise level: 37 dB
Country of origin: Philippines
Feature: Password protection

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 16 W

Design

Market positioning: Presentation
Product colour: Black
Placement: Ceiling, Floor, Wall
Feature: Cable lock slot
Cable lock slot type: Kensington

Power

Power source: AC
Power consumption (typical): 199 W
Power consumption (economy mode): 144 W
AC input voltage: 220 - 240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Weight: 4.2 kg
Package width: 405 mm
Package depth: 490 mm
Package height: 190 mm
Package weight: 6.29 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI
Bundled software: Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management

Technical details

Feature: Mobile app support

Logistics data

Quantity per pack: 1 pc(s)
Products per pallet: 22 pc(s)
Pallet gross length: 120 cm
Pallet gross width: 80 cm
Pallet gross height: 2.24 m
Products per pallet layer: 2 pc(s)
Products per pallet layer (UK): 4 pc(s)
Products per pallet (UK): 44 pc(s)
Pallet length (UK): 120 cm
Pallet height (UK): 2.24 m

Other features

Control panel: 0.62 inch with C2 Fine
Supported network protocols: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Box contents: Cable cover, HDMI Cable, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty document
Security features: Kensington lock, Security bar, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
