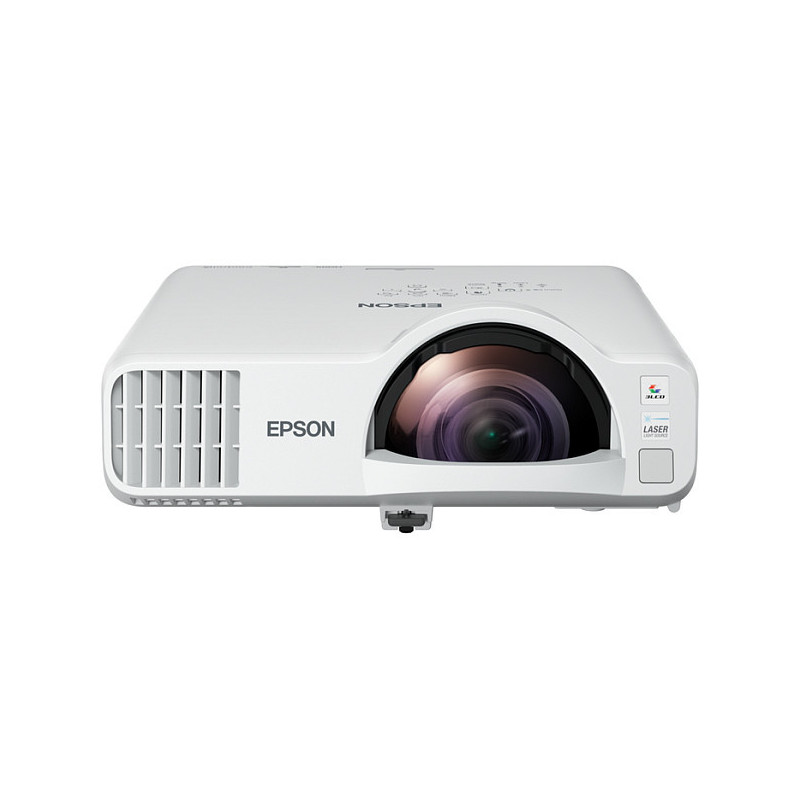

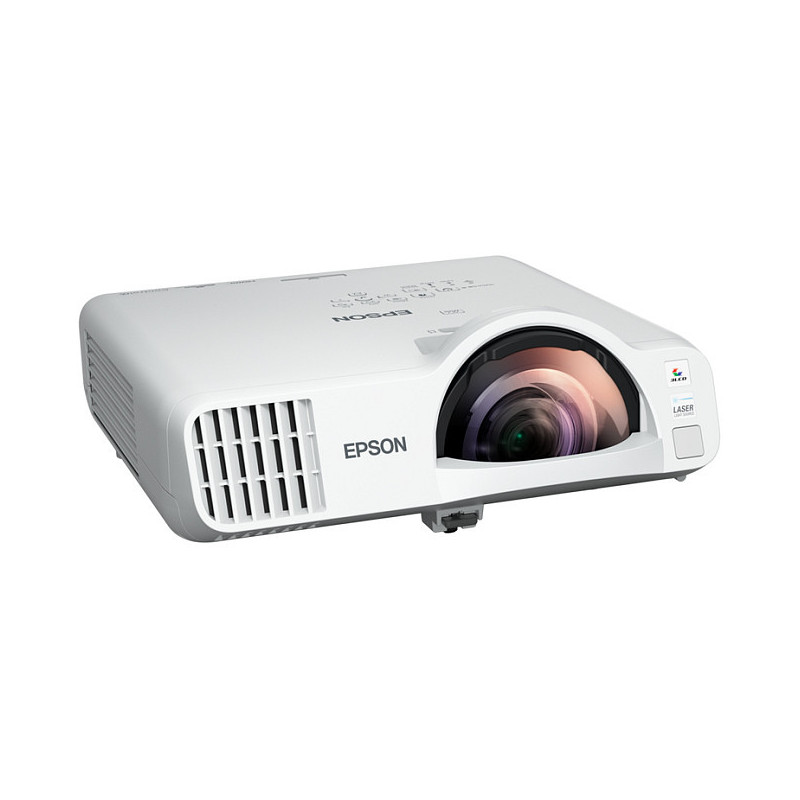

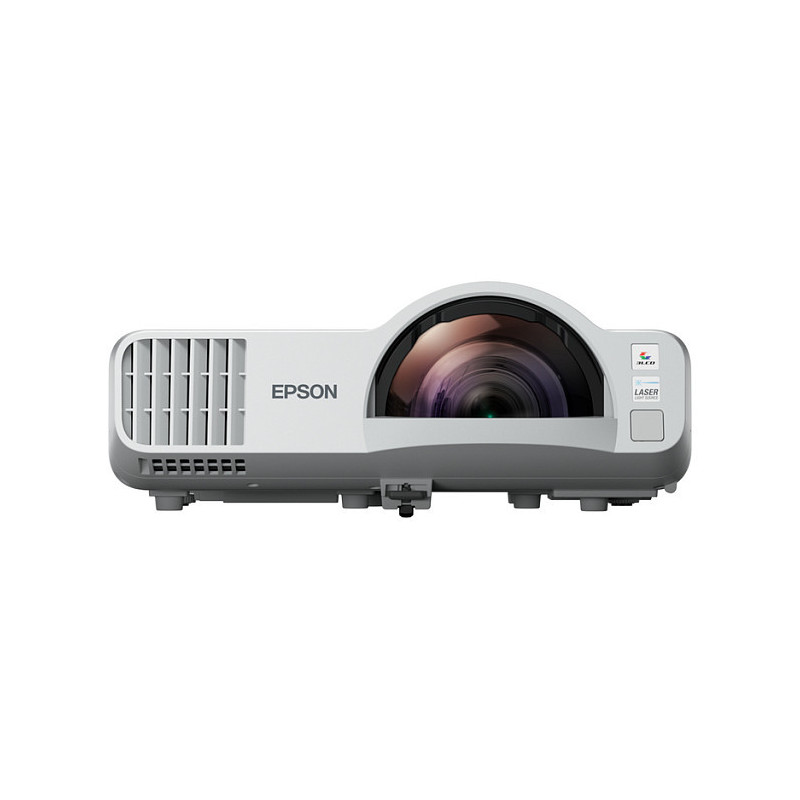

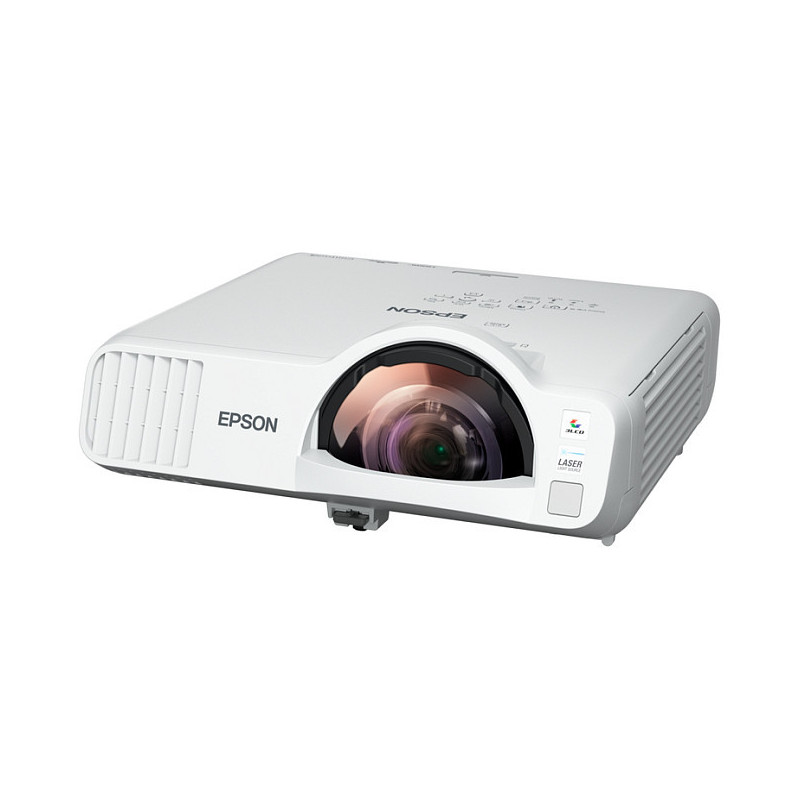

Epson EB-L210SF

Epson EB-L210SF. Projector brightness: 4000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Zoom ratio: 1.35:1, Throw ratio: 0.45 - 0.61:1. Supported video modes: 1080p, Video processing: 10 bit, Colour modes (2D): Cinema, Dynamic, sRGB, Blackboard, DICOM SIM, Presentation. Serial interface type: RS-232C

Agile ST laser display

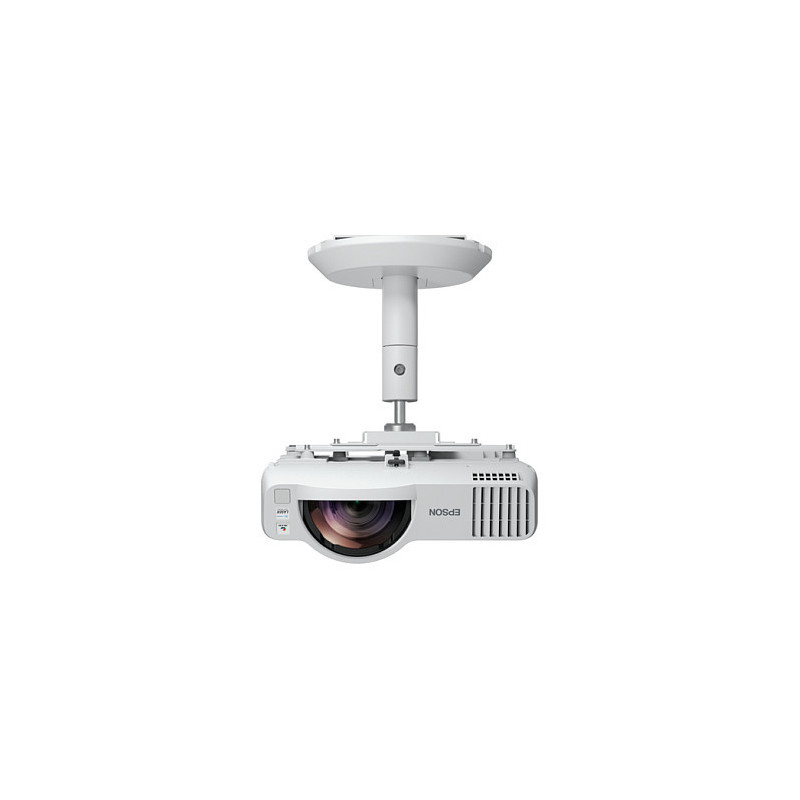

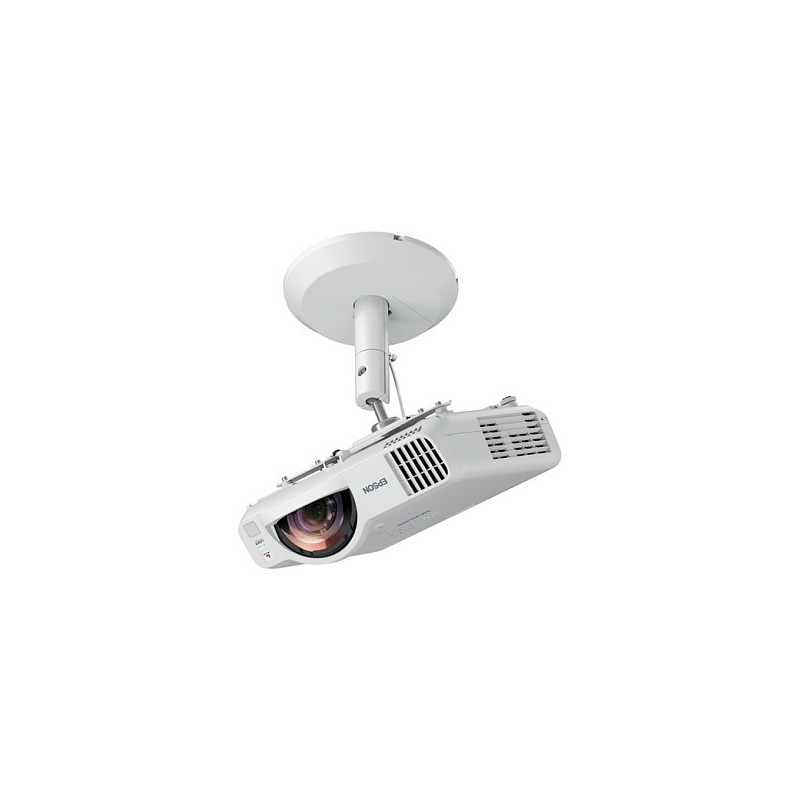

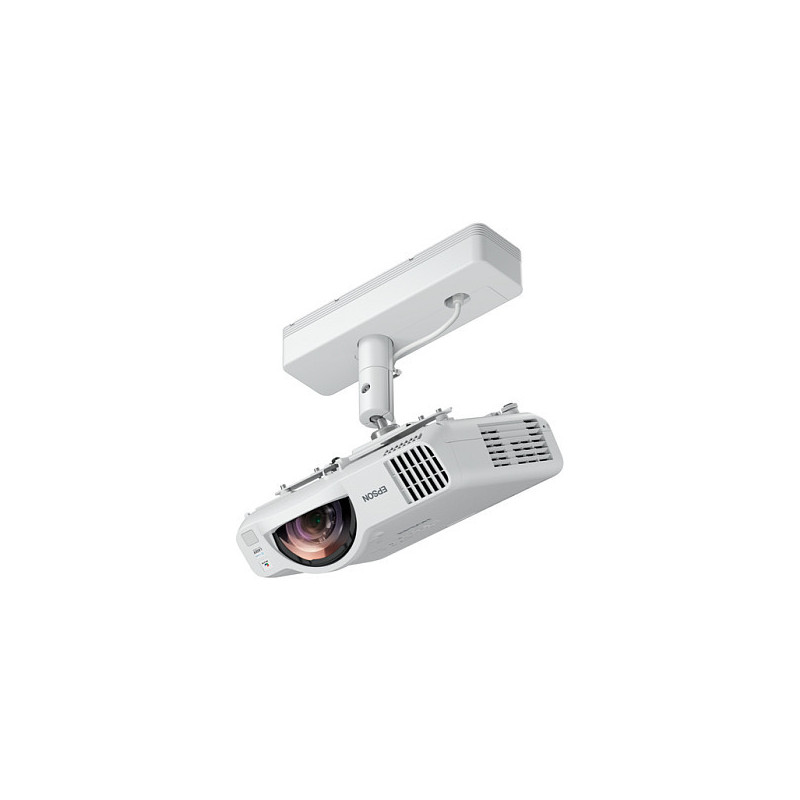

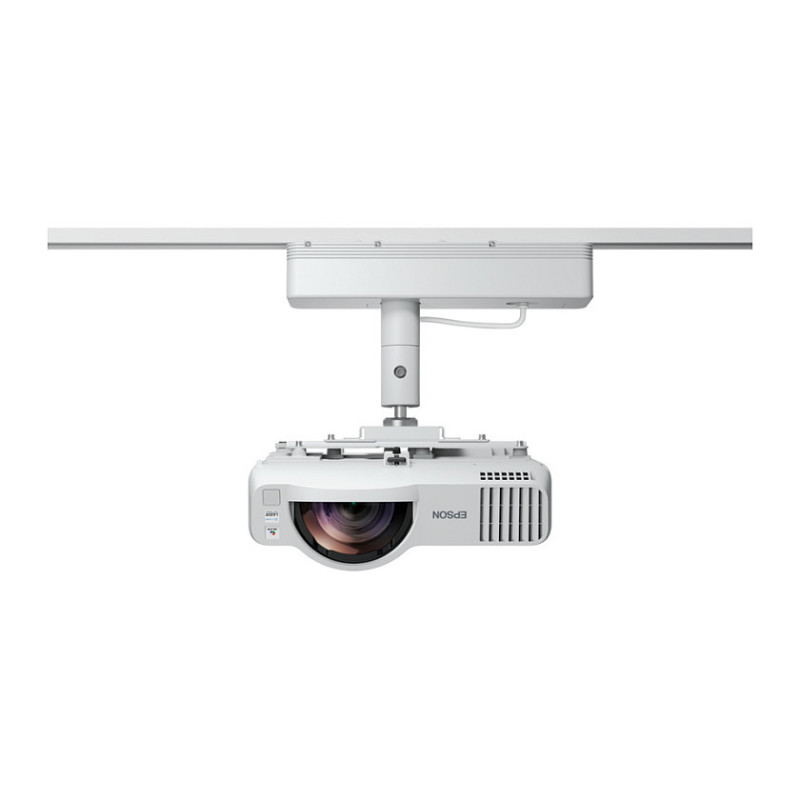

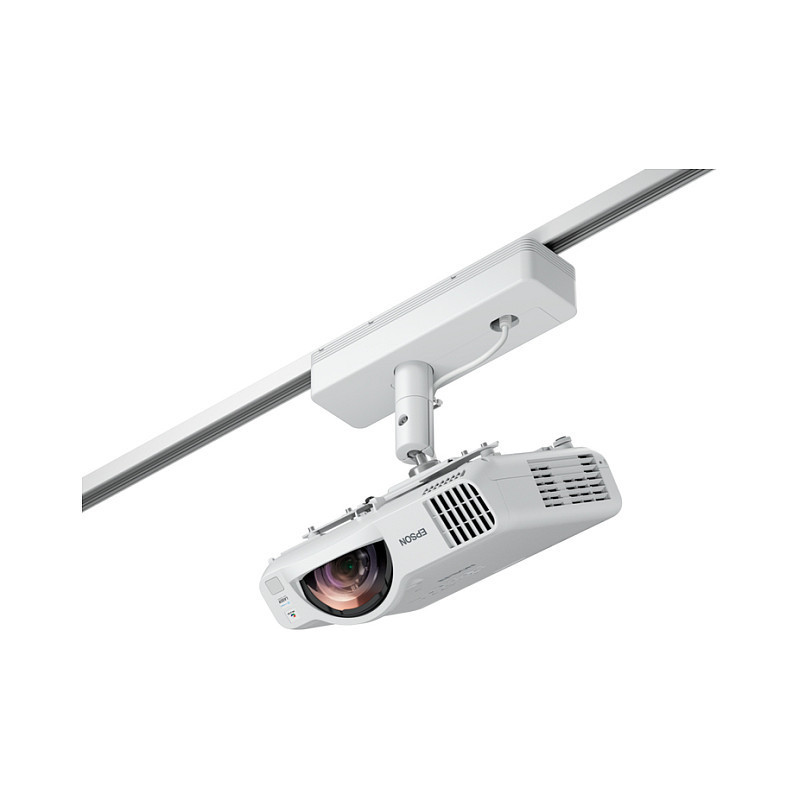

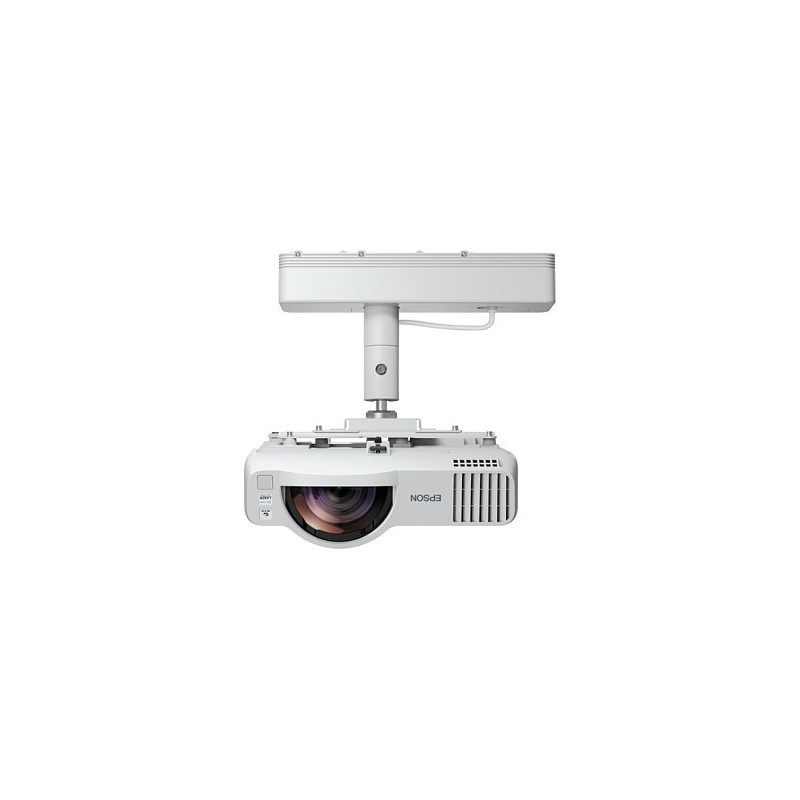

The EB-L210SF delivers quality images and a host of features as standard to give users more for their money, producing a bright and vibrant Full HD image up to 125". Its compact and light weight design makes this a perfect mobile display solution for meetings, or it can be wall or ceiling mounted for a permanent solution, freeing up workspace.


The EB-L210SF's short throw lens allows close positioning of the projector to the display, ideal for small rooms and reducing the risk of shadows cast onto the display


Unlike some other brand projectors, EB-L210SF features 3LCD technology, enabling 4,000 lumens for a bright and vibrant display. The experience is immersive and user-friendly.


Scalable from 55-125", display sizes can be optimised for each room with one product and a fixed cost, and it supports multi-projection edge-blending for a low cost, large, seamless, energy efficient 3780x1080p image.


With up-to 30,000 hour long-life laser-light source, it produces a large display up-to 125", clearly visible from all angles and at a distance, and unlike a flat-panel display, the EB-L210SF can be portable, and there is no glass flat panel to create disruptive, reflected blind spots at certain angles.


Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensures effortless, multi-device content sharing, and with a connected optional Epson visualiser, documents, presentations or 3D objects can be projected in incredible detail to the whole room. With USB 2A power output, HDMI streaming sticks can also be connected to open further possibilities.

Projector

Screen size compatibility: 1397 - 7620 mm (55 - 300")
Contrast ratio (dynamic): 5000000:1
Projector brightness: 4000 ANSI lumens
Projection technology: 3LCD
Projector native resolution: 1080p (1920x1080)
Native aspect ratio: 16:9
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 2800 ANSI lumens
Vertical scan range: 192 - 240 Hz
Keystone correction, horizontal: ±15°
Keystone correction, vertical: ±15°
Matrix size: 1.57 cm (0.62")
White light output: 4000 ANSI lumens
Colour light output: 4000 ANSI lumens
Heat dissipation: 884 BTU/h

Light source

Light source type: Laser
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h

Lens system

Focus: Manual
Feature: Zoom capability
Zoom ratio: 1.35:1
Throw ratio: 0.45 - 0.61:1

Video

Feature: Full HD
Feature: 3D
Supported video modes: 1080p
Video processing: 10 bit
Colour modes (2D): Cinema, Dynamic, sRGB, Blackboard, DICOM SIM, Presentation
Video colour modes: Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB

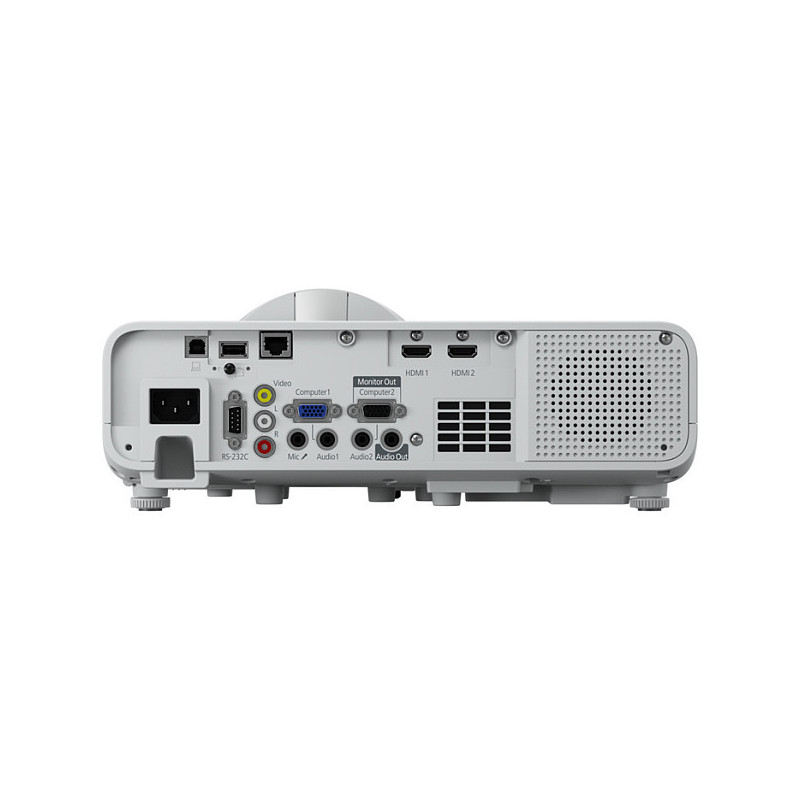

Ports & interfaces

USB 2.0 ports quantity: 2
Audio (L/R) in: 1
Audio (L/R) out: 1
Feature: Microphone in
Serial interface type: RS-232C
VGA (D-Sub) ports quantity: 3
HDMI ports quantity: 2
Feature: DC-in jack
Feature: Consumer Electronics Control (CEC) support

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Feature: Miracast

Features

Noise level (economic mode): 27 dB
Feature: On Screen Display (OSD)
Feature: Screen mirroring
Feature: Auto signal detection
Noise level: 37 dB
Country of origin: Philippines
Feature: Password protection

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 16 W

Design

Market positioning: Portable
Product type: Short throw projector
Product colour: White
Placement: Ceiling, Desktop, Wall
Feature: Cable lock slot
Cable lock slot type: Kensington

Display

Colour depth: 10 bit

Power

Power source: AC
Power consumption (typical): 201 W
Power consumption (standby): 0.5 W
Power consumption (economy mode): 191 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Cord length: 1.8 m

Operational conditions

Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 325 mm
Depth: 337 mm
Height: 90 mm
Weight: 4.6 kg
Package width: 425 mm
Package depth: 530 mm
Package height: 240 mm
Package weight: 7.16 kg

Packaging content

Feature: Remote control included
Cables included: AC, HDMI
Feature: Quick start guide
Feature: Manual
Bundled software: EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management

Technical details

Feature: Mobile app support
Power consumption: 201 Watt (Normal On-Mode), 144 Watt (Eco On-Mode), 260 Watt (Normal Peak-mode), 191 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)

Logistics data

Quantity per pack: 1 pc(s)
Products per pallet: 16 pc(s)
Pallet gross length: 120 cm
Pallet gross width: 80 cm
Pallet gross height: 2.07 m
Products per pallet layer: 2 pc(s)
Products per pallet layer (UK): 4 pc(s)
Products per pallet (UK): 32 pc(s)
Pallet length (UK): 120 cm
Pallet height (UK): 2.07 m

Other features

Option type: Ceiling mount, Connection and control box, External Speaker, Visualiser camera, Wall mount
Control panel: 0.62 inch with C2 Fine
Supported network protocols: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Box contents: HDMI Cable 1.8m, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty Documents
Security features: Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
