Epson EB-810E

Epson EB-810E. Projector brightness: 5000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Fixed focal length: 2.3 mm, Zoom ratio: 1.35:1. Video colour modes: Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation. Serial interface type: RS-232C, Service port type: USB Type-B

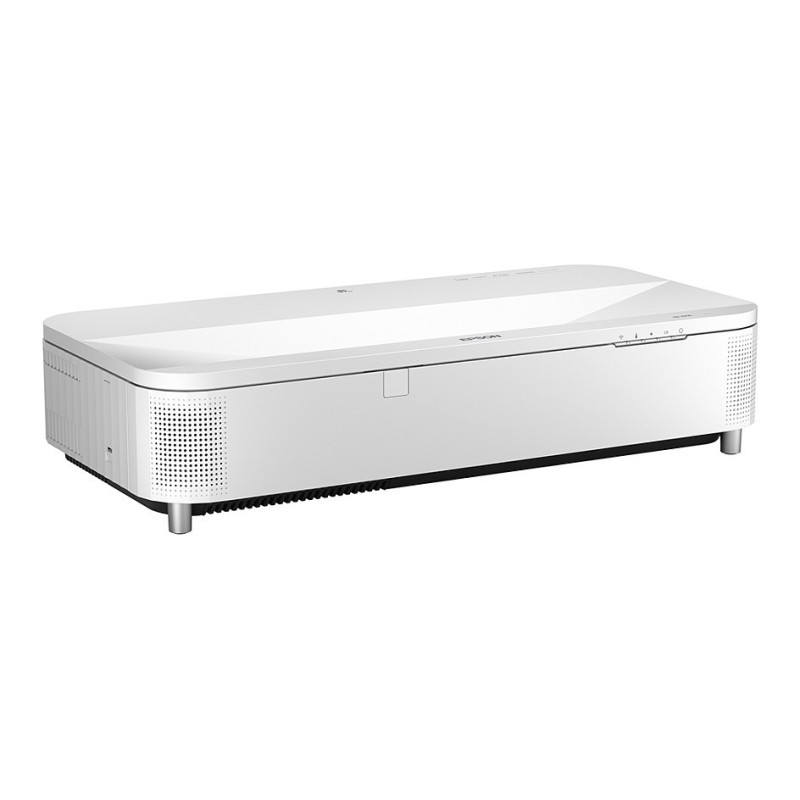

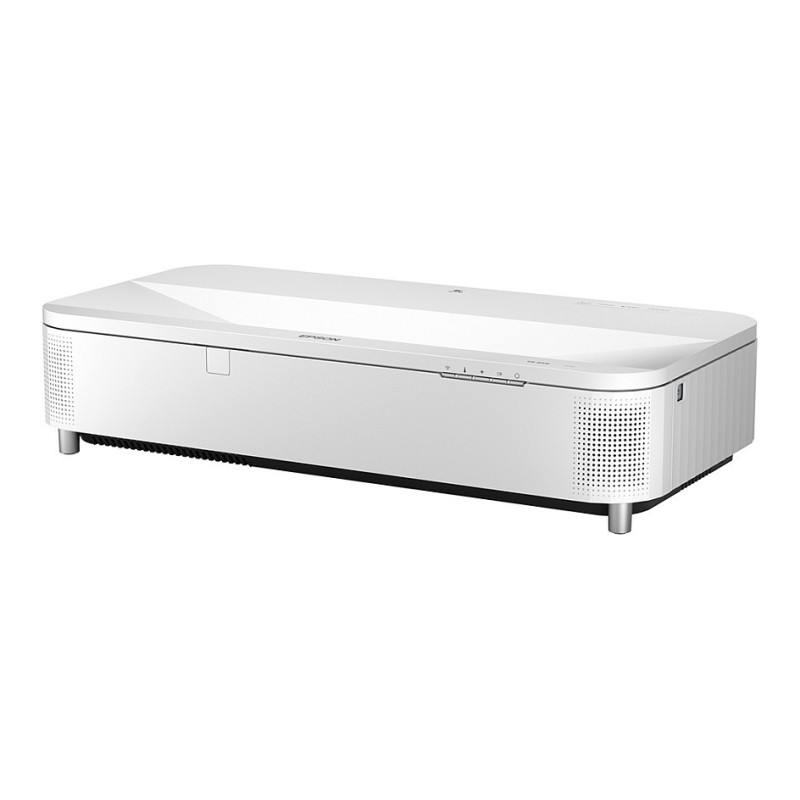

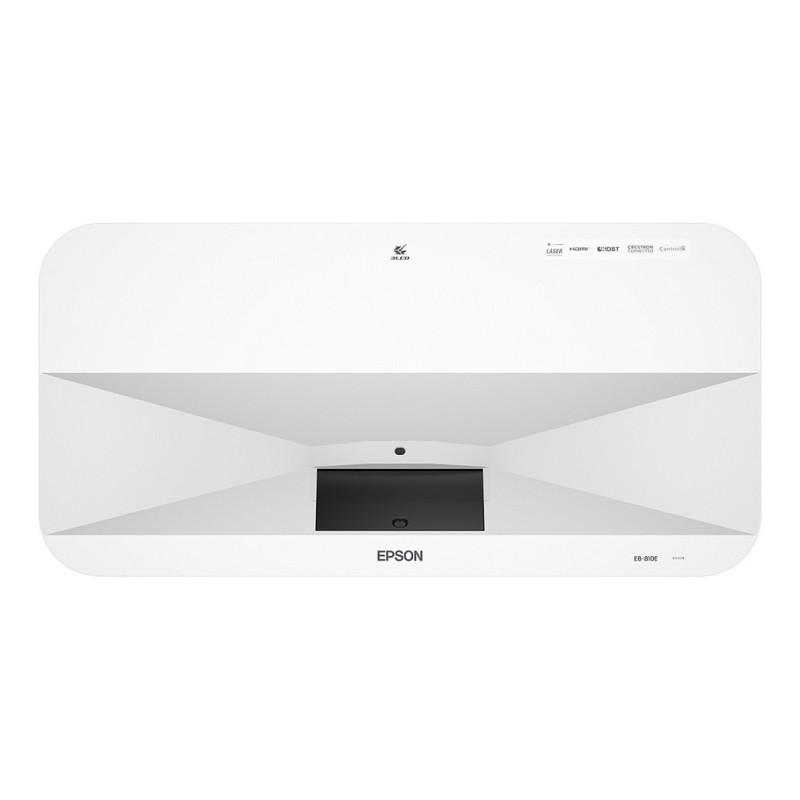

Super UST 4KE laser display

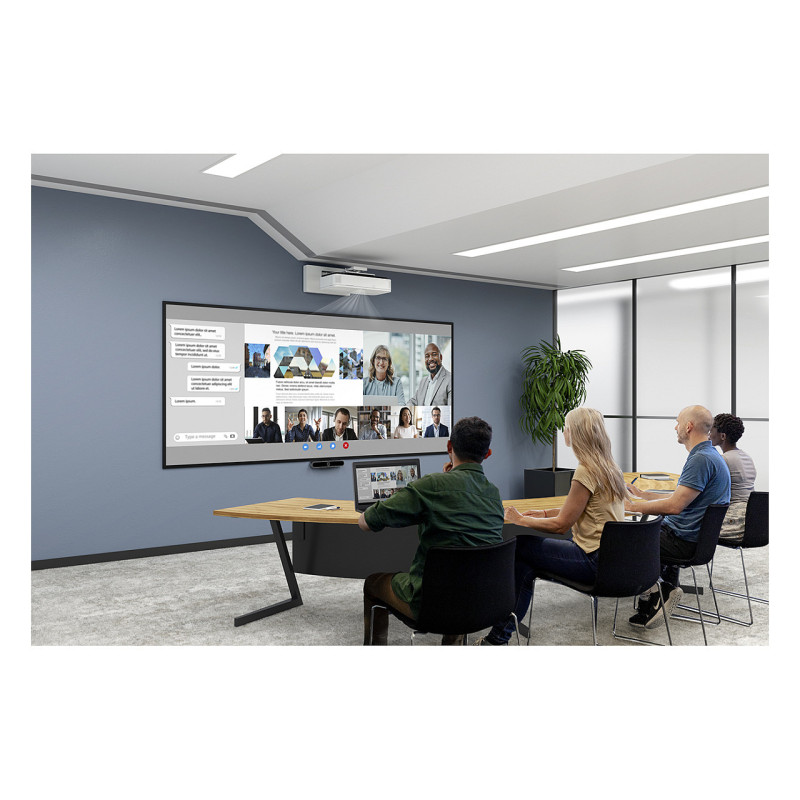

The EB-810E can be placed just centimetres away from a wall to create bright 4KE images up to 160". It projects content in stunning clarity and offers a low cost, energy efficient large display solution with a convenient and quick set up.

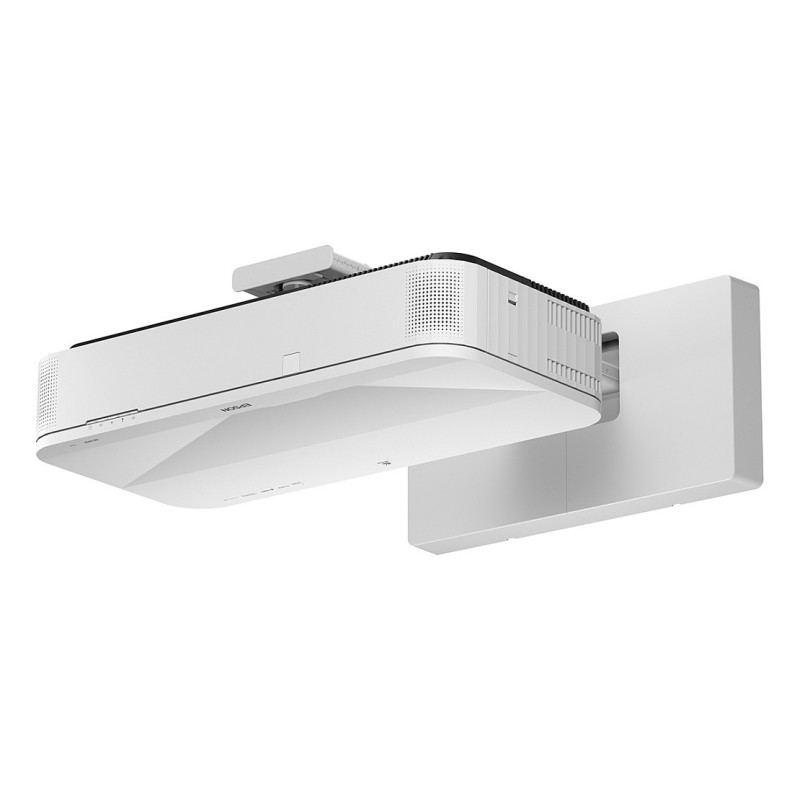

EB-810E's super-ultra-short-throw lens allows discreet positioning close to the wall, enabling presenters free access without casting shadows.


With 5,000 lumens CLO and 3LCD technology, the EB-810E is bright and vibrant up-to 160", which enables content visibility from all angles and distances. The experience is immersive and it's extremely simple to use.


Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensure effortless, multi-device content sharing.

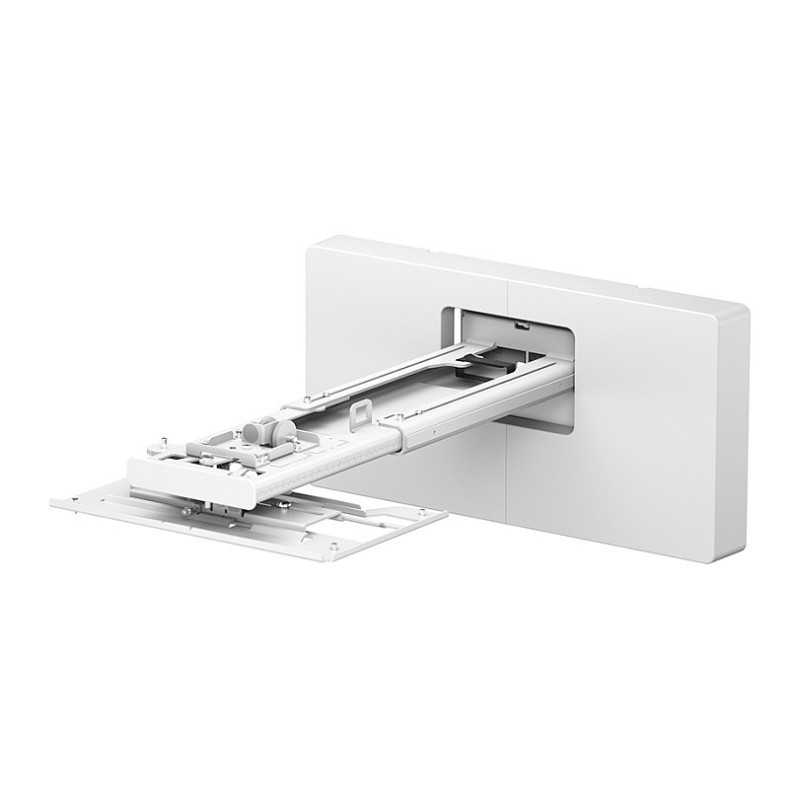

Weighing only 12.3kg, it is highly portable, and the Epson Setting Assistant App makes setup quick and simple. The ideal display solution suitable for different room sizes, combined with flexible installation options.

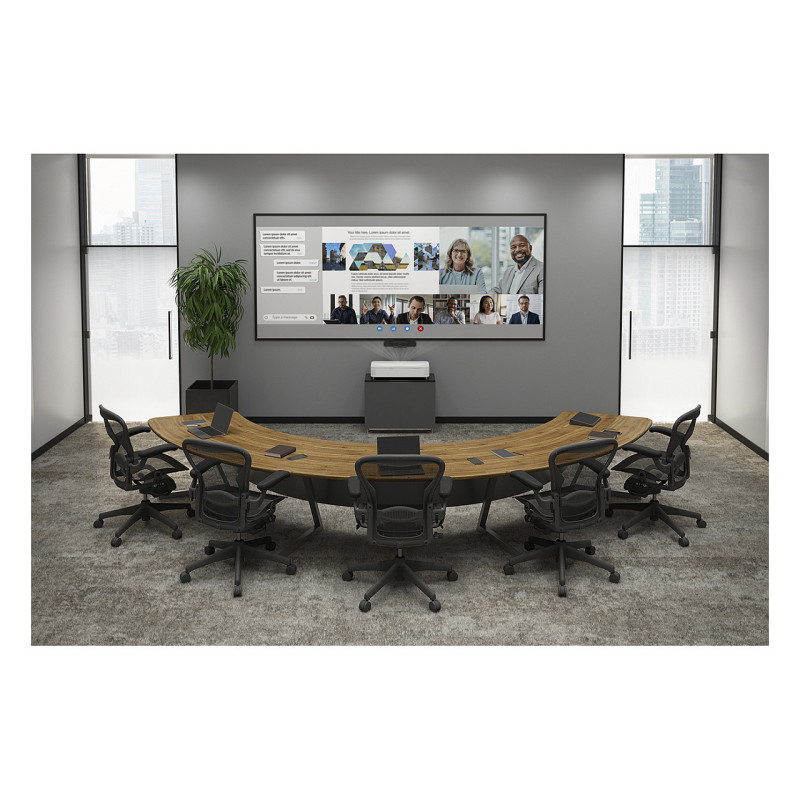

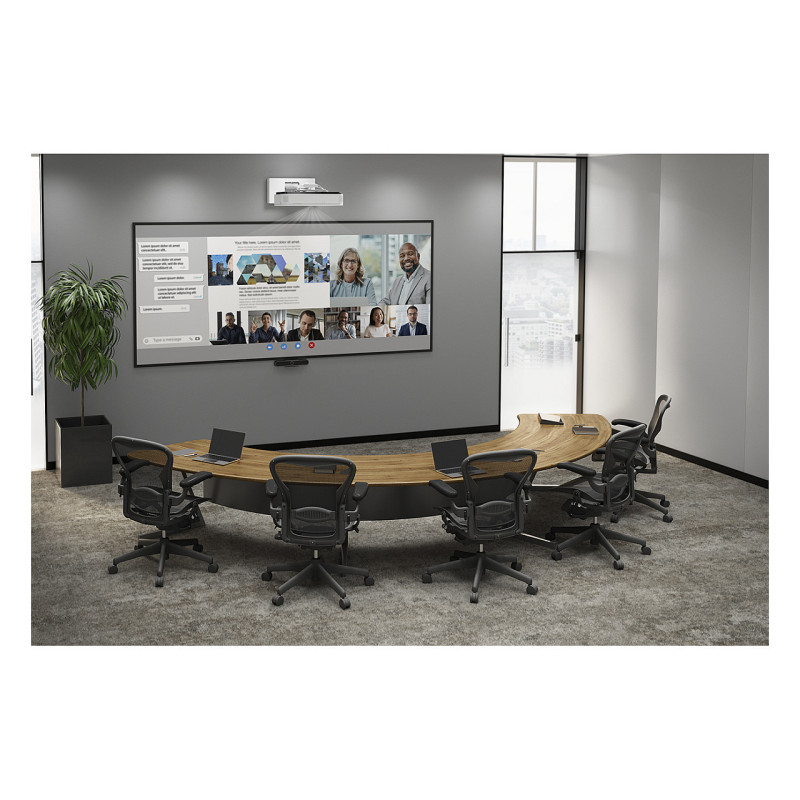

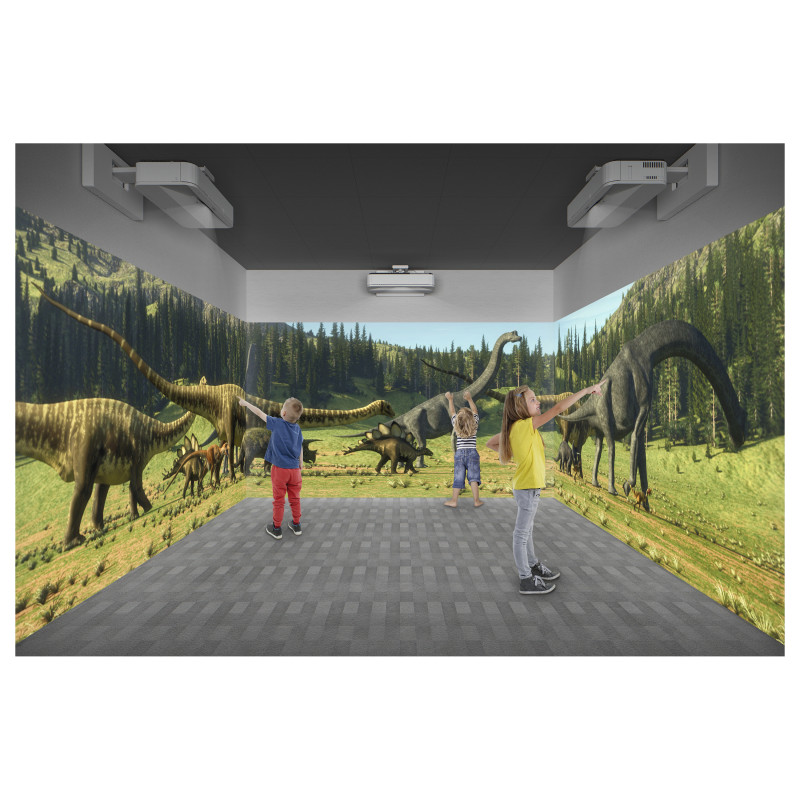

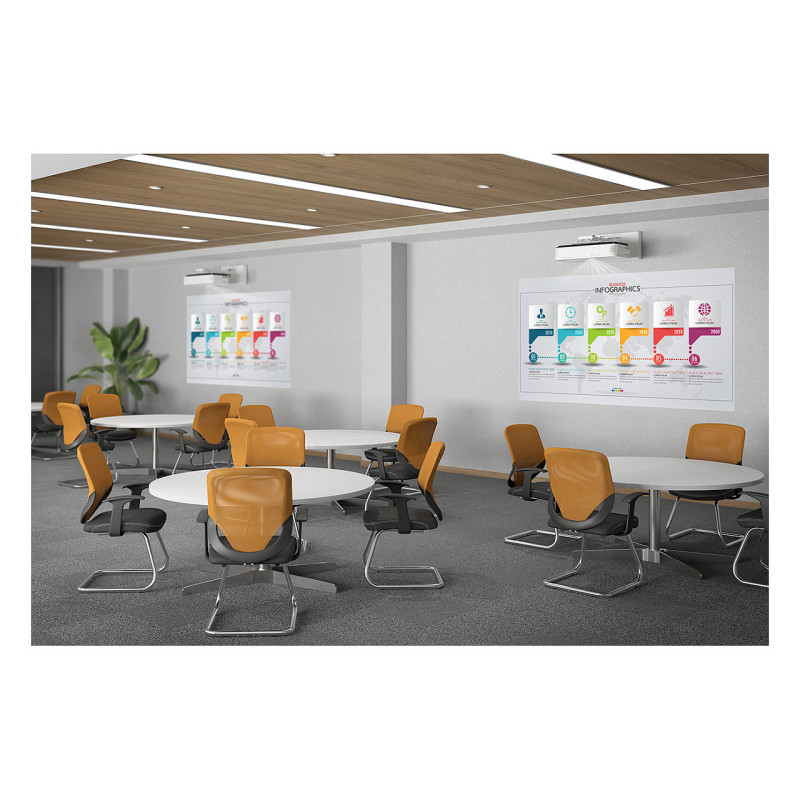

The EB-810E supports multiple aspect ratios and multi-projector edge-blending for a low cost, seamless, energy efficient ultra-wide display, perfect for video conferencing.


Paired with Epson's Ambient Light Rejection Screen, the EB-810E's image quality could be mistaken for a video wall or LED display, but it is surprisingly affordable and consumes a fraction of the energy.

Projector

Screen size compatibility: 2032 - 4064 mm (80 - 160")
Projector brightness: 5000 ANSI lumens
Projection technology: 3LCD
Projector native resolution: 1080p (1920x1080)
Contrast ratio (typical): 2500000:1
Native aspect ratio: 16:9
Vertical scan range: 192 - 240 Hz

Light source

Light source type: Laser
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h

Lens system

Focus: Manual
Fixed focal length: 2.3 mm
F-number (relative aperture): 1.8
Zoom ratio: 1.35:1
Throw ratio: 0.16 - 0.40:1

Video

Analog signal format system: Not supported
Feature: Full HD
Video colour modes: Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

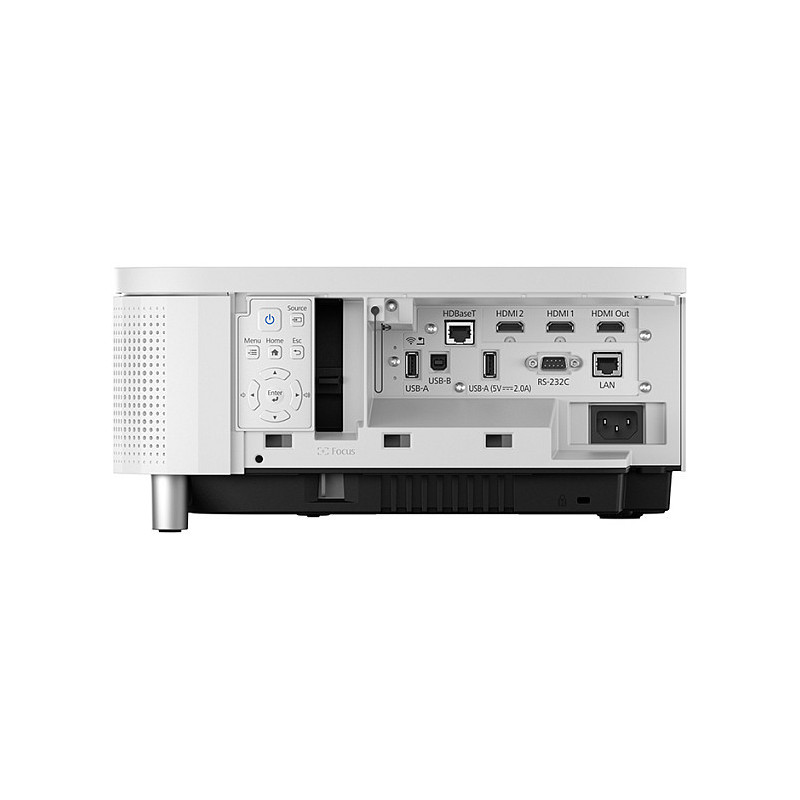

Ports & interfaces

Feature: HDBaseT port
Service port type: USB Type-B
USB 2.0 ports quantity: 2
USB 2.0 Type-A ports quantity: 2
Serial interface type: RS-232C
HDMI ports quantity: 3

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Feature: Miracast

Features

Noise level (economic mode): 26 dB
Noise level: 35 dB
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Feature: Password protection

Design

Market positioning: Business
Product type: Ultra short throw projector
Product colour: White
Placement: Ceiling, Desktop, Wall
Feature: Cable lock slot
Cable lock slot type: Kensington

Power

Power source: AC
Power consumption (typical): 290 W
Power consumption (max): 380 W
Power consumption (PowerSave): 0.4 W
Power consumption (economy mode): 286 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Operational conditions

Operating temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 695 mm
Depth: 341 mm
Height: 156 mm
Weight: 12.5 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC
