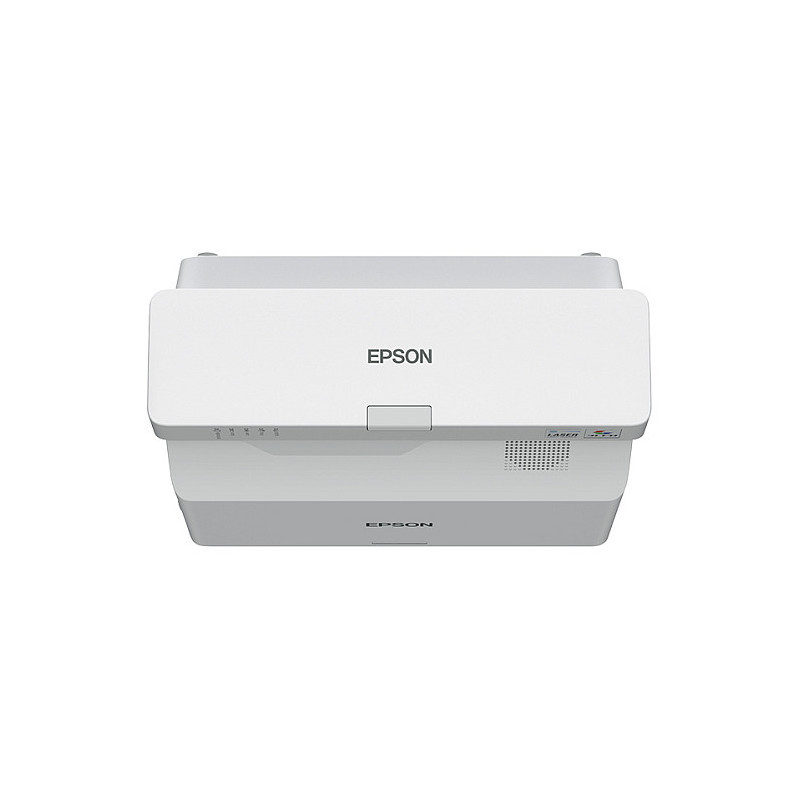

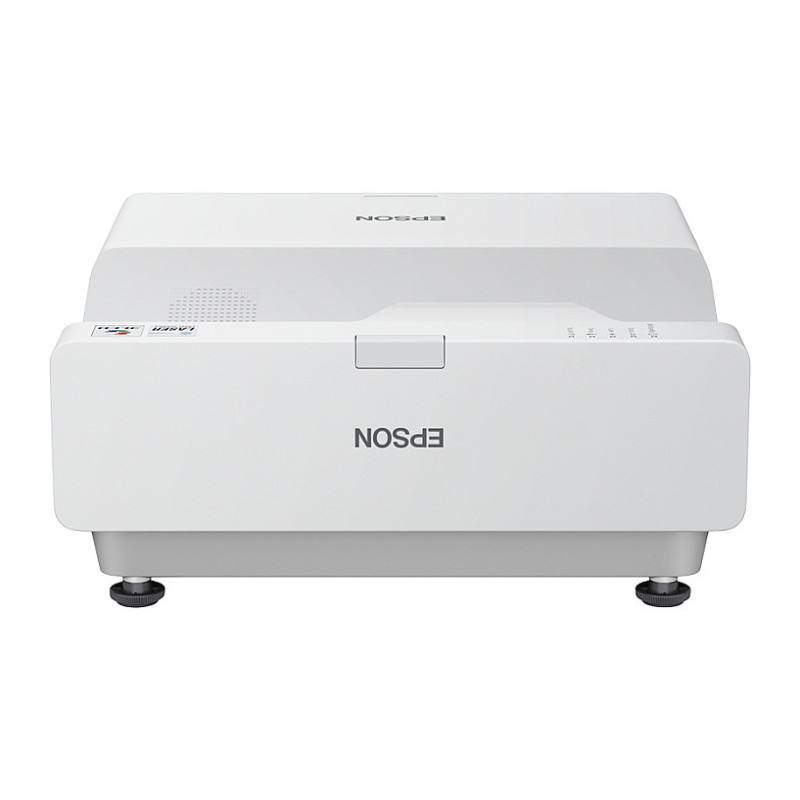

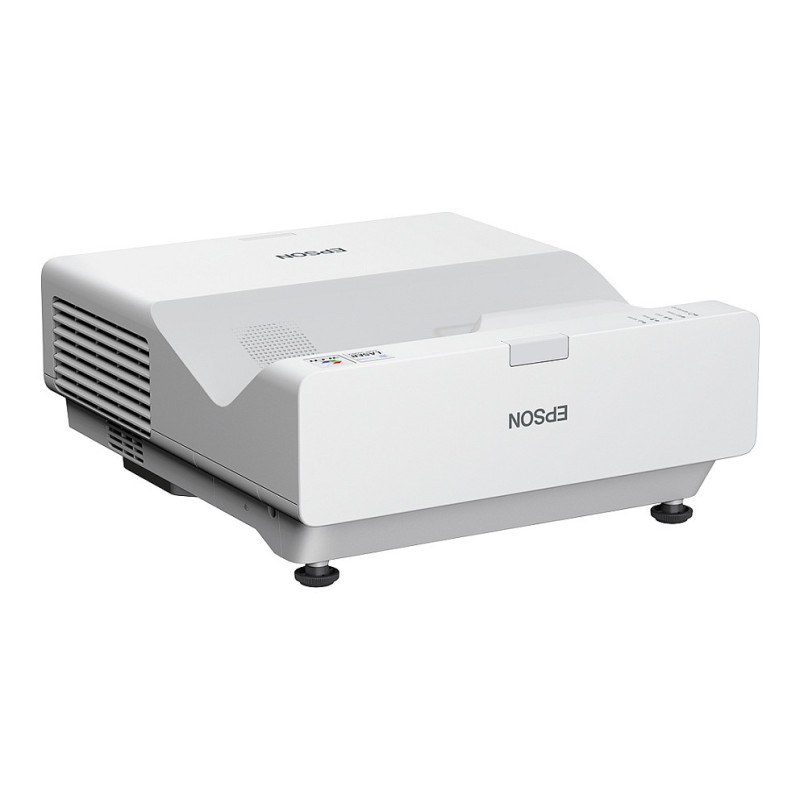

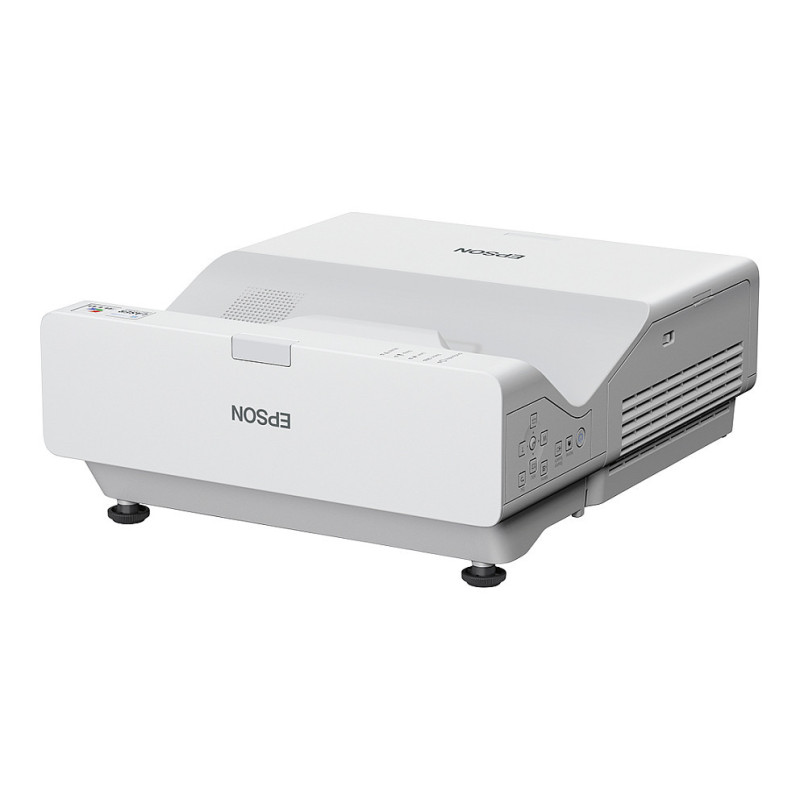

Epson EB-760Wi

Epson EB-760Wi. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 3.7 mm, Fixed focal length: 3.7 mm. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C, Service port type: USB Type-B

Agile USTi laser display

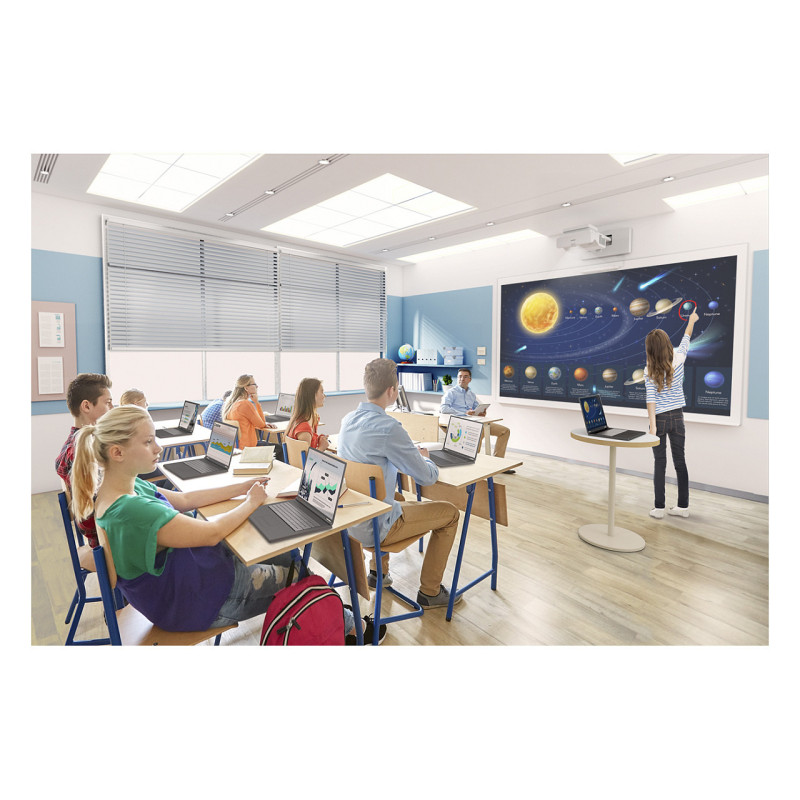

Whatever the size of class or meeting room, unrestricted and interactive presentations are possible with this bright, compact and affordable touch-display solution.

The EB-760Wi's vibrant image, scalable up to 100", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.


The EB-760Wi is a step up from the EB-760W, with added interactive features.


Interactive technology enables two digital pens to be used simultaneously on the display (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be controlled via the display, projecting documents or objects from a desk for everyone to see in incredible HD detail.

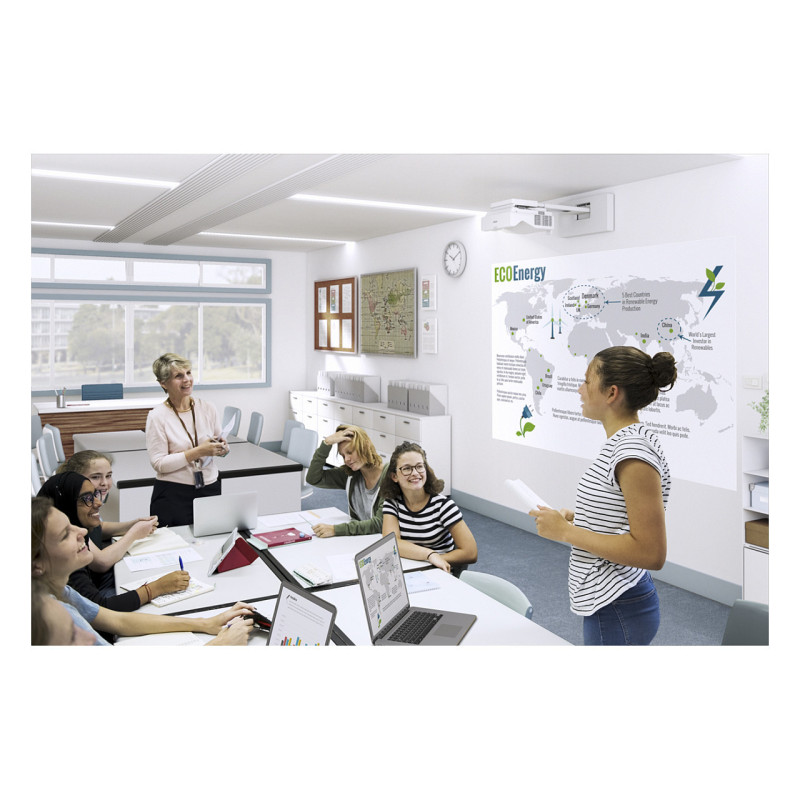

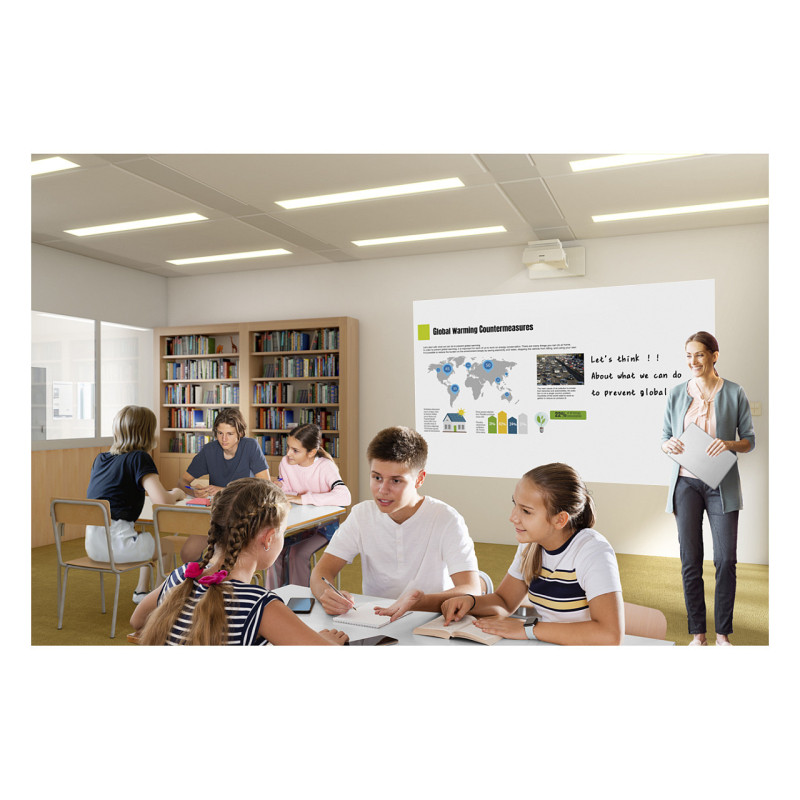

The ultra short throw lens allows safe, discreet positioning above the display, enabling presenters free access to interact without casting shadows.


With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", visibly clear from all angles and at a distance.


Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices.


Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles, and presenters are not subjected to LCD panel direct blue light radiation, believed to damage eyes.

Projector

Screen size compatibility: 1346.2 - 2540 mm (53 - 100")
Contrast ratio (dynamic): 5000000:1
Projector brightness: 4100 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WXGA (1280x800)
Contrast ratio (typical): 2500000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 2800 ANSI lumens
Vertical scan range: 100 - 120 Hz
Keystone correction, horizontal: ±3°
Keystone correction, vertical: ±3°
Matrix size: 1.5 cm (0.59")

Light source

Light source type: Laser
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h

Lens system

Focus: Manual
Focal length range: 3.7 mm
Fixed focal length: 3.7 mm
F-number (relative aperture): 1.6
Feature: Zoom capability
Zoom ratio: 1.35:1
Throw ratio: 0.27 - 0.37:1

Video

Analog signal format system: Not supported
Video processing: 10 bit
Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB

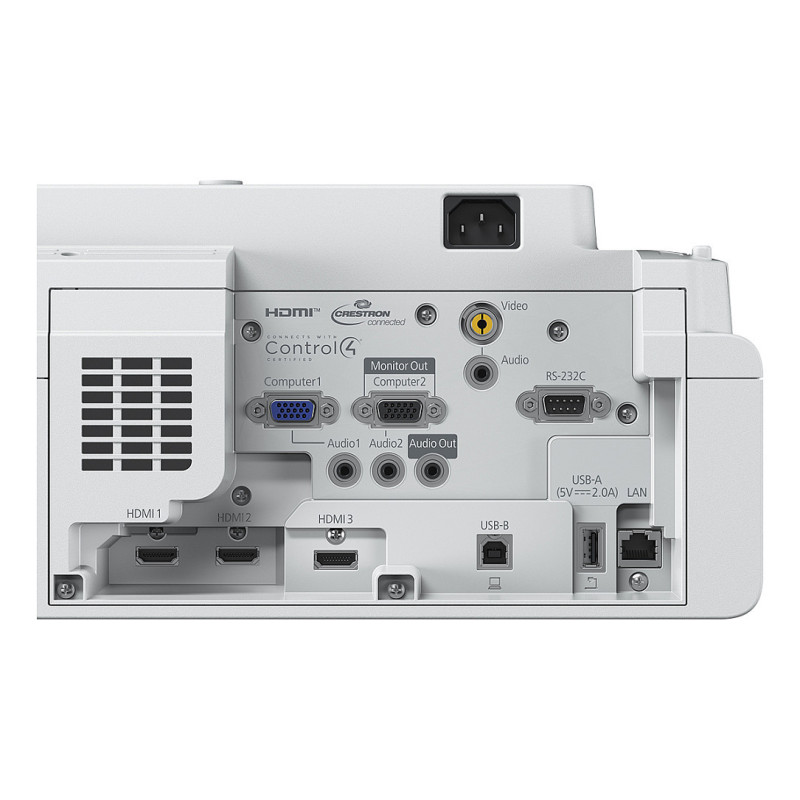

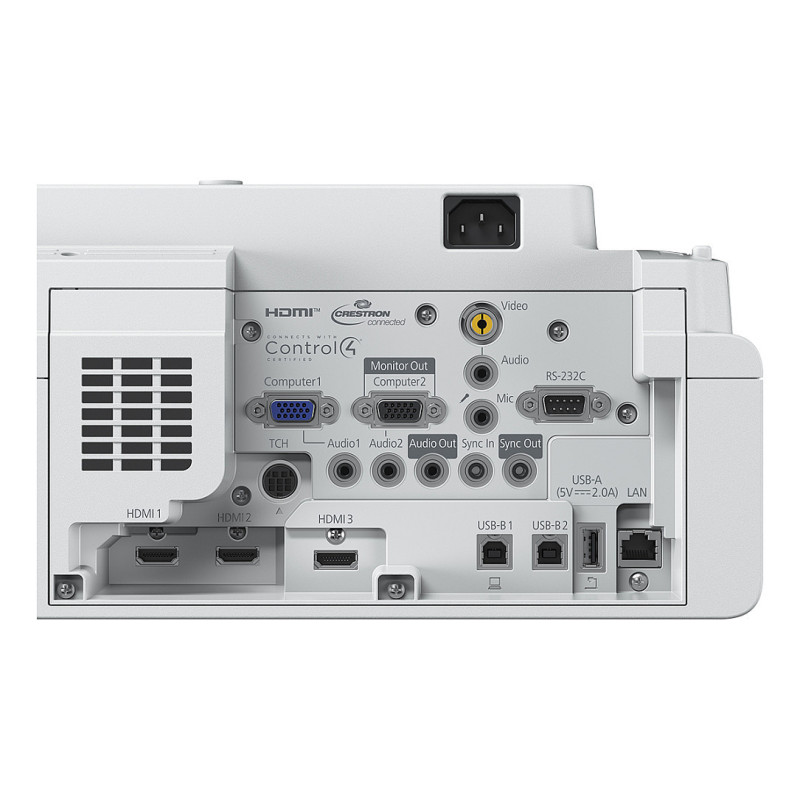

Ports & interfaces

Service port type: USB Type-B
USB 2.0 ports quantity: 2
Headphone outputs: 3
Feature: Microphone in
Serial interface type: RS-232C
VGA (D-Sub) ports quantity: 3
HDMI ports quantity: 3
Composite video in: 1

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Feature: Miracast

Features

Feature: Interactive
Noise level (economic mode): 27 dB
Feature: On Screen Display (OSD)
Noise level: 37 dB
Feature: Air filter
Country of origin: Philippines
Feature: Password protection

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 16 W

Design

Market positioning: Presentation
Product colour: White
Placement: Ceiling, Desktop, Wall
Feature: Cable lock slot
Cable lock slot type: Kensington

Power

Power source: AC
Power consumption (typical): 197 W
Power consumption (economy mode): 141 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 356 mm
Depth: 395 mm
Height: 133 mm
Weight: 6 kg
Package width: 450 mm
Package depth: 490 mm
Package height: 325 mm
Package weight: 9.17 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC, USB
Feature: Interactive pen included
Bundled software: Easy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management

Technical details

Feature: Mobile app support

Logistics data

Quantity per pack: 1 pc(s)
Products per pallet: 12 pc(s)
Pallet gross length: 120 cm
Pallet gross width: 80 cm
Pallet gross height: 2.1 m
Products per pallet layer: 2 pc(s)
Products per pallet layer (UK): 4 pc(s)
Products per pallet (UK): 24 pc(s)
Pallet length (UK): 120 cm
Pallet height (UK): 2.1 m

Other features

Control panel: 0.59 inch with C2 Fine
Supported network protocols: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Security features: Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
