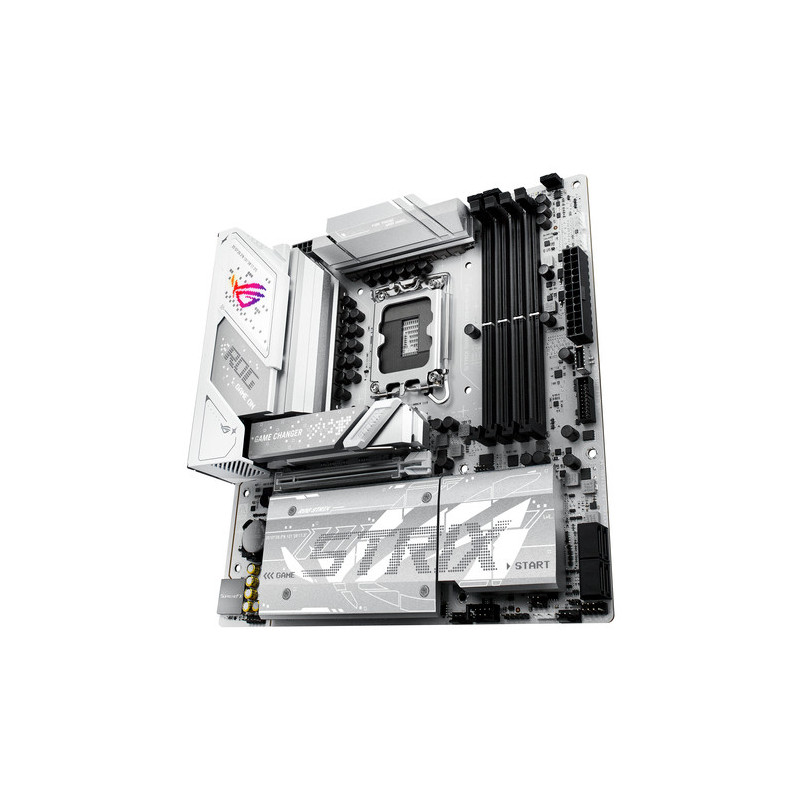

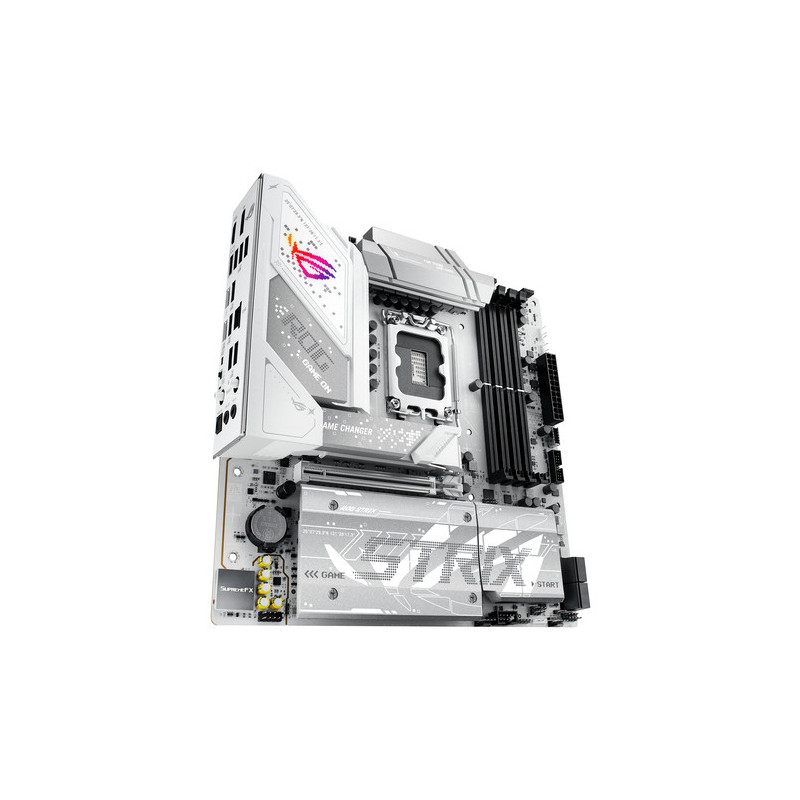

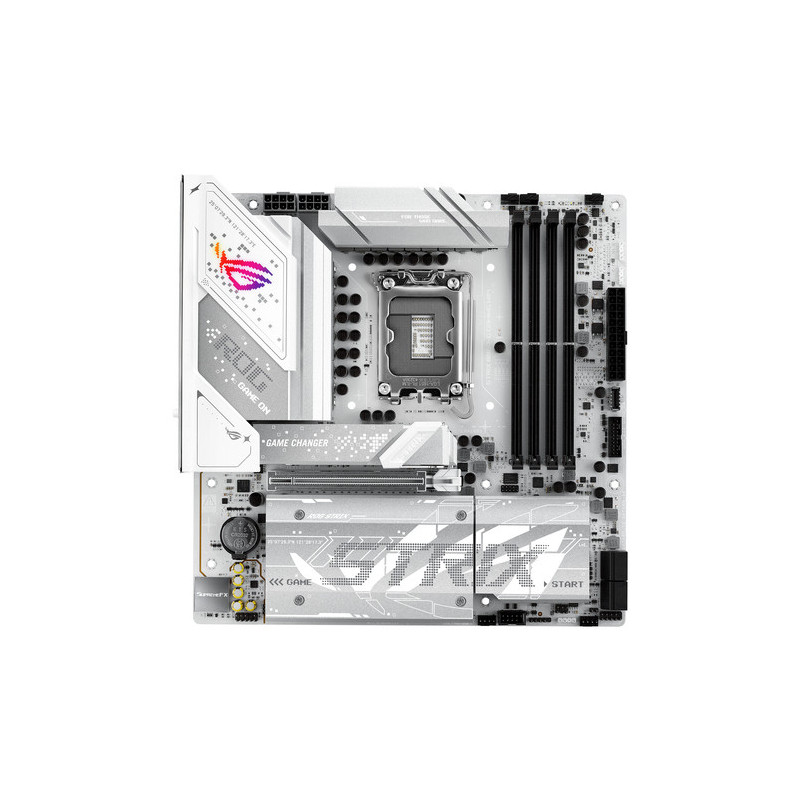

ROG STRIX B860-G ŽAIDIMŲ pagrindinė plokštė su Wi-Fi

* mATX Form Factor



CPU: Support Intel® Core™ Ultra Processors(Series 2) LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0



Chipset: Intel® B860 Chipset



Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

*Dvoukanálová paměťová architektura

*Podpora paměťového modulu Intel® Extreme Memory Profile (XMP)

*ASUS Enhanced Memory Profile III(AEMPIII)



Grafické porty:

*1 x DisplayPort

*1 x HDMI™ port

*1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs



Rozšiřující sloty:

Intel® Core™ Ultra Processors(series 2)

*1 x PCIe 5.0 x16 slot



Úložný prostor:

Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Core™ Ultra Processors(series 2)

*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel® B860 Chipset

*M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4)

*M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)

*M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4)

*4 x SATA 6Gb/s ports



Ethernet:

*1 x Intel® 2.5Gb Ethernet



Připojení a Bluetooth:

*Wi-Fi 7

*2x2 Wi-Fi 7 (802.11be)

*Supports 2.4/5/6GHz frequency band

*Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

*Bluetooth® v5.4



USB:

Zadní USB (Total 7 ports)

*1 x Thunderbolt™ 4 port (1 x USB Type-C®)

*1 x USB 20Gbps port(s) (1 x USB Type-C®)

*1 x USB 10Gbps port(s) (1 x Type-A)

*3 x USB 5Gbps port(s) (3 x Type-A)

*4 x USB 2.0 port(s) (4 x Type-A)



Přední USB (Total 7 ports)

*1 x USB 10Gbps connector

*1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

*2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports



Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

*SupremeFX Shielding Technology

*Savitech SV3H712 AMP

*Rear optical S/PDIF out port

*Premium audio capacitors

*Audio cover



Vstupy/výstupy zadního panelu:

*1 x Thunderbolt™ 4 USB Type-C® port(s)

*1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode)

*1 x USB 10Gbps port(s) (1 x Type-A)

*3 x USB 5Gbps port(s) (3 x Type-A)

*4 x USB 2.0 port(s) (4 x Type-A)

*1 x DisplayPort

*1 x HDMI™ port

*1 x Wi-Fi module

*1 x Intel® 2.5Gb Ethernet port

*2 x Audio jacks

*1 x Optical S/PDIF out port

*1 x BIOS FlashBack™ button

*1 x Clear CMOS button



Interní vstupy/výstupy:

Ventilátory a chlazení:

*1 x 4-pin CPU Fan header(s)

*1 x 4-pin CPU OPT Fan header(s)

*1 x 4-pin AIO Pump header(s)

*2 x 4-pin Chassis Fan header(s)

Napájení:

*1 x 24-pin Main Power connector

*2 x 8-pin +12V CPU Power connector

Úložiště:

*4 x M.2 slots (Key M)

*1 x M.2 Vertical slot (Key M)

*4 x SATA 6Gb/s ports

USB:

*1 x USB 10Gbps connector (support(s) USB Type-C® )

*1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

*2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports

Různé:

*3 x Addressable Gen 2 header(s)

*1 x Front Panel Audio header (F_AUDIO)

*1 x 10-1 pin Front System Panel header

*1 x Thermal Sensor header



Příslušenství:

Kabely:

*2 x SATA 6Gb/s cables

Různé:

*1 x ASUS WiFi Q-Antenna

*1 x Cable ties package

*1 x M.2 Q-Latch package(s)

*1 x M.2 Q-Slide package

*1 x ROG key chain

*1 x ROG Strix sticker

*3 x M.2 rubber package(s)

*1 x M.2 backplate rubber package(s)

Dokumenty:

*1 x Quick start guide
