Płyta główna X870 A ELITE WF7 ICE AM 5 4DDR5 HDMI / USB-C ATX
Prekės kodas:
3-4719331864682
Płyta główna X870 A ELITE WF7 ICE AM 5 4DDR5 HDMI/USB-C ATX
Płyta główna X870 A ELITE WF7 ICE AM 5 4DDR5 HDMI / USB-C ATX
Prekės kodas:
3-4719331864682
Płyta główna X870 A ELITE WF7 ICE AM 5 4DDR5 HDMI/USB-C ATX
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Europos
per 10 - 19*
d. d.

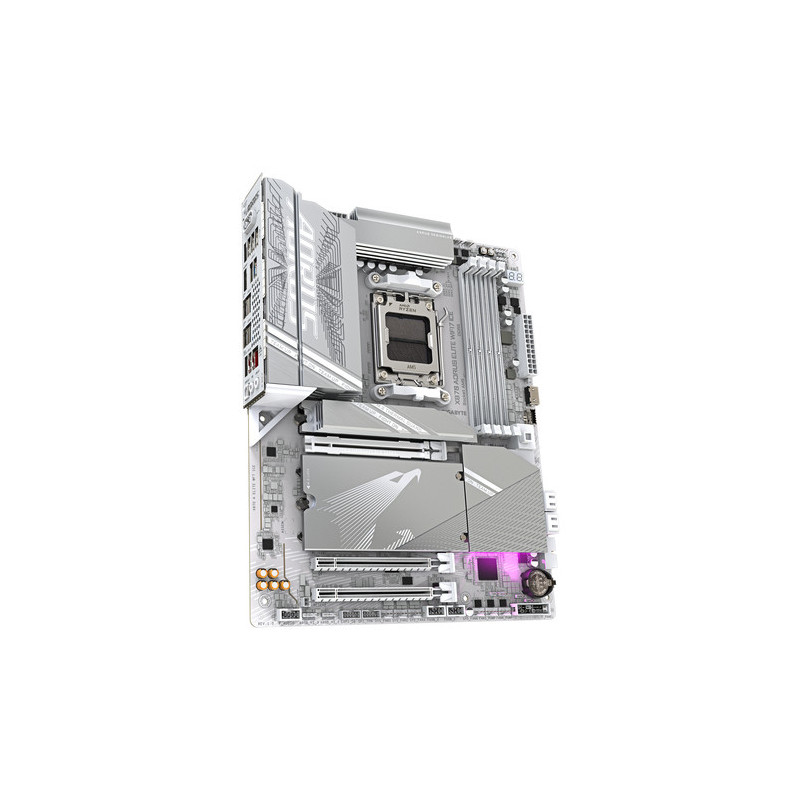

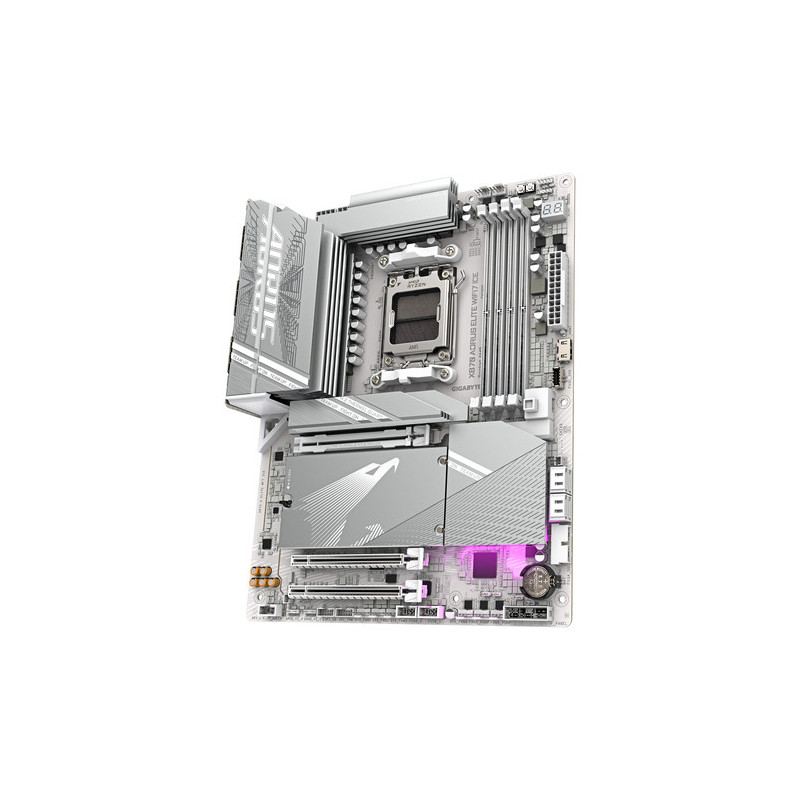

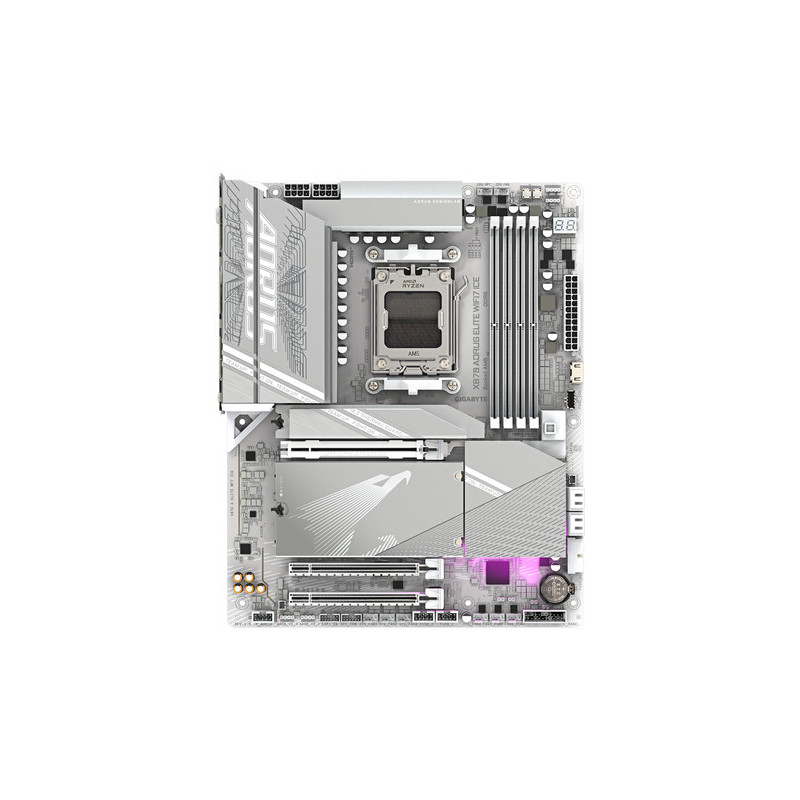

GIGABYTE X870 AORUS ELITE WIFI7 ICE
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Twin 16+2+2 Phases Digital VRM with DrMOS
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L

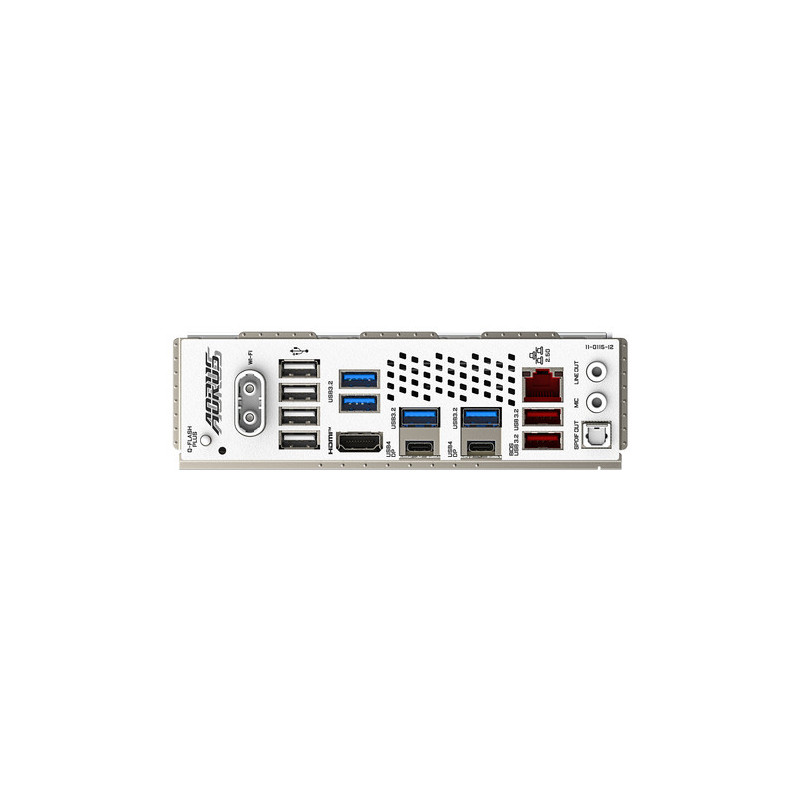

- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
| Summary: | GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels, On-board graphics card model: AMD Radeon Graphics. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be) |
| Vendor Homepage: | https://www.gigabyte.com/Motherboard/X870-AORUS-ELITE-WIFI7-ICE |
| Category Code: | MBA |
| CnCode: | 84733020 |
| Unit Box Height: | 0.08 |
| Unit Box Length: | 0.34 |
| Unit Box Width: | 0.275 |
| Audio chip: | Realtek ALC1220 |
| Audio output channels: | 7.1channels |
| Component for: | PC |
| Motherboard chipset: | AMD X870 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| PC health monitoring: | Fan/Noise/Temperature/Voltage/Water cooling |
| Product colour: | White |
| Windows operating systems supported: | Windows 11 x64 |
| Compatible processor series: | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Maximum internal memory supported by processor: | 256GB |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Supported processor sockets: | Socket AM5 |
| ECC сompatibility: | Non-ECC |
| Maximum internal memory: | 256GB |
| Maximum internal memory per slot: | 64GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 8200MHz |
| Supported memory clock speeds: | 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200MHz |
| Supported memory types: | DDR5-SDRAM |
| Unbuffered memory: | Yes |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 8 |
| RAID levels: | 0/1/10 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2 |
| Supported storage drive types: | HDD & SSD |
| DirectX version: | 12.0 |
| Discrete graphics support: | Yes |
| HDCP: | Yes |
| Maximum resolution: | 4096 x 2160pixels |
| Number of displays supported: | 4 |
| On-board graphics card: | Yes |
| On-board graphics card model: | AMD Radeon Graphics |
| Parallel processing technology support: | Not supported |
| 12V power connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Number of chassis fan connectors: | 6 |
| Number of CPU fan connectors: | 2 |
| Number of EPS power connectors (8-pin): | 2 |
| Number of RGB LED pin headers: | 4 |
| Number of SATA III connectors: | 4 |
| Number of water pump connectors: | 3 |
| RGB LED pin header: | Yes |
| Total number of SATA connectors: | 4 |
| TPM connector: | Yes |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 3.2 Gen 2x2 connectors: | 1 |
| DisplayPort version: | 1.4 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| Headphone outputs: | 1 |
| Microphone in: | Yes |
| S/PDIF out port: | Yes |
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| USB4 Gen 3x2 ports quantity: | 2 |
| WiFi-AP antenna jack: | 2 |
| Bluetooth: | Yes |
| Bluetooth version: | 5.4 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| LAN controller: | Realtek RTL8125 |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi: | Yes |
| Wi-Fi standards: | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN controller model: | MediaTek MT7925 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 1st M.2 largest key size: | 25110 |
| 2nd M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 largest key size: | 22110 |
| 3rd M.2 highest PCI Express generation: | 5.0 |
| 3rd M.2 largest key size: | 22110 |
| 4th M.2 highest PCI Express generation: | 4.0 |
| 4th M.2 largest key size: | 22110 |
| Number of M.2 (M) slots: | 4 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| ACPI version: | 5.0 |
| BIOS memory size: | 256Mbit |
| BIOS type: | UEFI AMI |
| Clear CMOS button: | Yes |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3g |
| Country of origin: | China |
| Lithium weight per battery: | 0.07g |
| Number of battery cells: | 1 |
| Package depth: | 270mm |
| Package height: | 80mm |
| Package weight: | 2740g |
| Package width: | 335mm |
| Products per shipping (inner) case: | 1pc(s) |
| Depth: | 244mm |
| Height: | 35mm |
| Width: | 305mm |
| Antenna included: | Yes |
| Batteries included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included: | Yes |
| Warranty period: | 3year(s) |
| Weight: | 2400g |
| Product Net Weight: | 2.2kg |
| Shipping Box Depth: | 44.5cm |
| Shipping Box Height: | 38cm |
| Shipping Box Weight: | 13kg |
| Shipping Box Width: | 31.5cm |
| Unit Calculated Volume: | 0.01065m³ |
| Unit Calculated Weight: | 2.6kg |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 5 |
| Model: | X870 AORUS ELITE WIFI7 ICE |
