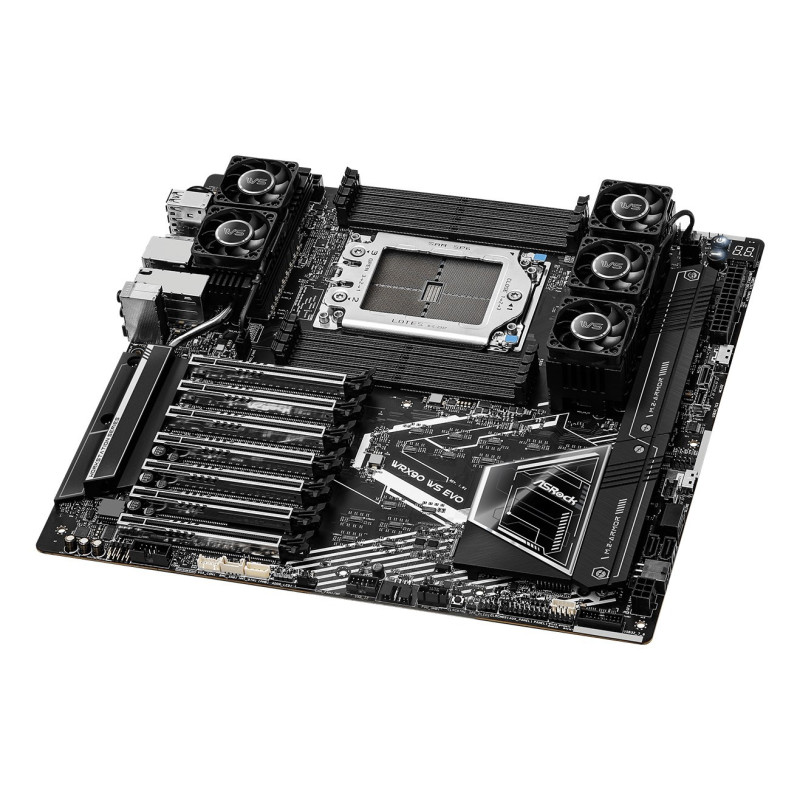

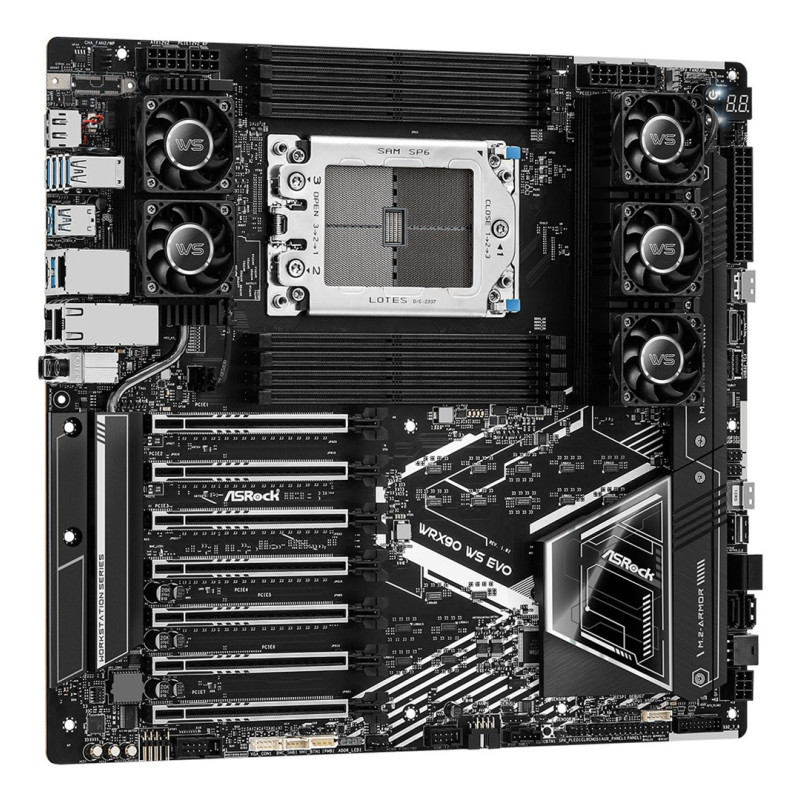

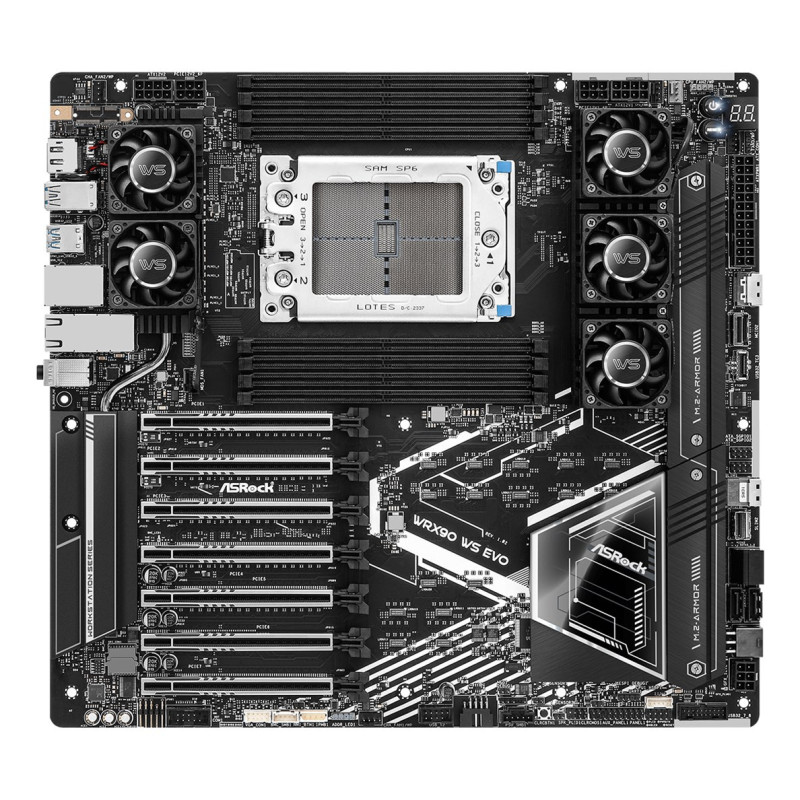

Pagrindinė plokštė ASRock WRX90 WS EVO
Prekės kodas:
3-4710483945199
Pagrindinė plokštė ASRock WRX90 WS EVO
Pagrindinė plokštė ASRock WRX90 WS EVO
Prekės kodas:
3-4710483945199
Pagrindinė plokštė ASRock WRX90 WS EVO
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Europos
per 10 - 15*
d. d.
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen Threadripper 1000 Series |
| Processor socket | Socket sTR5 |
| Features | |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD WRX90 |
| Motherboard chipset family | AMD |
| Motherboard form factor | EEB |
| Memory | |
| Number of memory slots | 8 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Maximum internal memory | 2 TB |
| Supported memory clock speeds | 7600 |
| ECC сompatibility | ECC |
| Weight & dimensions | |
| Depth | 330 mm |
| Width | 305 mm |
| Network | |
| LAN controller | Intel X710-AT2 |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Not available |
| Ethernet interface type | 10 Gigabit Ethernet |
| Wi-Fi | No |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| BIOS | |
| BIOS type | EFI AMI |
| Storage controllers | |
| RAID levels | 1, 10, 0 |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| DisplayPort version | 1.1a |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| IPMI LAN (RJ-45) port | Yes |
| USB4 Gen 2x2 ports quantity | 2 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 7 |
| Safety warning | |
| Warnings | Avoid touching electronic components without proper grounding., Read the operating instructions carefully before installation., Do not dispose of old motherboards in the normal household waste. Return motherboards to an electronic waste collection point. |
