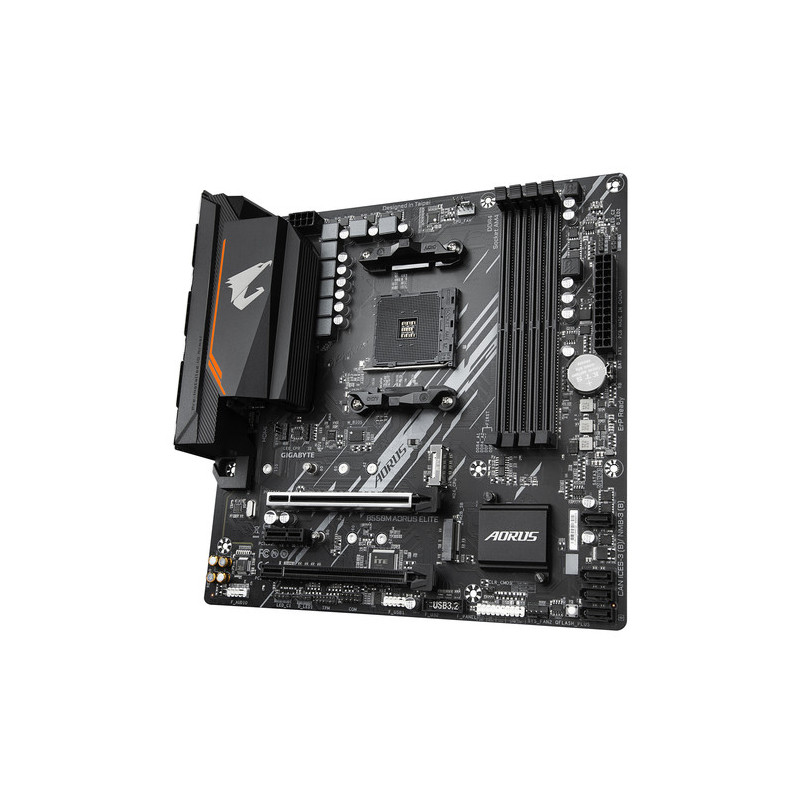

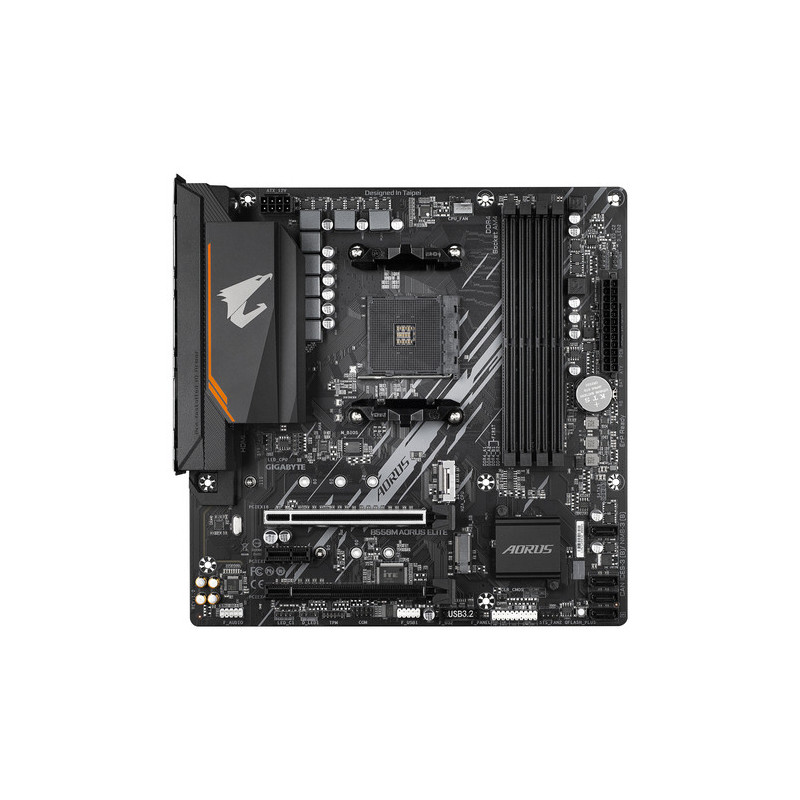

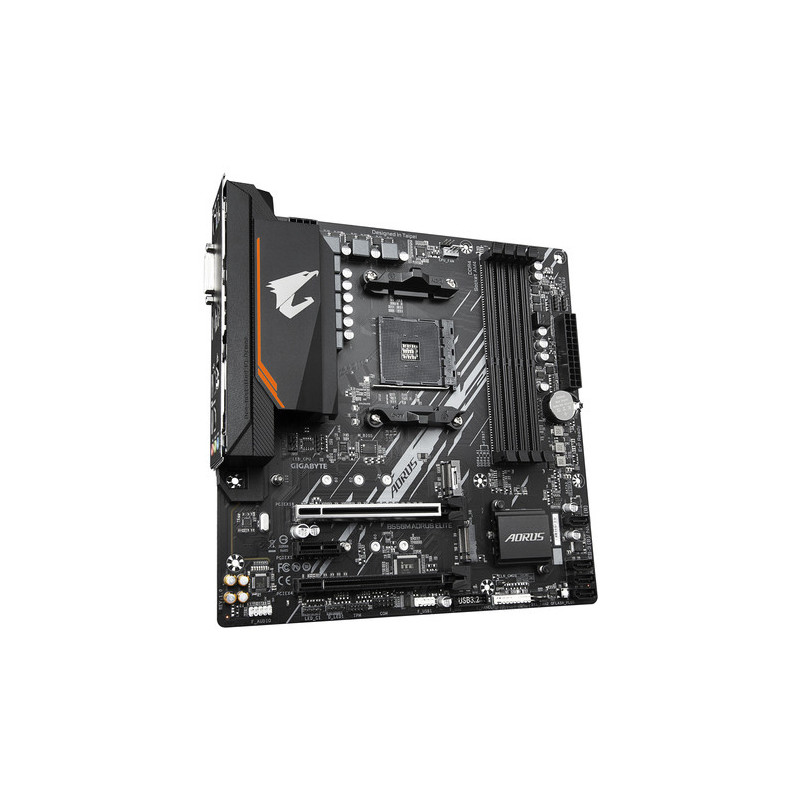

Gigabyte B550M AORUS Elite mATX pagrindinės plokštės lizdas AM4 M.2 / HDMI / DVI / USB
Prekės kodas:
3-4719331809546
Gigabyte B550M AORUS Elite mATX pagrindinės plokštės lizdas AM4 M.2/HDMI/DVI/USB
Gigabyte B550M AORUS Elite mATX pagrindinės plokštės lizdas AM4 M.2 / HDMI / DVI / USB
Prekės kodas:
3-4719331809546
Gigabyte B550M AORUS Elite mATX pagrindinės plokštės lizdas AM4 M.2/HDMI/DVI/USB
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Europos
per 13 - 18*
d. d.
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management

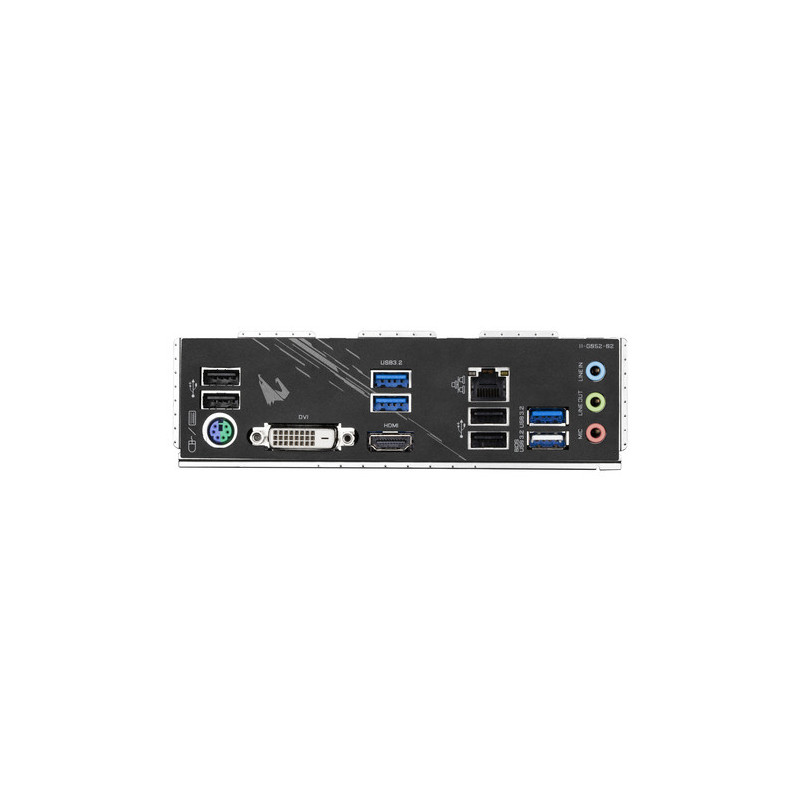

- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
| Summary: | GIGABYTE B550M AORUS ELITE Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H |
| Vendor Homepage: | https://www.gigabyte.com/ua/Motherboard/B550M-AORUS-ELITE-rev-13 |
| Category Code: | MBA |
| CnCode: | 84733020 |
| Unit Box Height: | 0.072 |
| Unit Box Length: | 0.275 |
| Unit Box Width: | 0.27 |
| Motherboard chipset: | AMD B550 |
| Audio chip: | Realtek ALC897 |
| Product colour: | Brown |
| PC health monitoring: | Fan/Temperature/Voltage |
| Component for: | PC |
| Motherboard form factor: | micro ATX |
| Audio output channels: | 7.1channels |
| Cooling type: | Passive |
| Motherboard chipset family: | AMD |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 10 x64/Windows 11 x64 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Compatible processor series: | AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series |
| Maximum number of SMP processors: | 1 |
| Supported processor sockets: | Socket AM4 |
| Supported memory types: | DDR4-SDRAM |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speeds: | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733MHz |
| Supported memory clock speed (max): | 4733MHz |
| Maximum internal memory: | 128GB |
| Unbuffered memory: | Yes |
| Maximum internal memory per slot: | 32GB |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2,SATA III |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 6 |
| RAID levels: | 0/1/10 |
| Parallel processing technology support: | Not supported |
| Maximum resolution: | 4096 x 2160pixels |
| HDCP: | Yes |
| DirectX version: | 12.0 |
| USB 2.0 connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of SATA III connectors: | 4 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of CPU fan connectors: | 1 |
| Number of chassis fan connectors: | 2 |
| EPS power connector (8-pin): | Yes |
| Number of EPS power connectors (8-pin): | 1 |
| 12V power connector: | Yes |
| Number of water pump connectors: | 2 |
| Serial port headers: | 1 |
| TPM connector: | Yes |
| RGB LED pin header: | Yes |
| Number of RGB LED pin headers: | 5 |
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| PS/2 ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| DVI-D ports quantity: | 1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Microphone in: | Yes |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| LAN controller: | Realtek RTL8111H |
| Wi-Fi: | No |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 2 |
| 1st M.2 largest key size: | 22110 |
| 1st M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 3.0 |
| BIOS type: | UEFI AMI |
| BIOS memory size: | 128Mbit |
| ACPI version: | 5.0 |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Country of origin: | China |
| Products per shipping (inner) case: | 1pc(s) |
| Battery weight: | 3g |
| Lithium weight per battery: | 0.07g |
| Package width: | 265mm |
| Number of battery cells: | 1 |
| Package depth: | 265mm |
| Package height: | 65mm |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Package weight: | 1273g |
| Battery type: | CR2032 |
| Harmonized System (HS) code: | 84733020 |
| Width: | 244mm |
| Depth: | 244mm |
| Height: | 35mm |
| Batteries included: | Yes |
| Screws included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Warranty period: | 3year(s) |
| Unit Calculated Weight: | 1.1kg |
| Product Net Weight: | 0.8kg |
| Unit Calculated Volume: | 0.006244m³ |
| Units per Shipping Box: | 10 |
| Shipping Box Weight: | 11kg |
| Unit Width: | 27cm |
| Units per Pallet: | 0 |
| Shipping Box Height: | 30cm |
| Unit Depth: | 27.5cm |
| Shipping Box Depth: | 55.5cm |
| Unit Height: | 7.2cm |
| Shipping Box Width: | 37.5cm |
| Name: | MB AMD B550 SAM4 MATX/B550M AORUS ELITE 1.3 GIGABYTE |
| Model: | B550M AORUS ELITE 1.3 |
