ALLNET Rocket 320-B S2

ALLNET Rocket 320-B S2. Product design: Interactive flat panel. Display diagonal: 81.3 cm (32"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 250 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating system installed: Android. Product colour: Black

Allnet Display 32 inch, TV Style, Interactive Touch Kiosk Terminal, Android 12, RK3588, HDMI In, colour black without PoE

Display

Panel type: IPS
Feature: LED backlight
LED backlighting type: Edge-LED
Display diagonal: 81.3 cm (32")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 250 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Number of simultaneous touchpoints: 10
Native aspect ratio: 16:9
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 85°
Viewing angle, vertical: 85°
Display number of colours: 16.7 million colours
RGB colour space: sRGB

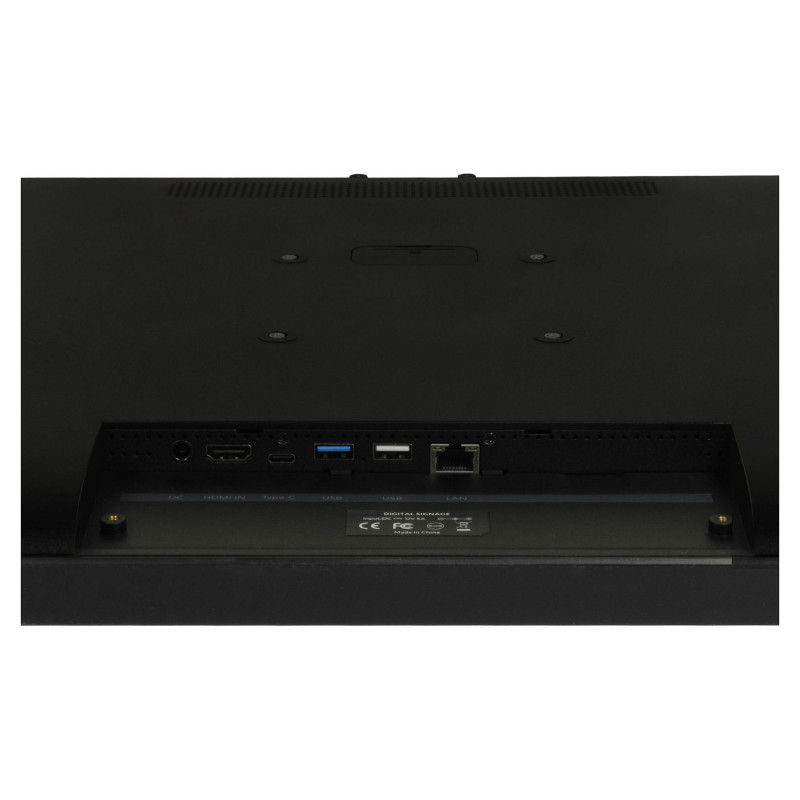

Ports & interfaces

HDMI ports quantity: 1
HDMI version: 2.0
Feature: USB port
USB ports quantity: 4
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-C
USB 2.0 Type-B ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Feature: DC-in jack

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W
Speaker impedance: 4 Ω

Design

Product design: Interactive flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm

Performance

Purpose: Universal
International Protection (IP) code: IP20
Feature: Noise canceling

Power

Power consumption (typical): 25 W
Input voltage: 12 V
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Computer system

Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Processor manufacturer: Rockchip
Processor architecture: ARM Cortex-A76+Cortex-A55
Internal memory: 8 GB
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 12

Weight & dimensions

Display weight: 8.2 kg

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -20 - 60 °C

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
