Sharkoon AK3 RGB

Sharkoon AK3 RGB. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans installed: 3x 120 mm, Front fans diameters supported: 120 mm, Side fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 225 mm, Depth: 460 mm, Height: 485 mm

The AK3 RGB puts the focus on a classically minimalist look with an air-permeable front panel and a high level of functionality. With its modern connection options, space for large pieces of hardware, and room for up to eleven fans, this case is suitable for either gaming, office or multimedia PCs.

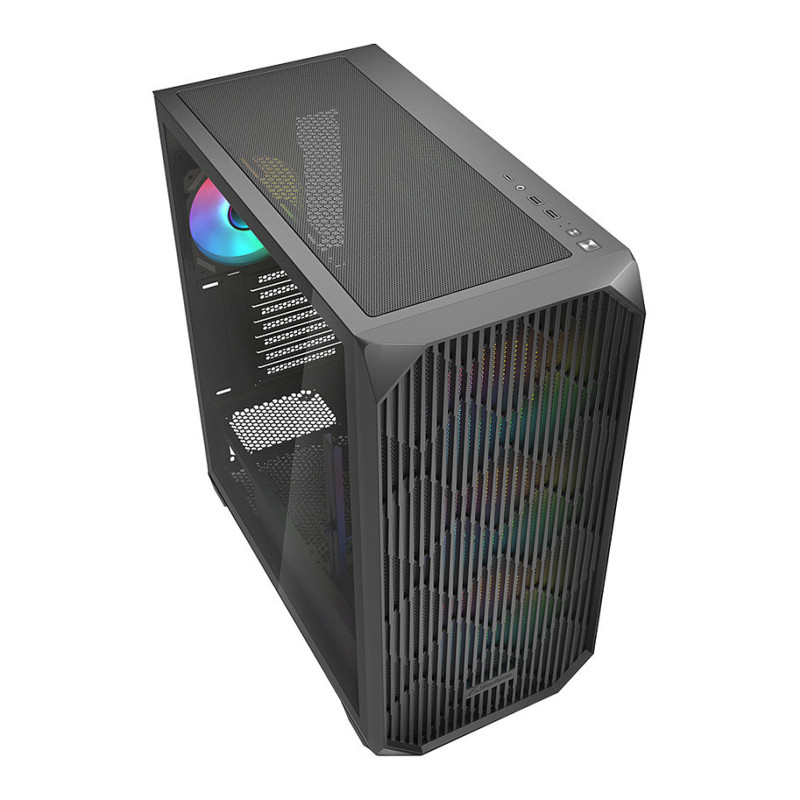

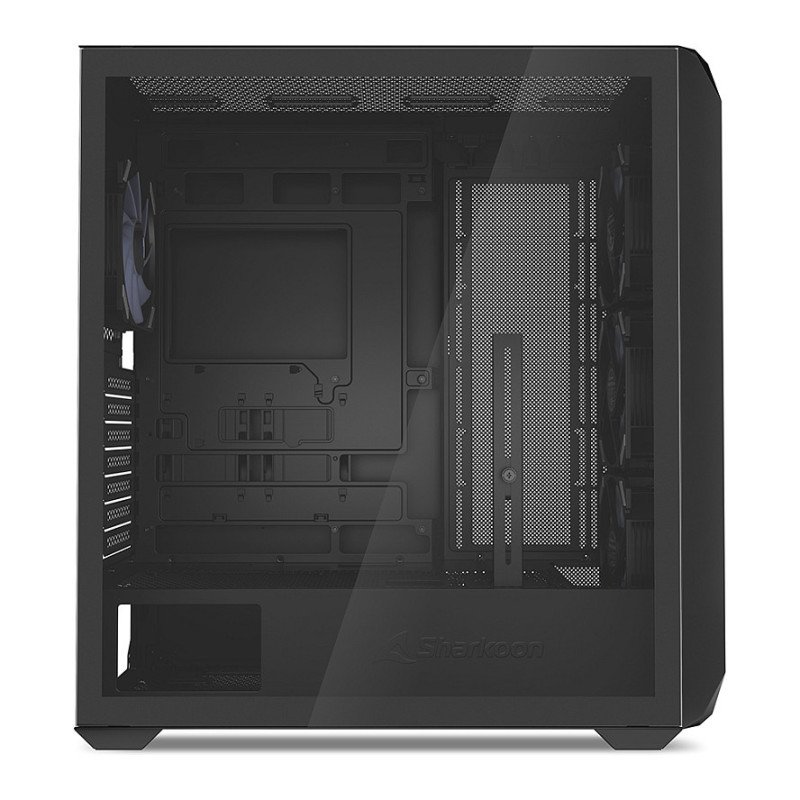

Tempered-Glass Side and Air-Permeable Front

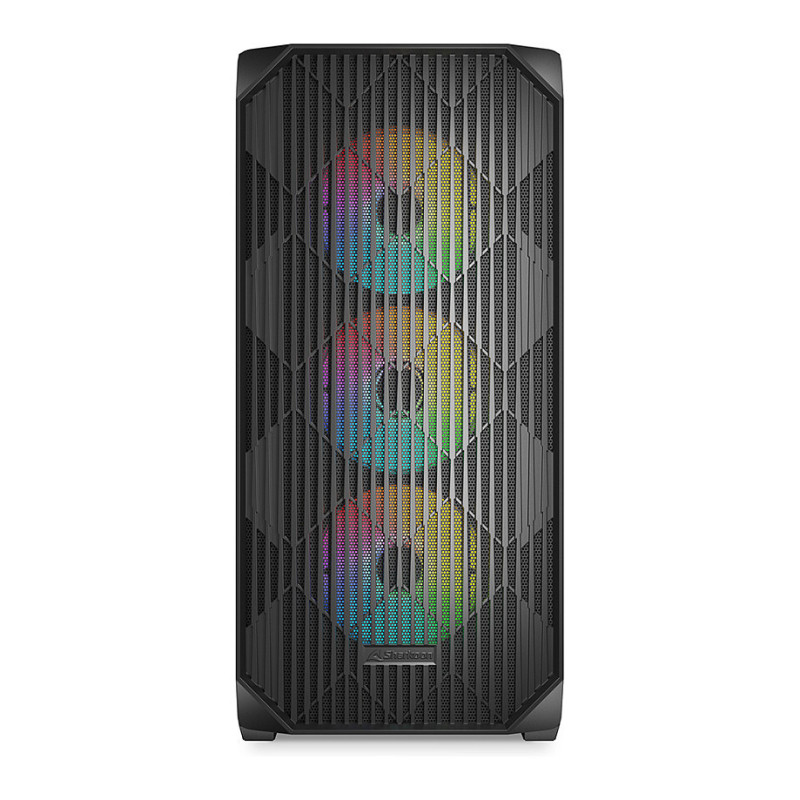

In addition to a tempered-glass side panel, the AK3 RGB has a front panel that has been designed to optimally support the airflow inside the case by allowing the easy entry of air from the outside.

Four Pre-Installed Fans

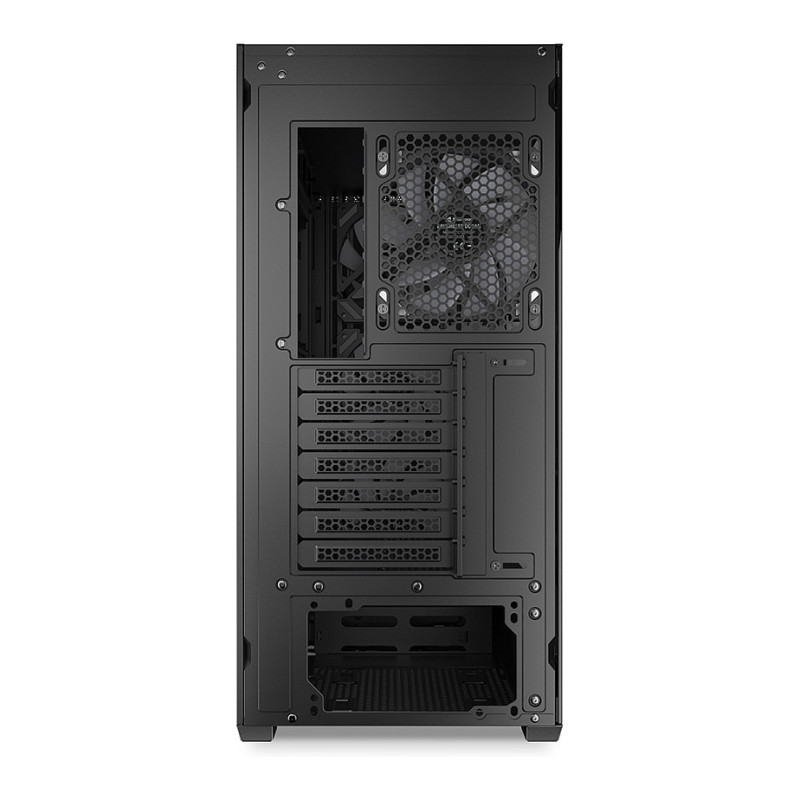

A total of up to eleven fans have room in the AK3 RGB, four of which are already pre-installed: Three addressable 120 mm RGB PWM fans are located behind the front panel and an identical fan is on the rear panel.

Option for Dual Radiators
Those who prefer water cooling will also be happy with the AK3 RGB, as two radiators with up to 360 mm can be simultaneously operated, if required.

Compatible with ATX and BTF Mainboards
Apart from conventional mini-ITX, micro-ATX or ATX mainboards, the AK3 RGB is also compatible with almost all BTF formats on the market.

Modern Connection Options
To connect a wide range of mobile and peripheral devices, the AK3 RGB has a modern TRRS and USB-C port on the front of the top panel. In addition, a controller provides the connection and operation of up to four RGB LED components while also serving as a hub for up to four PWM fans.

Plenty of Space for Hardware
The inside the AK3 RGB has been designed to accommodate large graphics cards with a length of up to 41 cm, while the mounting is supported by a rubber-surfaced graphics card holder. In addition, a CPU cooler with a height of up to 17 cm can be installed, as well as a power supply unit with a length of up to 23.5 cm. And there is installation space for up to two 3.5" HDDs or four 2.5" SSDs.

Design

Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 4
Number of expansion slots: 7
Feature: Side window
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: RGB control button
Maximum CPU cooler height: 17 cm
Maximum graphics card length: 41 cm
Maximum PSU length: 23.5 cm

Ports & interfaces

Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
ARGB ports quantity: 4

Cooling

Front fans installed: 3x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120 mm
Number of side fans supported (max): 2
Side fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120 mm
Liquid cooling capability: Yes

Storage

Supported HDD sizes: 2.5,3.5"

Weight & dimensions

Width: 225 mm
Depth: 460 mm
Height: 485 mm
