NZXT H9 srautas

NZXT H9 Flow. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 315 mm, Depth: 481 mm, Height: 506 mm

Built to Flow. Made to Show.

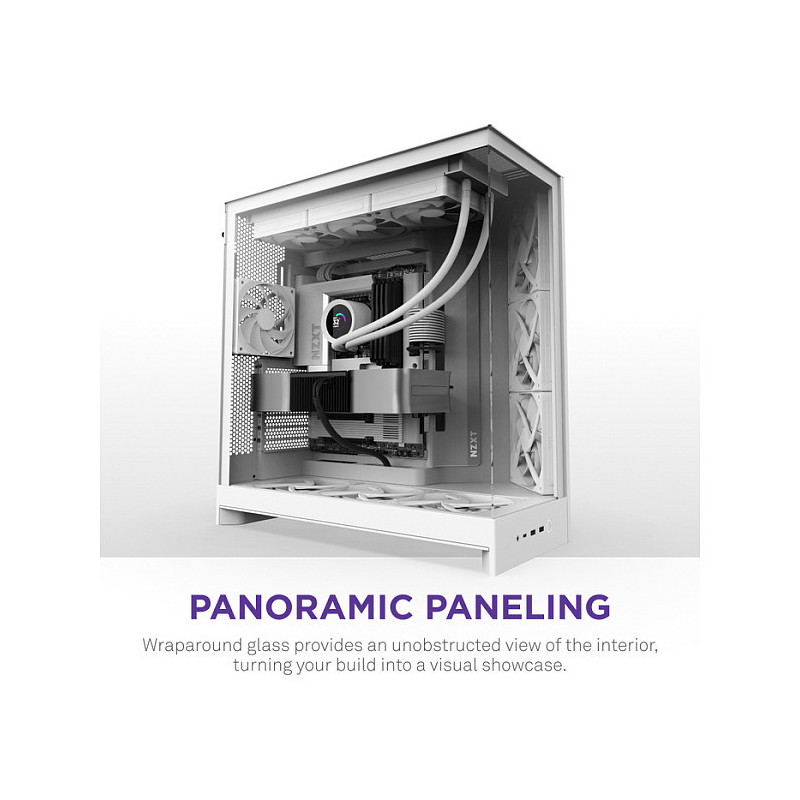

The H9 Flow is a spacious, dual-chamber case built for high-performance builds, featuring extensive cooling support and wraparound glass panels for an uninterrupted view of your build.

Optimized Airflow
Angled front-right fans and an airflow-optimized layout keep temps low and performance steady.

Mesh Panels
Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust.

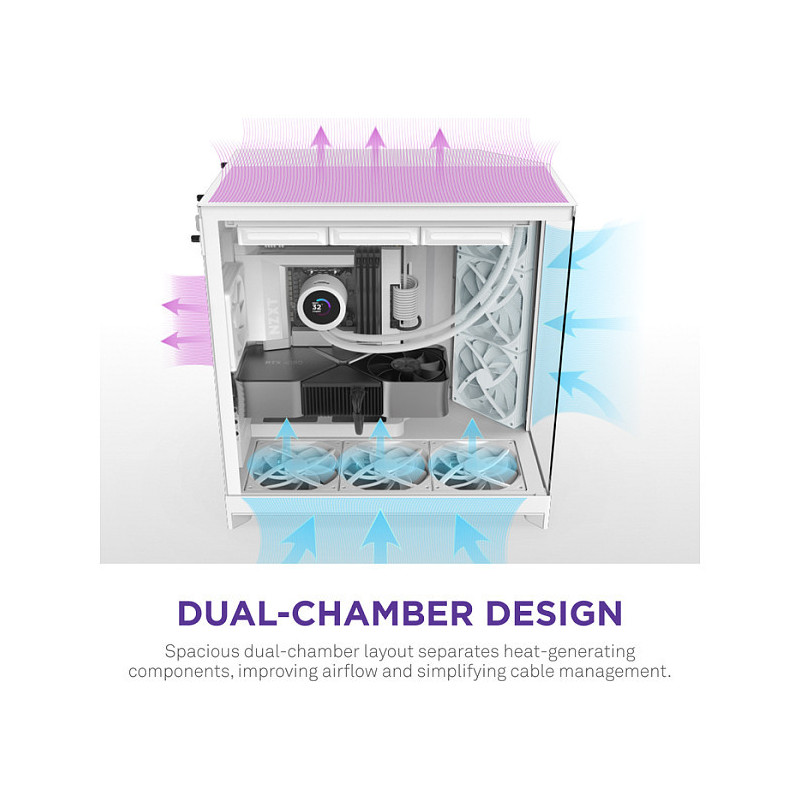

Spacious Dual-Chamber
Separates heat-generating components for improved airflow and a cleaner build.

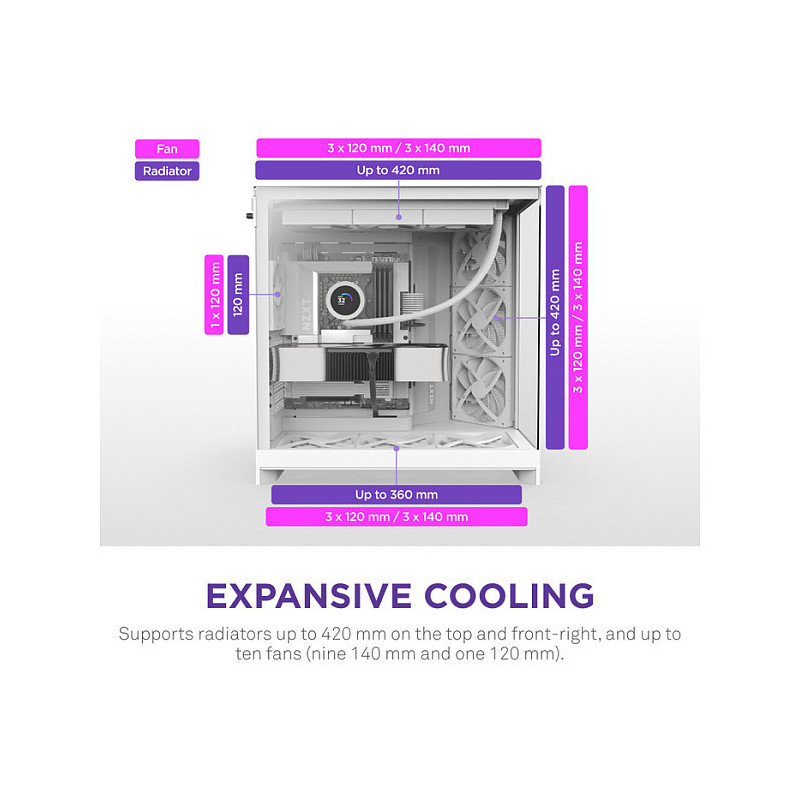

10-Fan Cooling
Fits up to nine 140 mm fans and one 120 mm rear fan.

Large Radiator Support
Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.

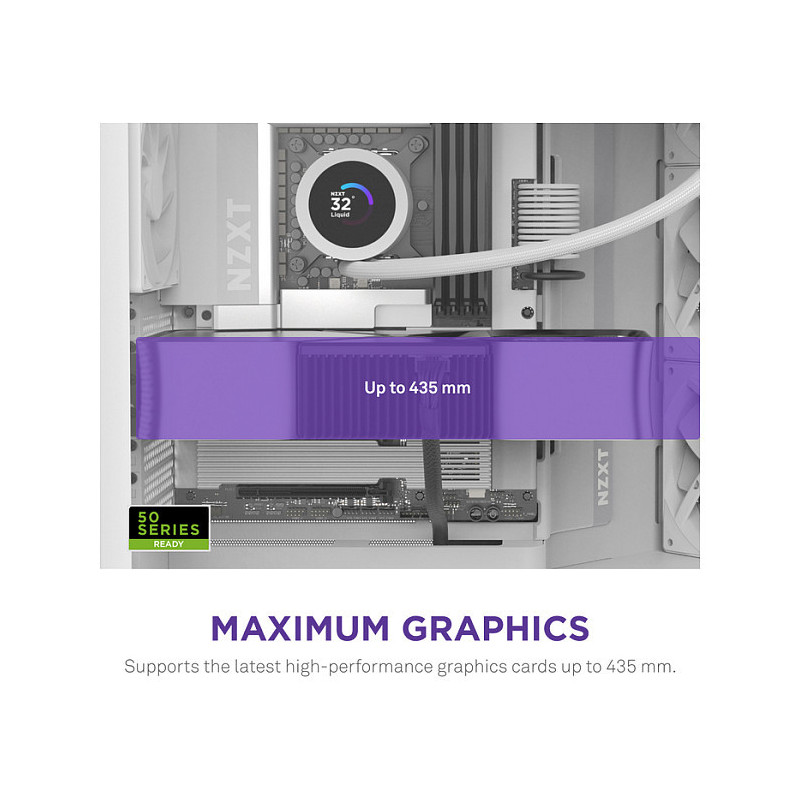

Maximum Graphics
Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.

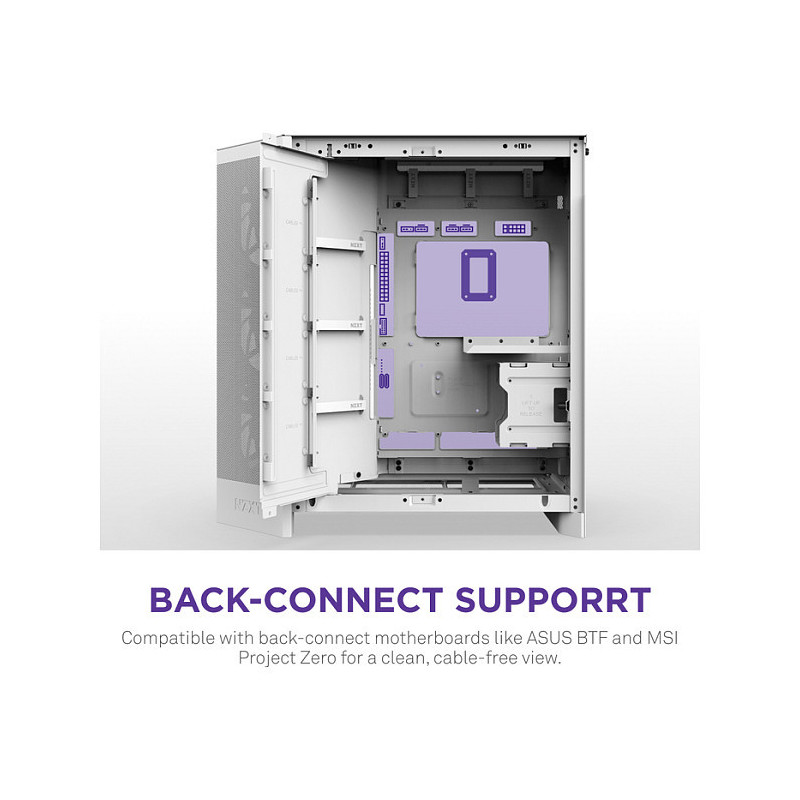

Back-Connect Ready
Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.

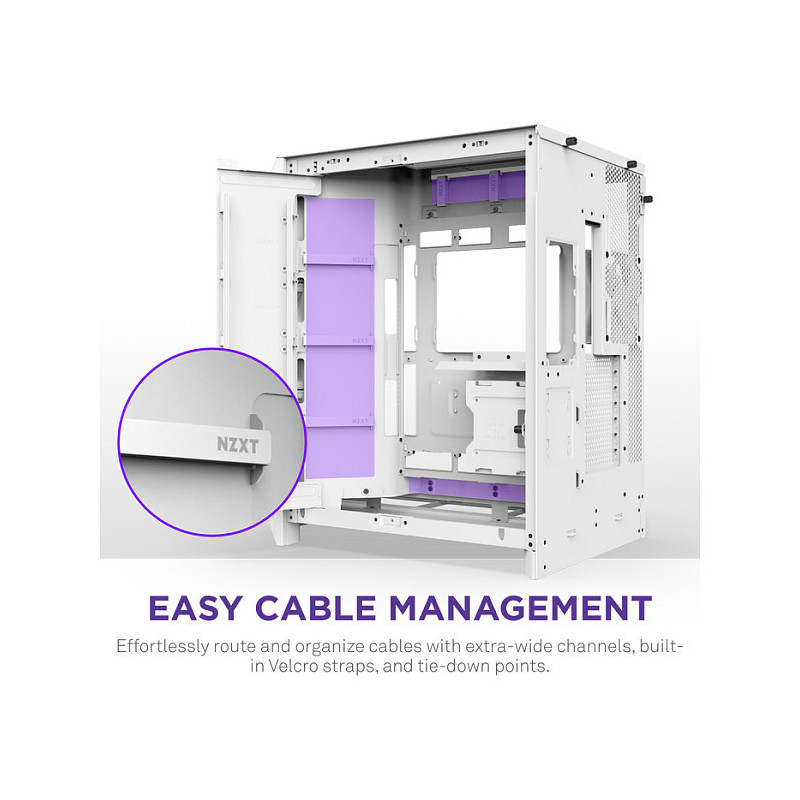

Easy Cable Management
Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.

Design

Material: Mesh, SGCC, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: White
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 6
Number of expansion slots: 7
Feature: Side window
Suitable for: Gaming
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: On/off button
Maximum CPU cooler height: 16.5 cm
Maximum graphics card length: 45.9 cm
Maximum PSU length: 20 cm

Power supply

Number of power supply units: 1

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Feature: Combo headphone/mic port
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Cooling

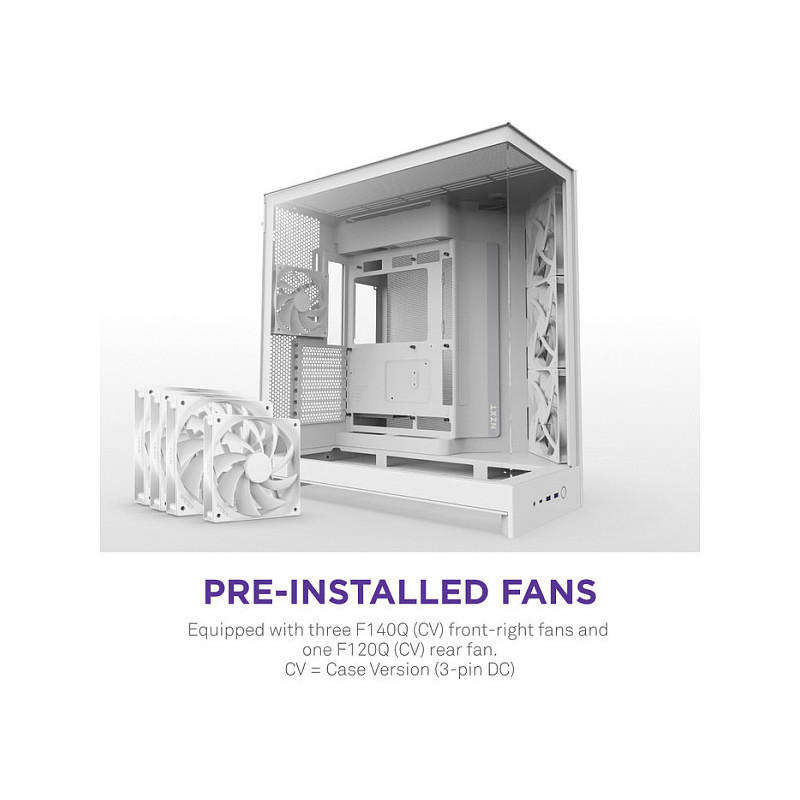

Front fans installed: 3x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 3
Bottom fans diameters supported: 120,140 mm
Fan speed: 0 - 1350 RPM
Maximum airflow: 100.25 cfm
Fan 2 maximum airflow: 60.2 cfm
Maximum air pressure: 1.4 mmH2O
Fan 2 maximum air pressure: 1.05 mmH2O
Feature: Liquid cooling capability
Suitable location: Computer case
Front radiator sizes supported: 420 mm
Bottom radiator sizes supported: 360 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 420 mm

Storage

Supported HDD sizes: 2.5,3.5"

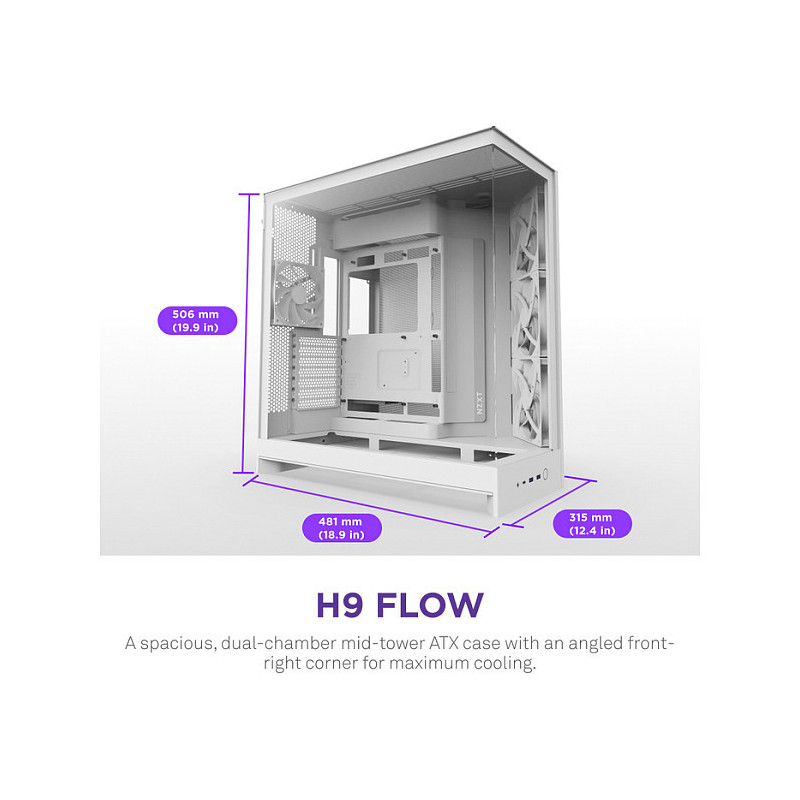

Weight & dimensions

Width: 315 mm
Depth: 481 mm
Height: 506 mm
Weight: 12.5 kg
