NZXT H7 srautas

NZXT H7 Flow. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 244 mm, Depth: 468 mm, Height: 544 mm

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.

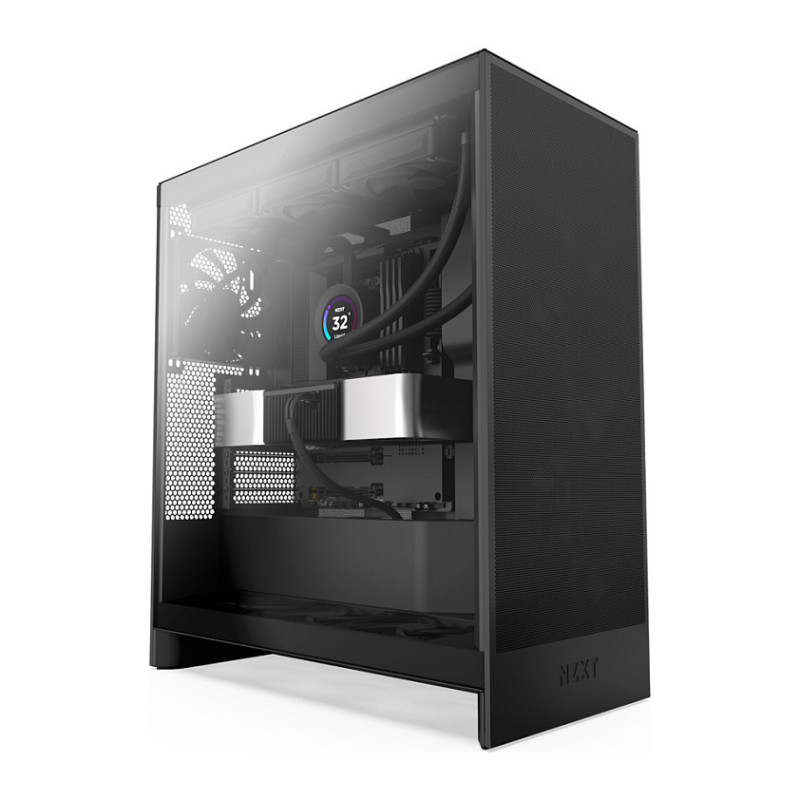

Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans

Out-of-the-Box Performance
Comes equipped with 3 x 120mm front-mounted fans for exceptional out-of-the-box cooling performance.

Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
H7 Flow showing radiator size supportH7 Flow showing radiator size support

Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.

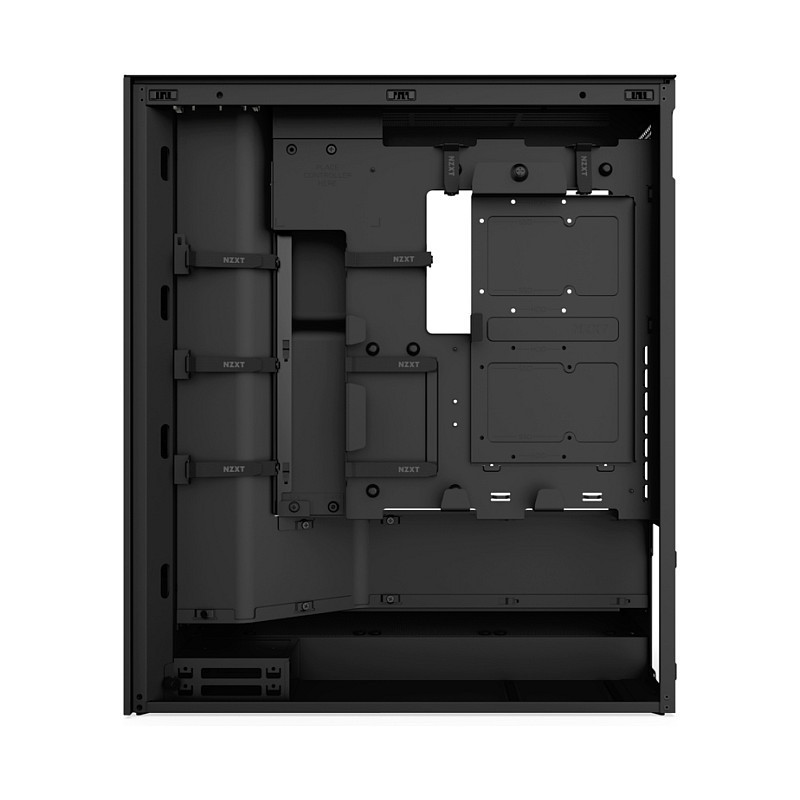

Open Back of H7 Flow showing cable managementOpen Back of H7 Flow showing cable management

Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.

10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

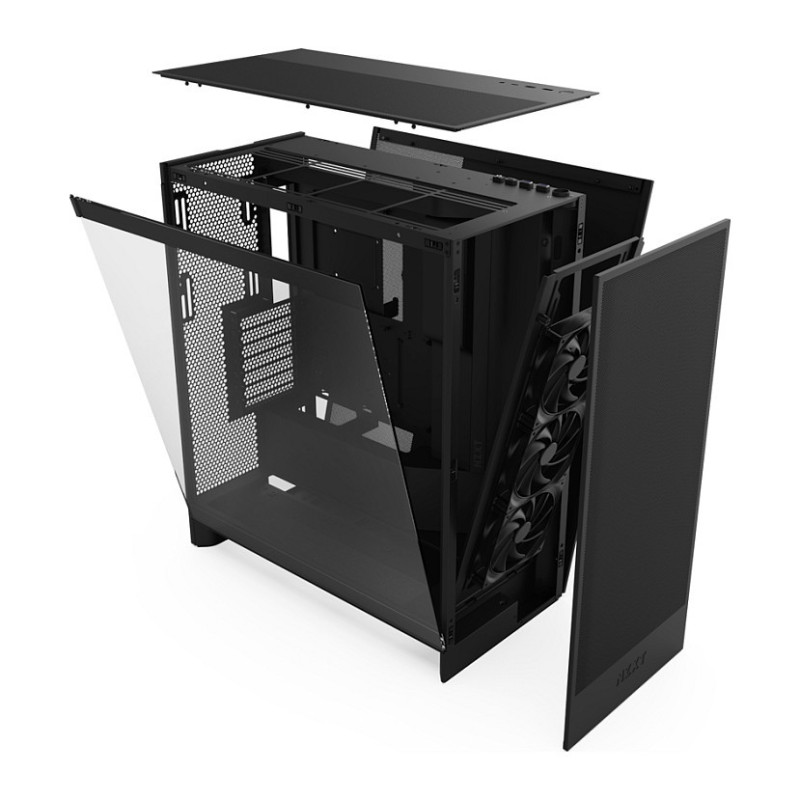

Exploded view of H7 Flow panelsExploded view of H7 Flow panels

Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Design

Material: SGCC, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 4
Feature: Side window
Feature: Tempered glass panel(s)
Feature: Cable management
Feature: On/off button
Maximum CPU cooler height: 18.5 cm
Maximum graphics card length: 41 cm
Maximum PSU length: 20 cm

Ports & interfaces

Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Cooling

Front fans installed: 3x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Fan speed: 1200 - 1500 RPM
Maximum airflow: 60.2 cfm
Fan 2 maximum airflow: 60.2 cfm
Maximum air pressure: 1.05 mmH2O
Fan 2 maximum air pressure: 1.05 mmH2O
Front radiator sizes supported: 360,420 mm
Rear radiator sizes supported: 140 mm
Top radiator sizes supported: 360 mm

Storage

Supported HDD sizes: 2.5,3.5"

Technical details

Warranty period: 2 year(s)

Weight & dimensions

Width: 244 mm
Depth: 468 mm
Height: 544 mm
Weight: 11.1 kg
