Dėklas Nzxt H7 „Flow RGB White“ ( CM-H72FW-R1 )
Dėklas Nzxt H7 „Flow RGB White“ ( CM-H72FW-R1 )
Garantija
24 mėn.
Pristatymas iš Europos
per 13 - 18*
d. d.

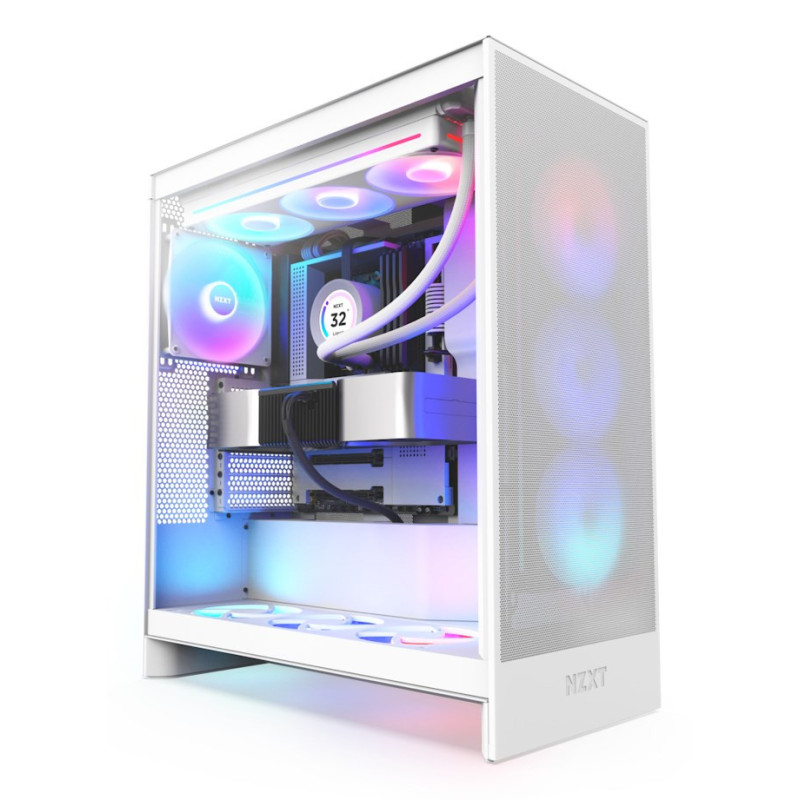

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
| Summary: | NZXT H7 Flow RGB. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 244 mm, Depth: 468 mm, Height: 544 mm |
| Vendor Homepage: | https://nzxt.com/product/h7-flow-rgb# |
| Category Code: | CAS |
| CnCode: | 84733080 |
| Unit Box Height: | 0.565 |
| Unit Box Length: | 0.635 |
| Unit Box Width: | 0.32 |
| Cable management: | Yes |
| Form factor: | Midi Tower |
| Illumination: | Yes |
| Material: | SGCC/Tempered glass |
| Maximum CPU cooler height: | 185mm |
| Maximum graphics card length: | 410mm |
| Maximum PSU length: | 200mm |
| Number of 2.5" bays: | 4 |
| Number of 3.5" bays: | 2 |
| On/off button: | Yes |
| Product colour: | White |
| Reset button: | No |
| Side window: | Yes |
| Supported motherboard form factors: | ATX/EATX/micro ATX/Mini-ITX |
| Tempered glass panel(s): | Yes |
| Type: | PC |
| Power supply included: | No |
| Audio output: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| Fan 2 maximum air pressure: | 1.27mmH2O |
| Fan 2 maximum airflow: | 50.1cfm |
| Fan speed: | 1200 - 1500RPM |
| Fan speed control: | No |
| Front fans diameters supported: | 120/140mm |
| Front fans installed: | 3x 120 mm |
| Front radiator sizes supported: | 360/420mm |
| Maximum air pressure: | 1.27mmH2O |
| Maximum airflow: | 50.1cfm |
| Number of front fans supported (max): | 3 |
| Number of rear fans supported (max): | 1 |
| Number of top fans supported (max): | 3 |
| Rear fans diameters supported: | 120/140mm |
| Rear radiator sizes supported: | 140mm |
| Top fans diameters supported: | 120/140mm |
| Top radiator sizes supported: | 360mm |
| Supported HDD sizes: | 2.5/3.5" |
| Warranty period: | 2year(s) |
| Depth: | 468mm |
| Height: | 544mm |
| Weight: | 11130g |
| Width: | 244mm |
| Model name: | H7 Flow RGB |
| Units per Shipping Box: | 1 |
| Unit Calculated Volume: | 0.1148m³ |
| Unit Calculated Weight: | 14.5kg |
