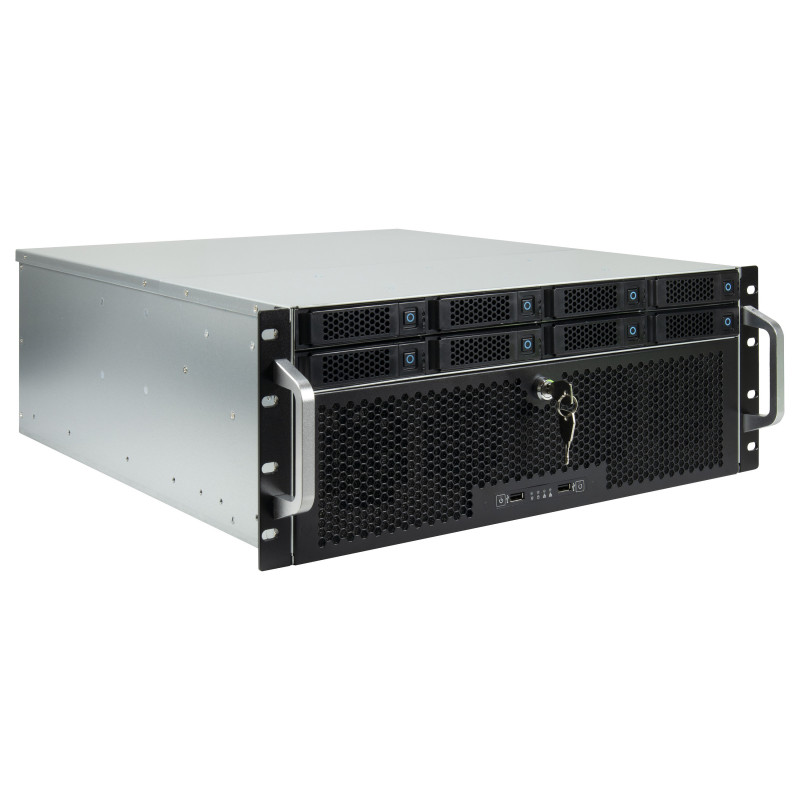

Inter-Tech 4U-4708

Inter-Tech 4U-4708. Form factor: Rack, Type: Server, Product colour: Black. Power supply location: Rear, Supported power supply form factors: ATX, PS2. Front fans installed: 4x 80 mm, Front fans diameters supported: 80 mm, Rear fans installed: 2x 80 mm. Supported HDD sizes: 2.5,3.5". Width: 481 mm, Depth: 515 mm, Height: 175 mm

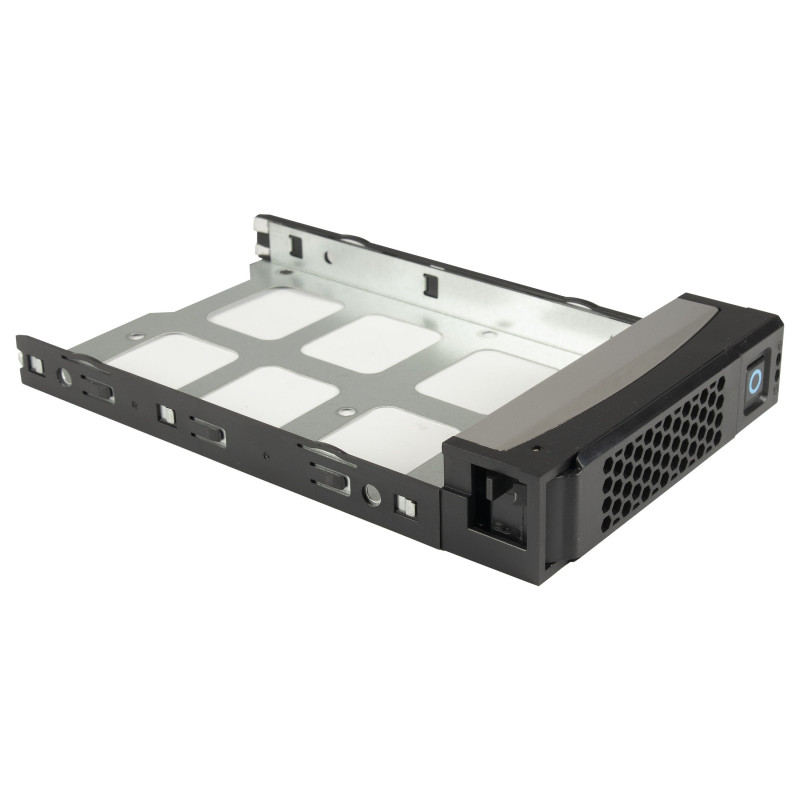

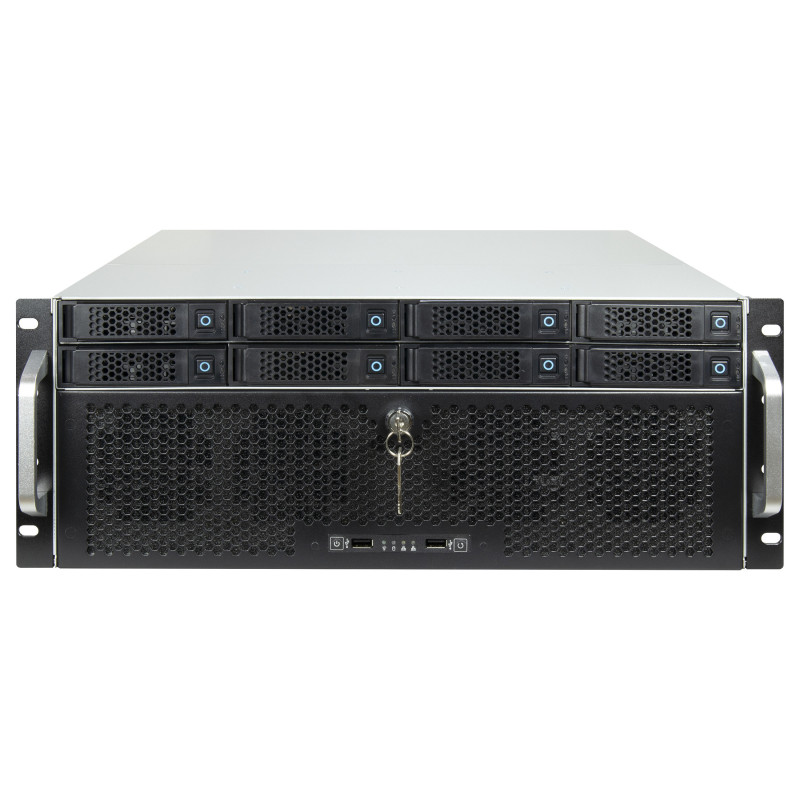

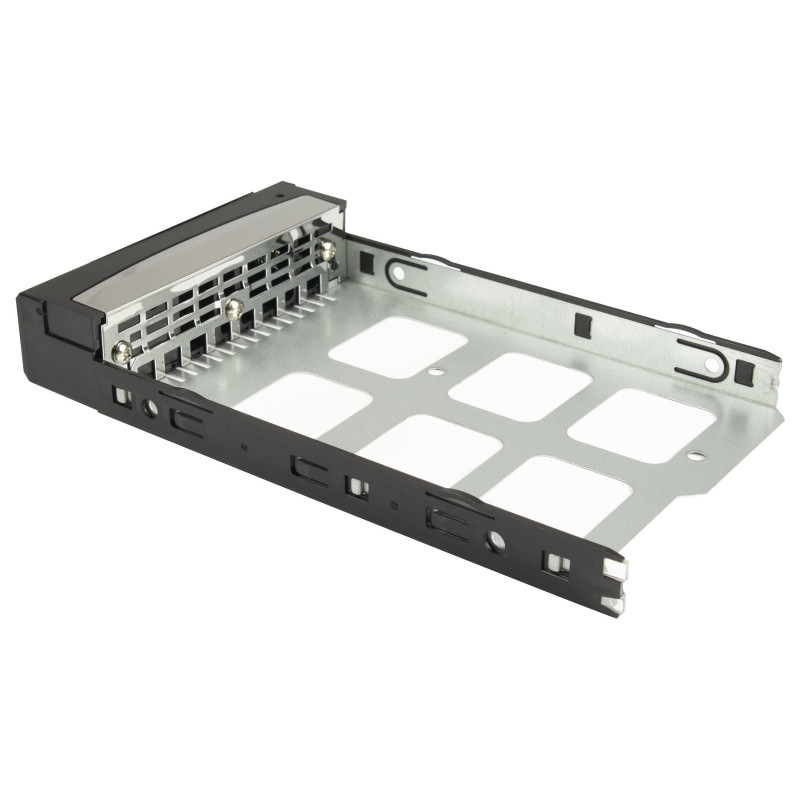

The IPC 4U-4708 is a service-friendly storage enclosure with 8 hot-swap removable frames.

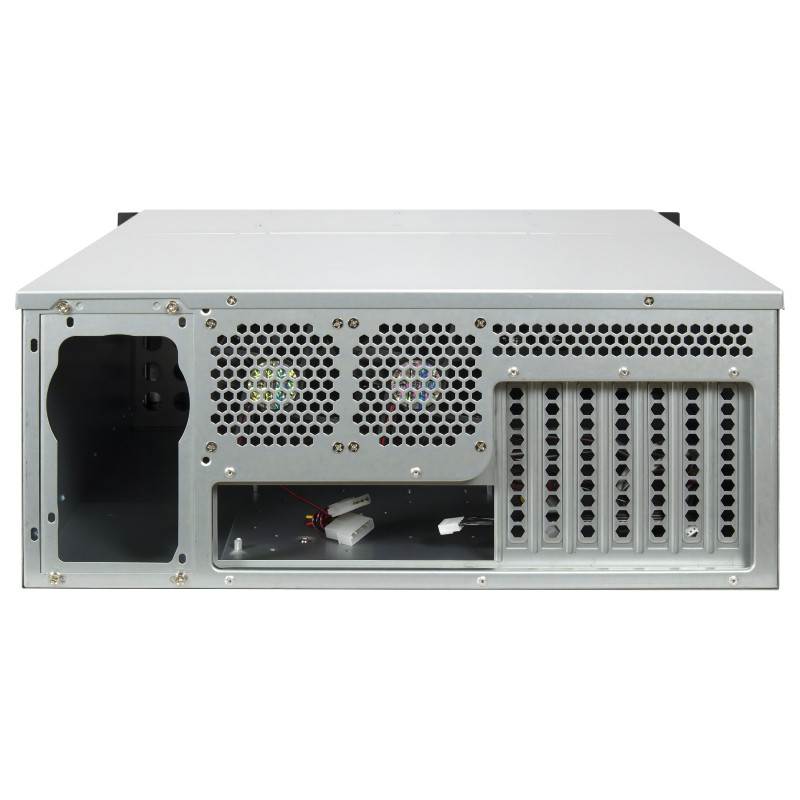

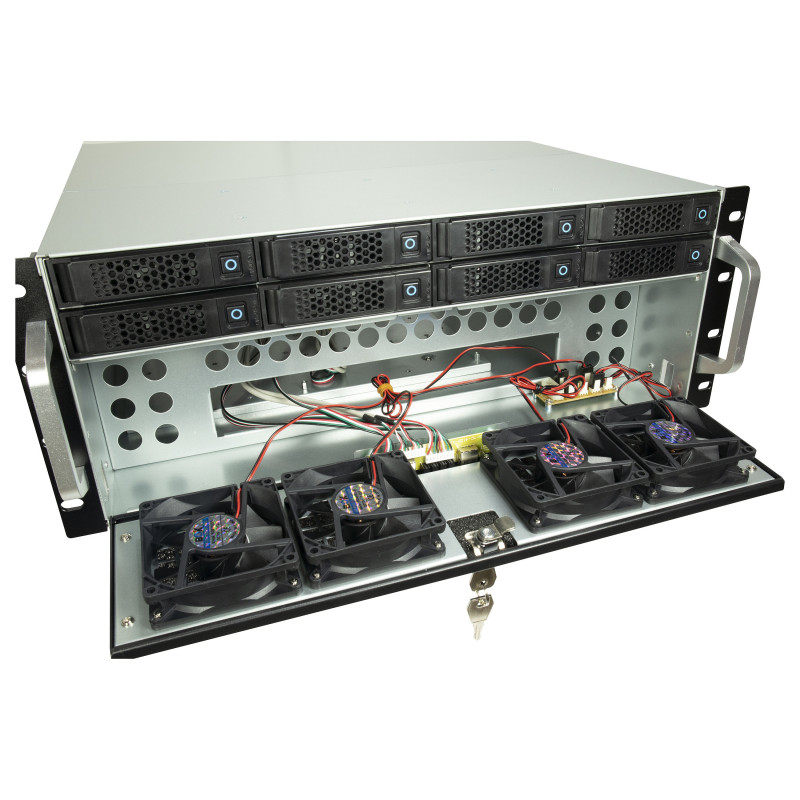

Four 80 mm fans in the front of the case can be easily replaced by open the front flap. The fans are supplied with power centrally via a Molex connection. In addition, two 80 mm fans are installed in the rear panel, which together ensure a perfect air flow.

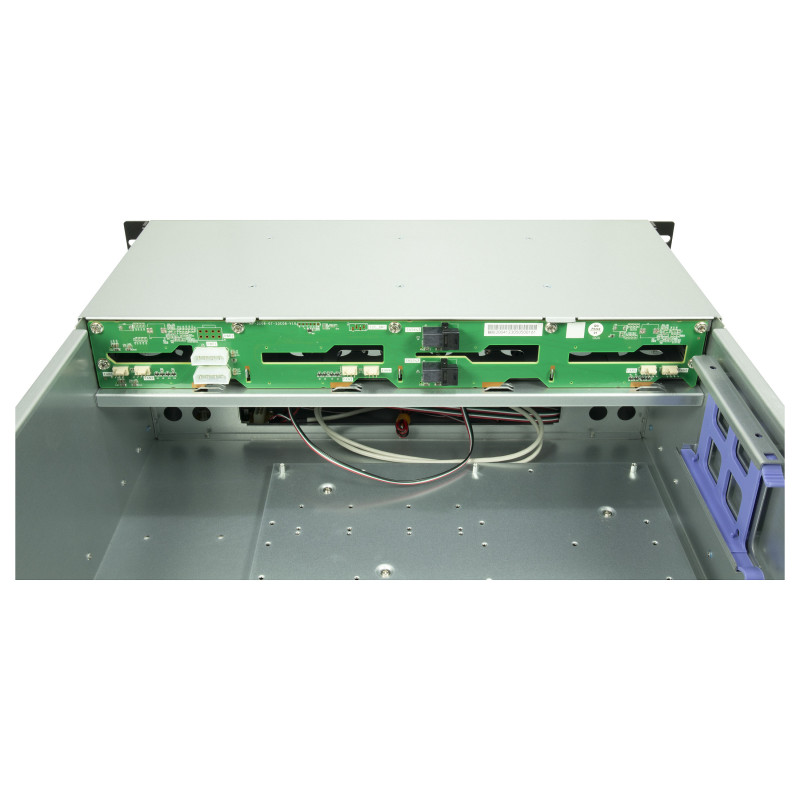

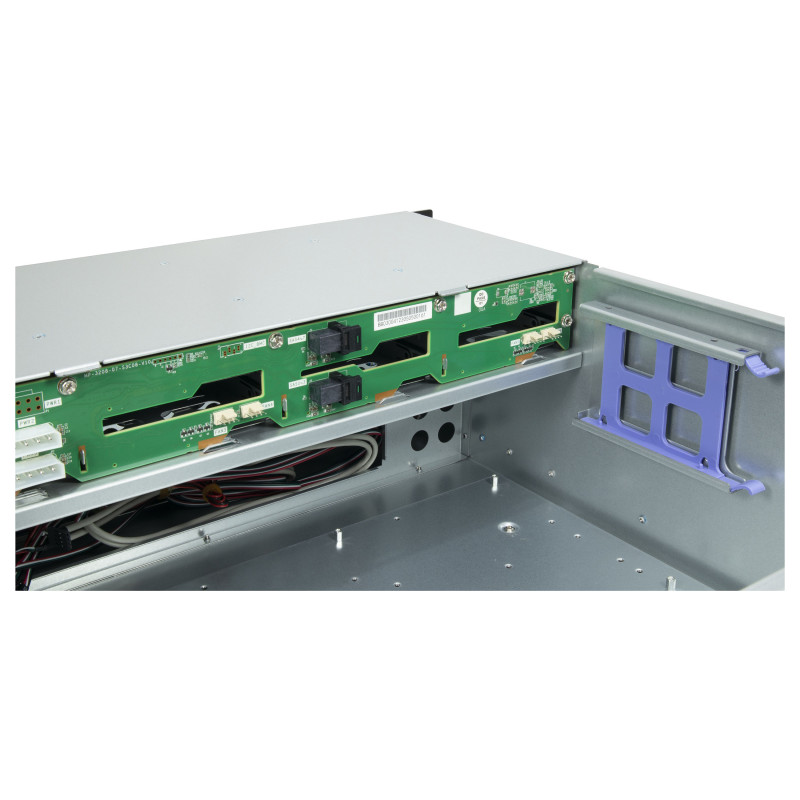

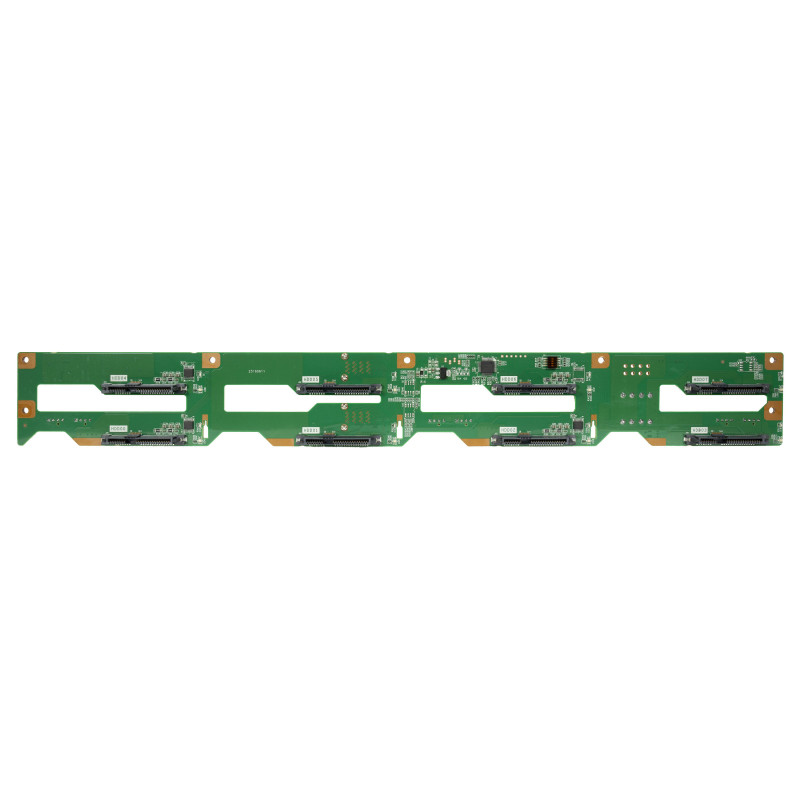

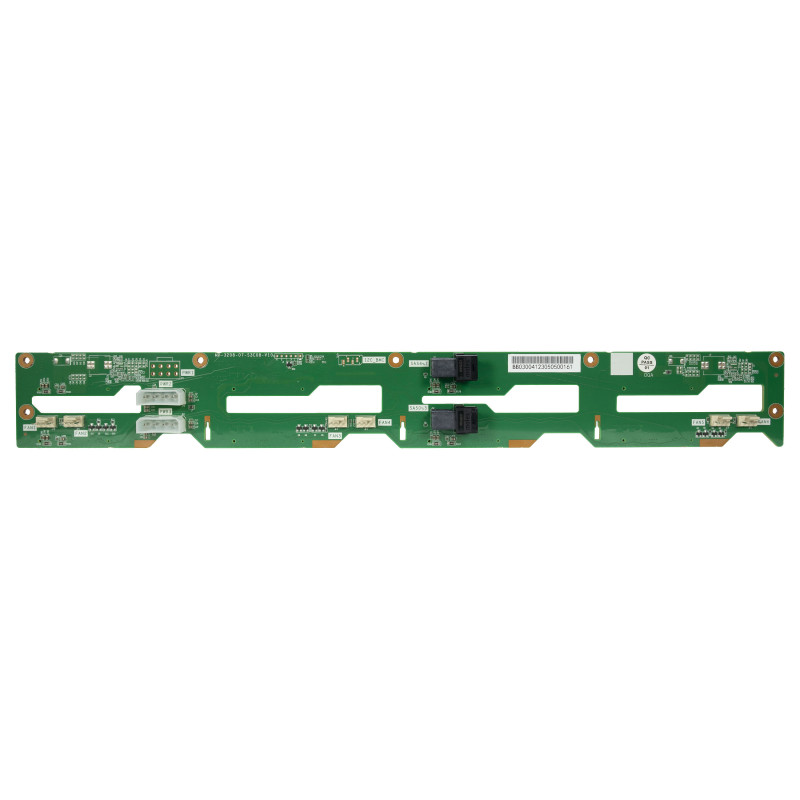

The built-in backplane has two SFF 8643 connectors for connection to a controller.

Design

Material: Steel
Form factor: Rack
Type: Server
Product colour: Black
Supported motherboard form factors: ATX, EATX, ITX, micro ATX, SSI CEB, SSI EEB
Number of 3.5" bays: 8

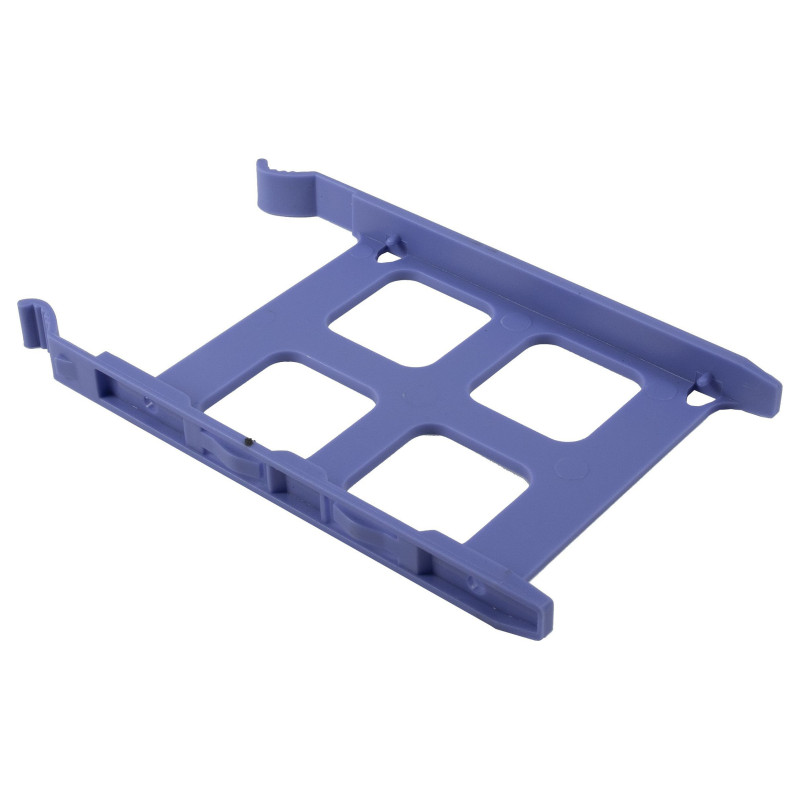

Number of 2.5" bays: 1
Number of internal 3.5" bays: 8
Number of storage drives supported: 8
Number of expansion slots: 7
Full-Height expansion slots: 7
Feature: Rack mounting
Rack capacity: 4U
Feature: On/off button
Maximum CPU cooler height: 15 cm
Maximum graphics card length: 26.5 cm

Power supply

Power supply location: Rear
Supported power supply form factors: ATX, PS2
Number of SATA connectors: 8

Ports & interfaces

USB 2.0 ports quantity: 2

Cooling

Front fans installed: 4x 80 mm
Number of front fans supported (max): 4
Front fans diameters supported: 80 mm
Rear fans installed: 2x 80 mm
Number of rear fans supported (max): 2
Rear fans diameters supported: 80 mm

Storage

Supported HDD sizes: 2.5,3.5"
Feature: Hot-swap

Weight & dimensions

Width: 481 mm
Depth: 515 mm
Height: 175 mm
Weight: 10.2 kg

Packaging data

Package weight: 12.3 kg

Other features

I/O ports: 2x SFF 8643
Peripheral (Molex) power connectors (4-pin): 2
