ENDORFY Arx 500 branduolys

ENDORFY Arx 500 Core. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans installed: 1x 140 mm, Rear fans installed: 1x 140 mm, Front radiator sizes supported: 120,240,280,360 mm. Supported HDD sizes: 2.5,3.5", SSD form factor: 2.5". Width: 228 mm, Depth: 429 mm, Height: 486 mm

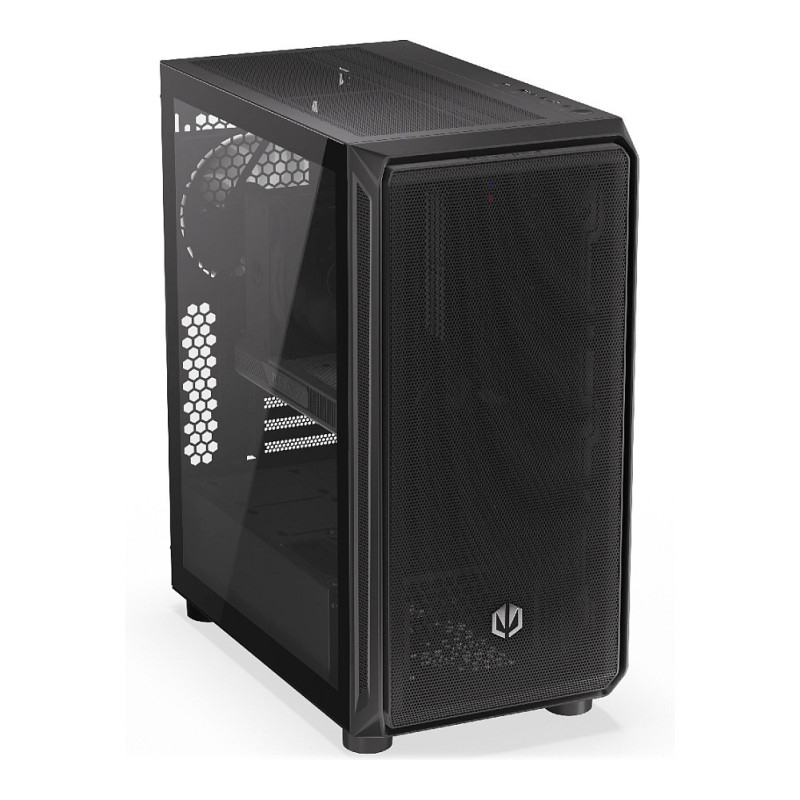

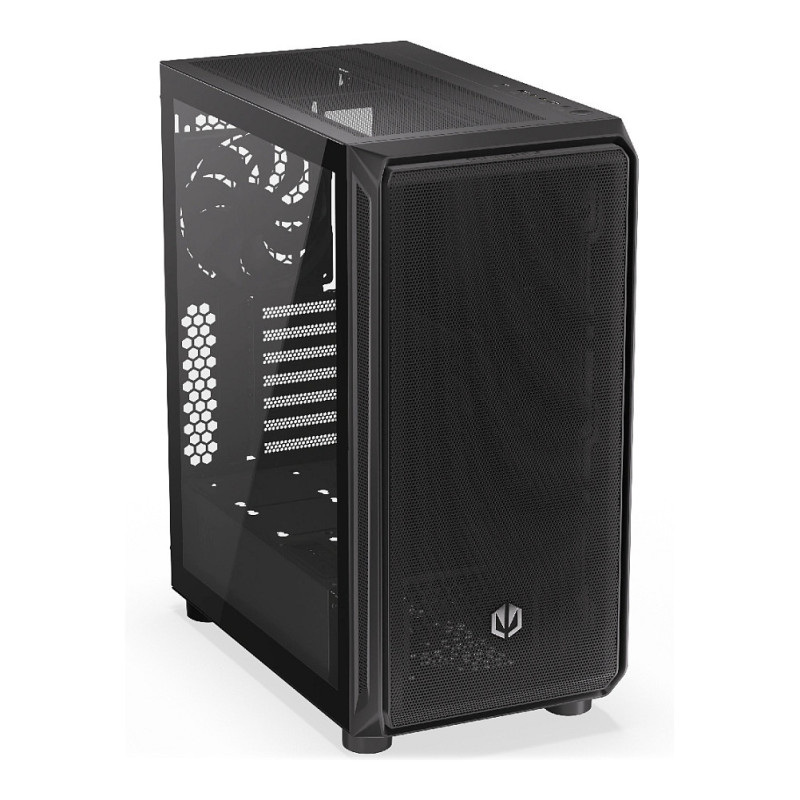

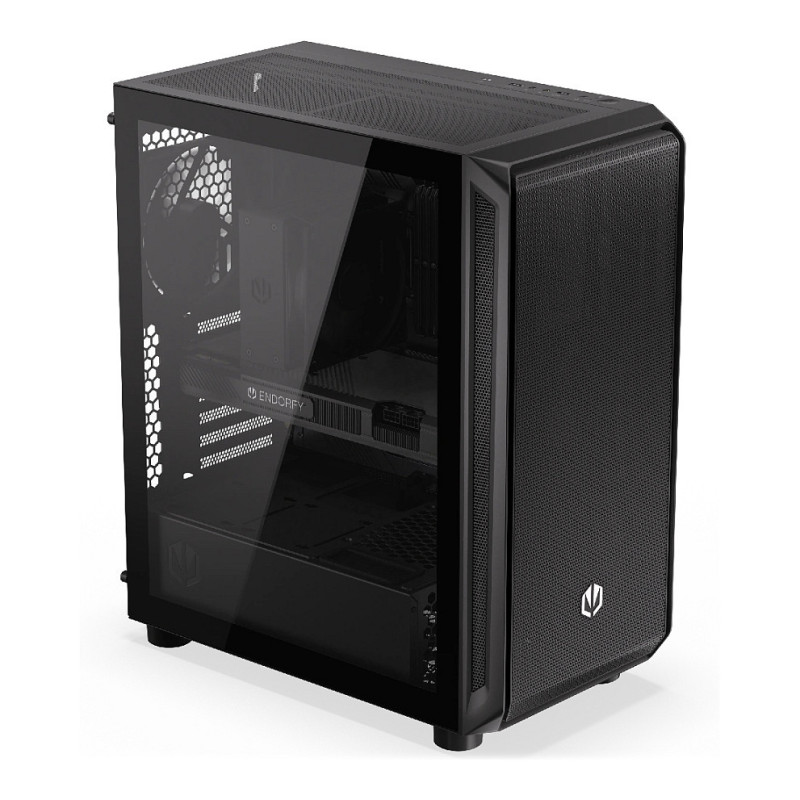

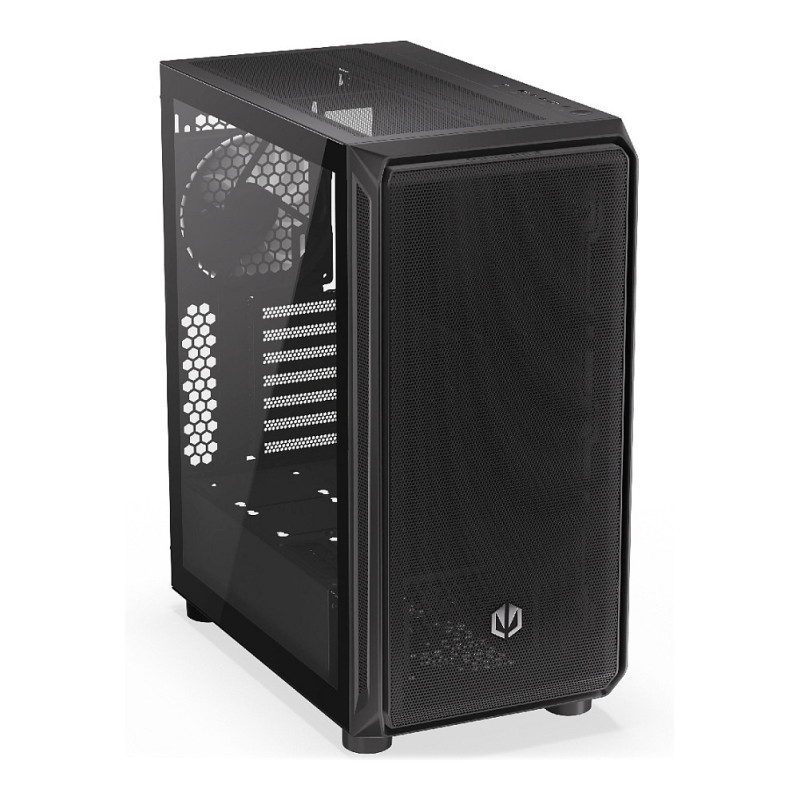

The airy Arx 500 Core PC case is compatible with ATX, microATX, and mini-ITX motherboards. It can accommodate the most efficient components, including radiators up to 360 mm and as many as 7 fans - including two pre-installed, silent Stratus 140 PWM, ensuring efficient cooling. The finely perforated front and top panels act as filters, improving airflow while protecting the interior from dust.

The tempered glass side panel shows off all your components, and the built-in cable management system enhances both aesthetics and internal airflow. The I/O panel is equipped with three fast USB ports, including USB-C, and two audio jacks, providing convenient access to your ports.

Top-notch Stratus fans
The Arx 500 Core fits up to 7 fans, including two pre-installed 140 mm Stratus PWM fans - one at the front and another at the rear. Developed in collaboration with Synergy Cooling, these fans ensure quiet operation and effective cooling for your components.

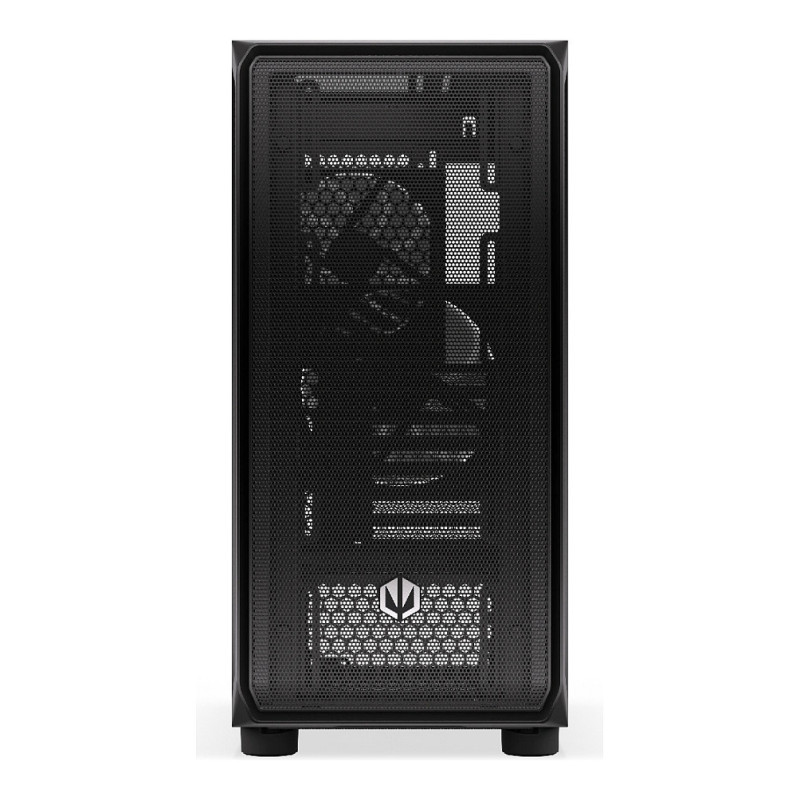

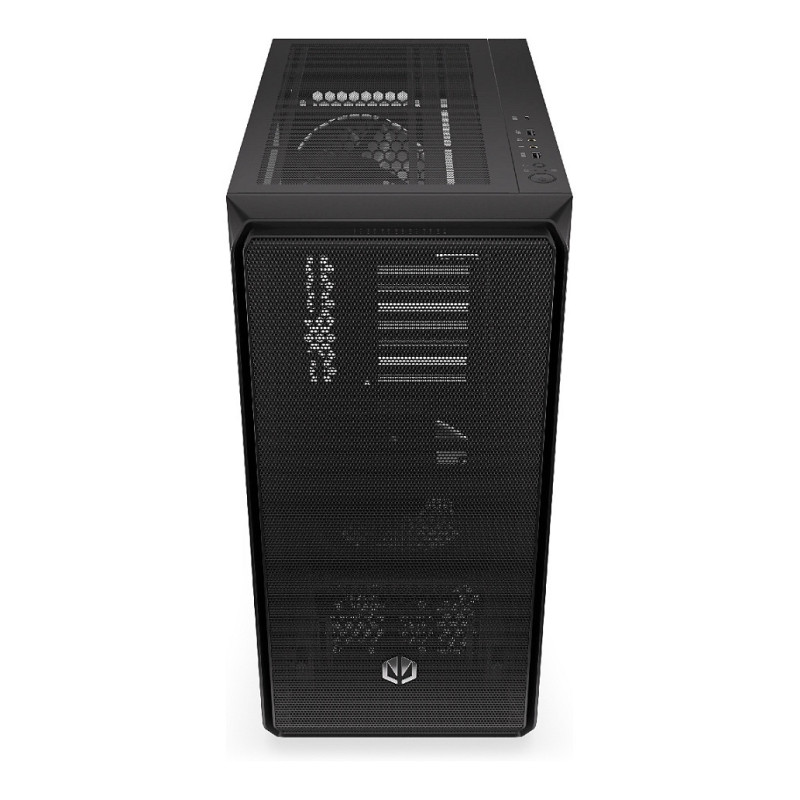

Efficient cooling and dust protection

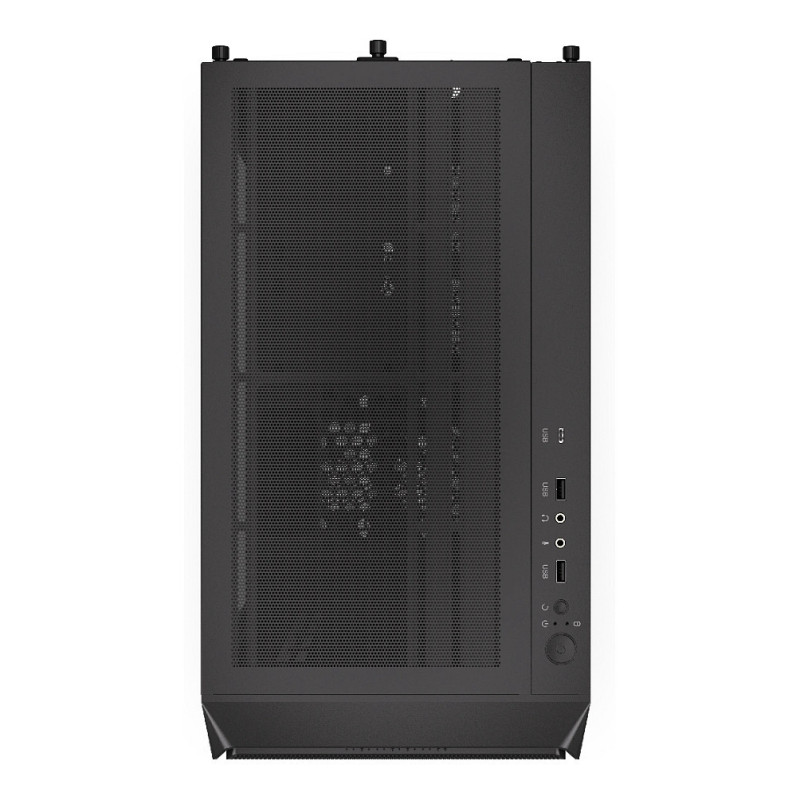

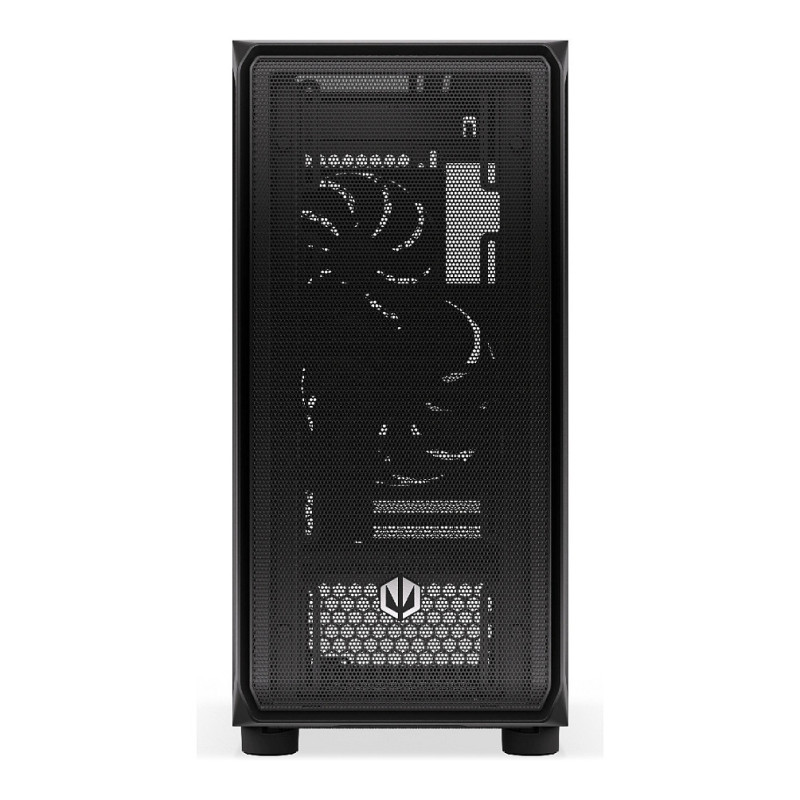

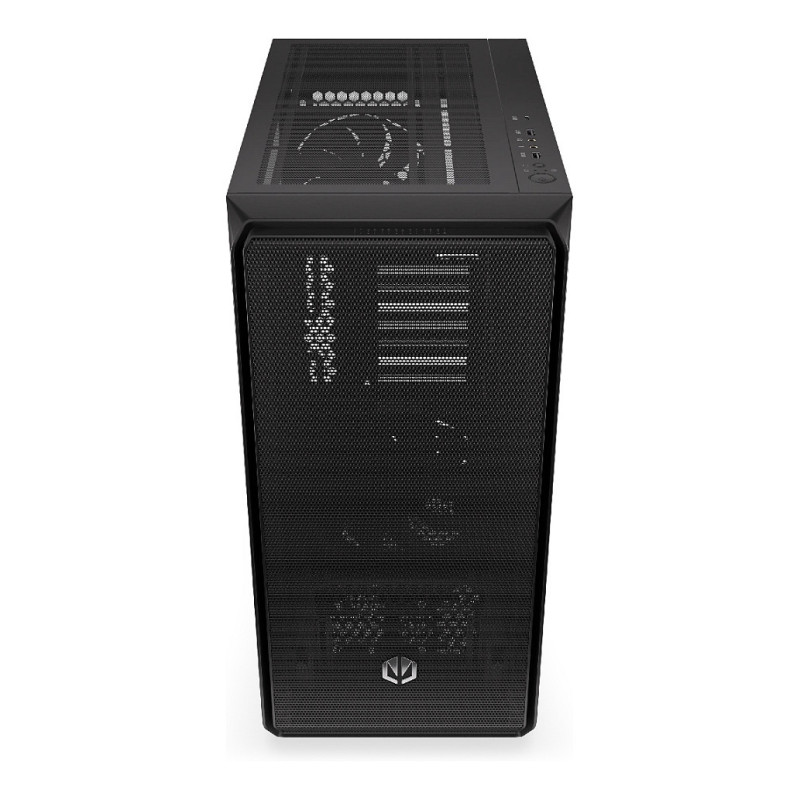

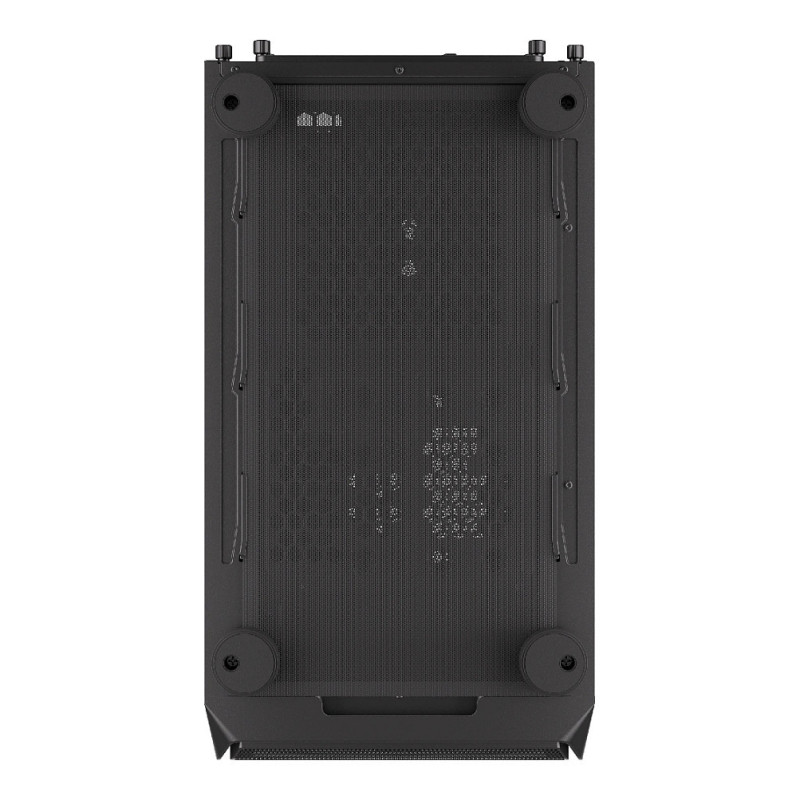

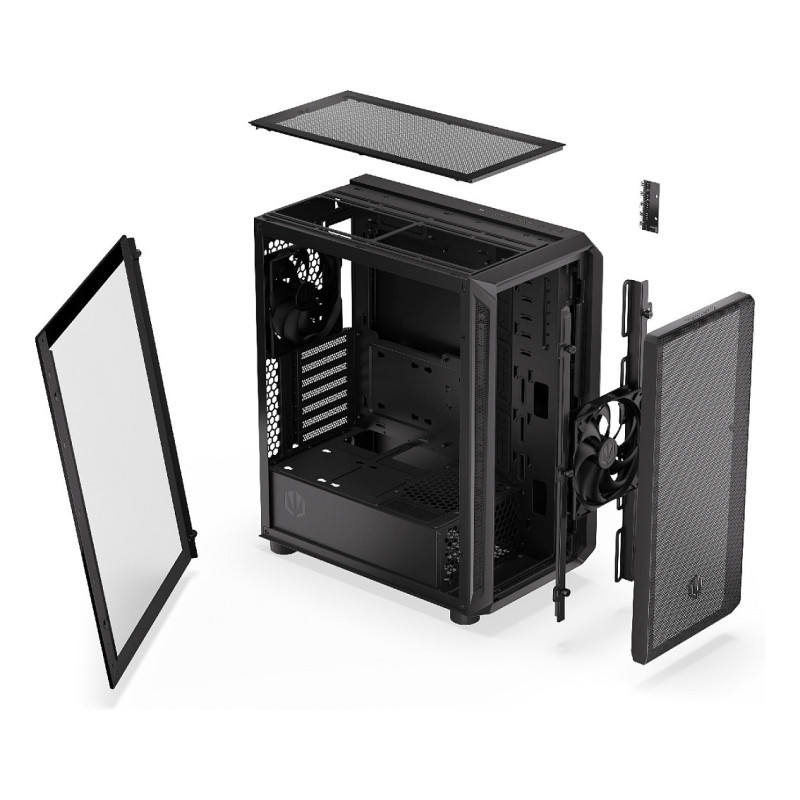

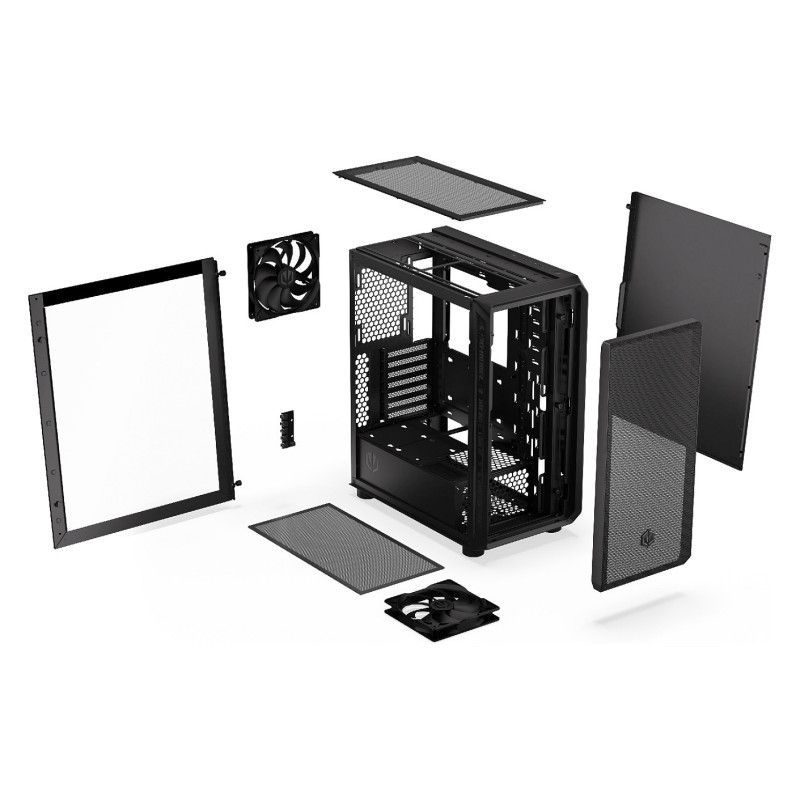

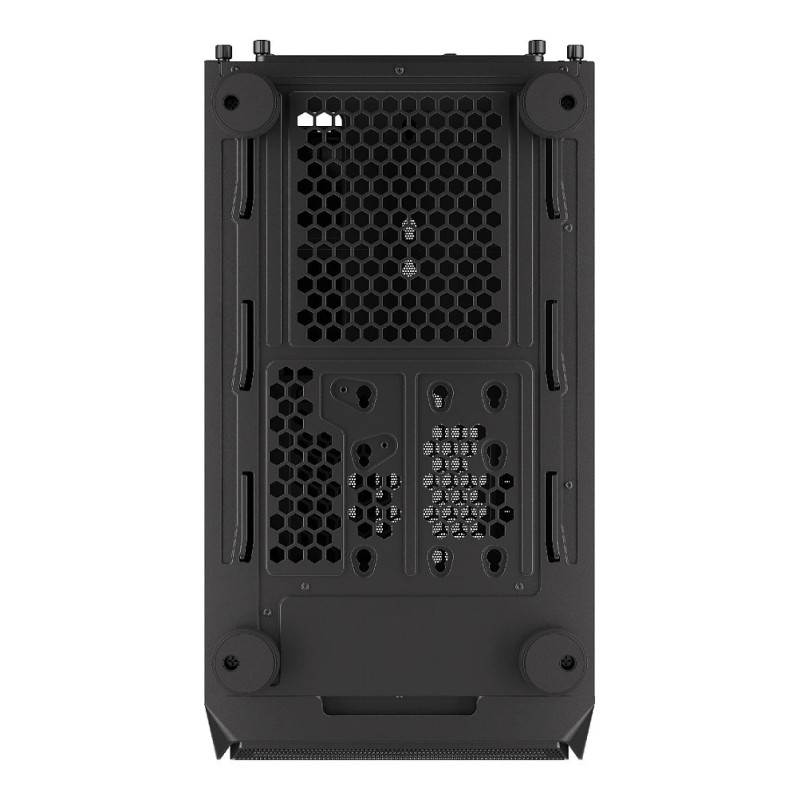

The finely perforated PC case, combined with the pre-installed fans, ensures efficient cooling for your components. The top and front panels, which also serve as dust filters, and the filter at the bottom of the structure protect the inside of the case from dust. You can easily remove and clean them.

Spacious interior for demanding users

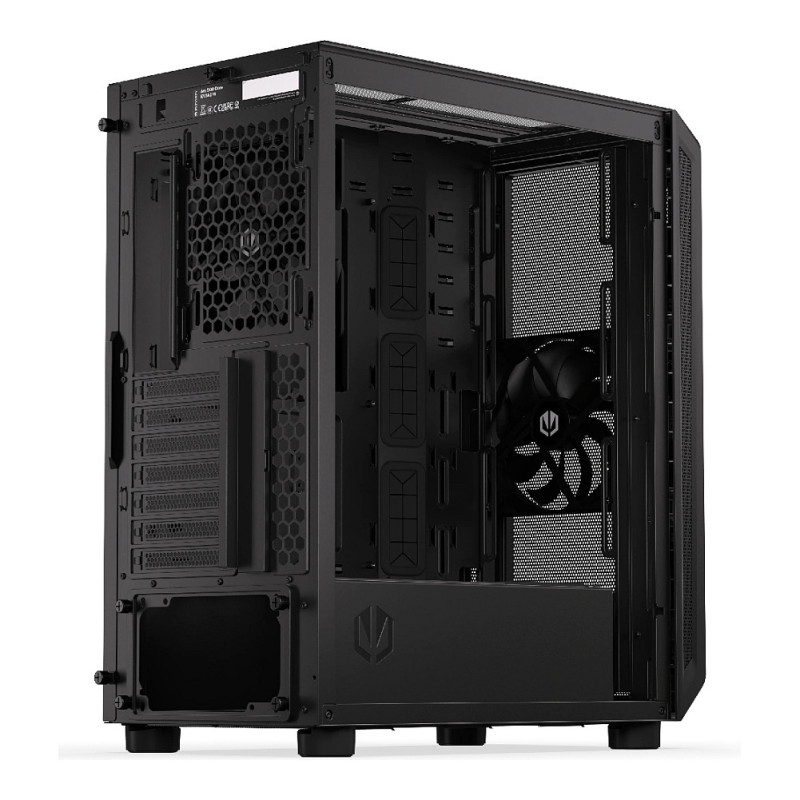

Arx 500 Core is a spacious PC case that easily accommodates even the most demanding components. The case supports a wide range of cooling configurations, including a 360 mm radiator at the front, a 280 mm radiator at the top, and a 140 mm radiator at the rear. It also fits air coolers up to 179 mm in height and supports up to 7 fans.

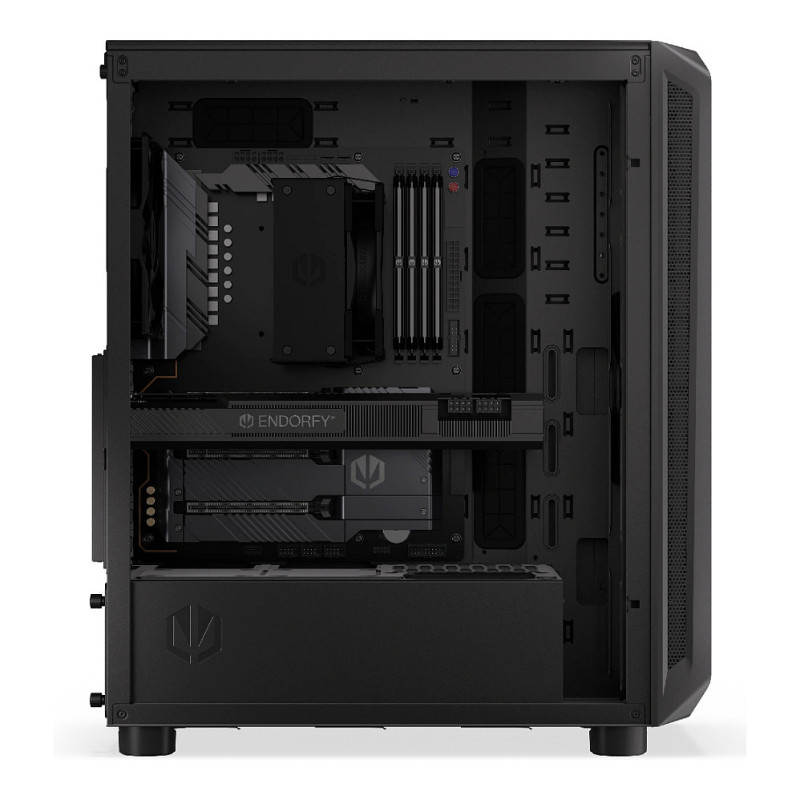

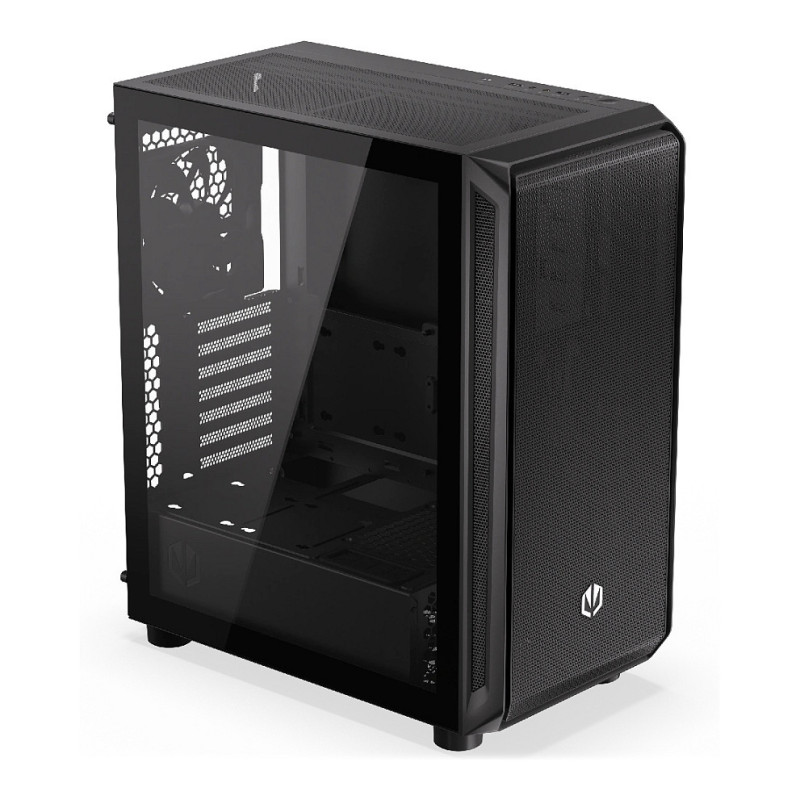

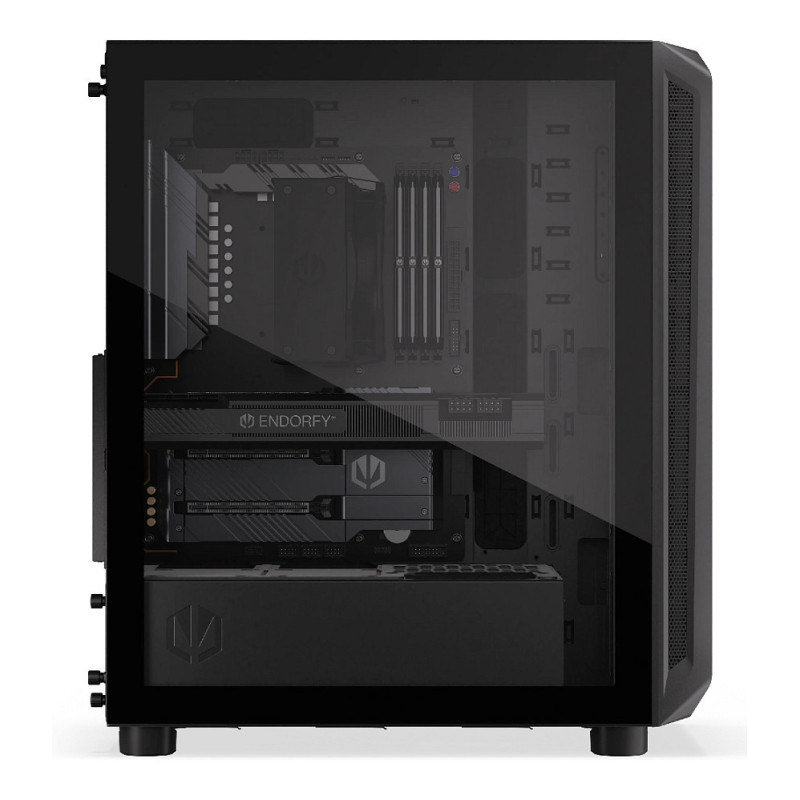

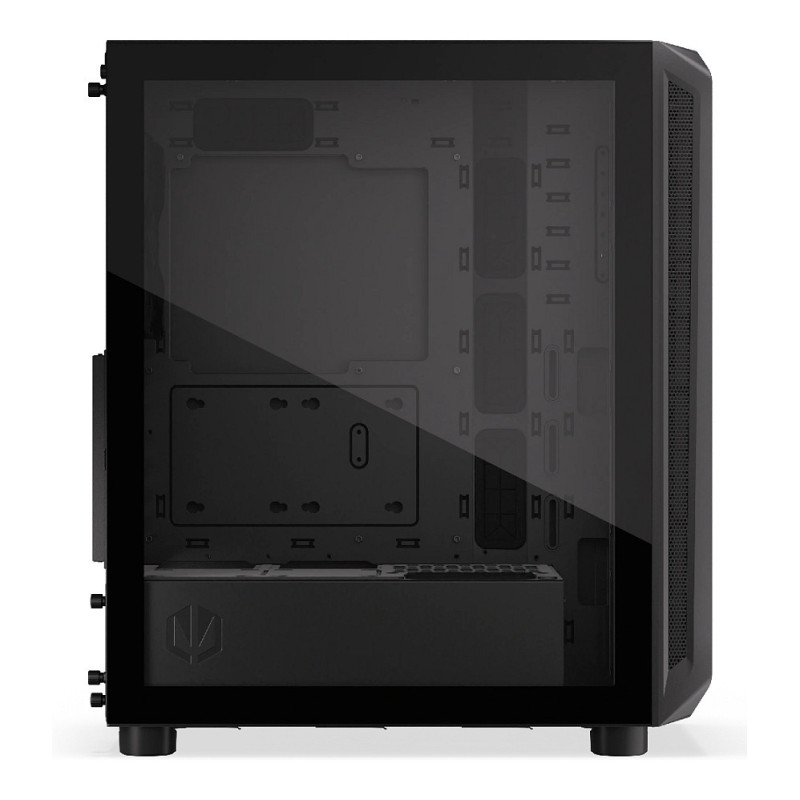

Tempered glass and hidden cables

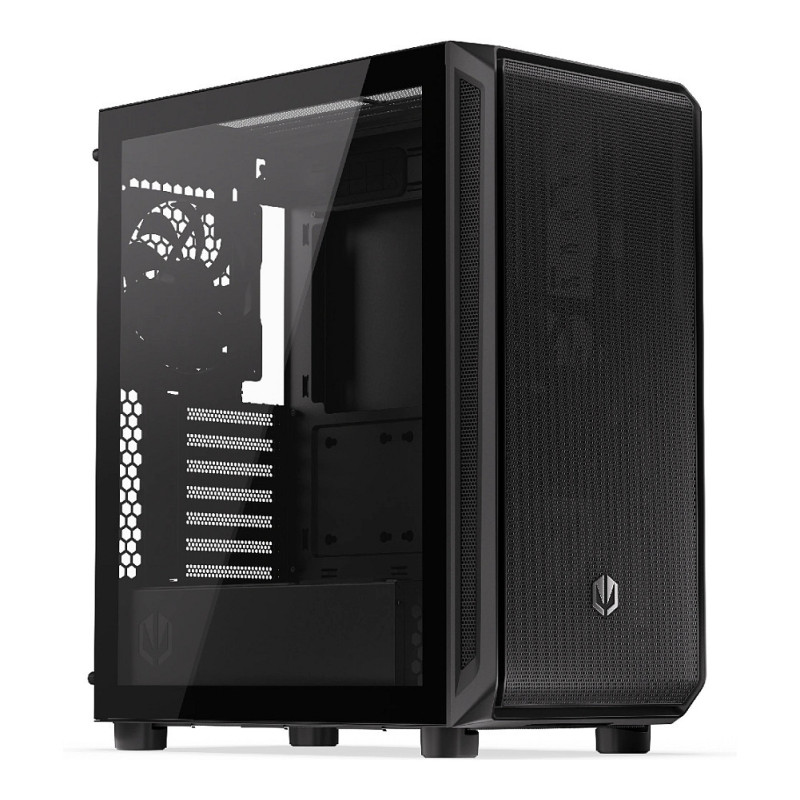

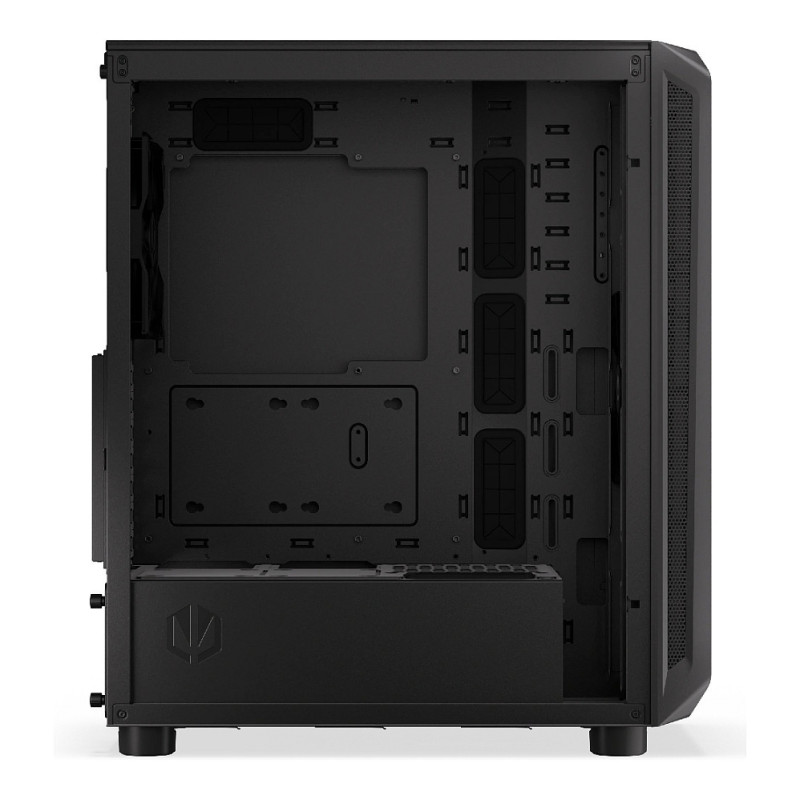

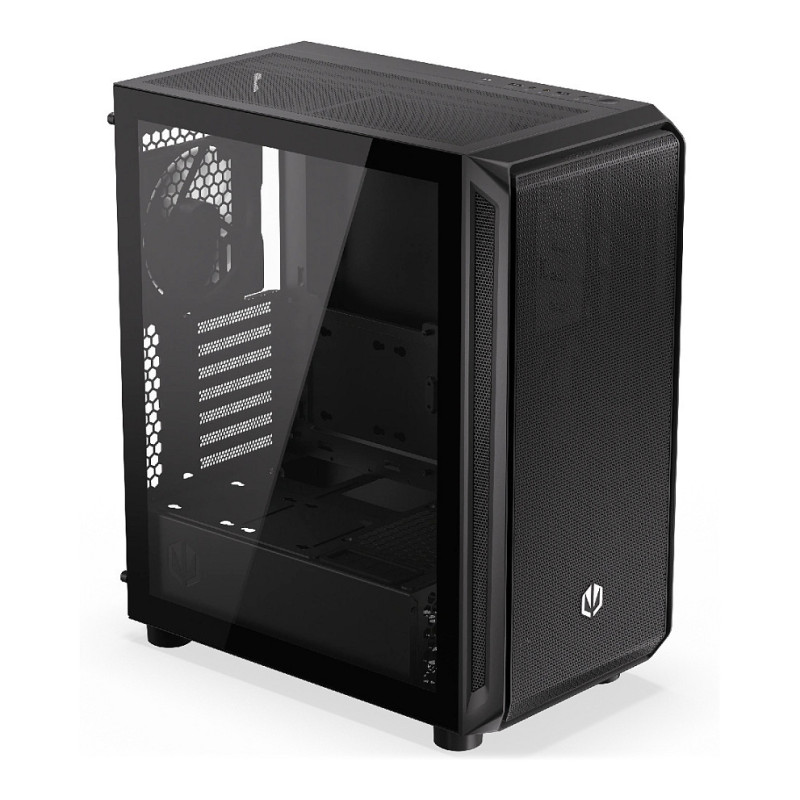

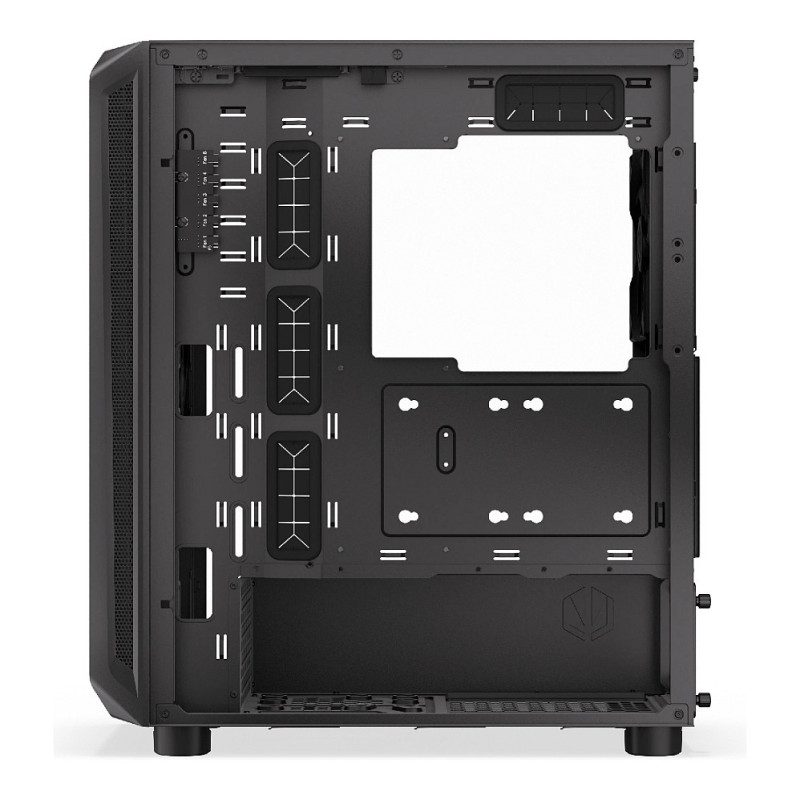

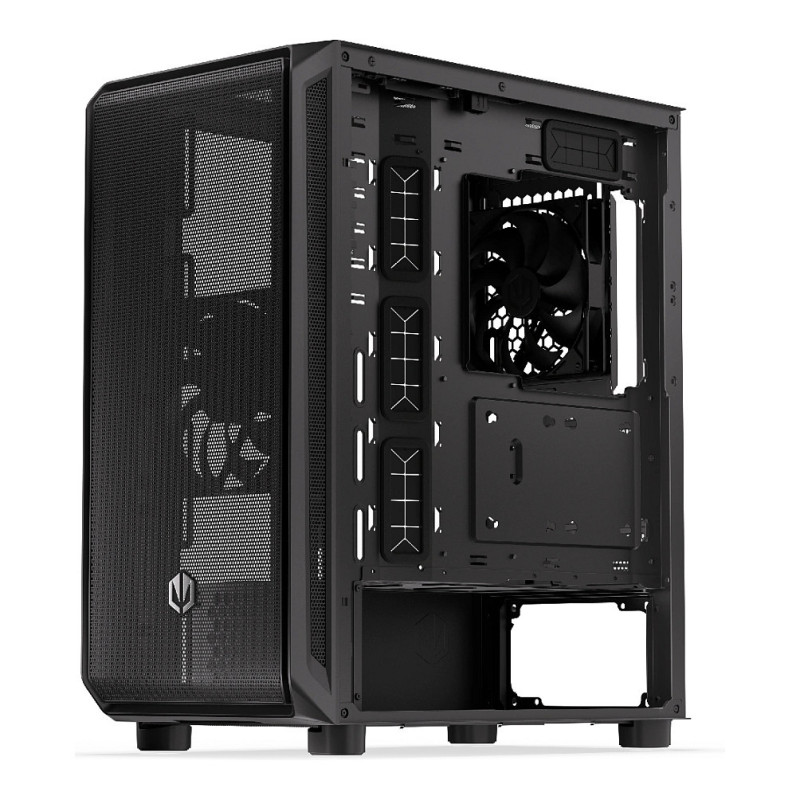

The side panel of tempered glass lets you enjoy a clear view of your computer's interior at all times. It blends seamlessly with both subtle components and vibrant gaming hardware with LED backlight. Numerous cable grommets, combined with space behind the motherboard tray for better cable management, improve interior aesthetics and optimize airflow. As a result, your components stay cooler.

Modern I/O panel with fast USB-C

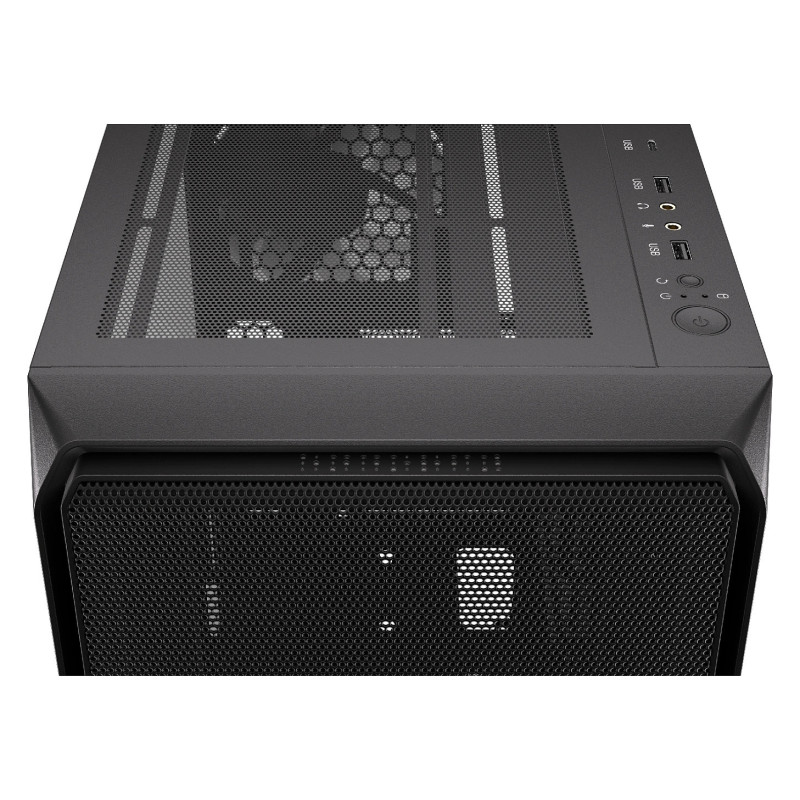

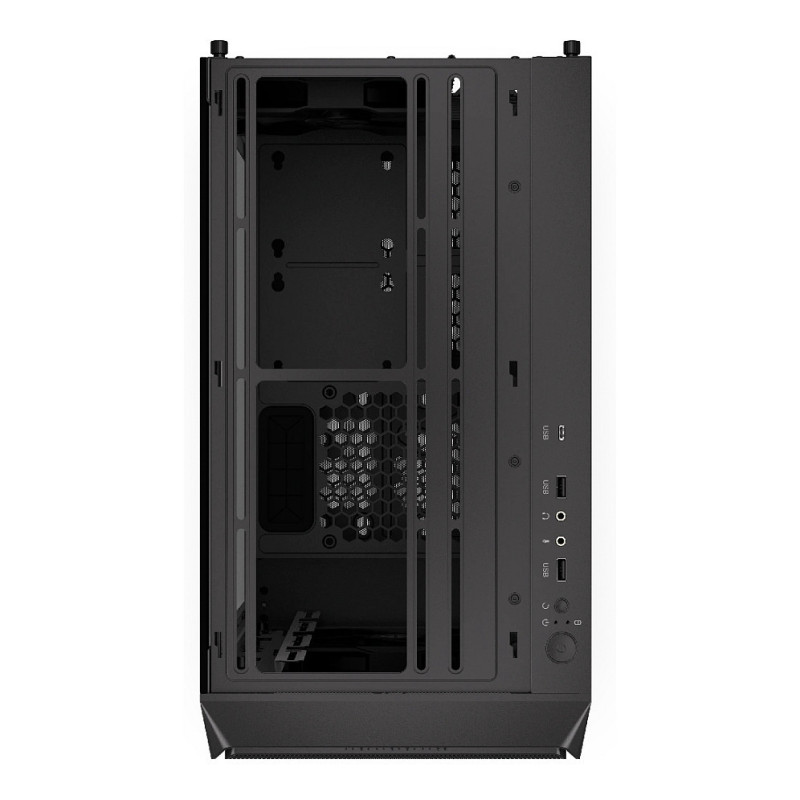

The I/O panel of the Arx 500 Core, located at the front of the top panel, is equipped with a practical selection of ports. It includes two USB-A 3.2 Gen 1 ports (up to 5 Gbps) and two 3.5 mm audio jacks for headphones, speakers or a microphone. There's also a modern, high-speed USB-C 3.2 Gen 2 port (up to 10 Gbps) - allowing you to easily connect devices that require this type of port, without the need for adapters.

Design

Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 1
Number of 2.5" bays: 6
Number of internal 3.5" bays: 1
Number of expansion slots: 7
Feature: Side window
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Reset button
Feature: On/off button
Maximum CPU cooler height: 17.9 cm
Maximum graphics card length: 35 cm
Maximum PSU length: 30 cm

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Combo headphone/mic port

Cooling

Front fans installed: 1x 140 mm
Rear fans installed: 1x 140 mm
Front radiator sizes supported: 120,240,280,360 mm
Rear radiator sizes supported: 120,140 mm
Top radiator sizes supported: 120,240,280 mm

Storage

Supported HDD sizes: 2.5,3.5"
Feature: HDD/SSD combo cage
SSD form factor: 2.5"

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA

Packaging content

Feature: Manual

Weight & dimensions

Width: 228 mm
Depth: 429 mm
Height: 486 mm
