Cooler Master MasterFrame 360 PANORAMA

Cooler Master MasterFrame 360 PANORAMA. Form factor: Full Tower, Type: PC, Product colour: Black, Transparent. Top fans diameters supported: 120,140,180,200 mm, Bottom fans diameters supported: 120,140,180,200 mm, Bottom radiator sizes supported: 120,140,240,280,360 mm. Supported HDD sizes: 2.5,3.5". Width: 291 mm, Depth: 549 mm, Height: 581 mm. Package width: 427 mm, Package depth: 720 mm, Package height: 680 mm

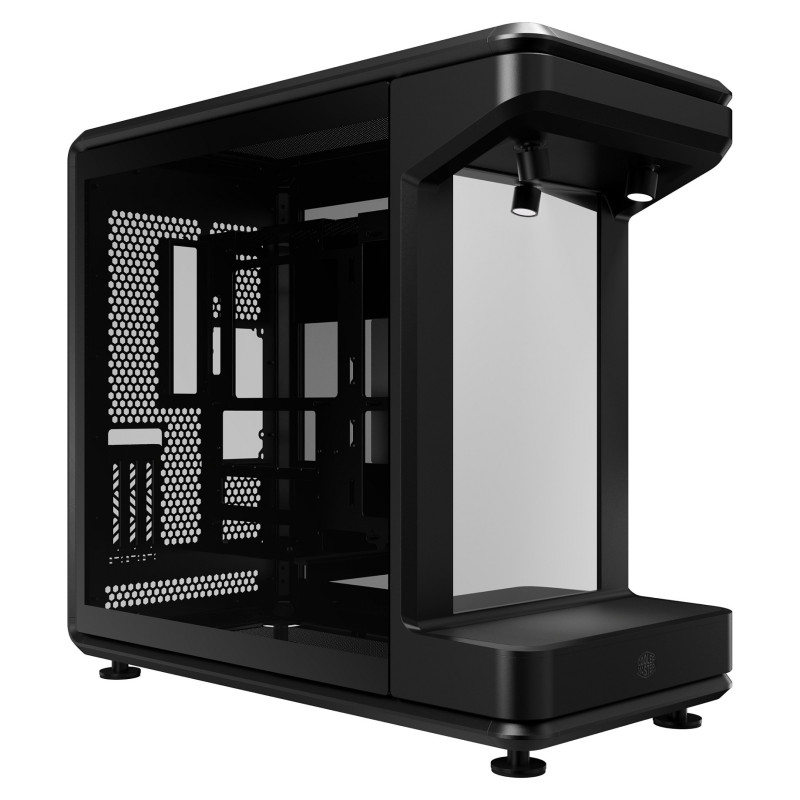

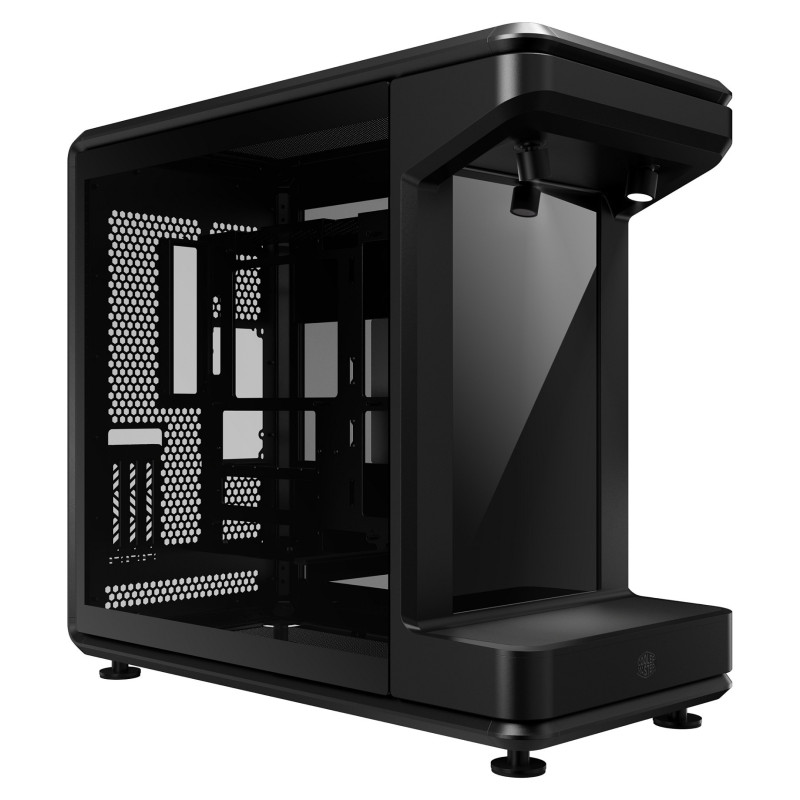

MasterFrame 360 PANORAMA is an open- frame showcase chassis designed for builders who demand both performance and presentation. Featuring panoramic tempered glass side panels, modular component support, and next-gen connectivity, it offers a striking platform to display your hardware and creativity. With built-in PCIe 5.0 riser and ARGB spotlights, it's ready to shine right out of the box.

Industry-First 360° DIY Liquid Cooling Chassis
Introducing the market's first 360-degree showcase chassis—purpose-built for open-loop liquid
cooling. Create a full-wrap cooling loop around your system with dedicated space and mounting
options that allow tubing to flow around all sides like a custom amusement park ride.

Panoramic Glass Design for Immersive Showcase
Showcase your build—and your collectibles—from every angle with ultra-clear tempered glass panels
on three sides.

Like a 360-degree display case, it reveals every detail of your components and figures with stunning
clarity. Whether you're highlighting open-loop liquid cooling or custom hardware configurations, this
chassis turns your rig into a show-stopping centerpiece with story and style.

Front Display Stage for Personal Style
A mirrored front platform lets you exhibit your favorite collectibles, figures, or themed accessories,
blending personal expression with system aesthetics. Combined with front-facing ARGB effects, your
setup becomes a vivid and playful showcase.

Massive Cooling Compatibility
To ensure exceptional thermal performance, the case supports fan sizes ranging from 120 mm to 200
mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports
radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.

Compatible with Standard and BTF Motherboards
Compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts
within the ATX form factor.

Features 110 mm of cable routing clearance for a clean and clutter-free showcase.

PCIe 5.0 Riser Cable Included
Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen
performance and an elevated presentation right out of the box.

Wide Component Compatibility
Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without
compromise.

Next-Gen Connectivity at Your Fingertips
Features USB 4.0 Gen 2x2 Type-C (up to 20G) and 2x USB 3.2 Gen 1 Type-A ports (up to 5G), providing
ultra-fast data transfer and future-ready accessibility.

Design

Material: SGCC, Tempered glass
Form factor: Full Tower
Type: PC
Product colour: Black, Transparent
Supported motherboard form factors: Mini-ITX, micro ATX, ATX, BTF
Number of 3.5" bays: 1
Number of 2.5" bays: 2
Feature: Side window
Feature: Anti-dust filter
Feature: Cable management
Maximum CPU cooler height: 14.5 cm
Maximum graphics card length: 43 cm
Maximum PSU length: 21 cm

Ports & interfaces

Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Cooling

Number of top fans supported (max): 6
Top fans diameters supported: 120,140,180,200 mm
Number of bottom fans supported (max): 6
Bottom fans diameters supported: 120,140,180,200 mm
Bottom radiator sizes supported: 120,140,240,280,360 mm
Top radiator sizes supported: 120,140,240,280,360 mm

Storage

Supported HDD sizes: 2.5,3.5"
Feature: HDD/SSD combo cage

Packaging content

Feature: Riser cable included

Weight & dimensions

Width: 291 mm
Depth: 549 mm
Height: 581 mm
Weight: 16.5 kg

Packaging data

Package width: 427 mm
Package depth: 720 mm
Package height: 680 mm
Package weight: 21.1 kg

Other features

Volume: 93 L
