Chieftec CQ-01B-U3-OP kompiuterio dėklas

Chieftec CQ-01B-U3-OP. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Top. Front fans diameters supported: 120 mm, Side fans diameters supported: 120 mm, Rear fans diameters supported: 80 mm. Supported HDD sizes: 3.5". Width: 160 mm, Depth: 428 mm, Height: 410 mm

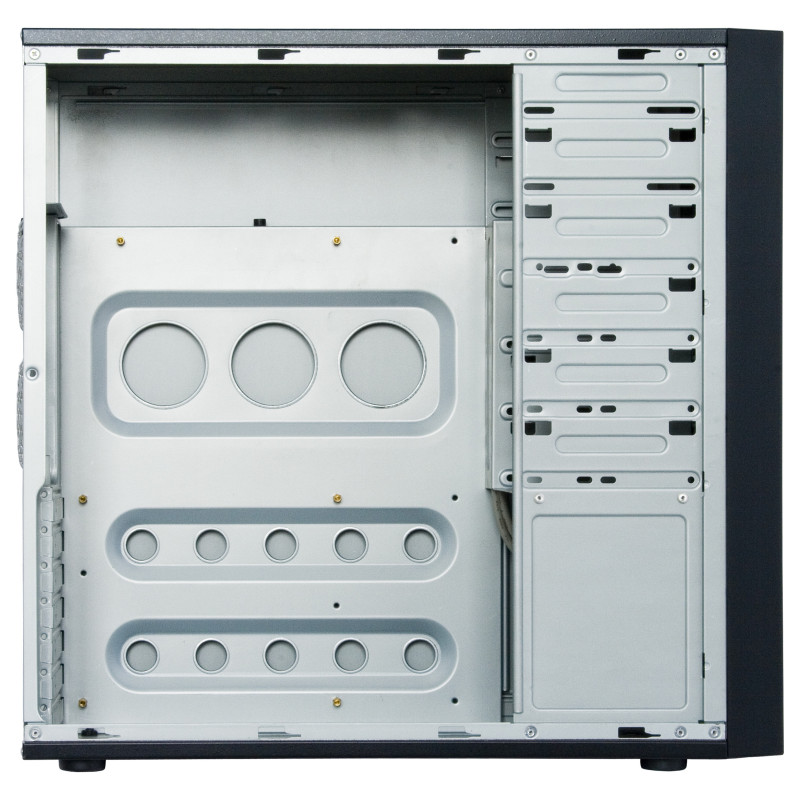

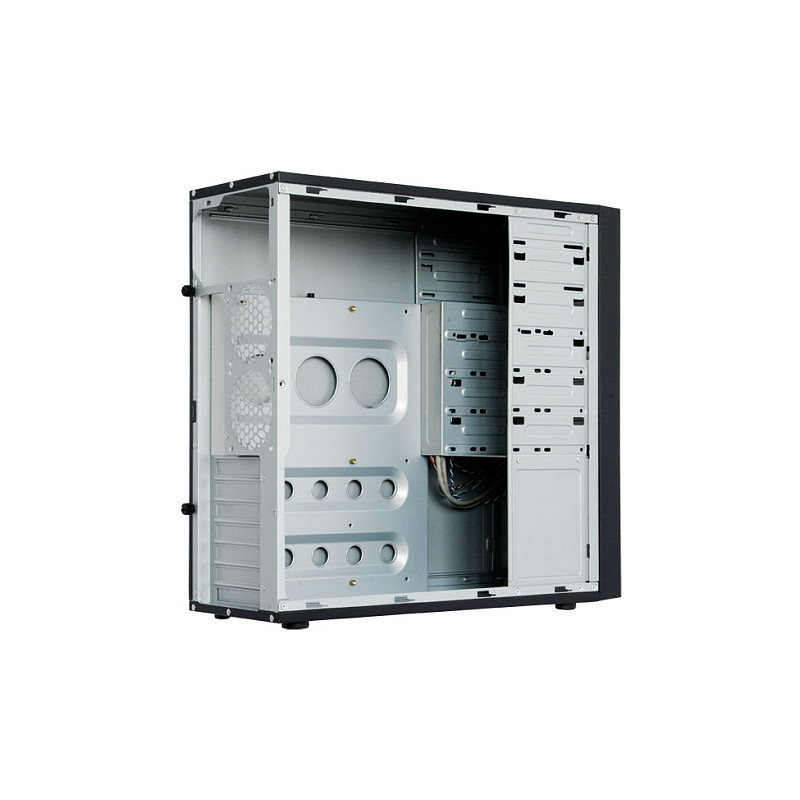

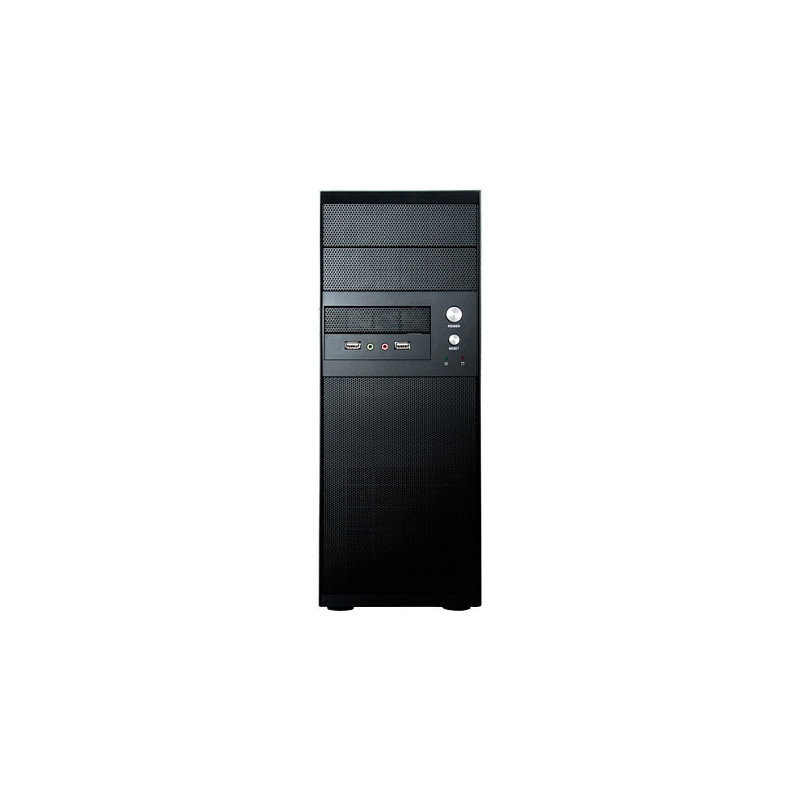

2x ext. 5,25", 1x ext. 3,5" and 3x int. 3,5" drives can be installed behind this unique front panel. All connectors such as USB 2.0 and Audio are positioned in the front panel and are ergonomically easy-to-access. In addition, the possibility to install 3x 120mm and 2x 80mm fans ensures optimal ventilation resulting in a perfect thermal solution of the chassis.

Design

Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX
Number of 3.5" bays: 4
Number of 5.25" bays: 2
Number of internal 3.5" bays: 3
Suitable for: Home/Office
LED indicators: Yes

Power supply

Power supply location: Top

Ports & interfaces

Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Cooling

Number of front fans supported (max): 1
Front fans diameters supported: 120 mm
Number of side fans supported (max): 2
Side fans diameters supported: 120 mm
Number of rear fans supported (max): 2
Rear fans diameters supported: 80 mm

Storage

Supported HDD sizes: 3.5"

Weight & dimensions

Width: 160 mm
Depth: 428 mm
Height: 410 mm
Weight: 4.5 kg
Material thickness: 0.6 mm

Logistics data

Harmonized System (HS) code: 84733080
