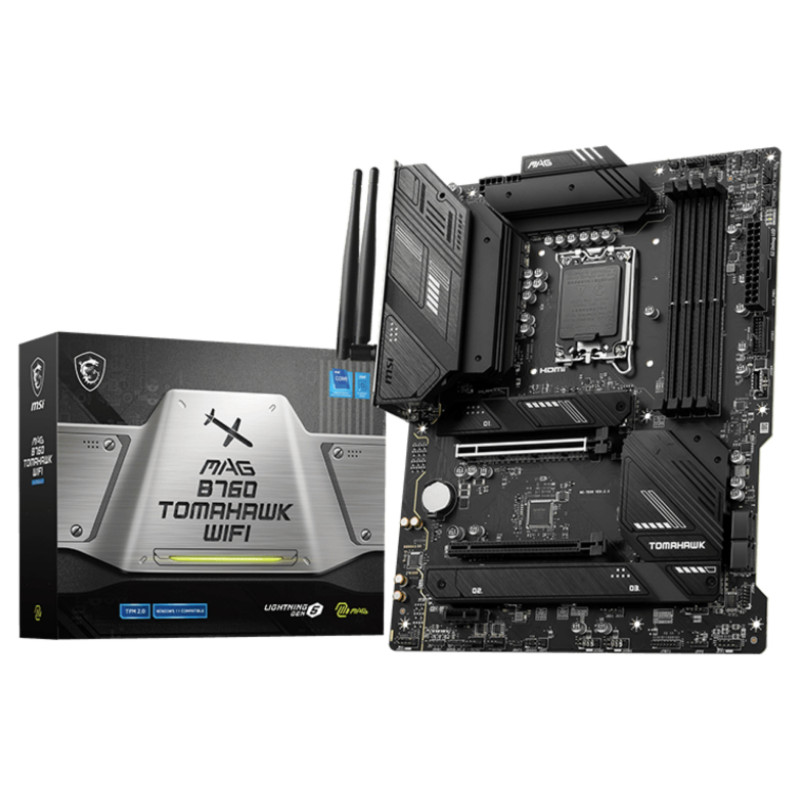

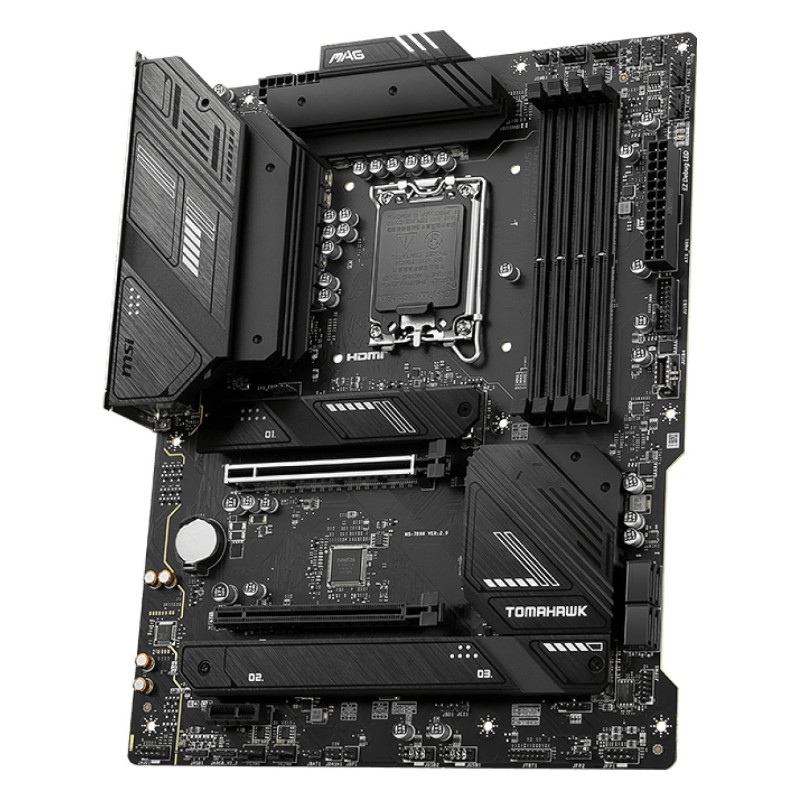

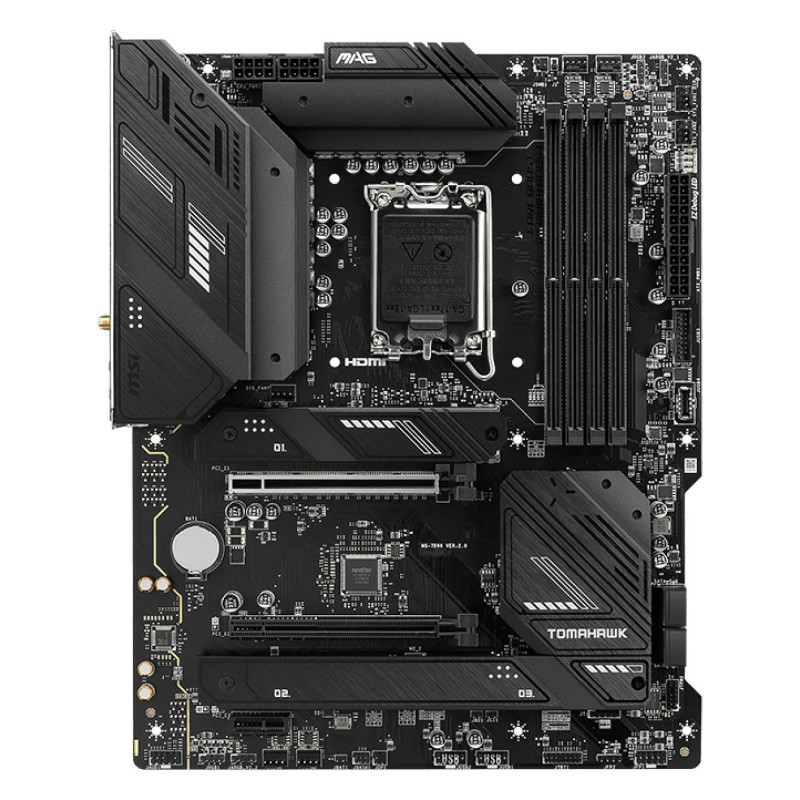

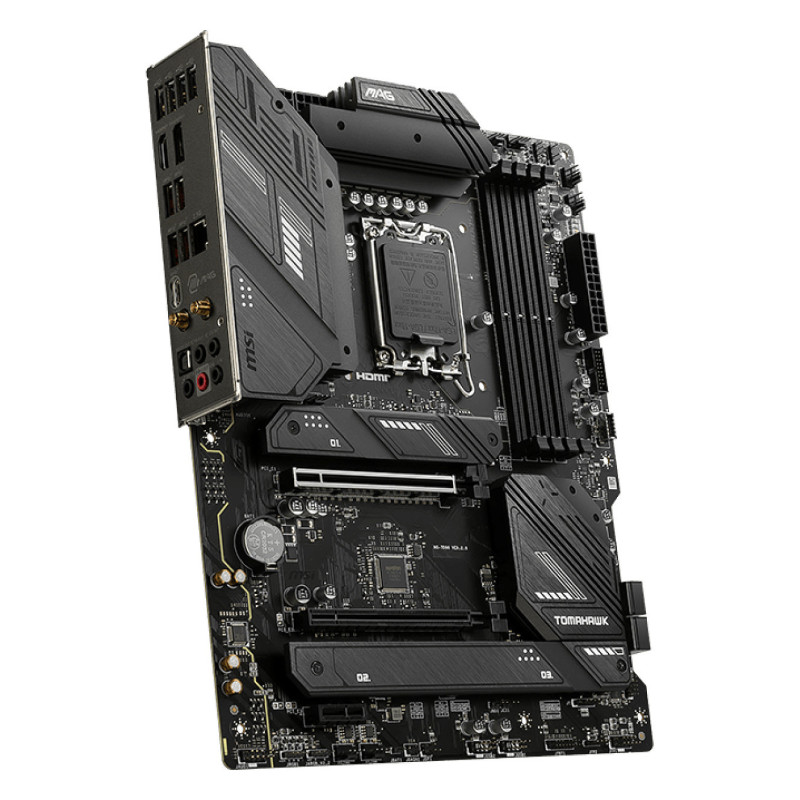

MSI MAG B760 TOMAHAWK WIFI pagrindinė plokštė

MSI MAG B760 TOMAHAWK WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper
MOS and helps dissipate the heat.

7W/mK Thermal Pad &
Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max): 7000 MHz
Maximum internal memory: 128 GB

Storage controllers

Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 7
Feature: RAID support
RAID levels: 0, 1, 5, 10

Internal I/O

USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Feature: S/PDIF out connector
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Feature: TPM connector
Feature: RGB LED pin header

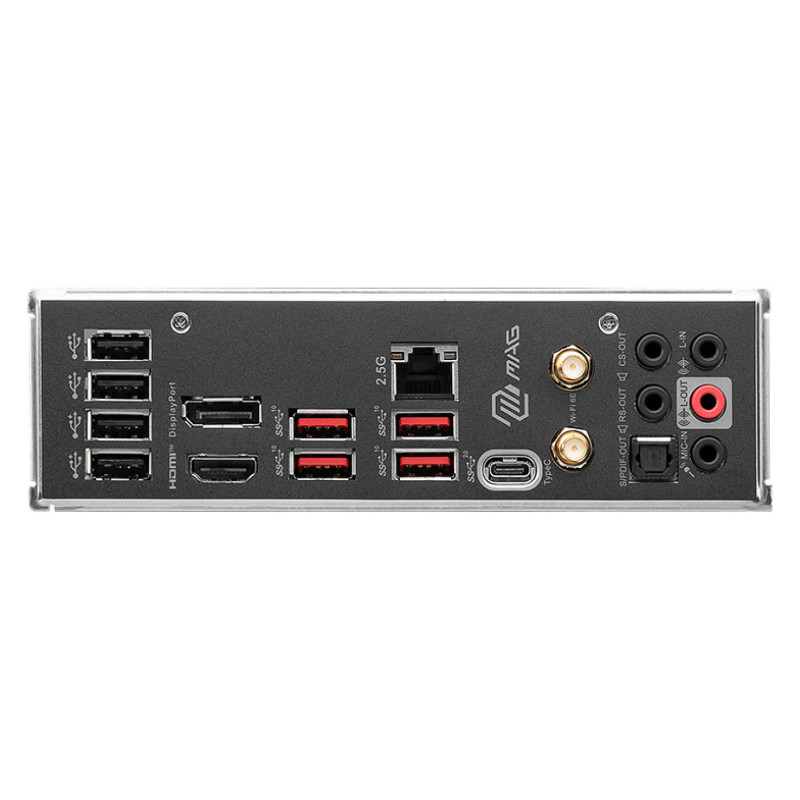

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4

Network

Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.3

Features

Motherboard chipset: Intel B760
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 slots: 2
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 3.5

Weight & dimensions

Width: 243.8 mm
Depth: 304.8 mm
