MSI B850M GAMING PLUS WIFI6E pagrindinė plokštė

MSI B850M GAMING PLUS WIFI6E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

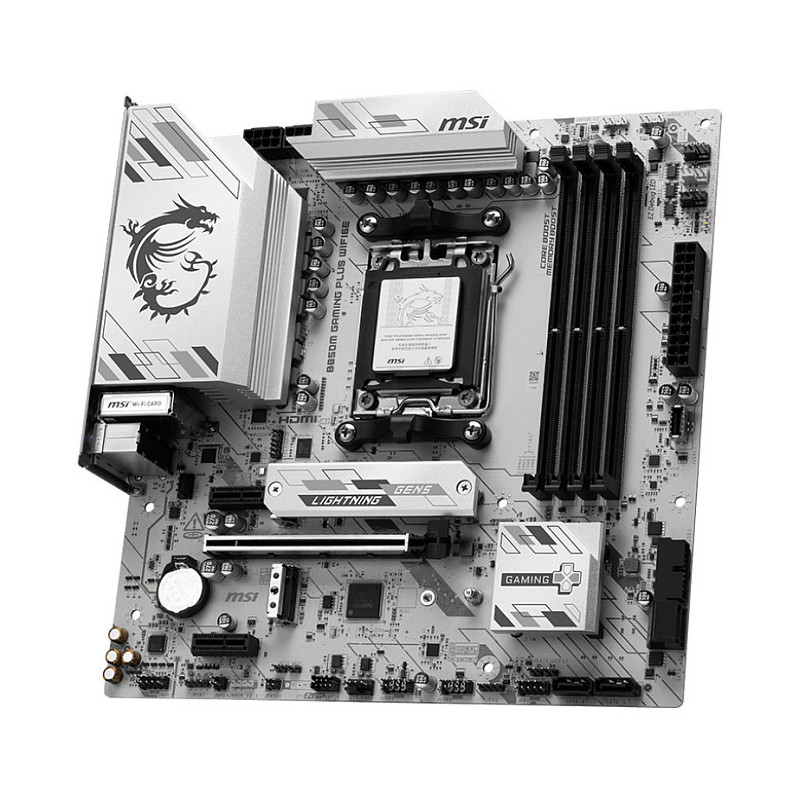

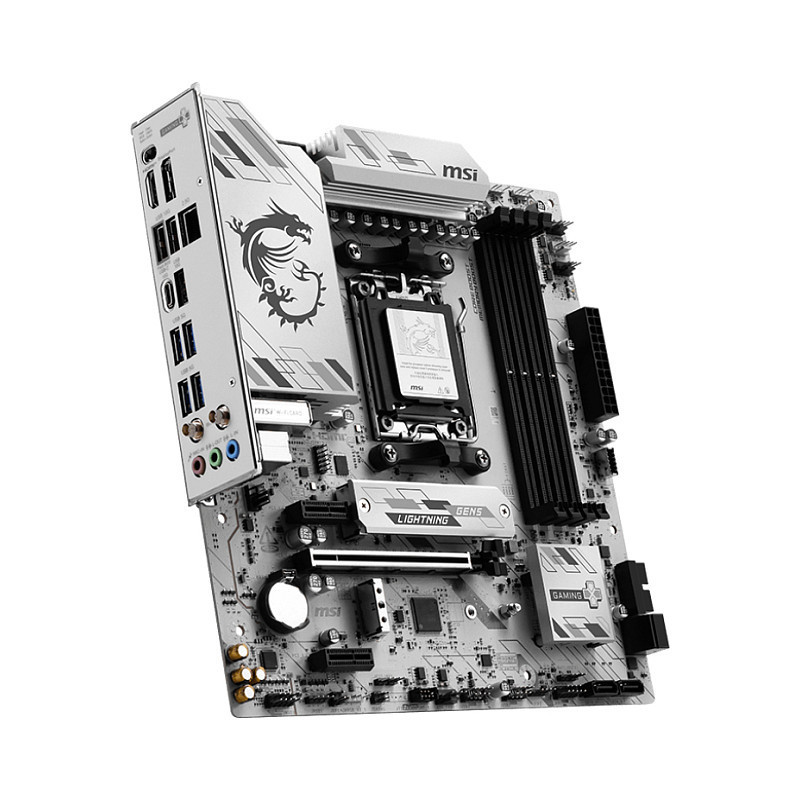

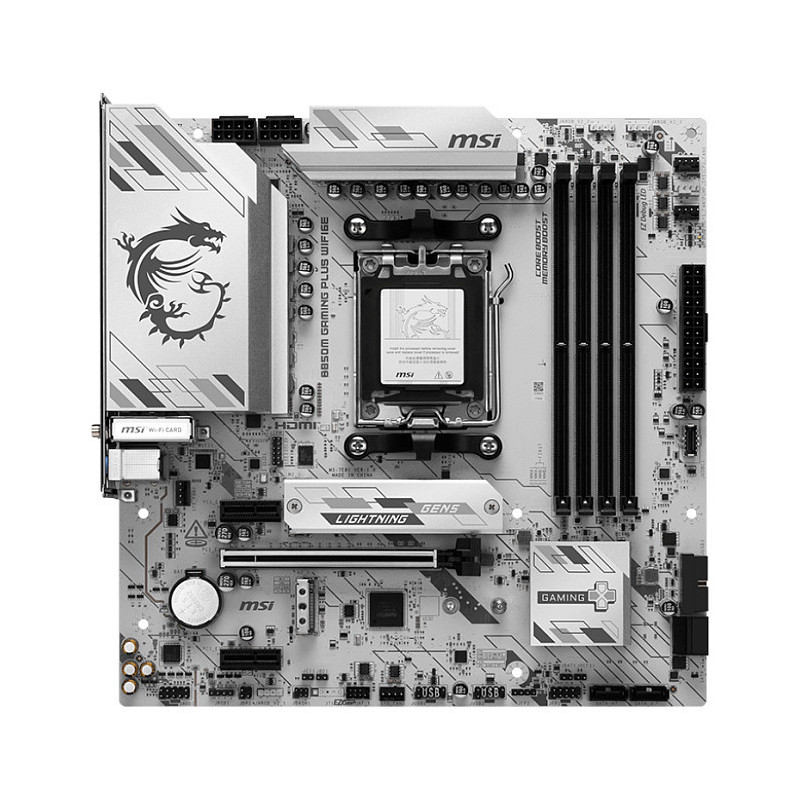

B850M GAMING PLUS WIFI6E

The B850M GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the advanced Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

10+2+1 Duet Rail Power System

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, the B850M GAMING PLUS WIFI6E is ready to sustain heavy gaming loadings.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Enlarged Chipset Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

AI LAN Manager

MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI AI LAN MANAGER

- Automatically prioritizes games above other applications
- Allows to change applications' traffic priority
- Allows to customize bandwidth for each application
- Analysis Wi-Fi signals to select the best source.

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800,6000,6400,8200 MHz
Supported memory clock speed (max): 8200 MHz
Maximum internal memory: 256 GB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2
Number of HDDs supported: 4
Number of storage drives supported: 7
Feature: RAID support
RAID levels: 0, 1, 10

Internal I/O

USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 2
Number of water pump connectors: 1
Feature: RGB LED pin header
Number of RGB LED pin headers: 3

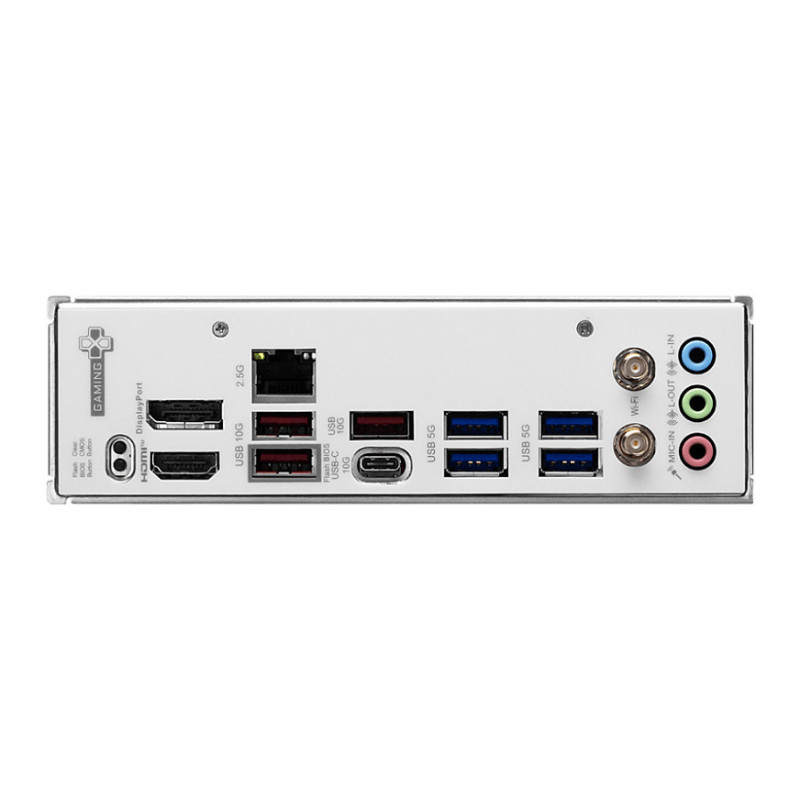

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1

Network

Feature: Ethernet LAN
Ethernet interface type: 5 Gigabit Ethernet
LAN controller: Realtek RTL8126
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4

Features

Motherboard chipset: AMD B850
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64

Expansion slots

PCI Express x4 slots: 1
PCI Express x16 slots: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.5
System Management BIOS (SMBIOS) version: 3.7

Weight & dimensions

Width: 243.8 mm
Depth: 243.8 mm
