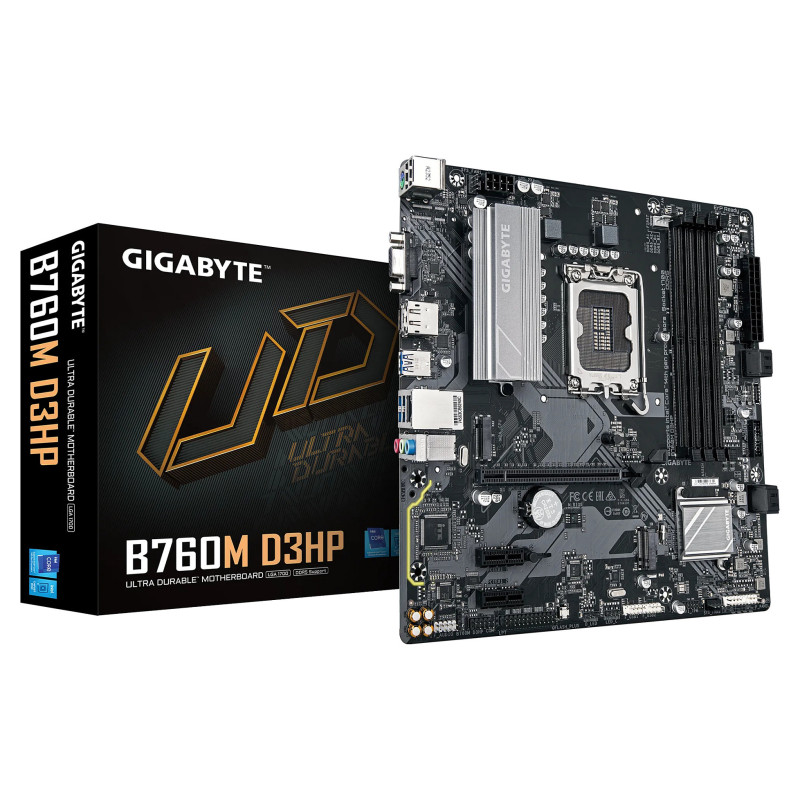

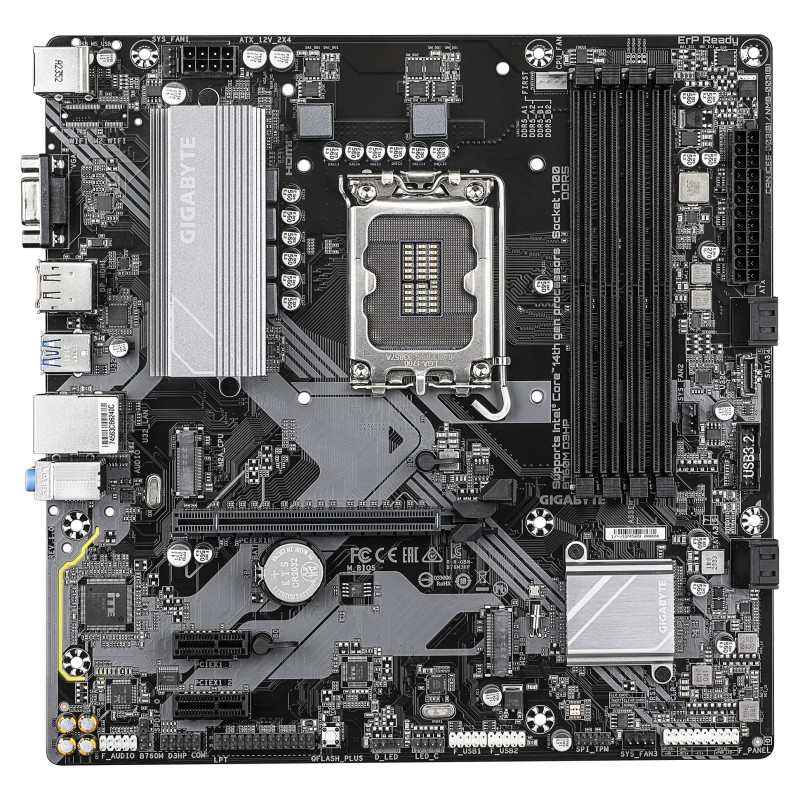

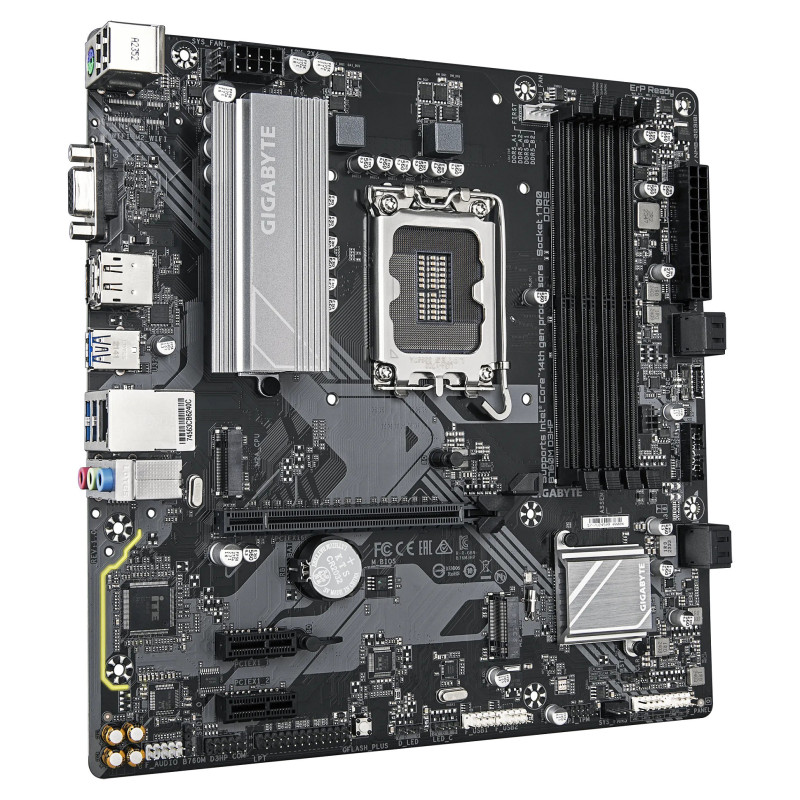

GIGABYTE B760M D3HP pagrindinė plokštė

GIGABYTE B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 4400,4800,5200,5600 MHz
Supported memory clock speed (max): 5600 MHz
Maximum internal memory: 256 GB
Feature: Unbuffered memory
Maximum internal memory per slot: 64 GB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
Feature: RAID support
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels
Feature: HDCP
DirectX version: 12.0

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: S/PDIF out connector
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 1
Number of chassis fan connectors: 3
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 1
Feature: TPM connector
Feature: Parallel connector
Serial port headers: 1
Feature: 12V power connector
Feature: RGB LED pin header
Number of RGB LED pin headers: 2

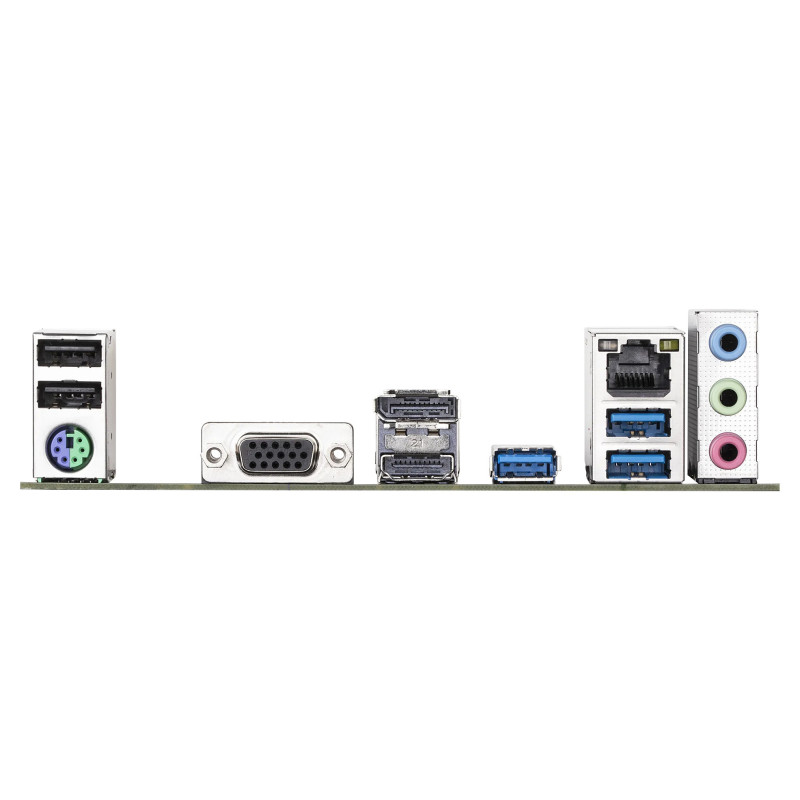

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.2
Headphone outputs: 1
Feature: Line-in
Feature: Microphone in

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H

Features

Motherboard chipset: Intel B760 Express
Audio output channels: 7.1 channels
Product colour: Brown
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7

Logistics data

Products per shipping (inner) case: 1 pc(s)

Battery

Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032

Packaging data

Package width: 270 mm
Package depth: 268 mm
Package height: 68 mm
Package weight: 1.21 kg

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 35 mm

Packaging content

Feature: Batteries included
Feature: Screws included
Bundled software: Norton Internet Security

Other features

Weight: 720 g

Technical details

Warranty period: 3 year(s)
