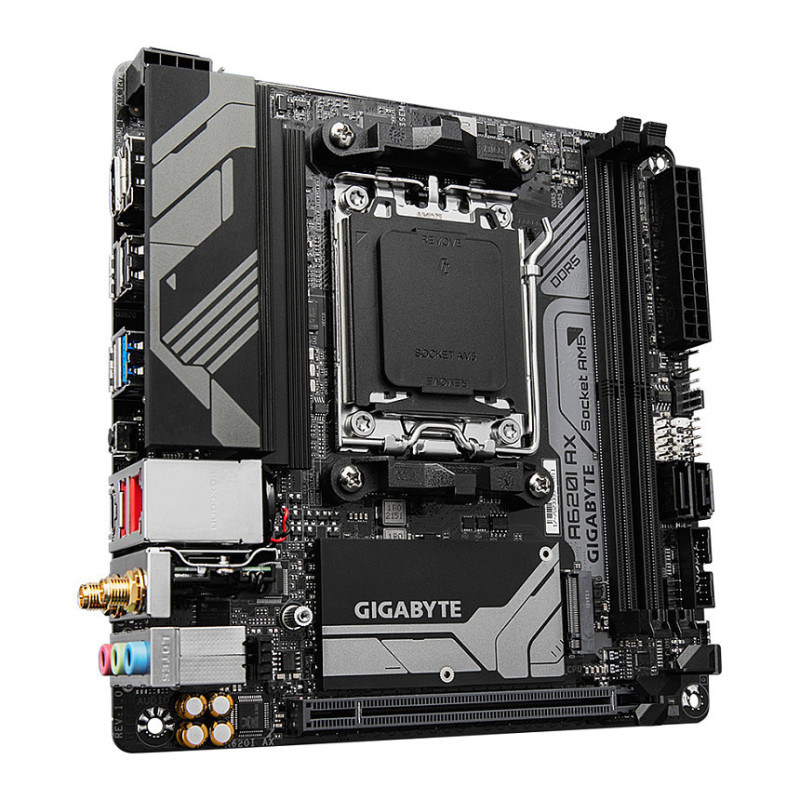

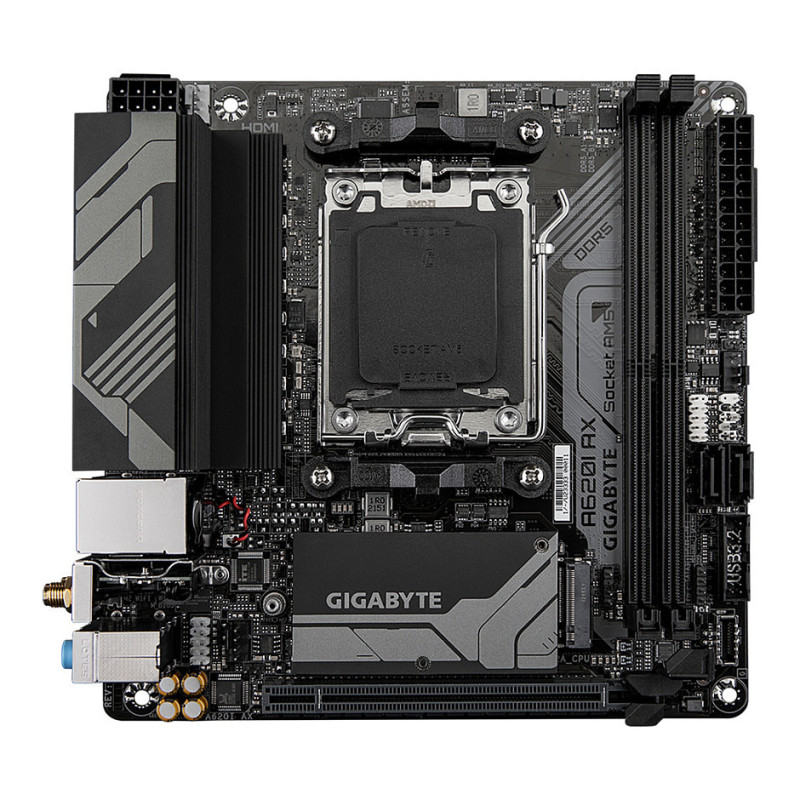

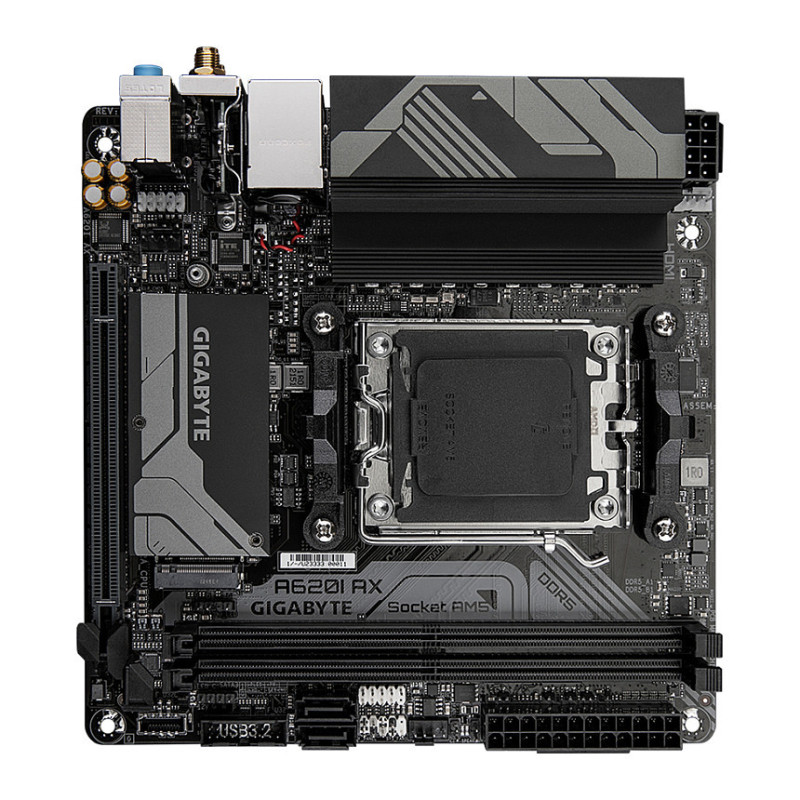

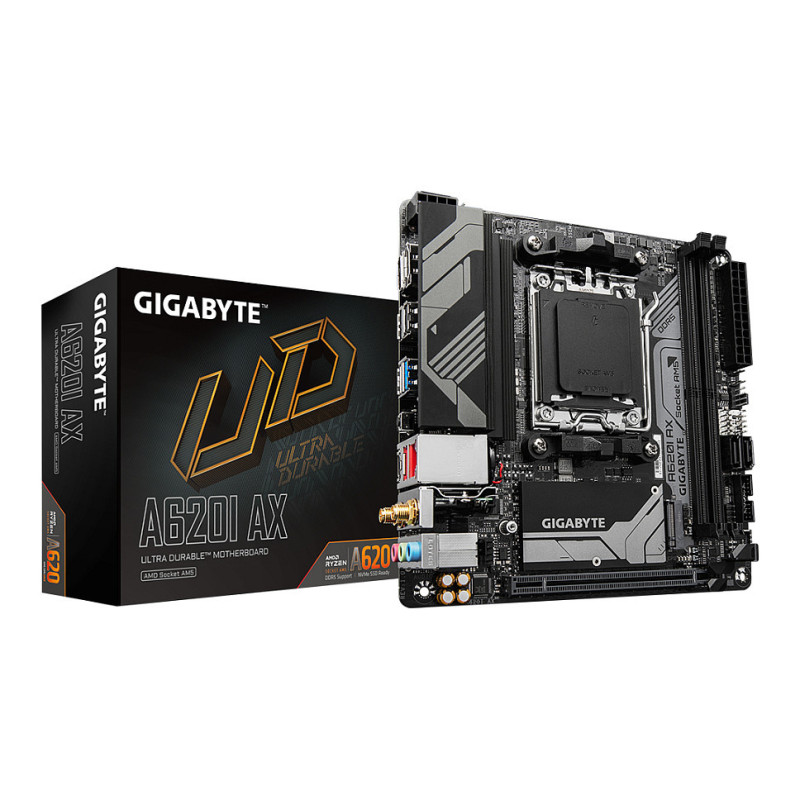

GIGABYTE A620I AX pagrindinė plokštė

GIGABYTE A620I AX Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+1 Phases Digital VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 96 GB

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400 MHz
Supported memory clock speed (max): 6400 MHz
Maximum internal memory: 96 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Feature: Unbuffered memory

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 2
Number of storage drives supported: 3
Feature: RAID support
RAID levels: 0, 1

Graphics

Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
Feature: HDCP
DirectX version: 12.0

Internal I/O

USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 2
Total number of SATA connectors: 2
Feature: Audio connector
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Feature: Chassis intrusion connector
Feature: EPS power connector (8-pin)
Feature: 12V power connector
Feature: RGB LED pin header

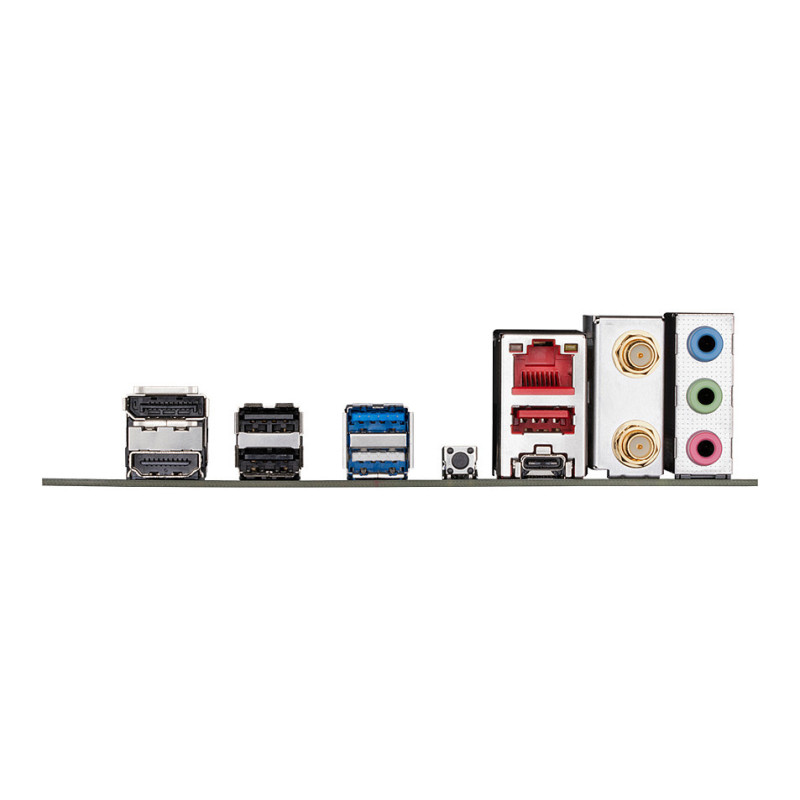

Rear panel I/O ports

USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 3
Feature: Microphone in
WiFi-AP antenna jack: 2
USB connector type: USB Type-A, USB Type-C

Network

Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model: Realtek RTL8852CE
Feature: Bluetooth
Bluetooth version: 5.3

Features

Motherboard chipset: AMD A620
Audio output channels: 7.1 channels
Product colour: Brown
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Component for: PC
Motherboard form factor: mini ITX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 slots: 1
Number of M.2 (M) slots: 1

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7

Logistics data

Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Battery

Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032

Packaging data

Package width: 222 mm
Package depth: 180 mm
Package height: 65 mm
Package weight: 860 g

Weight & dimensions

Width: 170 mm
Depth: 170 mm
Height: 35 mm

Packaging content

Cables included: SATA
Feature: Batteries included
Bundled software: Norton Internet Security

Technical details

Warranty period: 3 year(s)
