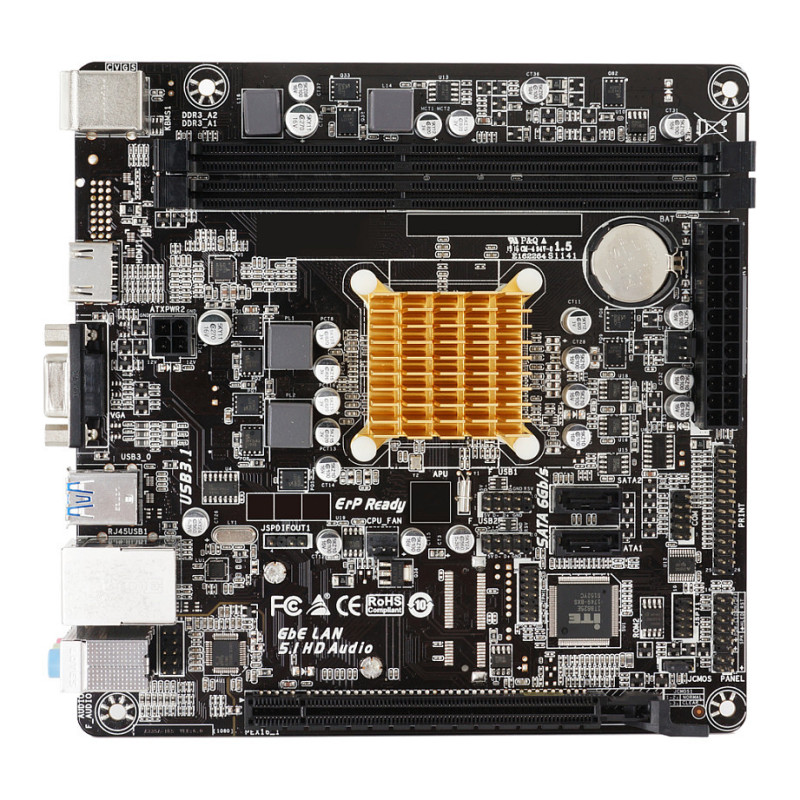

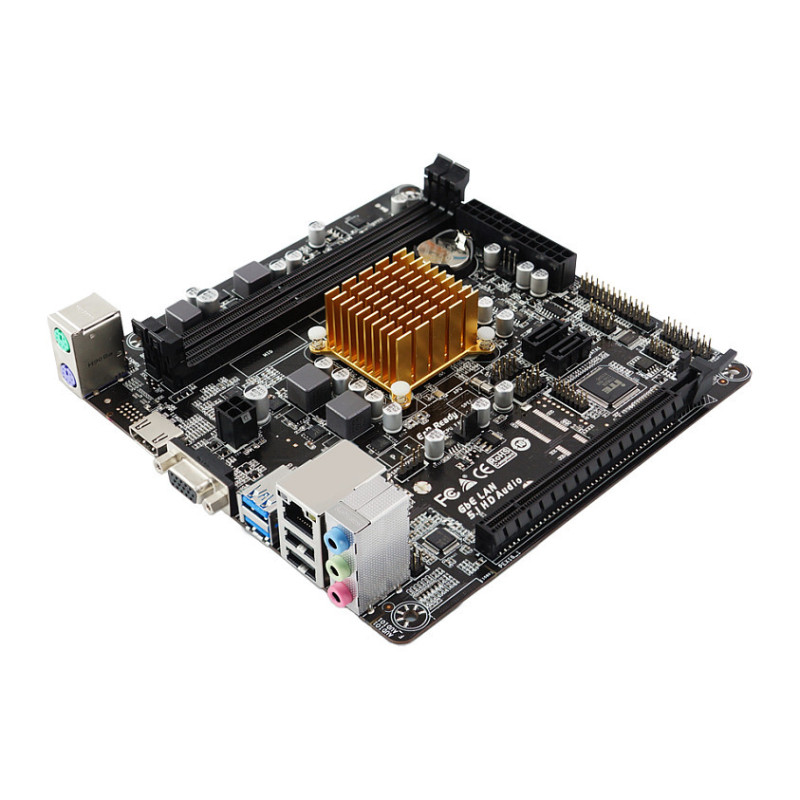

Biostar A68N-2100K pagrindinė plokštė

Biostar A68N-2100K. Processor manufacturer: AMD, Processor model: E1-6010. Supported memory types: DDR3-SDRAM, DDR3L-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: AMD

Audio+

HD Audio
Provides high quality sound with minimal loss of audio fidelity.

S/P DIF Output on board
Onboard Optical & Coaxial connector supports your desktop in transferring the non-distortion digital audio output to the AV amplifier and professional speaker system.

Video+

HDMI 4K2KHDMI 4K2K
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD ,4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.

DX11.1
Direct3D 11.1 enables Direct3D 10 APIs and Direct3D 11 APIs to use one underlying rendering device. And it allows developers to achieve a high speed, fully conformant software rasterizer.

Speed+

SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA 3G.

USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.

Durable+

100% Solid Caps
With armor-plated Biostar Technology, all capacitors are placed with 100% solid capacitors that have a lasting life cycle, durability and stability for crucial components.

DIY+

UEFI BIOSUEFI BIOS
Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons leads users into the setup layer directly.

BIO-Flasher
Update BIOS effortlessly from a USB flash disk before entering the OS.
BIO-Flasher is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB pen driver before entering the OS. You can update your BIOS with only a few clicks without preparing an additional floppy disk or other complicated flash utility.

CPU-Chipset Features

AMD E1-6010
AMD E1-6010 APU with Radeon R2 Graphics

Processor

Processor manufacturer: AMD
Maximum number of SMP processors: 1
Processor model: E1-6010
Processor cores: 2

Memory

Supported memory types: DDR3-SDRAM, DDR3L-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory voltage: 1.25 V
ECC сompatibility: Non-ECC
Supported memory clock speeds: 800,1066,1333 MHz
Maximum internal memory: 16 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 512MB

Storage controllers

Supported storage drive interfaces: SATA III

Graphics

Parallel processing technology support: Not supported
Feature: HDCP

Internal I/O

USB 2.0 connectors: 2
Number of SATA III connectors: 2
Feature: S/PDIF out connector
Feature: Front panel audio connector
Feature: Front panel connector
Feature: CPU fan connector
Number of chassis fan connectors: 1
Number of COM connectors: 1
Feature: TPM connector

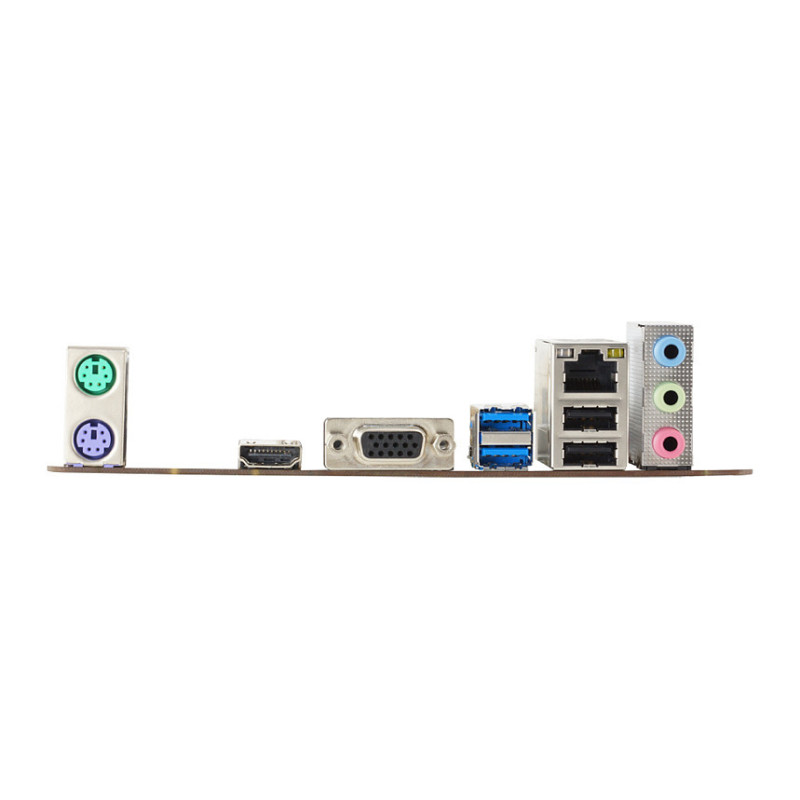

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H

Features

Audio chip: Realtek ALC887
Audio output channels: 7.1 channels
PC health monitoring: CPU, Fan, Temperature
Component for: PC
Motherboard form factor: mini ITX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10, Windows 7, Windows 8.1

Expansion slots

PCI Express x16 (Gen 2.x) slots: 1

BIOS

Feature: Clear CMOS jumper

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 170 mm
Depth: 170 mm

Packaging content

Cables included: SATA
Feature: Drivers included
Bundled software: BullGuardSmart Speed LAN
