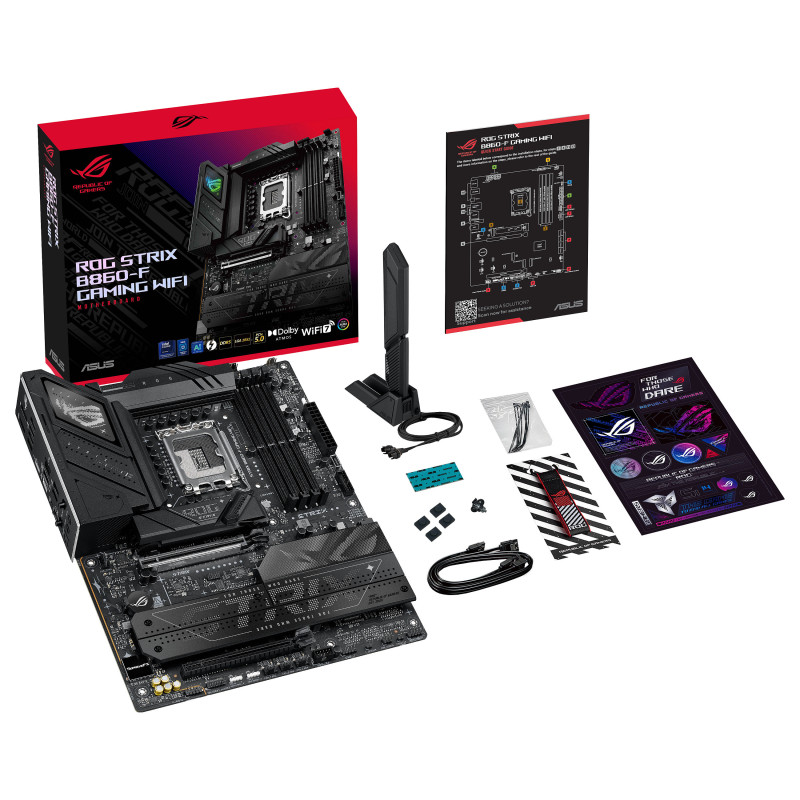

ASUS ROG STRIX B860-F ŽAIDIMŲ WIFI

ASUS ROG STRIX B860-F GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

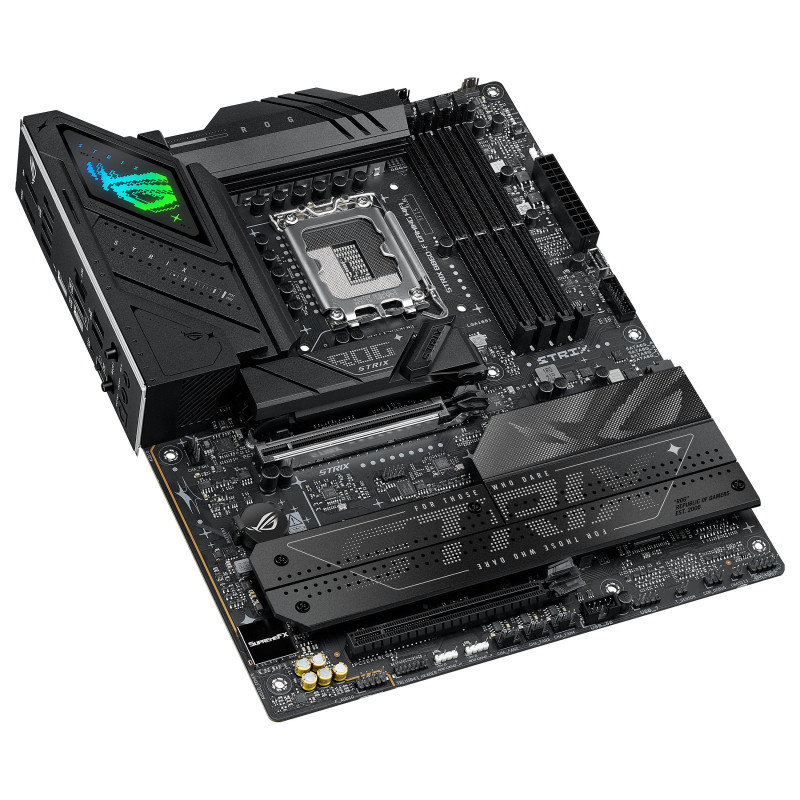

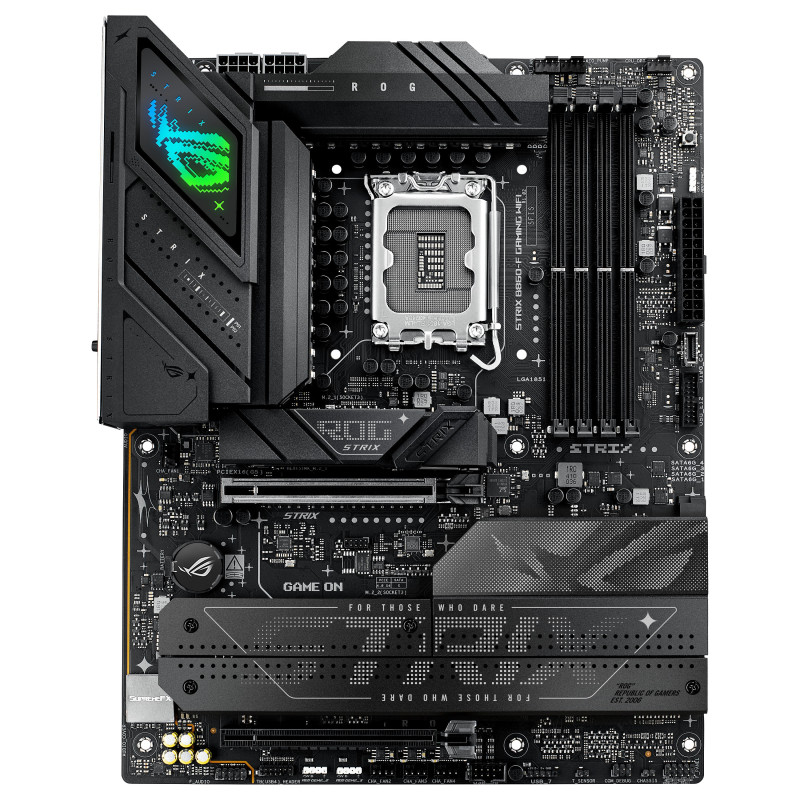

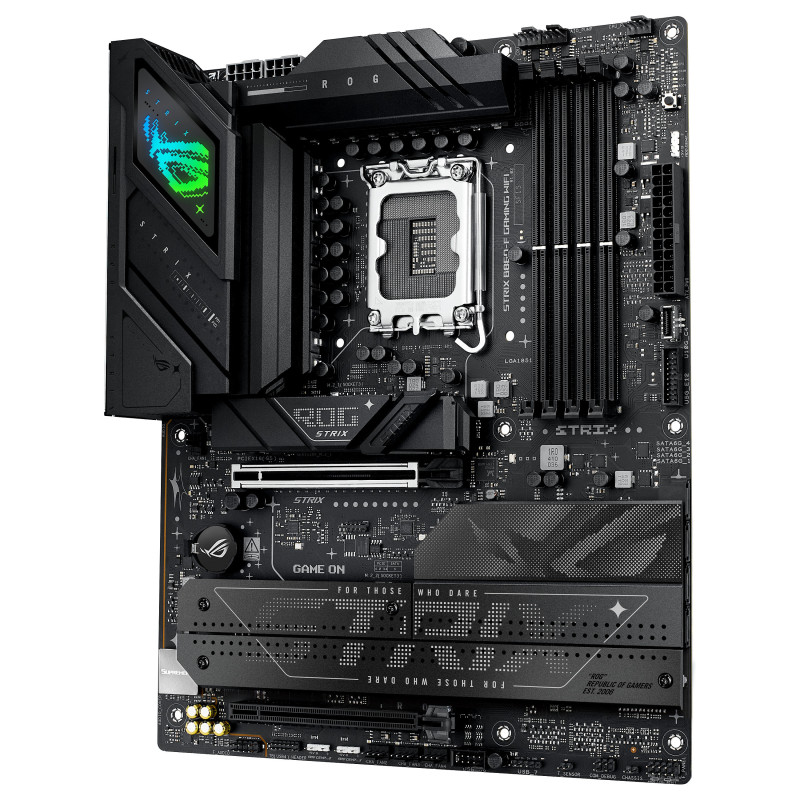

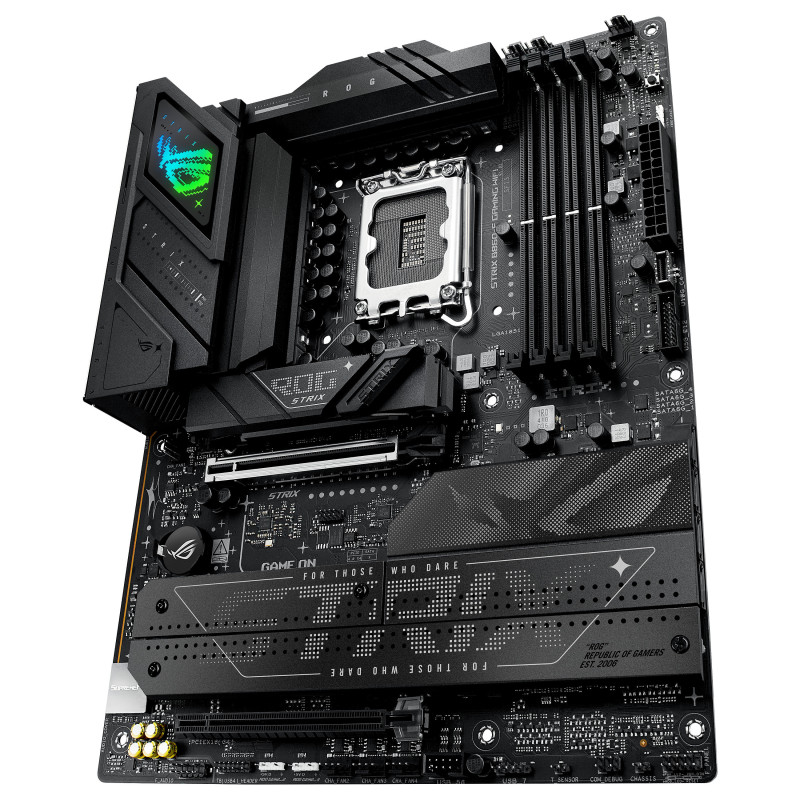

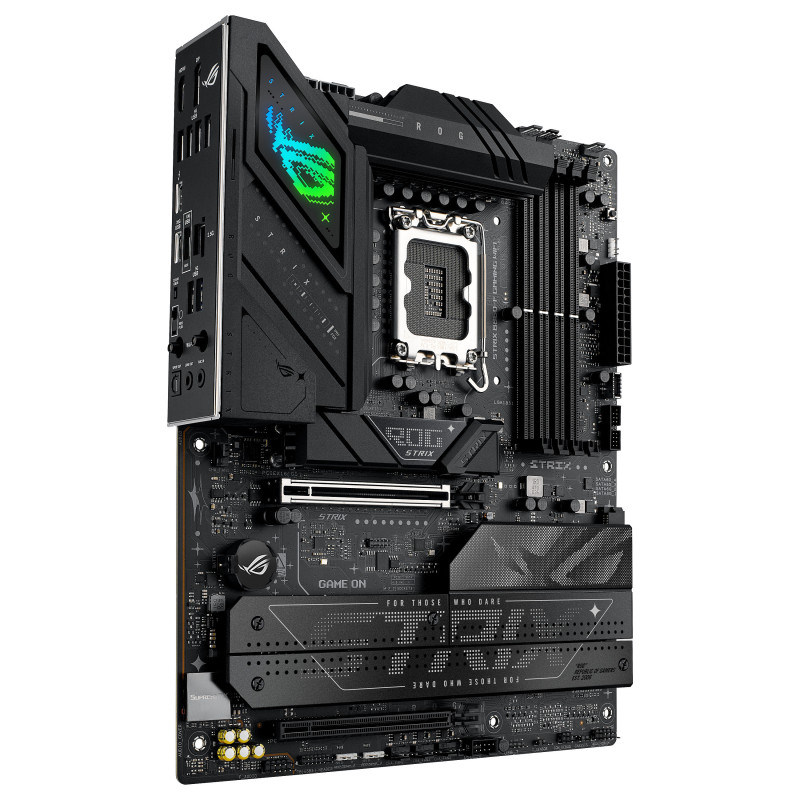

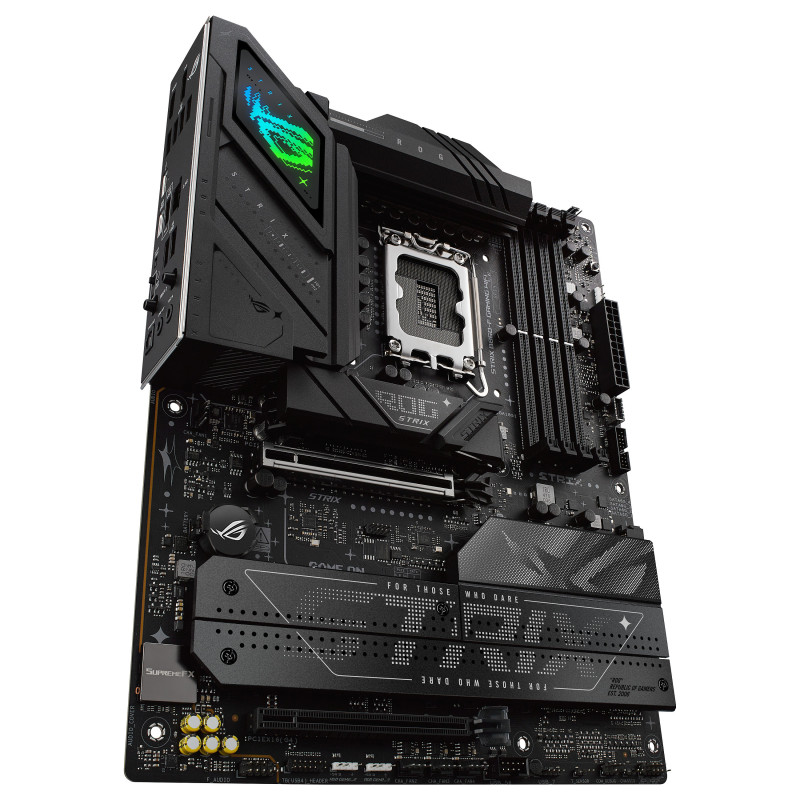

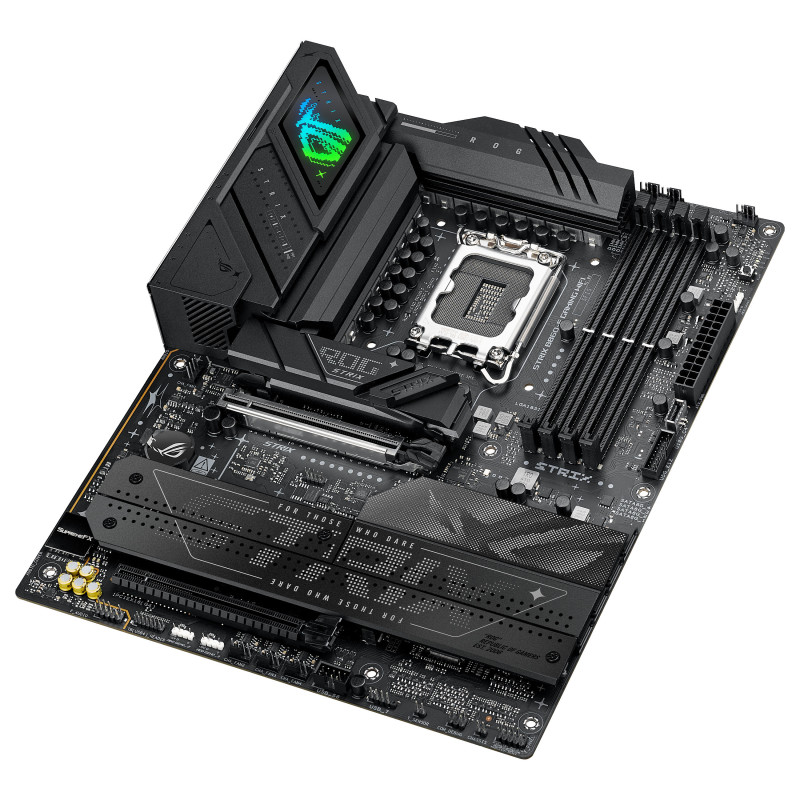

ROG STRIX B860-F gaming wifi
With NPU boosting and cutting-edge AI solutions, the ROG STRIX B860-F Gaming WiFi supports advanced AI PC applications. Featuring Thunderbolt™ 4, PCIe® 5.0, and Aura Sync lighting, it offers ultra-fast data transfer speeds, exceptional connectivity, and a versatile aesthetic that suits both bold and subtle styles.

Processor

Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 9066 MHz
Maximum internal memory: 256 GB
Feature: Unbuffered memory

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 8
Feature: RAID support
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 1
Number of chassis fan connectors: 4
Feature: Chassis intrusion connector
Feature: EPS power connector (8-pin)
Thunderbolt headers: 1
Feature: 12V power connector

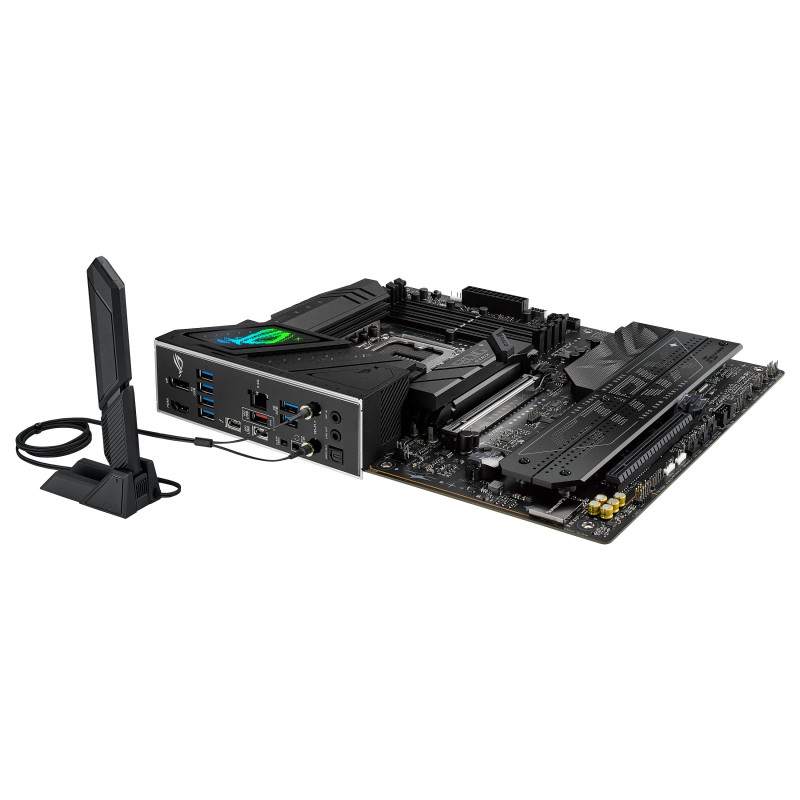

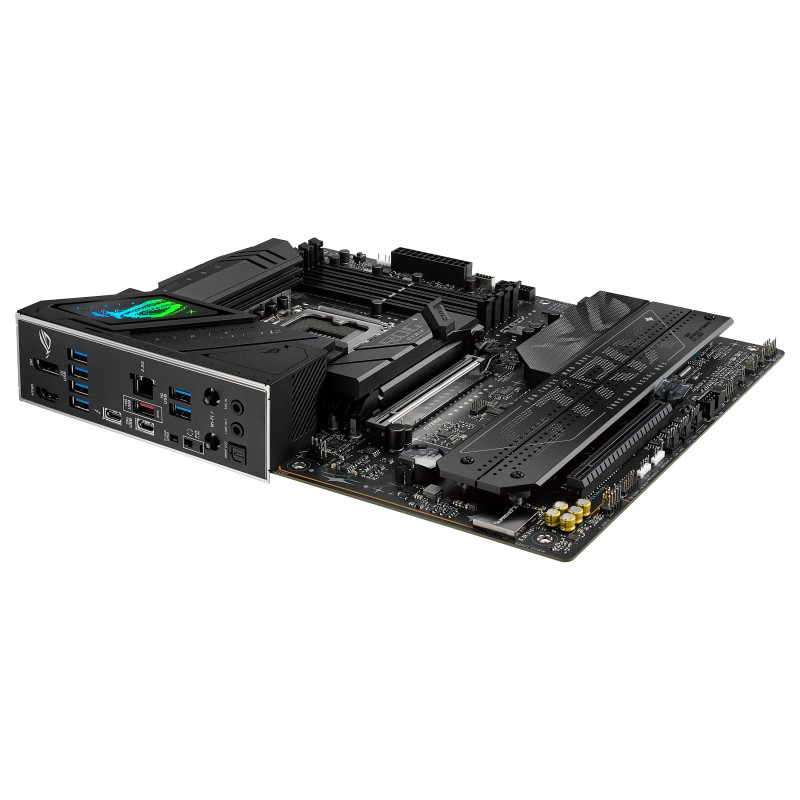

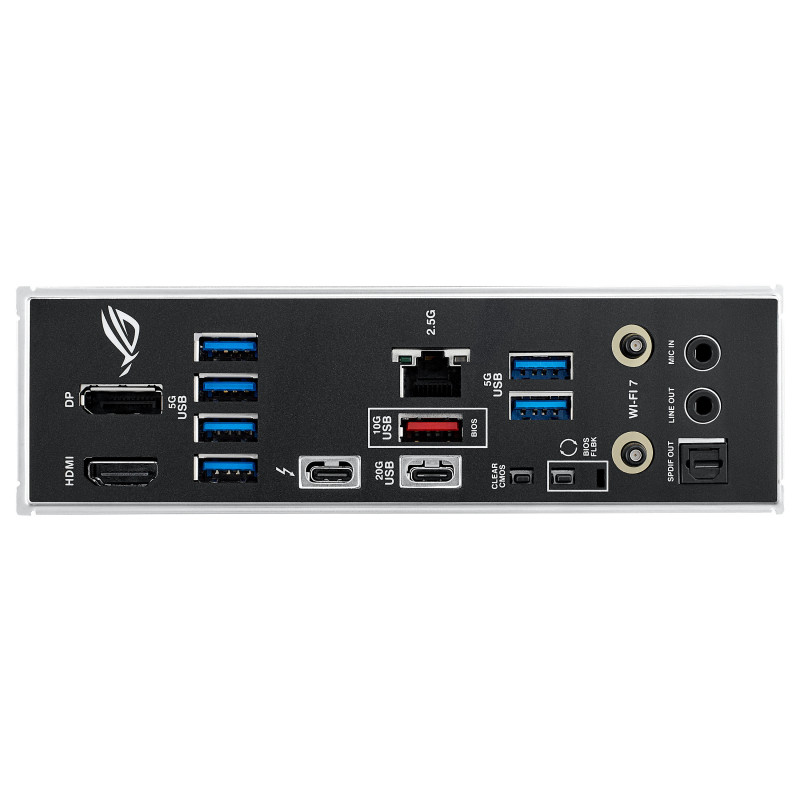

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Microphone in
Feature: S/PDIF out port
Thunderbolt ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4

Features

Motherboard chipset: Intel B860
Audio chip: Realtek ALC4080
Audio output channels: 7.1 channels
Product colour: Multicolour
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 4

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Feature: Clear CMOS button

Packaging data

Package width: 350 mm
Package depth: 265 mm
Package height: 71 mm
Package weight: 2.29 kg

Weight & dimensions

Width: 305 mm
Depth: 244 mm
Height: 50 mm

Other features

Weight: 1.51 kg
