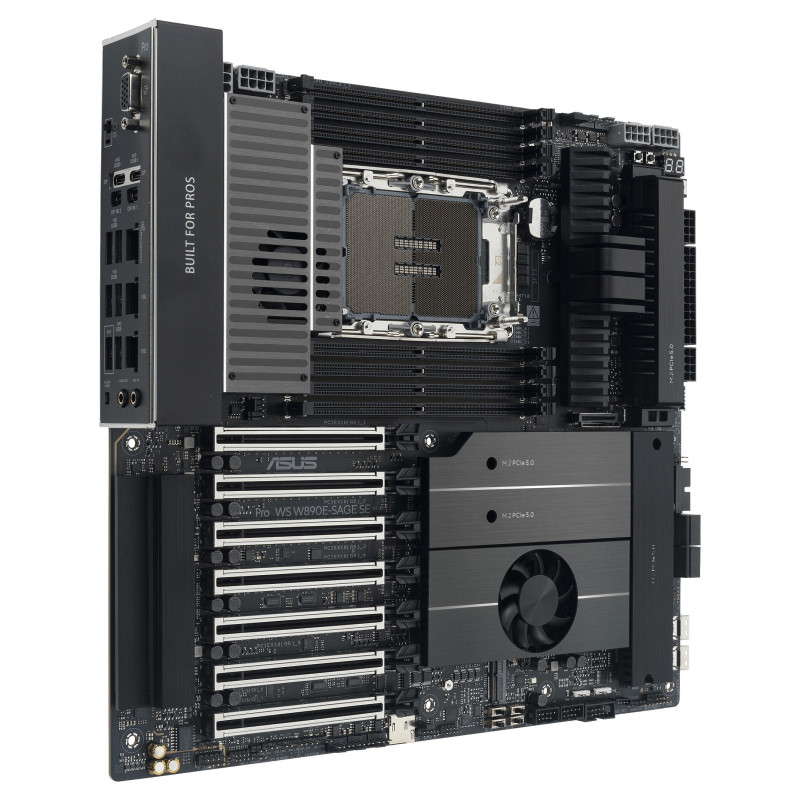

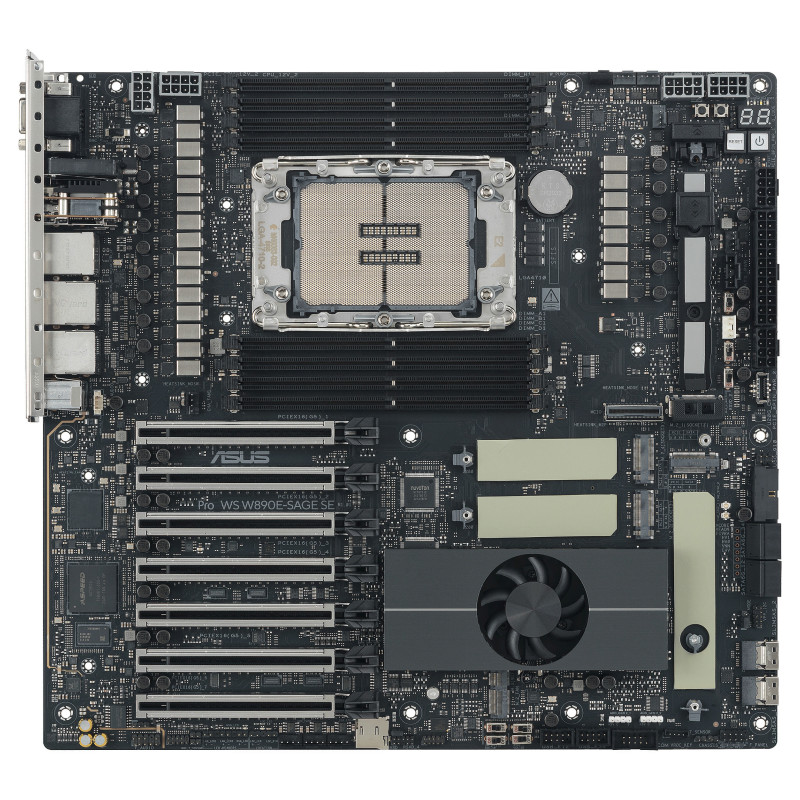

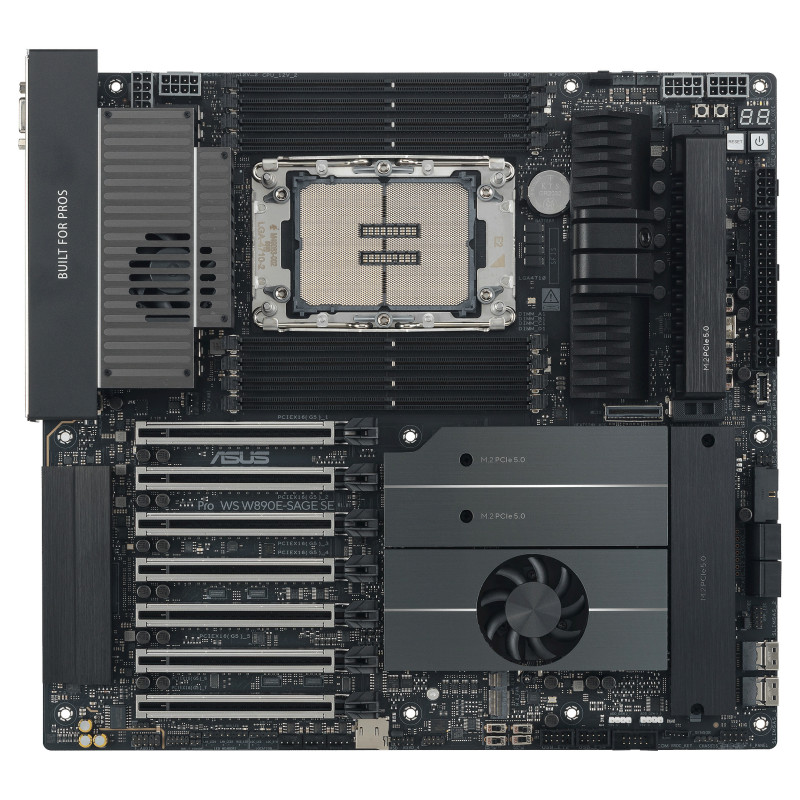

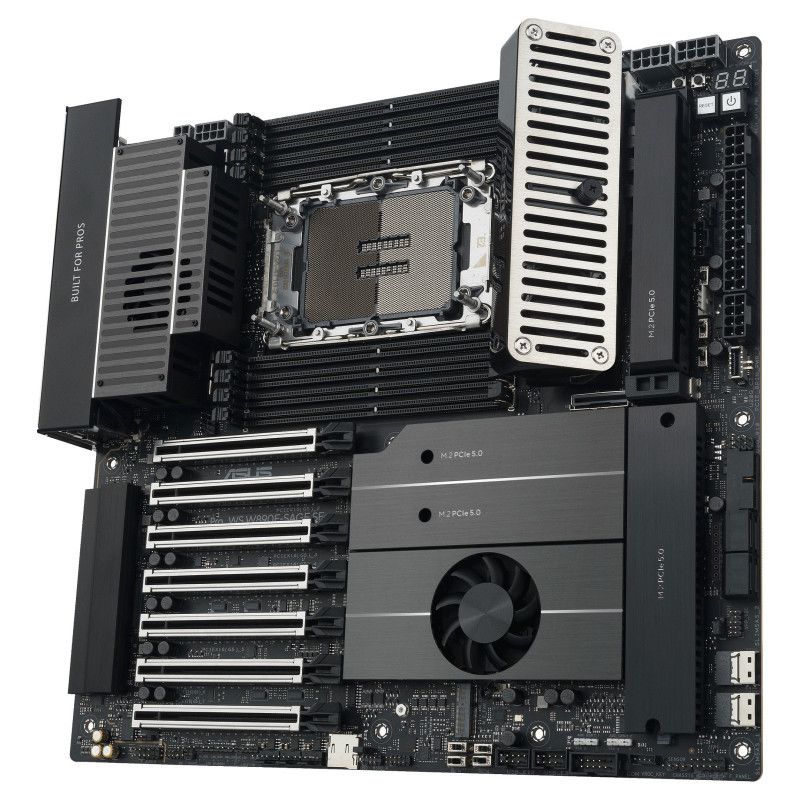

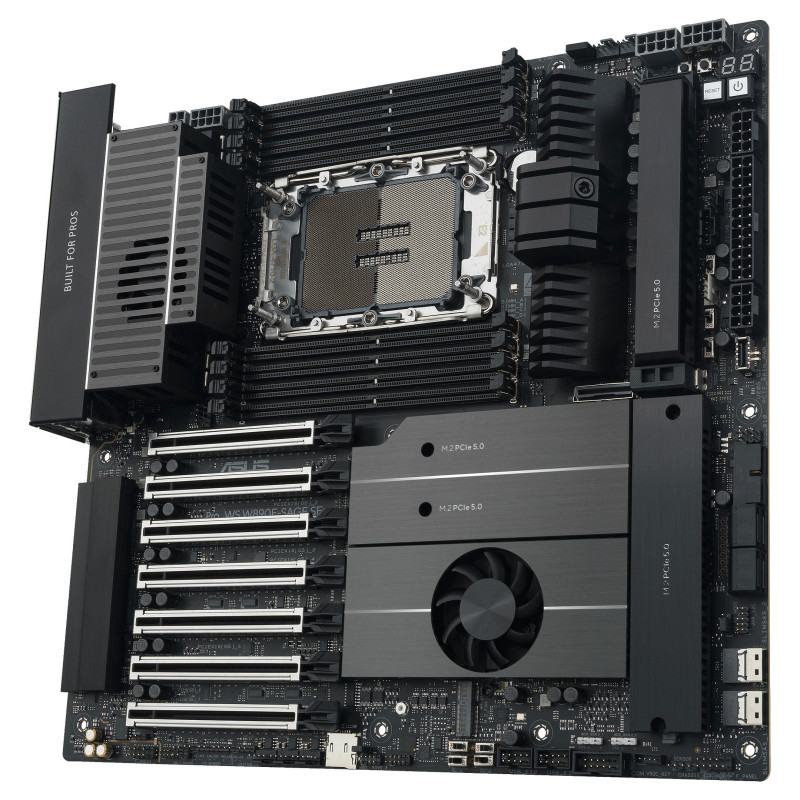

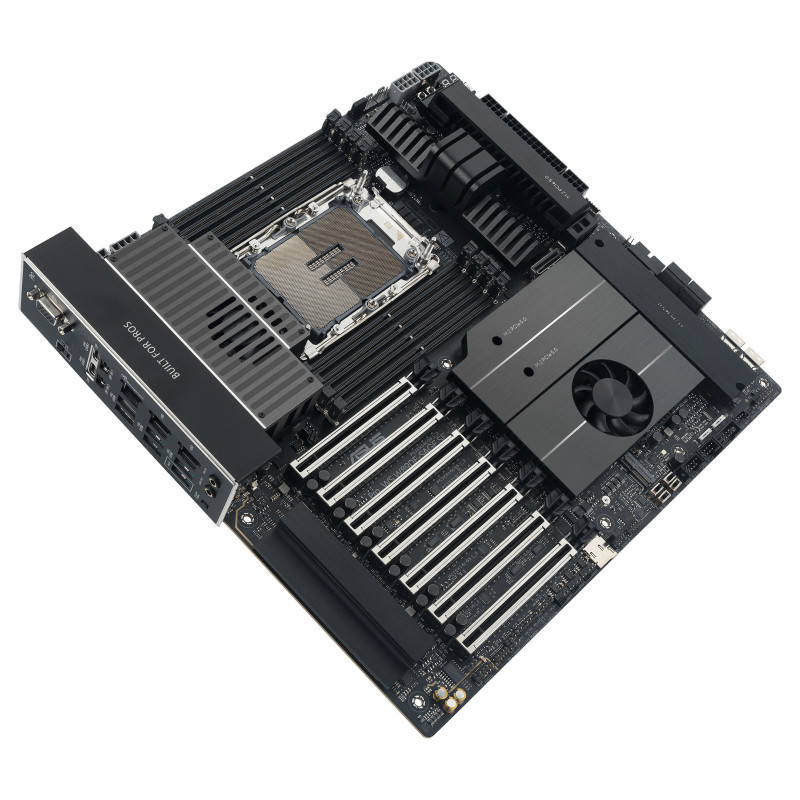

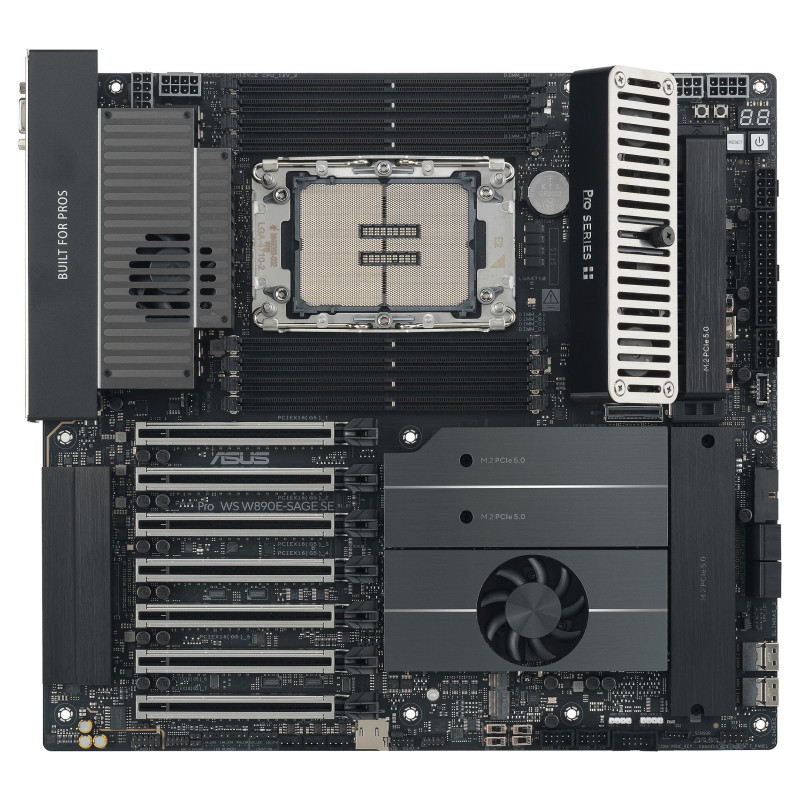

ASUS Pro WS W890E-SAGE SE

ASUS Pro WS W890E-SAGE SE. Processor manufacturer: Intel, Processor socket: LGA 4710-2, Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Maximum internal memory: 4 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 1, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet

The Pro WS W890E-SAGE SE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890E-SAGE SE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.
Pro WS W890E-SAGE SE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.

Processor

Processor manufacturer: Intel
Processor socket: LGA 4710-2
Compatible processor series: Intel® Xeon®
Supported processor sockets: LGA 4710-2

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 8
Memory slots type: DIMM
Memory channels: Octa-channel
ECC сompatibility: ECC
Maximum internal memory: 4 TB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III, SlimSAS
Number of HDDs supported: 4
Number of storage drives supported: 10
Feature: RAID support
RAID levels: 0, 5, 1, 10

Graphics

Parallel processing technology support: Not supported
Maximum resolution: 7680 x 4320 pixels

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 1
Number of chassis fan connectors: 5
Feature: Chassis intrusion connector
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 5
Number of COM connectors: 1
Feature: 12V power connector
Integrated SAS ports: 2
Number of water pump connectors: 1
Number of temperature sensor headers: 1
Feature: RGB LED pin header
Number of RGB LED pin headers: 2

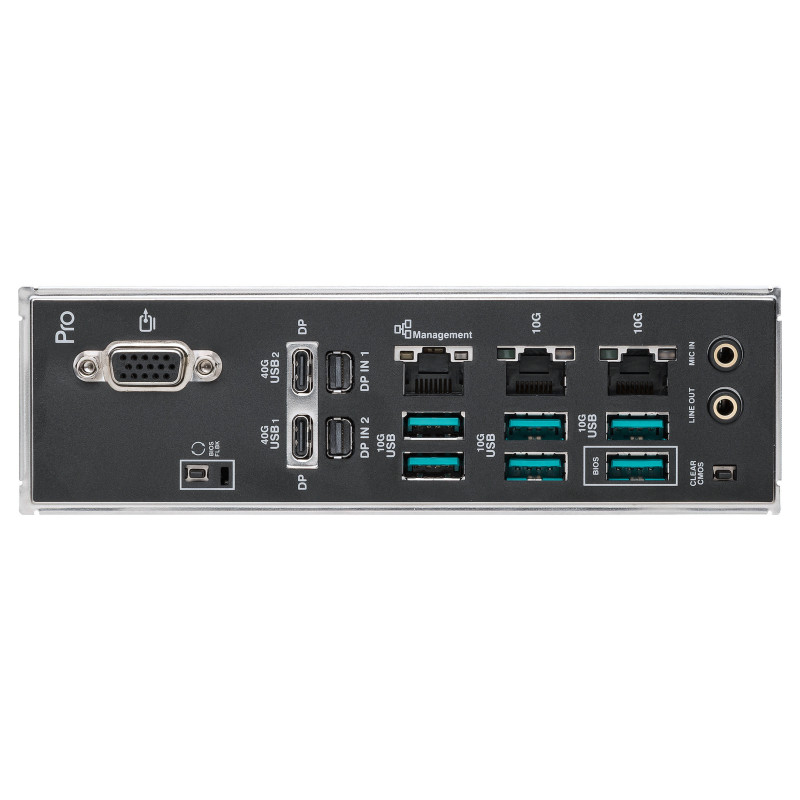

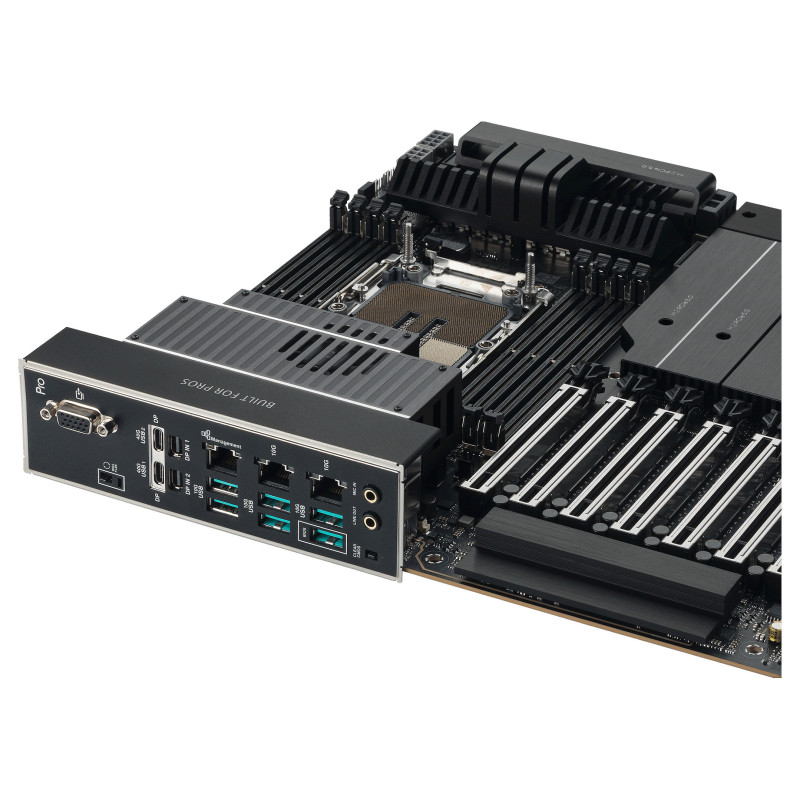

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB4 Gen 3x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 3
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Feature: Line-in

Network

Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
Top Wi-Fi standard: Not available

Features

Motherboard chipset: Intel W890
Audio chip: Realtek ALC1220P
Audio output channels: 7.1 channels
Product colour: Black
Component for: Workstation
Motherboard form factor: EEB
Motherboard chipset family: Intel
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 11

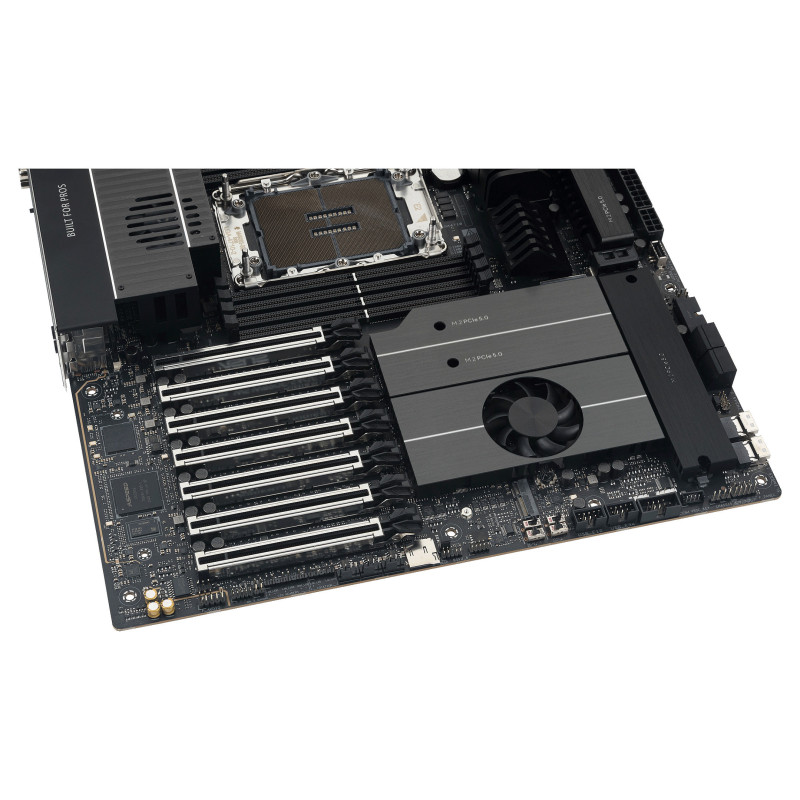

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 7
Number of M.2 (M) slots: 4
1st M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 5.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
Feature: Clear CMOS button
Feature: BIOS flashback button

Packaging data

Package width: 362 mm
Package depth: 377 mm
Package height: 103 mm
Package weight: 3.7 kg

Weight & dimensions

Width: 305 mm
Depth: 330 mm
Height: 50 mm

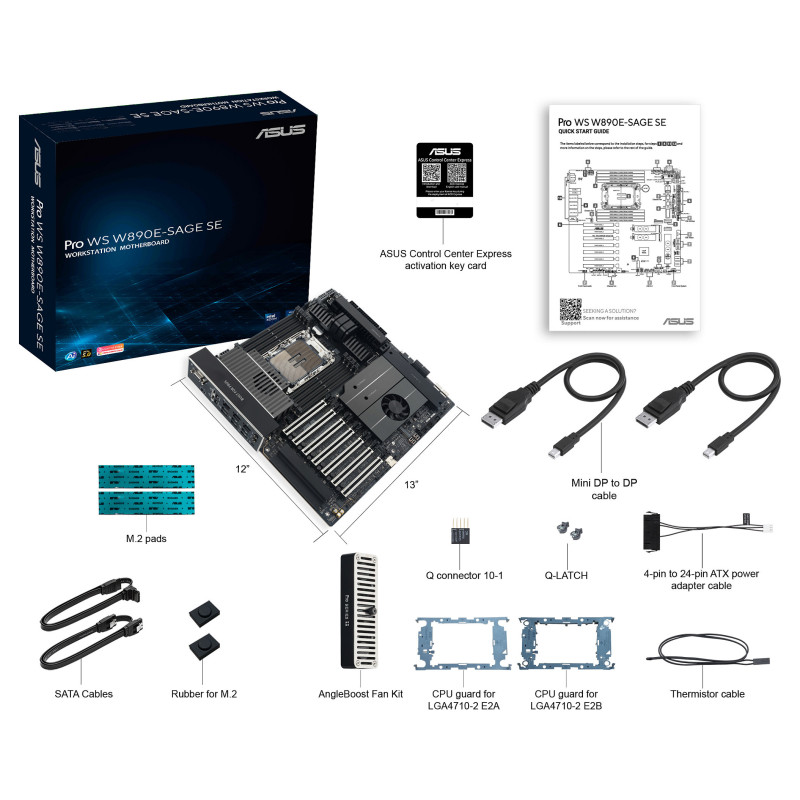

Packaging content

Cables included: SATA, DisplayPort
Feature: Screws included

Other features

Mini DisplayPorts quantity: 2
Weight: 3.4 kg
Number of M.2 (E) slots: 1
