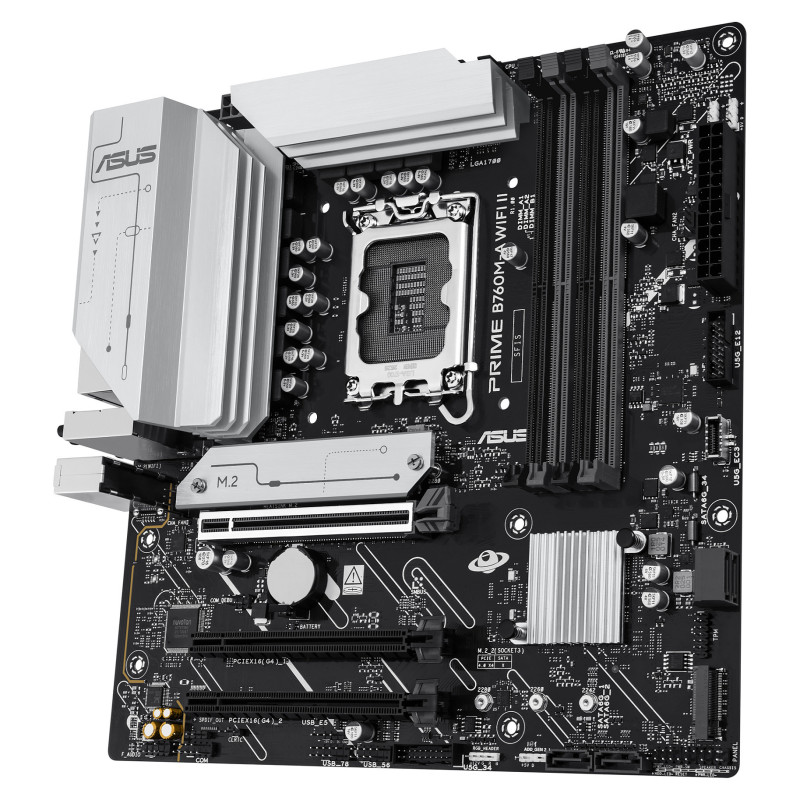

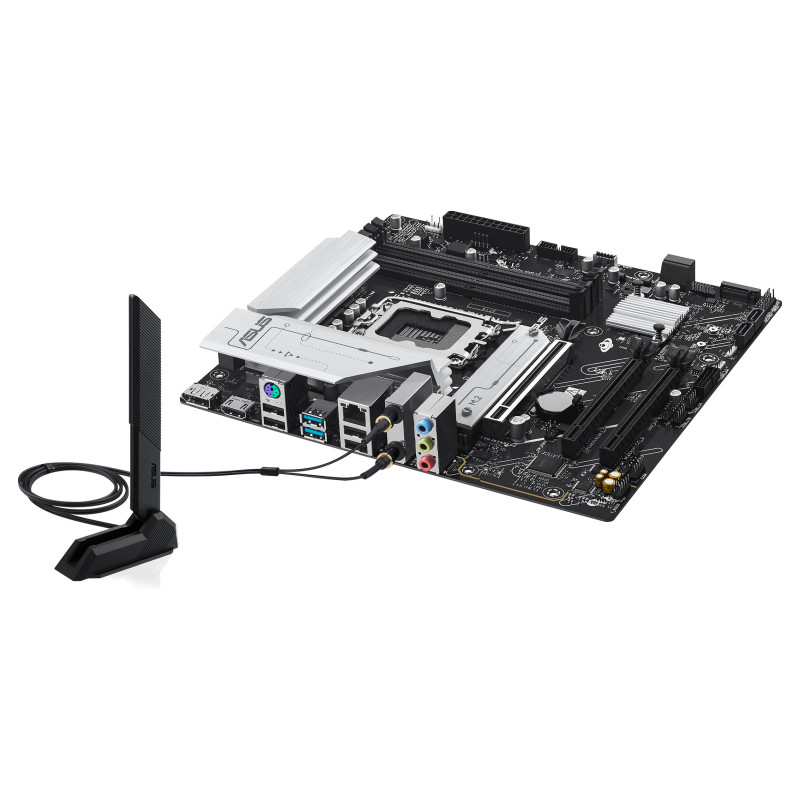

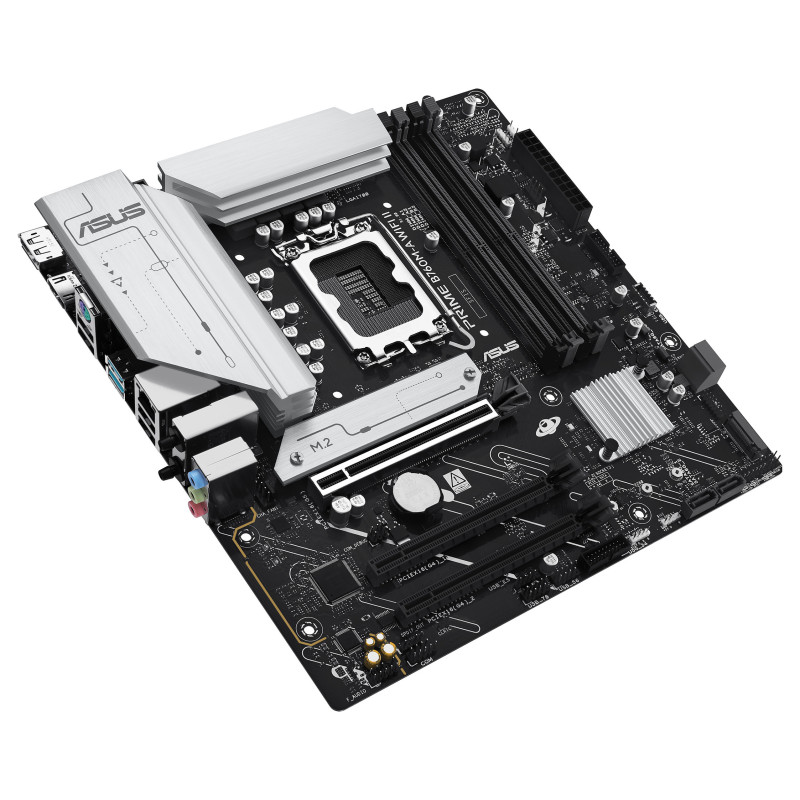

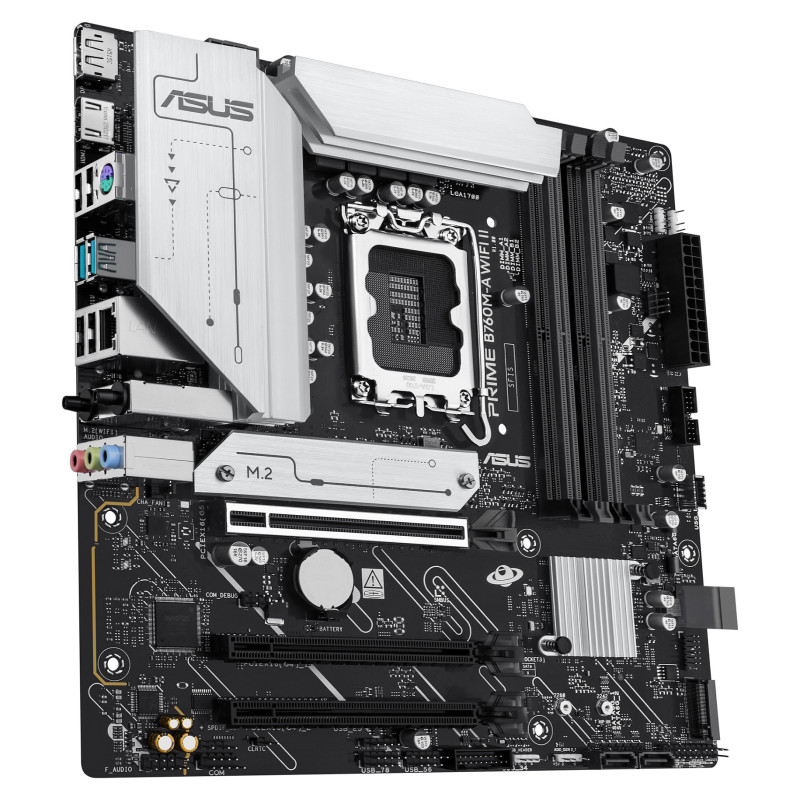

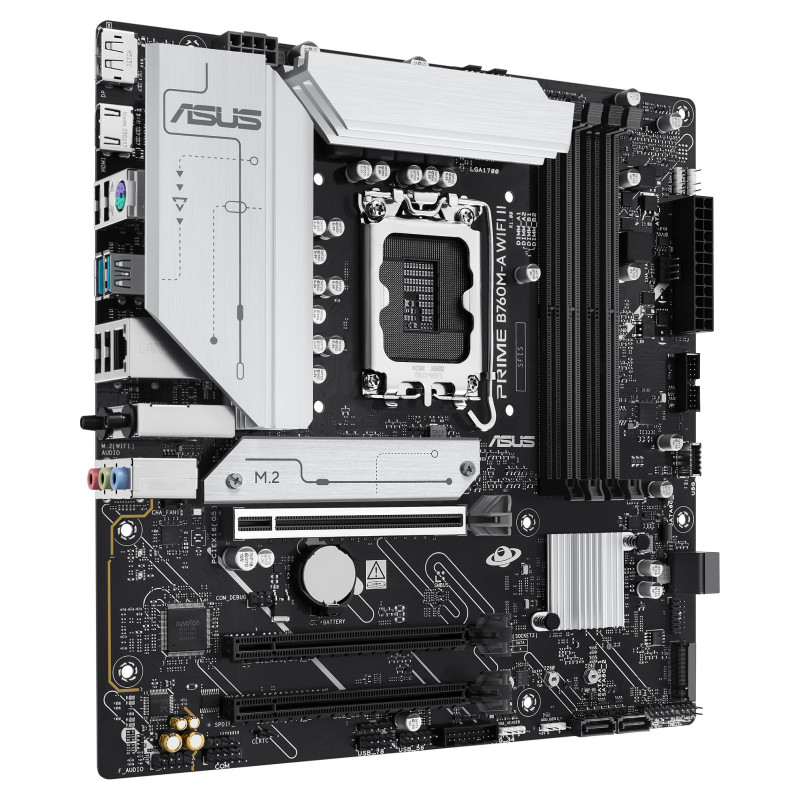

ASUS PRIME B760M-A WIFI II

ASUS PRIME B760M-A WIFI II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

PRIME B760M-A WIFI II
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Supported memory clock speed (max): 7200 MHz
Maximum internal memory: 256 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported

Internal I/O

USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes

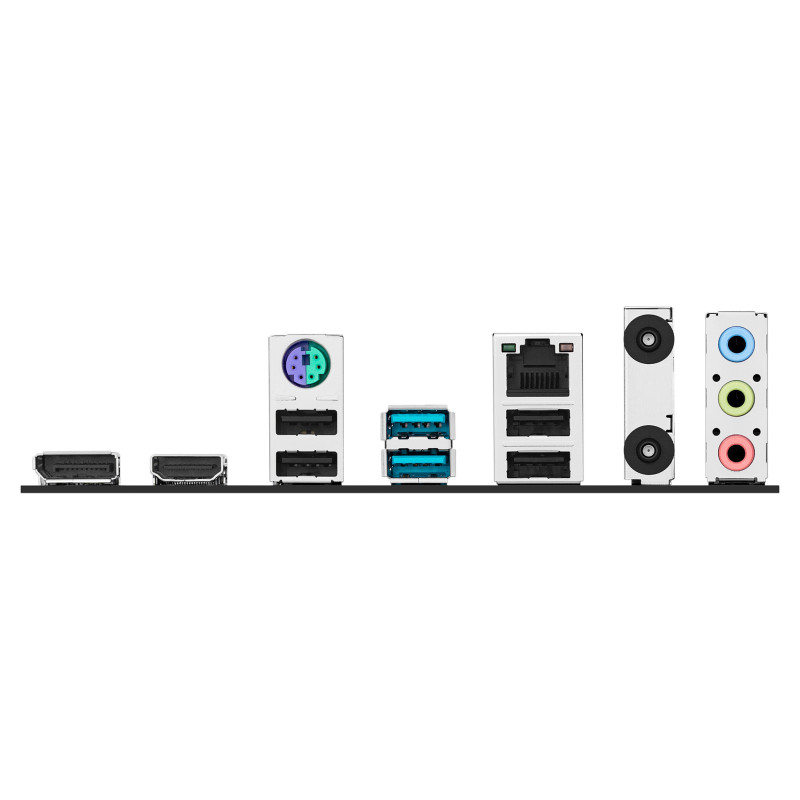

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
WiFi-AP antenna jack: 1

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.4

Features

Motherboard chipset: Intel B760
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 3.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit

Packaging data

Package width: 275 mm
Package depth: 275 mm
Package height: 67.5 mm
Package weight: 1.4 kg

Weight & dimensions

Width: 244 mm
Depth: 244 mm

Packaging content

Cables included: SATA
Antenna included: Yes
Screws included: Yes
