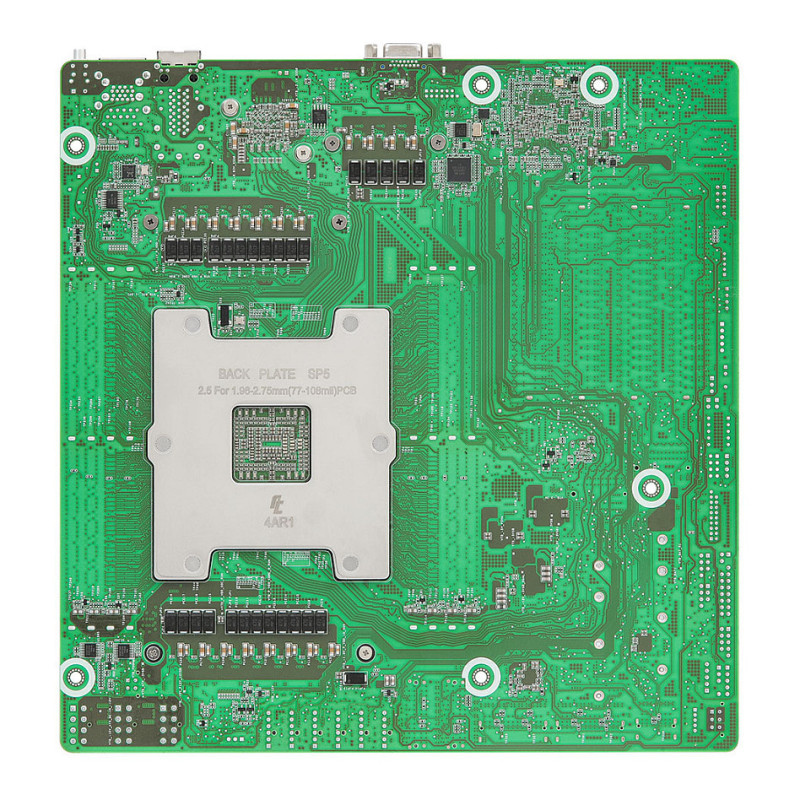

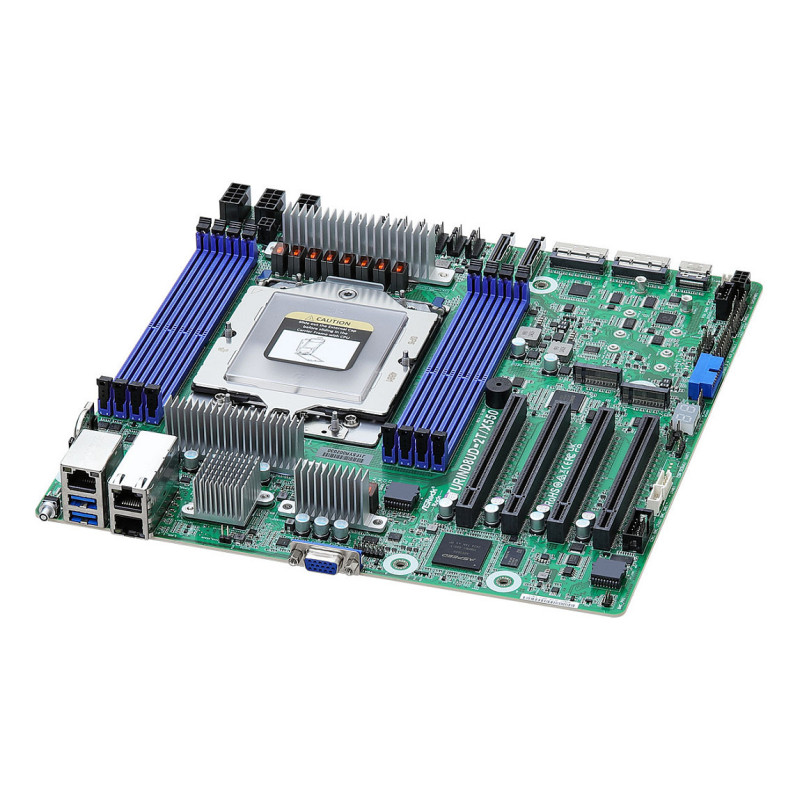

Asrock TURIND8UD-2T / X550 pagrindinė plokštė

Asrock TURIND8UD-2T/X550. Processor manufacturer: AMD, Processor socket: Socket SP5, Compatible processor series: AMD EPYC 9004. Maximum internal memory: 256 GB, Memory slots type: DIMM, Memory voltage: 1.1 V. Supported storage drive interfaces: PCI Express 5.0, SATA III. Graphics card family: ASPEED, Graphics card: AST2600. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel® X550-AT2

Processor

Processor manufacturer: AMD
Processor socket: Socket SP5
Compatible processor series: AMD EPYC 9004

Memory

Number of memory slots: 8
Memory slots type: DIMM
Memory slot pin count: 288
Memory voltage: 1.1 V
Supported memory clock speeds: 6400 MHz
Maximum internal memory: 256 GB

Storage controllers

Supported storage drive interfaces: PCI Express 5.0, SATA III

Graphics

Feature: On-board graphics card
Graphics card family: ASPEED
Graphics card: AST2600

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 16
Number of COM connectors: 1
Feature: TPM connector

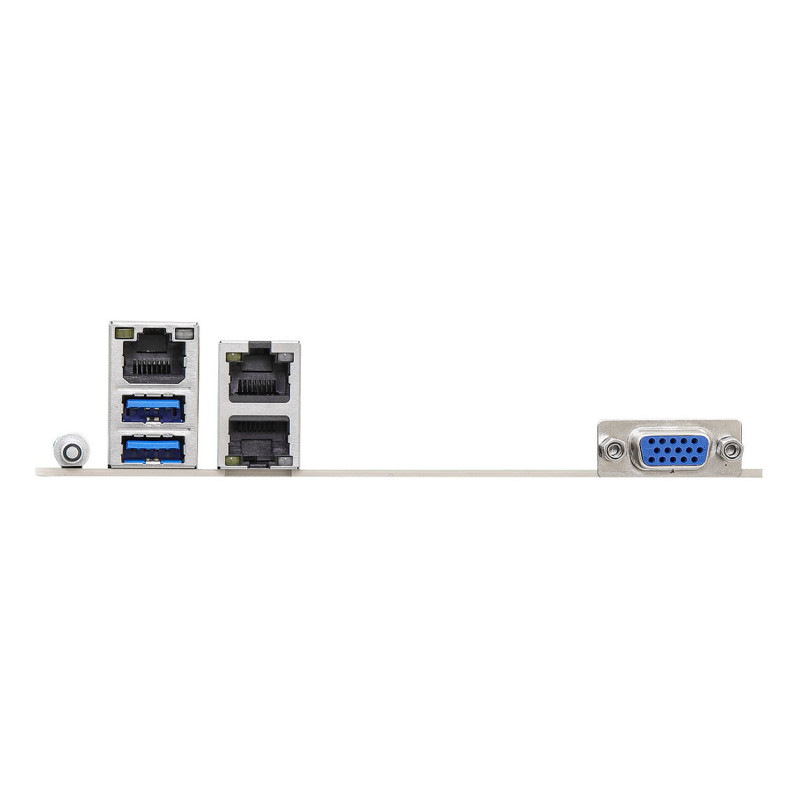

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
LAN controller: Intel® X550-AT2

Features

Motherboard chipset: AMD SoC
Component for: Server
Motherboard chipset family: AMD

Expansion slots

PCI Express x16 (Gen 5.x) slots: 4

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 3.5

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 264.2 mm
Depth: 266.7 mm
