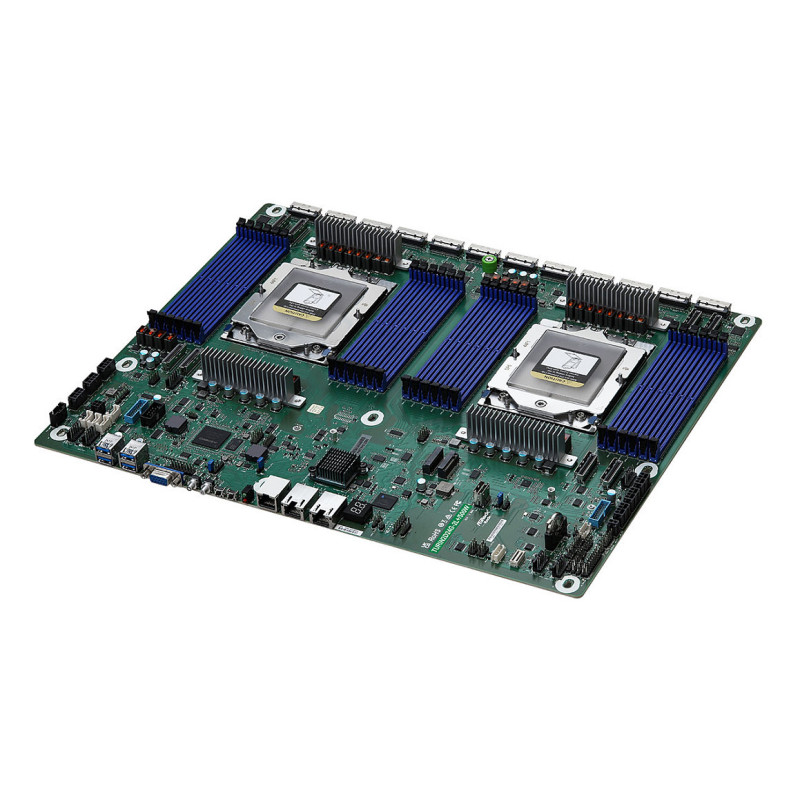

Asrock TURIN2D24G-2L+ / 500W motherboard

Asrock TURIN2D24G-2L+/500W. Processor manufacturer: AMD, Processor socket: Socket SP5, Compatible processor series: AMD EPYC 9004. Supported memory types: DDR5-SDRAM, Maximum internal memory: 48 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III. Graphics card family: ASPEED, Graphics card: AST2600. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I350

Processor

Processor manufacturer: AMD
Processor socket: Socket SP5
Compatible processor series: AMD EPYC 9004
Maximum number of SMP processors: 2

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 24
Memory slots type: DIMM
Memory slot pin count: 288
Memory voltage: 1.1 V
Supported memory clock speeds: 6400 MHz
Maximum internal memory: 48 GB

Storage controllers

Supported storage drive interfaces: SATA III

Graphics

Feature: On-board graphics card
Graphics card family: ASPEED
Graphics card: AST2600

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 34
Number of COM connectors: 1
Feature: TPM connector

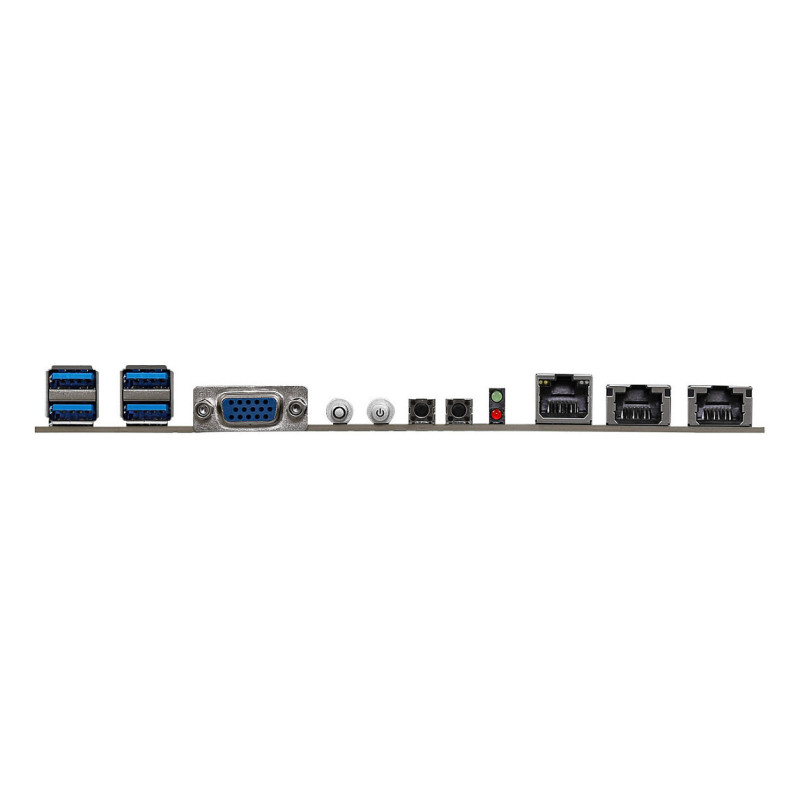

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1

Network

Ethernet interface type: Gigabit Ethernet
LAN controller: Intel® I350

Features

Motherboard chipset: AMD SoC
Component for: Server
Motherboard chipset family: AMD

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 3.5

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 430 mm
Depth: 350 mm
