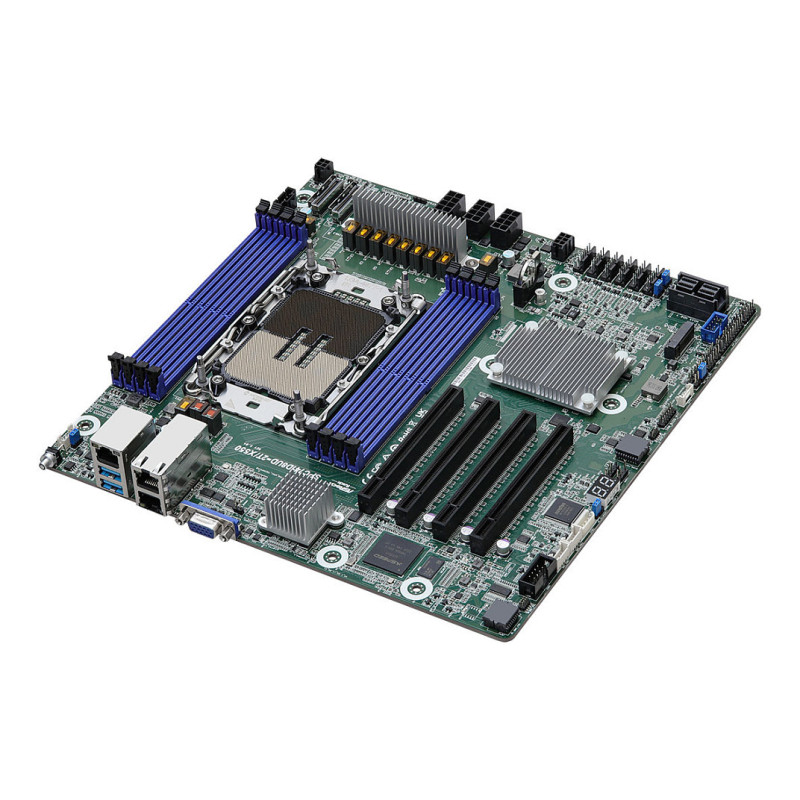

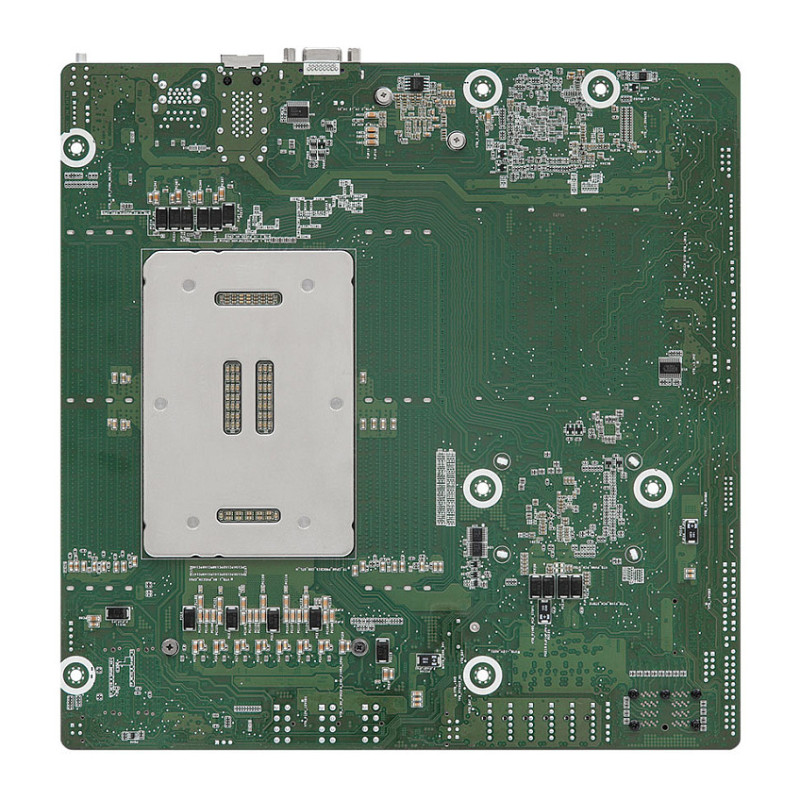

Asrock SPC741D8UD-2T / X550 pagrindinė plokštė

Asrock SPC741D8UD-2T/X550. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Graphics card family: ASPEED, Graphics card: AST2600. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel® X550-AT2

Processor

Processor manufacturer: Intel
Processor socket: LGA 4677 (Socket E)
Compatible processor series: Intel® Xeon®
Supported processor sockets: LGA 4677 (Socket E)

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 8
Memory slots type: DIMM
Memory voltage: 1.1 V
Maximum internal memory: 2 TB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Feature: RAID support
RAID levels: 0, 1, 5, 10

Graphics

Graphics card family: ASPEED
Graphics card: AST2600

Internal I/O

USB 2.0 connectors: 2
Number of SATA III connectors: 9
Feature: Audio connector
Feature: ATX Power connector (24-pin)
Feature: Chassis intrusion connector
Number of COM connectors: 1
Feature: TPM connector
Feature: 12V power connector

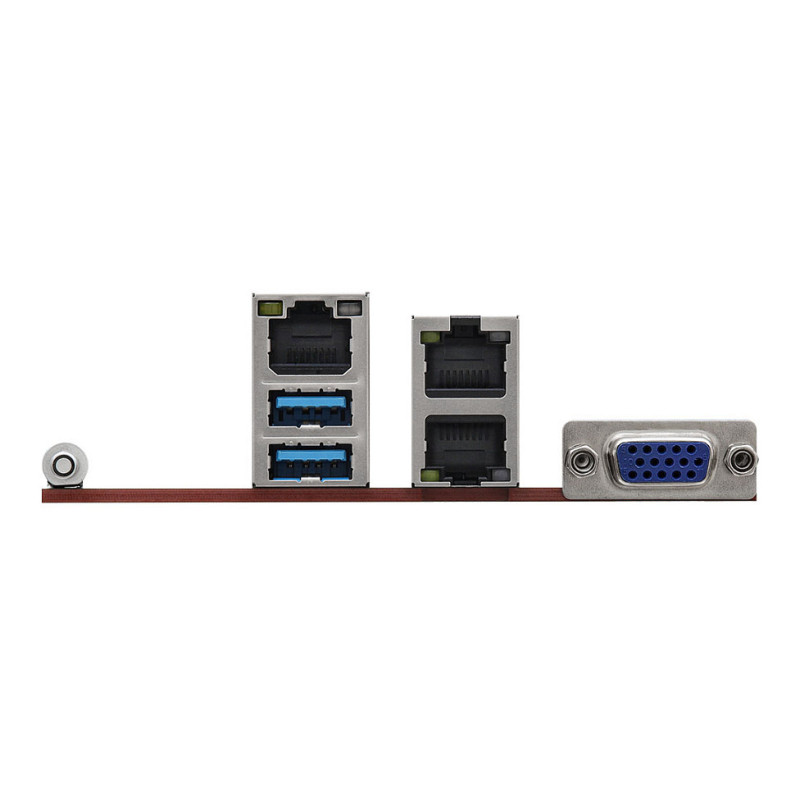

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
LAN controller: Intel® X550-AT2

Features

Motherboard chipset: Intel C741
Component for: Server
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

Expansion slots

PCI Express x8 (Gen 5.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 4
Number of M.2 (M) slots: 1

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 264.2 mm
Depth: 266.7 mm
