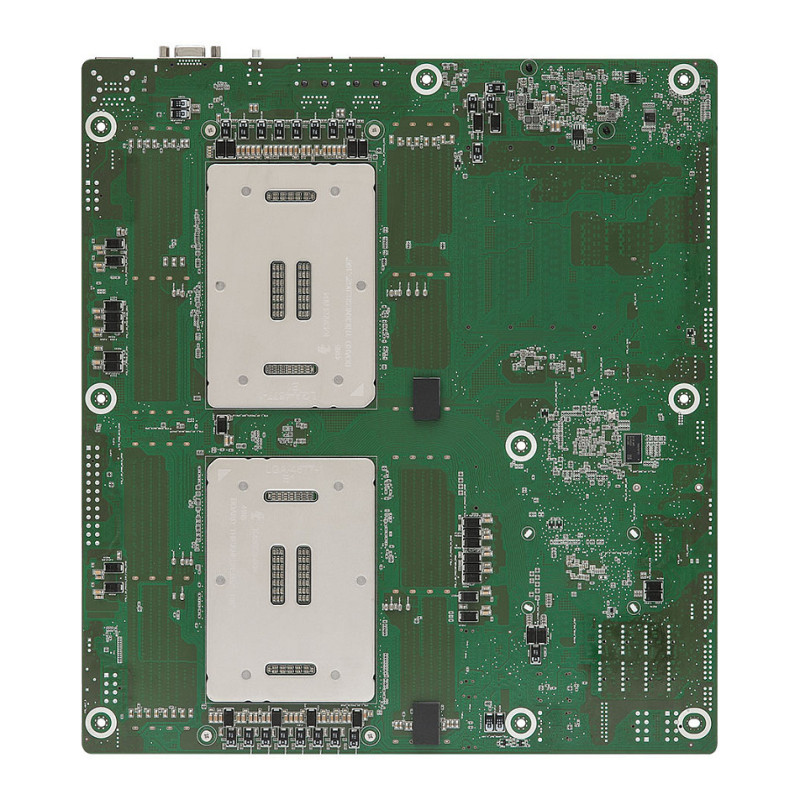

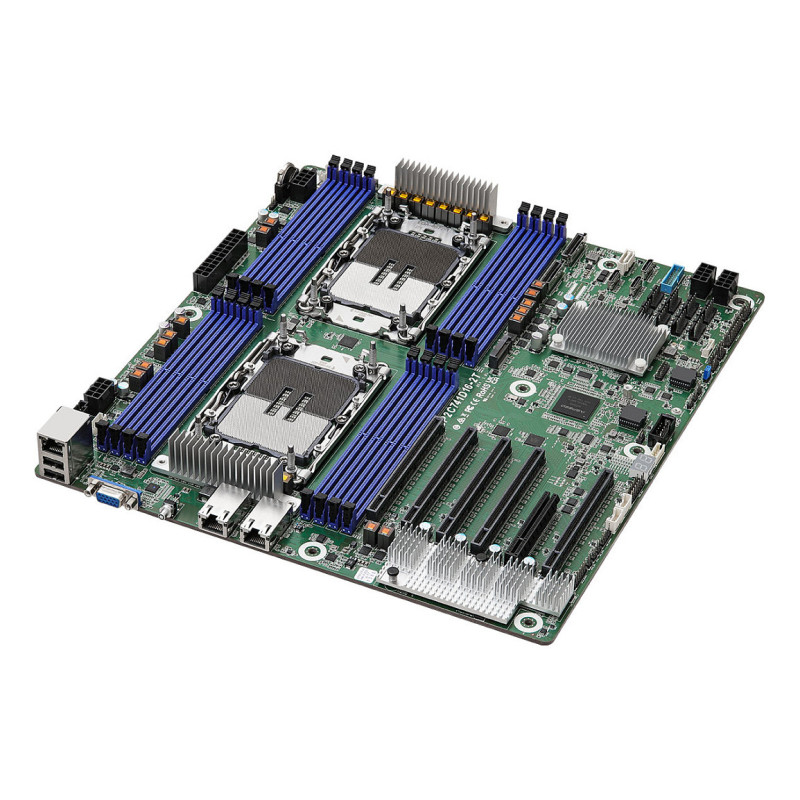

Asrock SP2C741D16-2T pagrindinė plokštė

Asrock SP2C741D16-2T. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Memory voltage: 1.1 V, Supported memory clock speed (max): 5600 MHz. On-board graphics card model: Aspeed AST2600. Motherboard form factor: EEB, Motherboard chipset family: Intel, Compatible operating systems: Microsoft® Windows® - Server 2022 (64 bit) Linux - Red Hat Enterprise Linux Server 8.4 ( 64.... BIOS type: UEFI AMI, BIOS memory size: 512 Mbit

Processor

Processor manufacturer: Intel
Processor socket: LGA 4677 (Socket E)
Compatible processor series: Intel® Xeon®
Supported processor sockets: LGA 4677 (Socket E)

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 16
Memory voltage: 1.1 V
Supported memory clock speed (max): 5600 MHz

Graphics

On-board graphics card model: Aspeed AST2600

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: ATX Power connector (24-pin)
Feature: EPS power connector (8-pin)
Feature: TPM connector

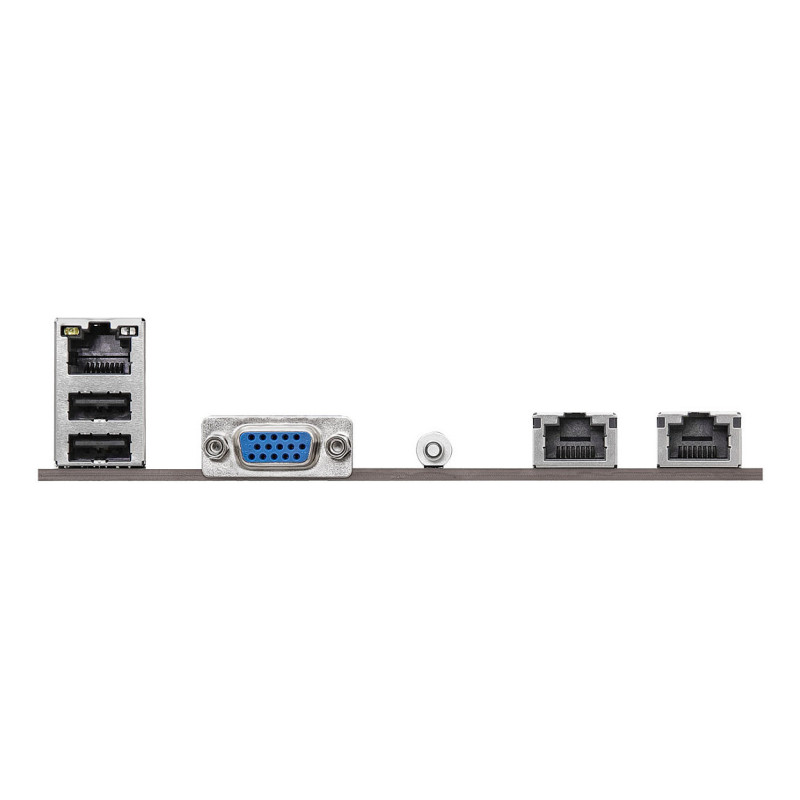

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1

Network

Feature: Ethernet LAN

Features

Motherboard form factor: EEB
Motherboard chipset family: Intel

Expansion slots

PCI Express x8 (Gen 5.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 5
PCI Express OCuLink connectors (NVMe support): 3
Number of M.2 (M) slots: 1

BIOS

BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
ACPI version: 4.0
System Management BIOS (SMBIOS) version: 3.4

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 307 mm
Depth: 337.8 mm
