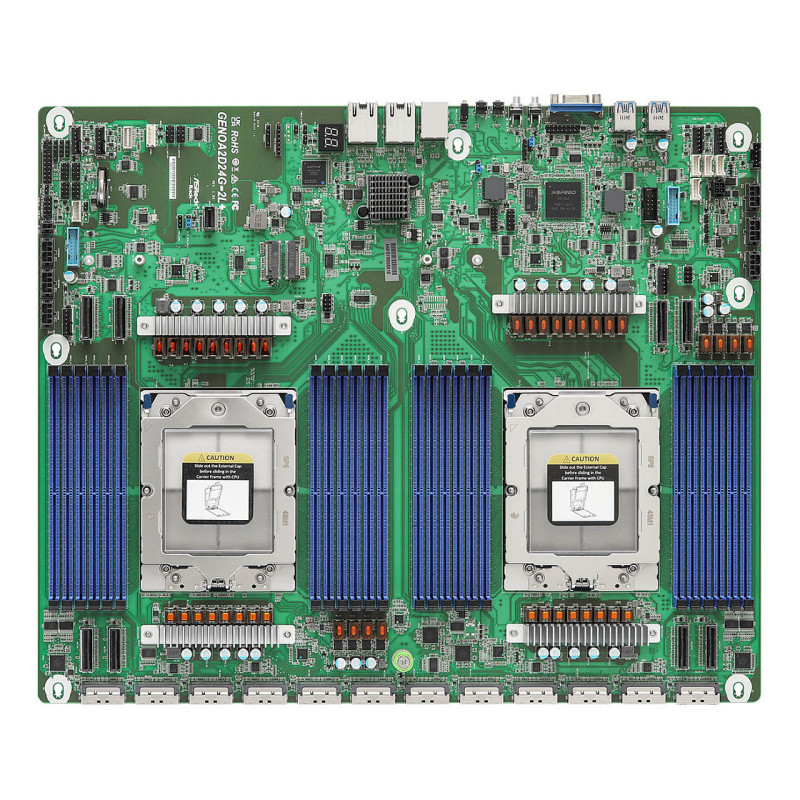

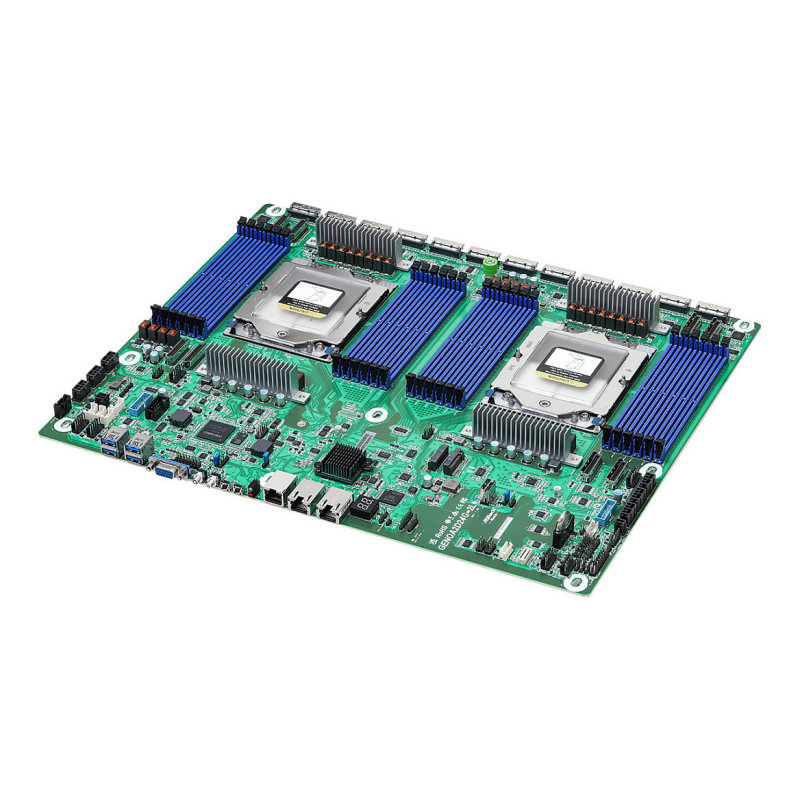

Asrock GENOA2D24G-2L + pagrindinė plokštė

Asrock GENOA2D24G-2L+. Processor manufacturer: AMD, Processor socket: Socket SP5, Compatible processor series: AMD EPYC. Supported memory types: DDR5-SDRAM, Maximum internal memory: 12 TB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD. On-board graphics card model: Aspeed AST2600, On-board graphics card memory: 512 MB. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I350

Processor

Processor manufacturer: AMD
Processor socket: Socket SP5
Compatible processor series: AMD EPYC
Maximum number of SMP processors: 2

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 24
Memory slots type: DIMM
Memory slot pin count: 288
Memory voltage: 1.1 V
Supported memory clock speeds: 4800 MHz
Maximum internal memory: 12 TB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: SATA III
Number of HDDs supported: 32
Number of storage drives supported: 34

Graphics

Parallel processing technology support: Not supported
On-board graphics card model: Aspeed AST2600
On-board graphics card memory: 512 MB

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Number of chassis fan connectors: 6
Feature: Chassis intrusion connector
Number of COM connectors: 1

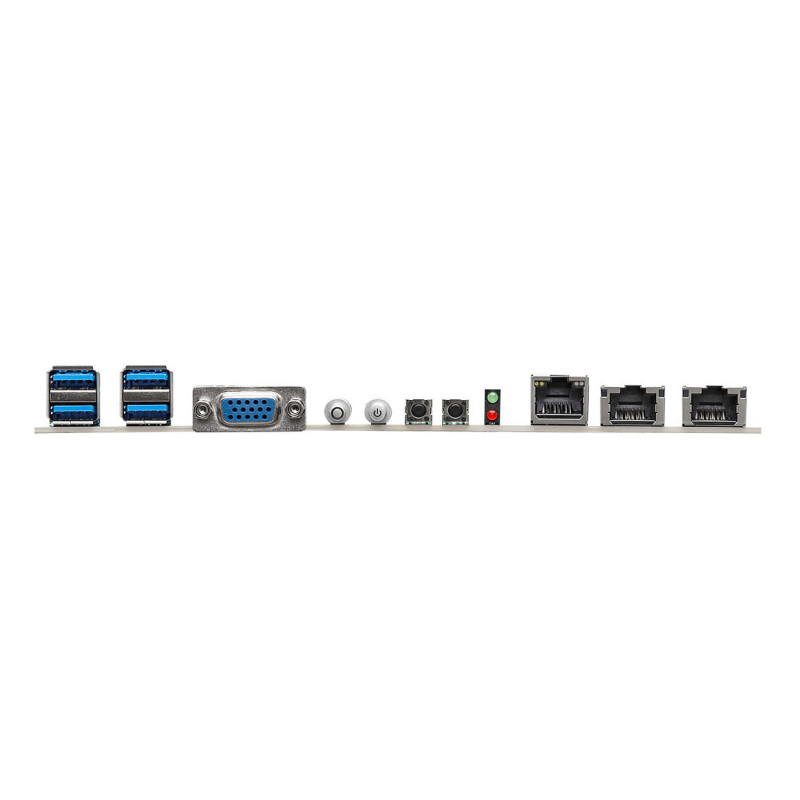

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel® I350

Features

Motherboard chipset: AMD SoC
Product colour: Green, Grey
PC health monitoring: Fan, Temperature, Voltage
Component for: Server
Motherboard chipset family: AMD

BIOS

BIOS type: UEFI AMI
ACPI version: 6.4
Feature: Clear CMOS button
System Management BIOS (SMBIOS) version: 3.5

Operational conditions

Storage temperature (T-T): 10 - 35 °C
Operating temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 430 mm
Depth: 350 mm
