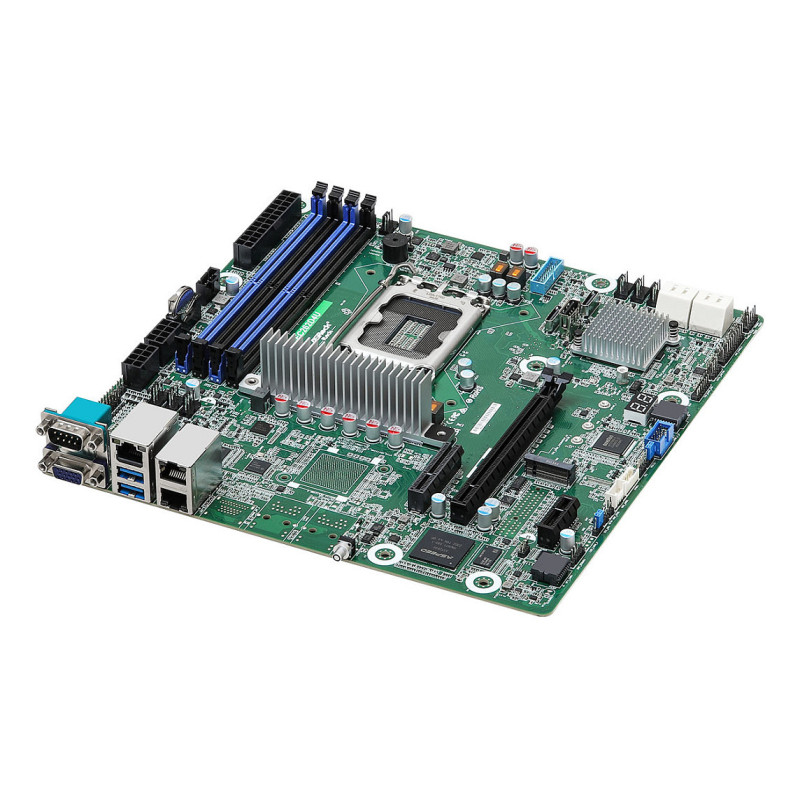

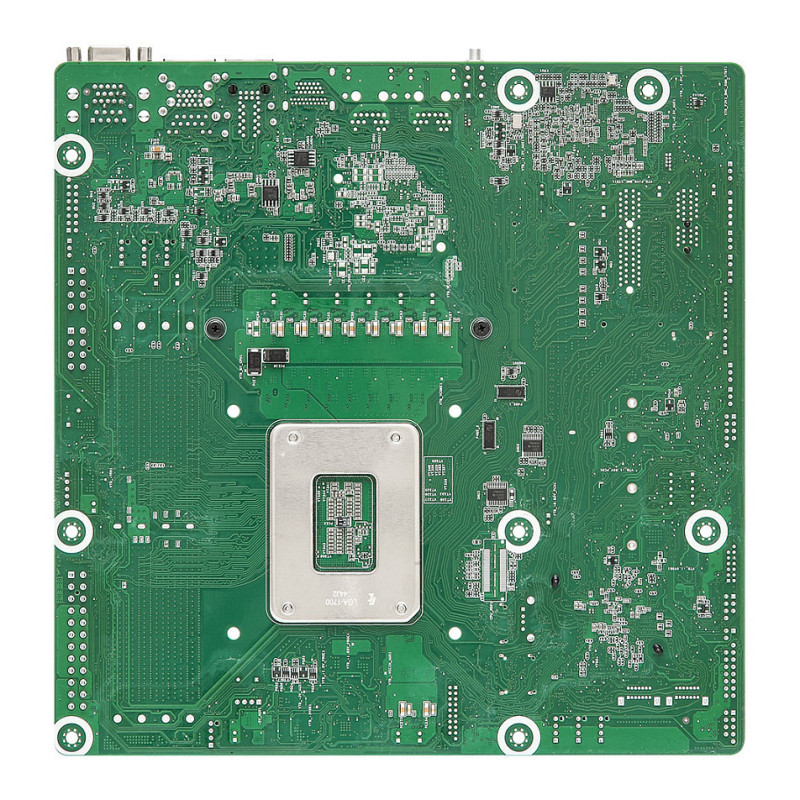

Asrock EC262D4U pagrindinė plokštė

Asrock EC262D4U. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, RAID levels: 0, 1, 5, 10. Motherboard form factor: micro ATX, Motherboard chipset family: Intel, Motherboard chipset: Intel C262. BIOS type: AMI, BIOS memory size: 256 Mbit

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Xeon®
Supported processor sockets: LGA 1700

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.1 V
ECC сompatibility: ECC
Maximum internal memory: 128 GB

Storage controllers

Supported storage drive interfaces: M.2
Feature: RAID support
RAID levels: 0, 1, 5, 10

Internal I/O

USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 8
Feature: ATX Power connector (24-pin)
Peripheral (Molex) power connectors (4-pin): 1
Feature: TPM connector

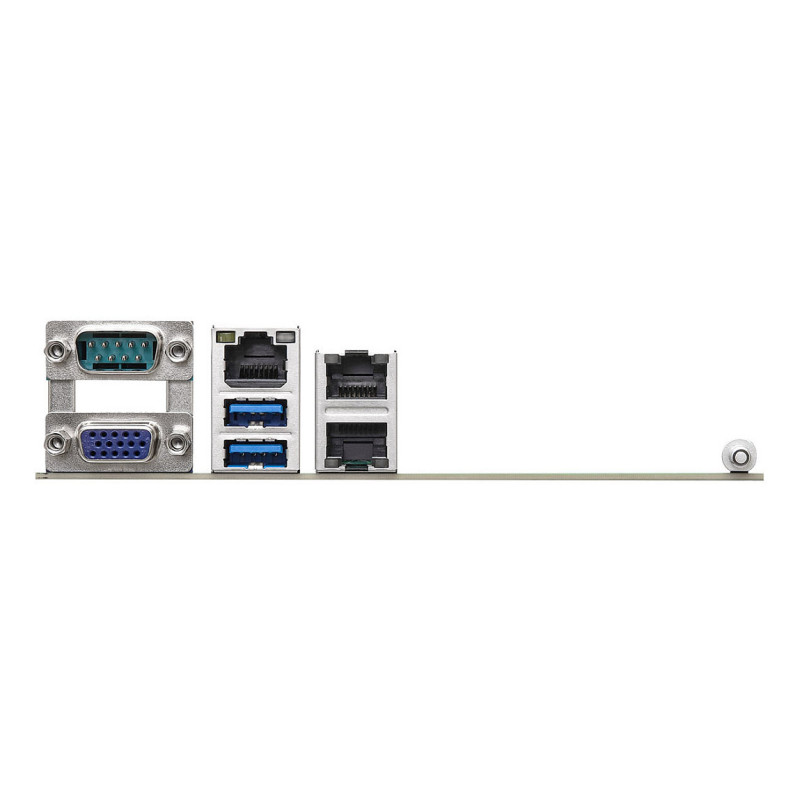

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1

Network

Feature: Ethernet LAN

Features

Motherboard chipset: Intel C262
PC health monitoring: CPU, Fan
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

Expansion slots

PCI Express x1 (Gen 4.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 1

BIOS

BIOS type: AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 2.8

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 244 mm
Depth: 244 mm
