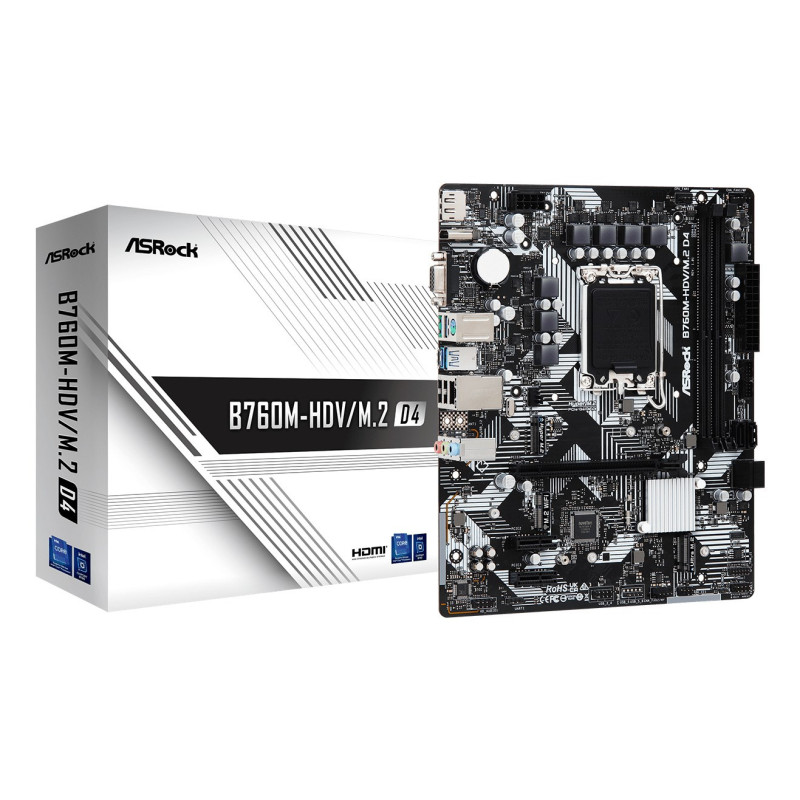

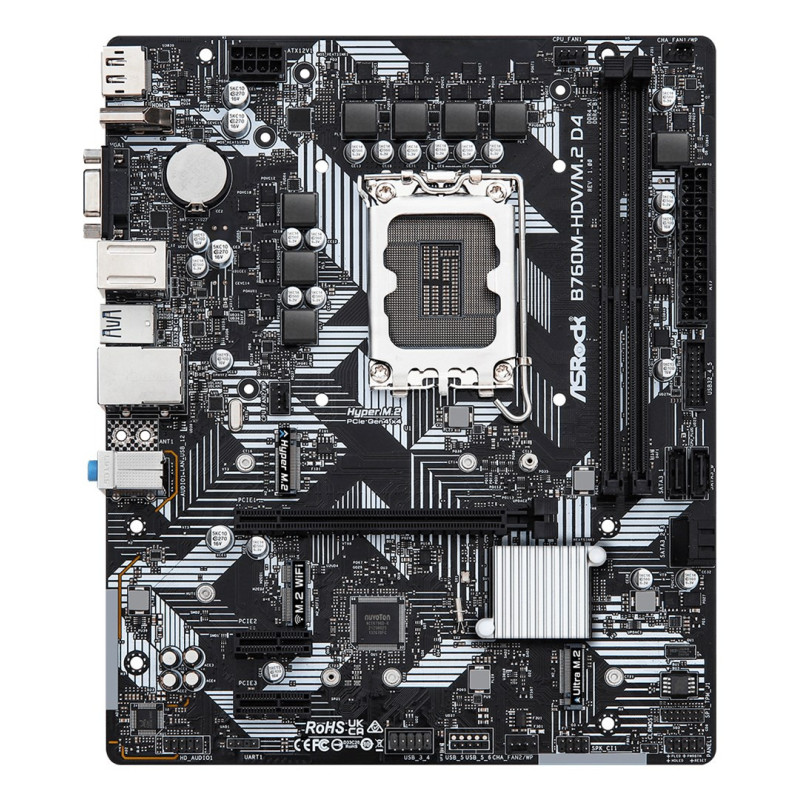

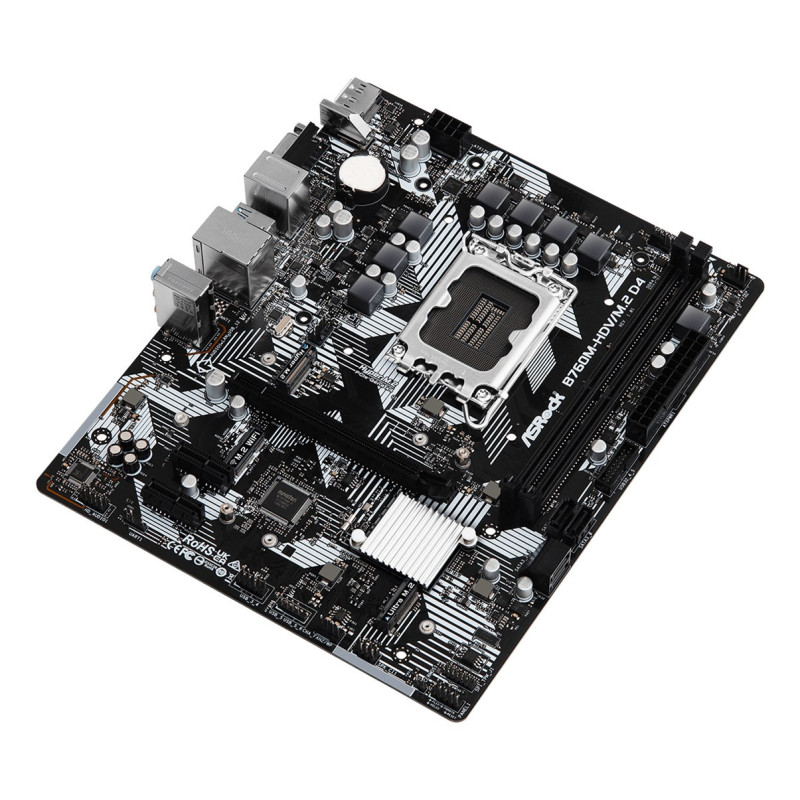

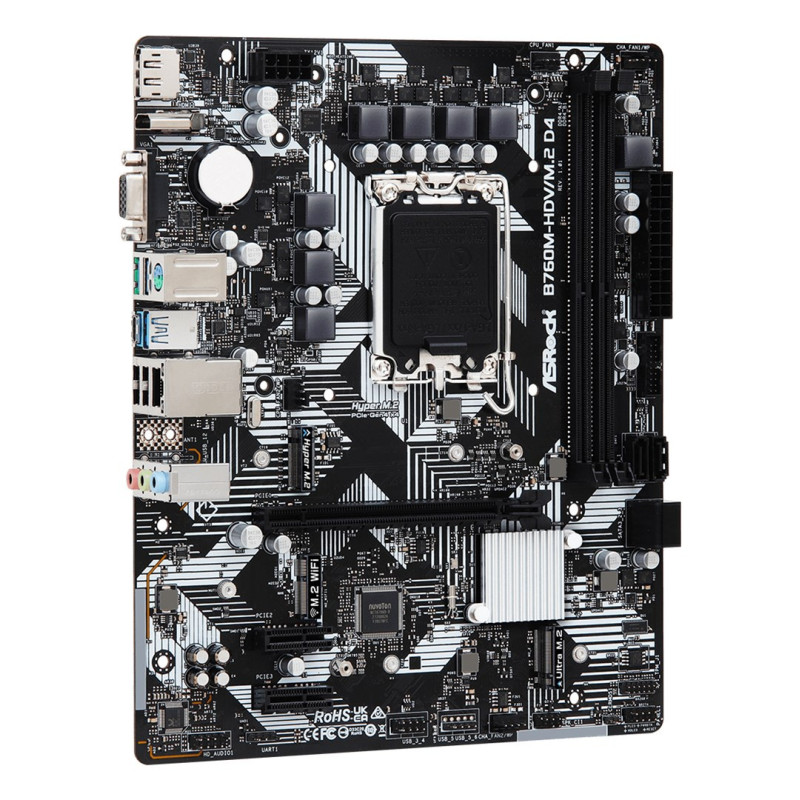

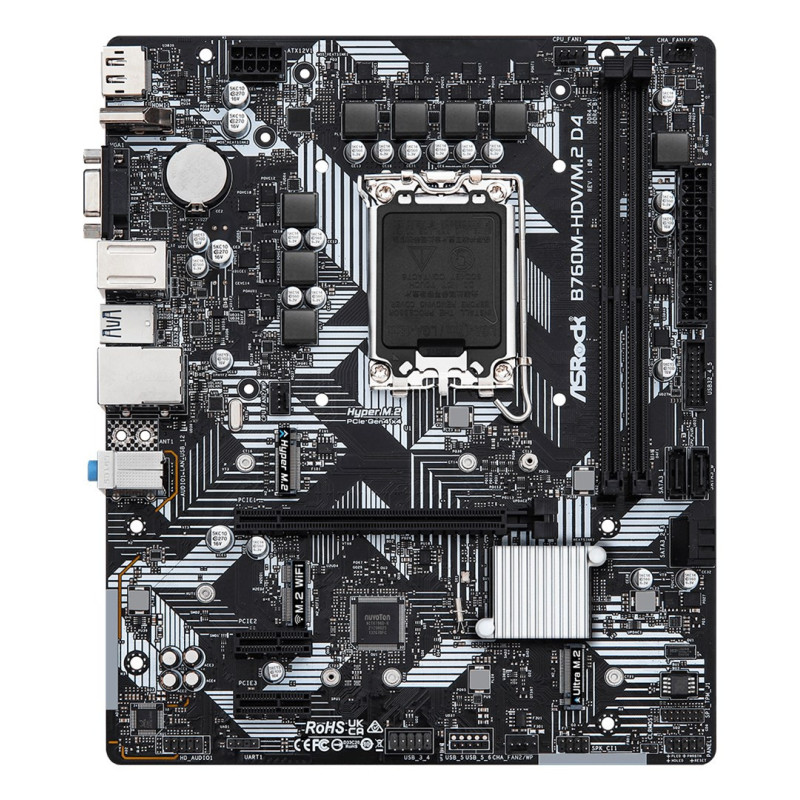

Asrock B760M-HDV / M.2 D4 Intel B760 LGA 1700 micro ATX
Prekės kodas:
6-B760M-HDV/M.2 D4
Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX
Asrock B760M-HDV / M.2 D4 Intel B760 LGA 1700 micro ATX
Prekės kodas:
6-B760M-HDV/M.2 D4
Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
36 mėn.
Pristatymas iš Europos
per 4 - 8*
d. d.
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| HDCP | Yes |
| Parallel processing technology support | Not supported |
| Certification | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Windows operating systems supported | Windows 11 x64, Windows 10 Education x64 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | Intel |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 5333 MHz, 4400, 3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Width | 244 mm |
| Depth | 201 mm |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
| Front panel connector | Yes |
| USB 2.0 connectors | 3 |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| RAID support | Yes |
| RAID levels | 5, 1, 10 |
| Supported storage drive interfaces | M.2, SATA III |

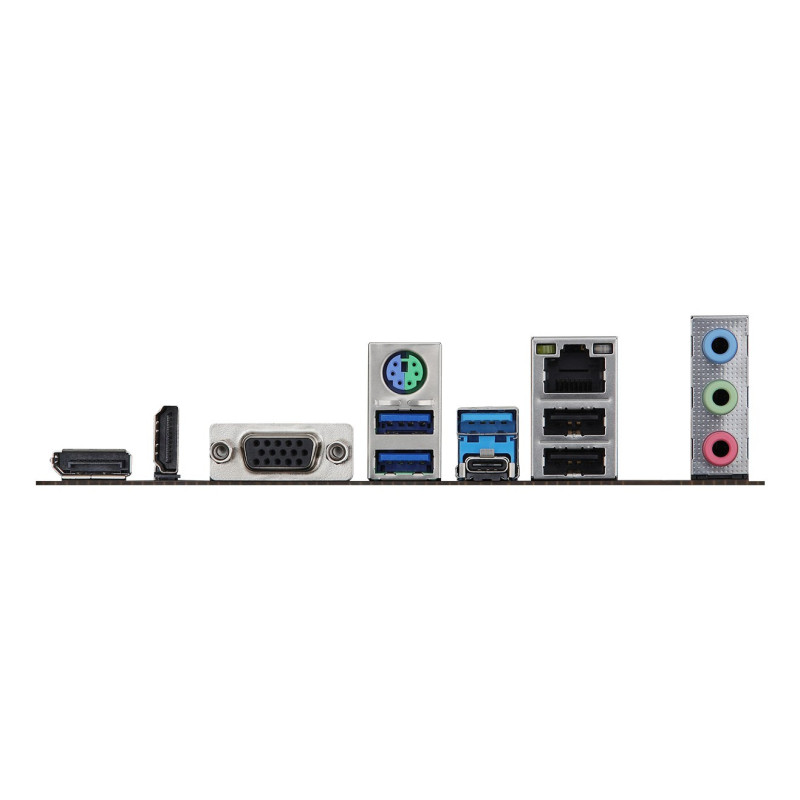

| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Warnings | Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply. |
