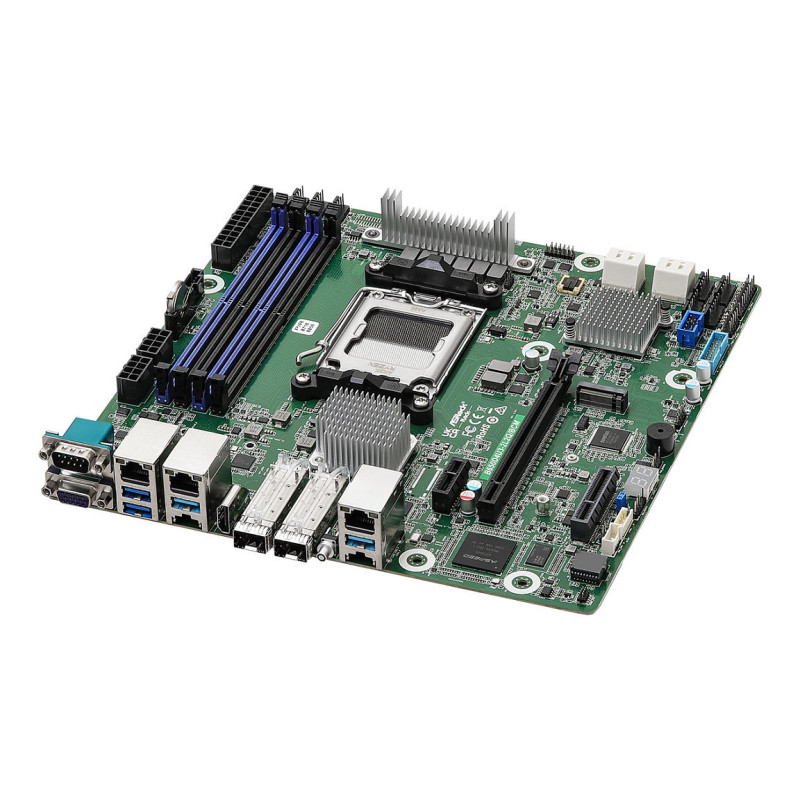

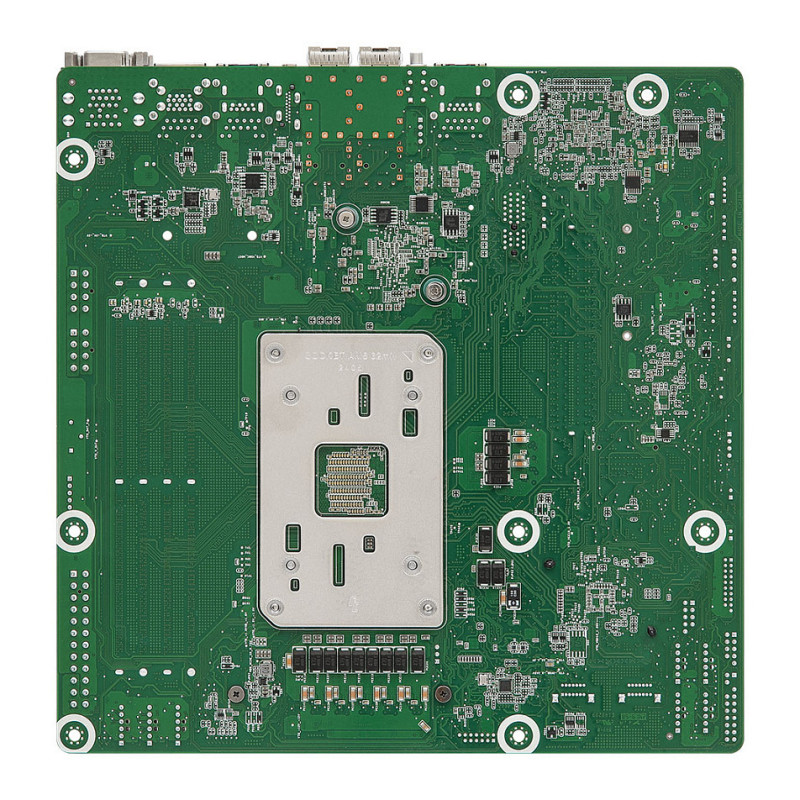

Asrock B650D4U3-2L2Q / BCM pagrindinė plokštė

Asrock B650D4U3-2L2Q/BCM. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 48 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. On-board graphics card model: Aspeed AST2600. Component for: Server, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.1 V
ECC сompatibility: Non-ECC
Supported memory clock speeds: 3600,5600 MHz
Supported memory clock speed (max): 5600 MHz
Maximum internal memory: 48 GB

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Graphics

On-board graphics card model: Aspeed AST2600

Internal I/O

USB 2.0 connectors: 1
Number of SATA III connectors: 4
Feature: ATX Power connector (24-pin)
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Feature: TPM connector
Serial port headers: 1

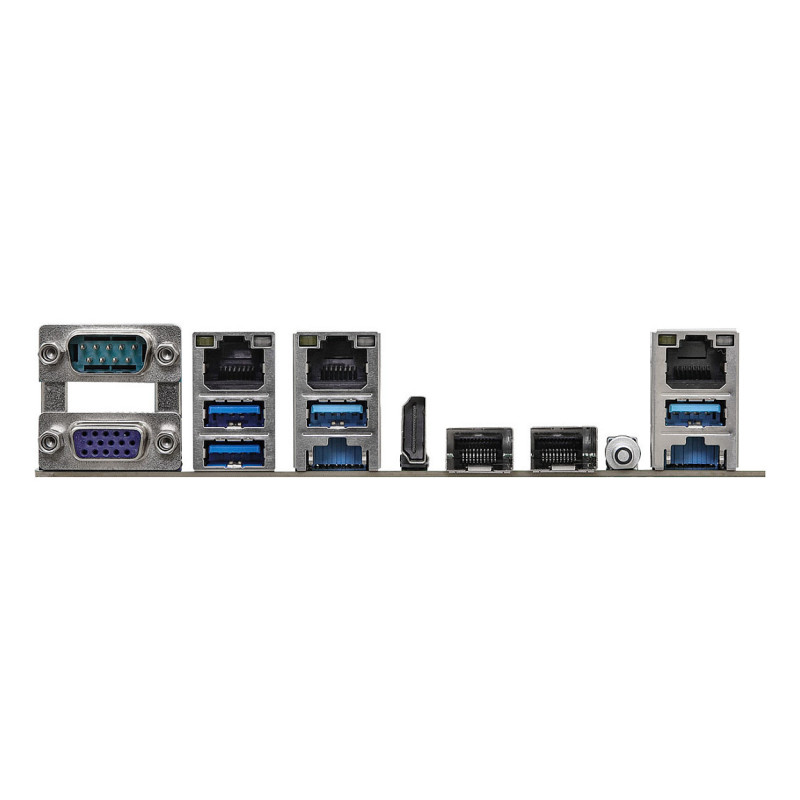

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1

Network

Feature: Ethernet LAN

Features

Motherboard chipset: AMD B650 Express
PC health monitoring: CPU, Fan, Voltage
Component for: Server
Motherboard form factor: micro ATX
Motherboard chipset family: AMD

Expansion slots

PCI Express x4 (Gen 4.x) slots: 1

BIOS

BIOS type: UEFI
BIOS memory size: 256 Mbit
ACPI version: 6.4
Feature: Clear CMOS jumper
System Management BIOS (SMBIOS) version: 3.5

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 90%
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 244 mm
Depth: 244 mm
