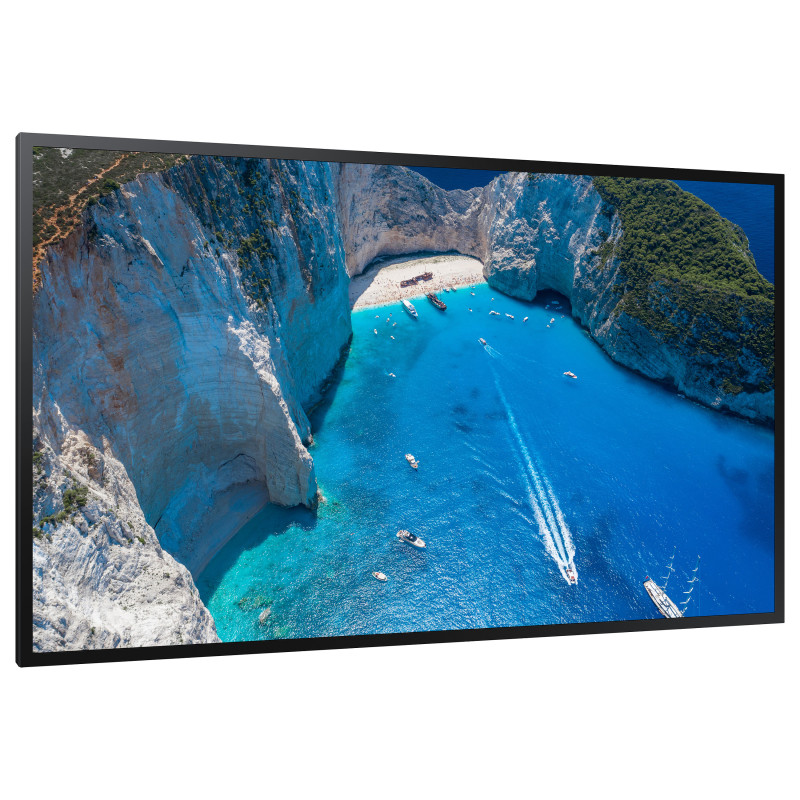

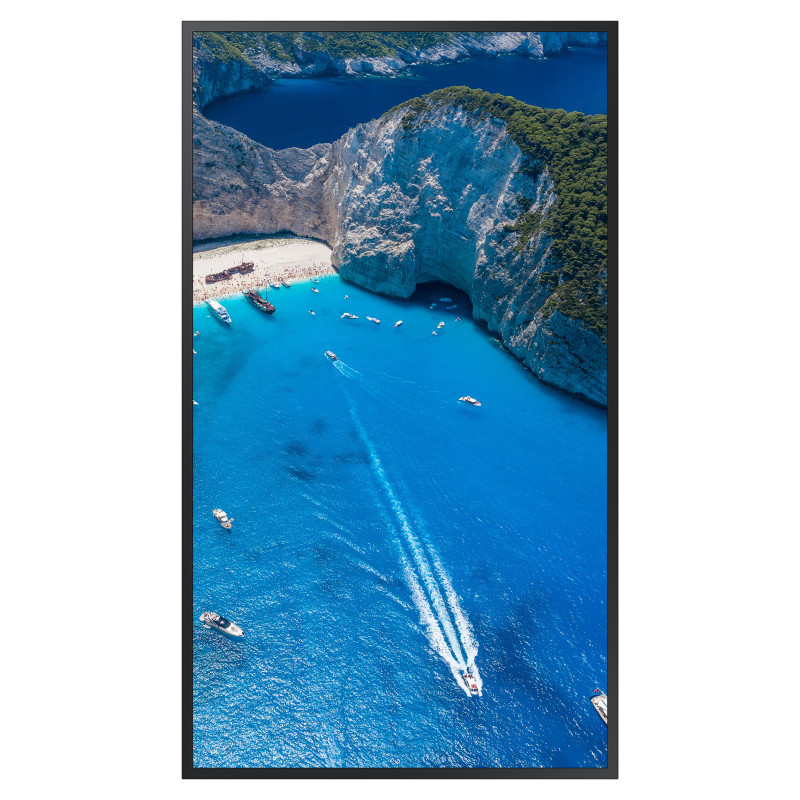

Samsung OM75A

Samsung OM75A. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 4000 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen 5.0. Product colour: Black

Display

Panel type: ADS
Display diagonal: 190.5 cm (75")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 4000 cd/m²
HD type: 4K Ultra HD
Response time: 14 ms
Contrast ratio (typical): 1200:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.4296 x 0.4296 mm
Horizontal scan range: 15 - 85 kHz
Vertical scan range: 24 - 75 Hz
Haze rate: 2.5%
Pixel frequency (max): 77 MHz
RGB colour space: NTSC
Colour gamut: 72%

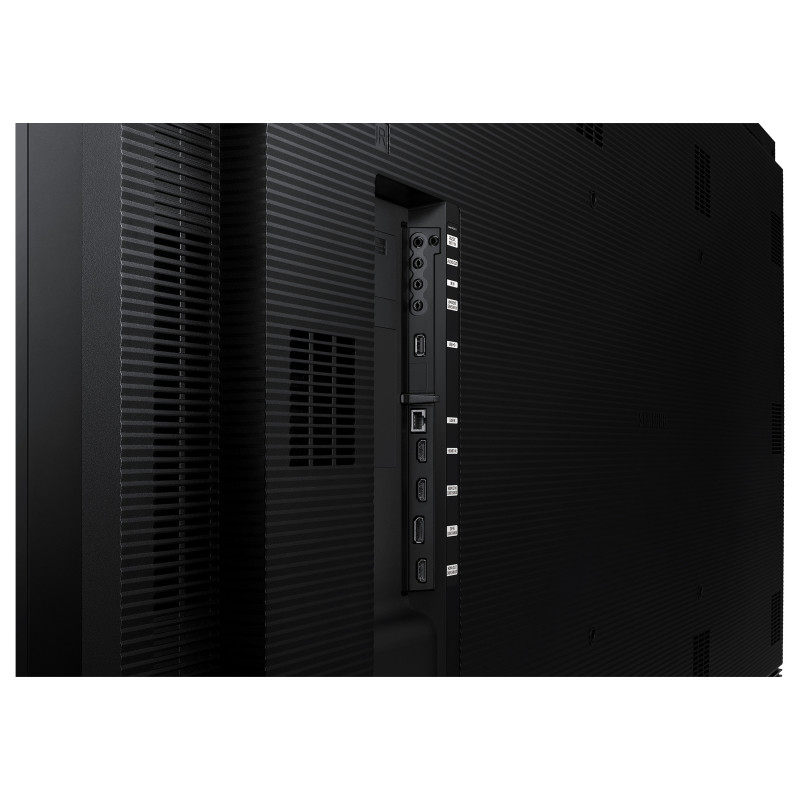

Ports & interfaces

HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 1
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1

Design

Product design: Digital signage flat panel
Product colour: Black
Screen shape: Flat
Feature: VESA mounting

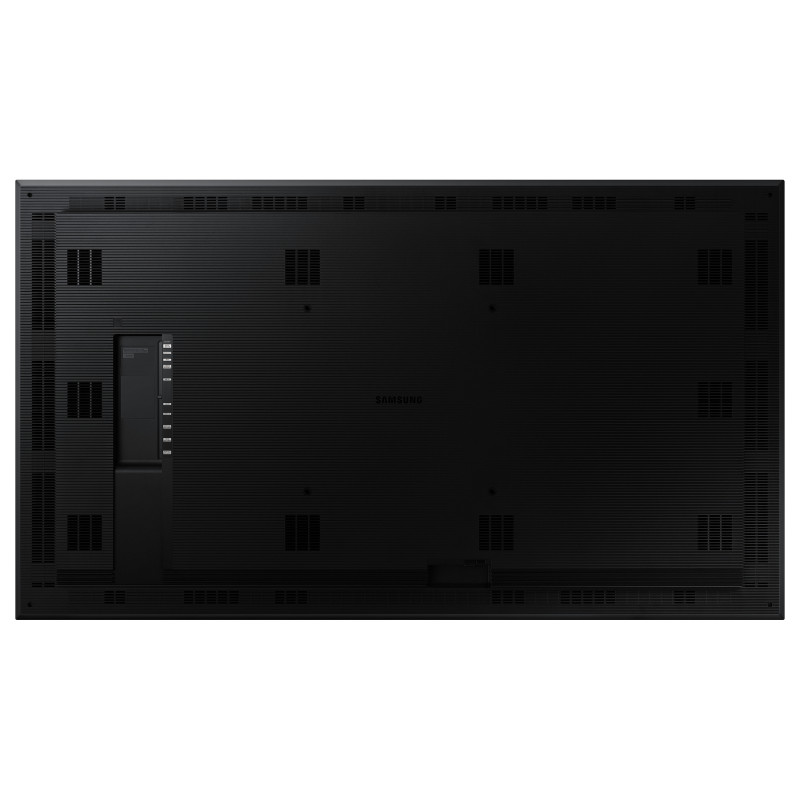

Panel mounting interface: 400 x 400 mm
Bezel width (bottom): 2.39 cm
Bezel width (side): 2.39 cm
Bezel width (top): 2.39 cm
Bezel colour: Charcoal Black

Performance

Purpose: Universal
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2

Power

Power consumption (typical): 900 W
Power consumption (sleep): 0.5 W
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz

Computer system

Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen 5.0

Weight & dimensions

Display width: 1703.1 mm

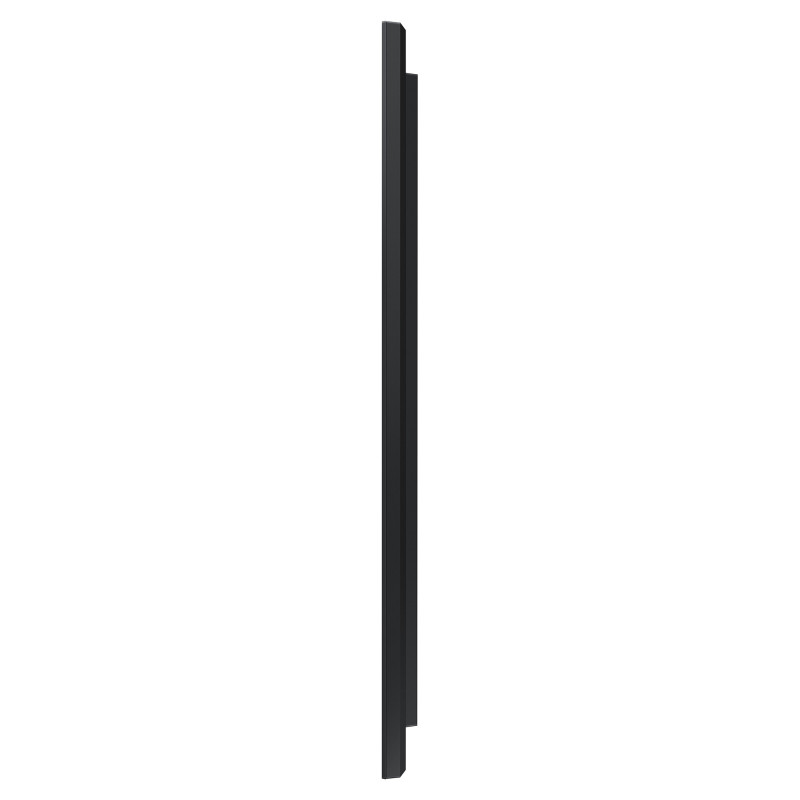

Display depth: 85.4 mm
Display height: 981.1 mm
Display weight: 37.2 kg

Packaging data

Package width: 1890 mm
Package depth: 215 mm
Package height: 1144 mm
Package weight: 48.5 kg

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%

Certificates

Certification: Class A60950-1

Logistics data

Harmonized System (HS) code: 85285210

Network

Feature: Ethernet LAN
Feature: Wi-Fi

Technical details

Audio out (mini jack): 1

Other features

RS-232 input ports: 1
RS-232 output ports: 1
Video out: 1
RJ-45 input ports: 1
