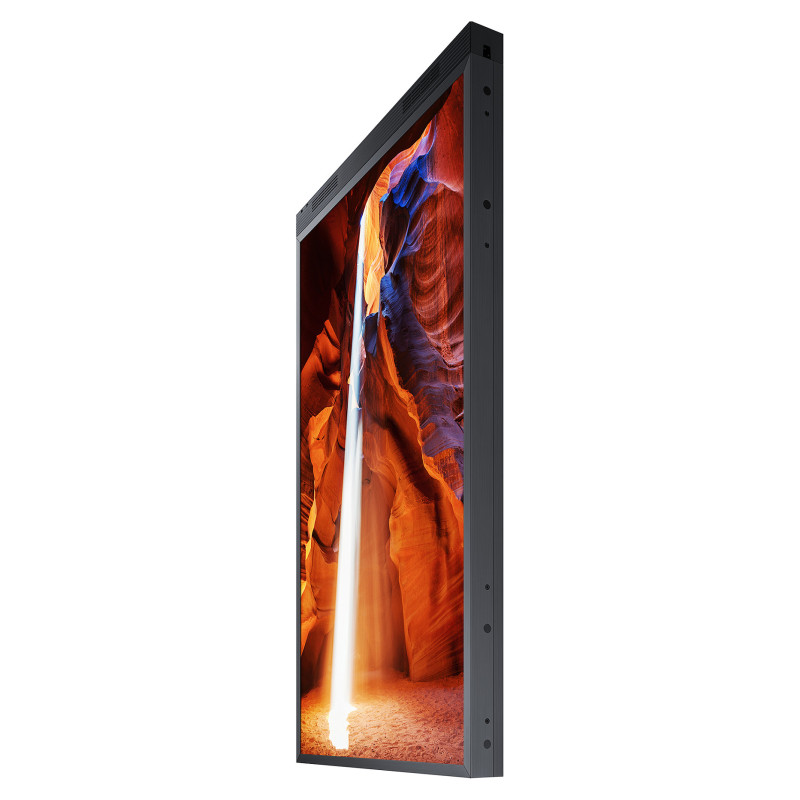

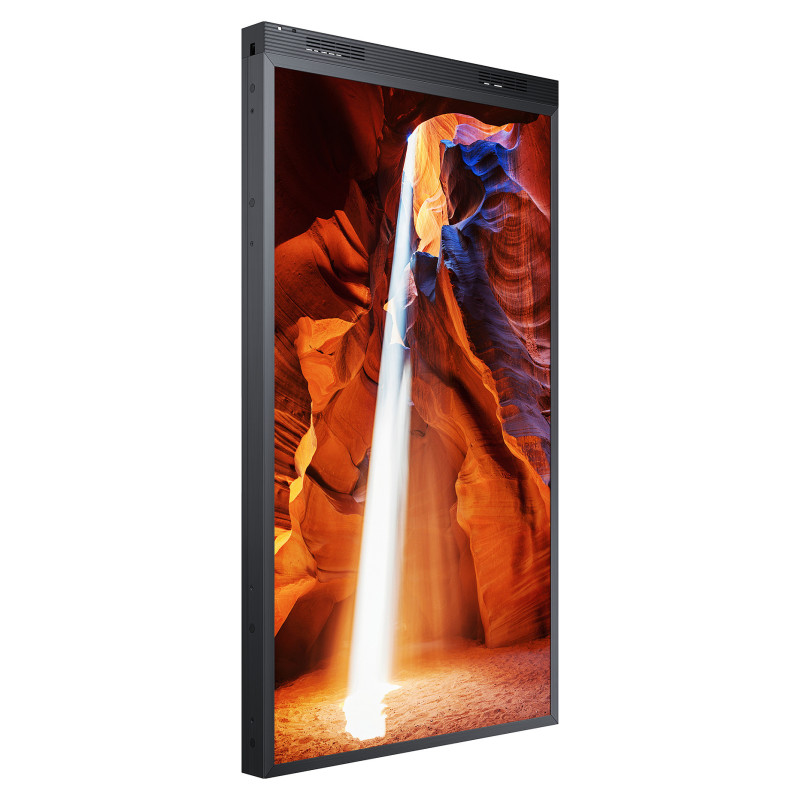

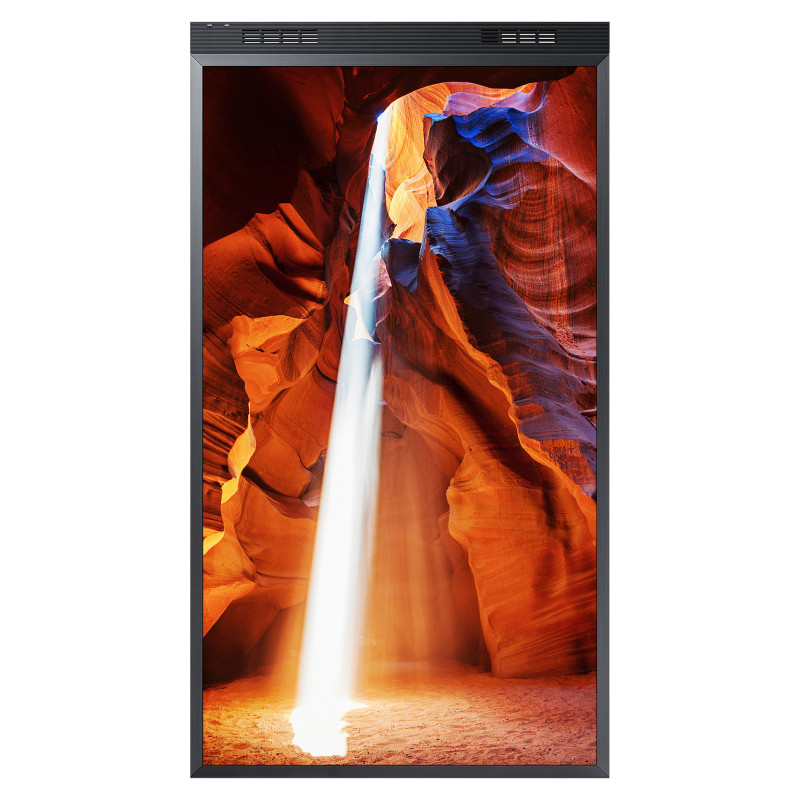

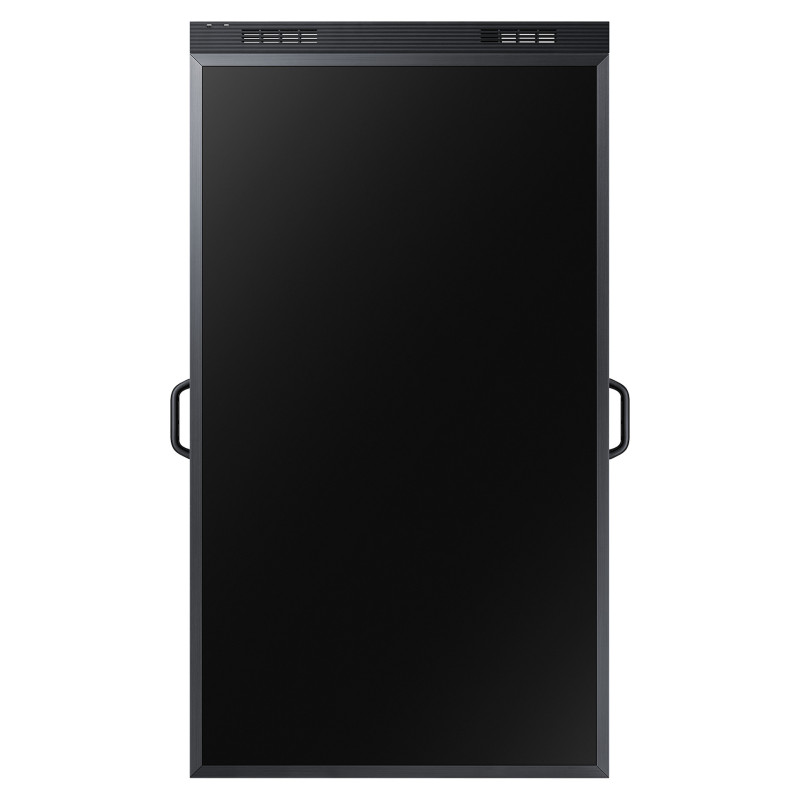

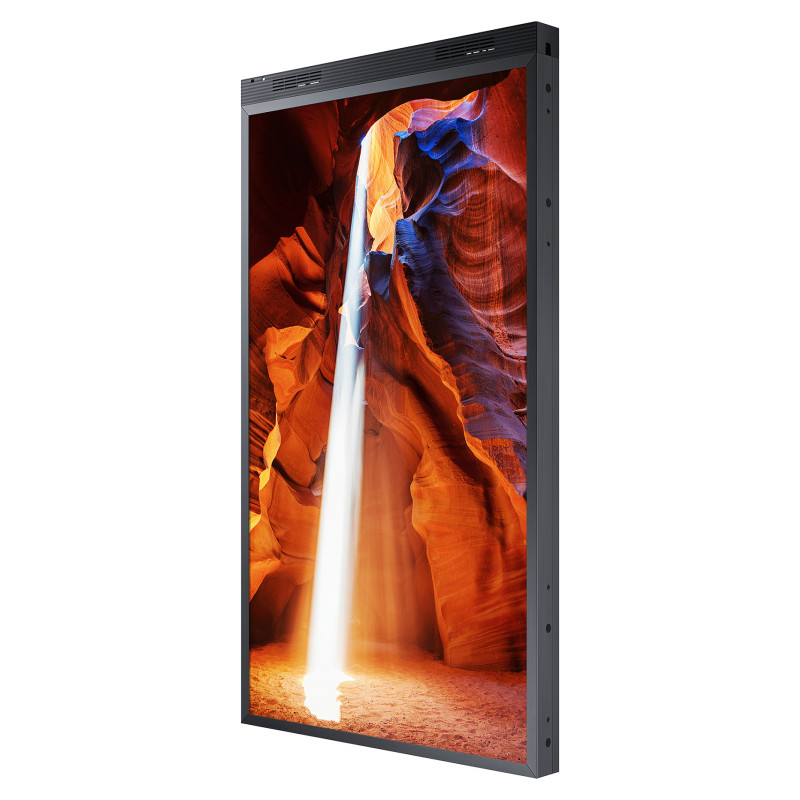

Samsung OM55N-DS

Samsung OM55N-DS. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 3000 cd/m², HD type: Full HD. Wi-Fi. Operating system installed: Tizen 5.0. Product colour: Black

Display

Panel type: VA
Display diagonal: 139.7 cm (55")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 3000 cd/m²
HD type: Full HD
Response time: 6 ms
Contrast ratio (typical): 6000:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.63 x 0.63 mm
Horizontal scan range: 15 - 135 kHz
Vertical scan range: 24 - 75 Hz
Pixel frequency (max): 594 MHz
RGB colour space: NTSC
Colour gamut: 72%

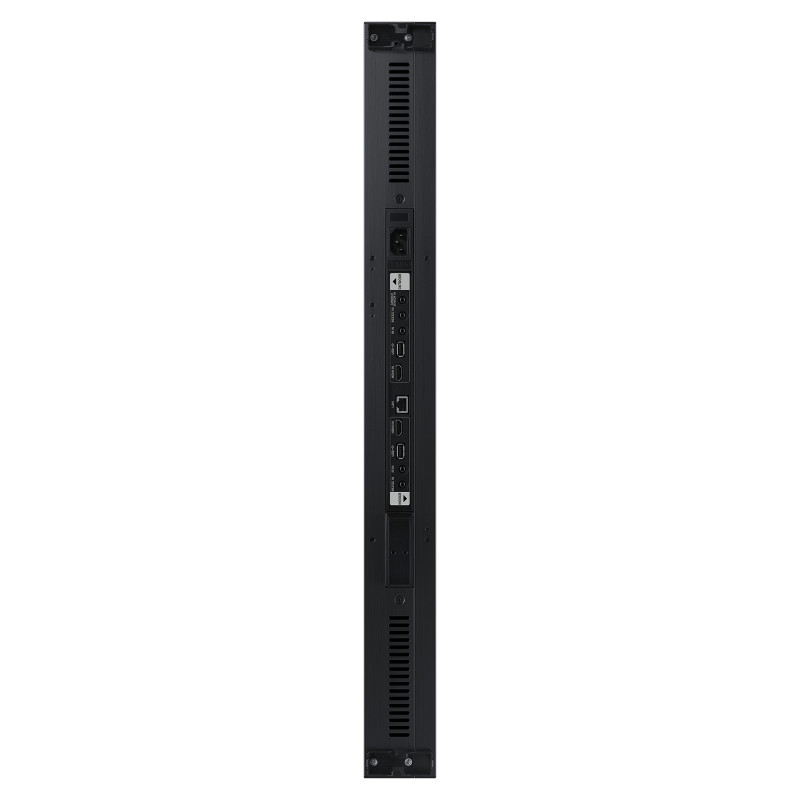

Ports & interfaces

HDMI ports quantity: 2
HDMI version: 2.0
Feature: USB port
USB ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1

Design

Product design: Digital signage flat panel
Placement supported: Indoor/outdoor
Orientation: Vertical
Product colour: Black
Screen shape: Flat
Bezel width (bottom): 2.28 cm
Bezel width (side): 2.28 cm
Bezel width (top): 2.28 cm

Performance

Purpose: Universal
Feature: HDCP
HDCP version: 2.2

Power

Power consumption (typical): 500 W
Power consumption (sleep): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Computer system

Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen 5.0

Weight & dimensions

Display width: 726.8 mm
Display depth: 69.5 mm
Display height: 1299 mm
Display weight: 42 kg

Packaging data

Package width: 940 mm
Package depth: 367 mm
Package height: 1466 mm
Package volume: 52000 cm³

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%

Certificates

Certification: Class A60950-1

Network

Feature: Ethernet LAN
Feature: Wi-Fi

Other features

Flash memory: 8000 MB
RS-232 input ports: 1
