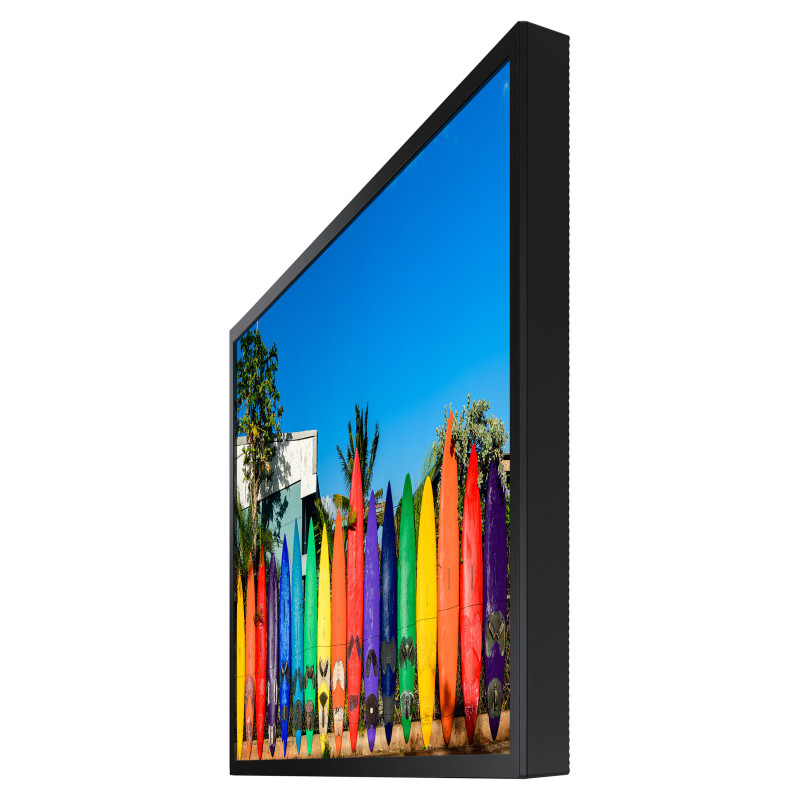

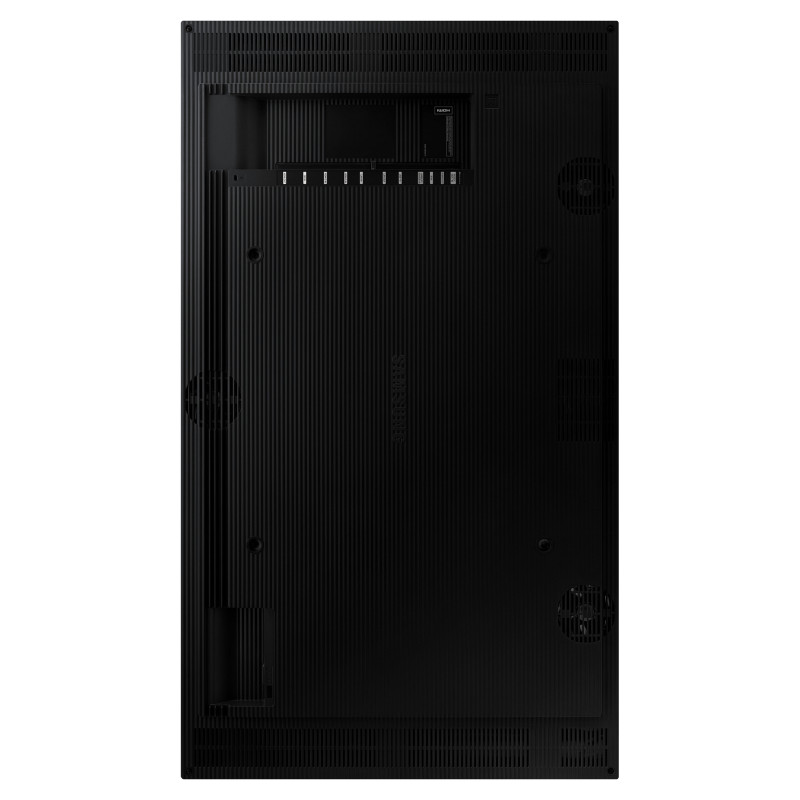

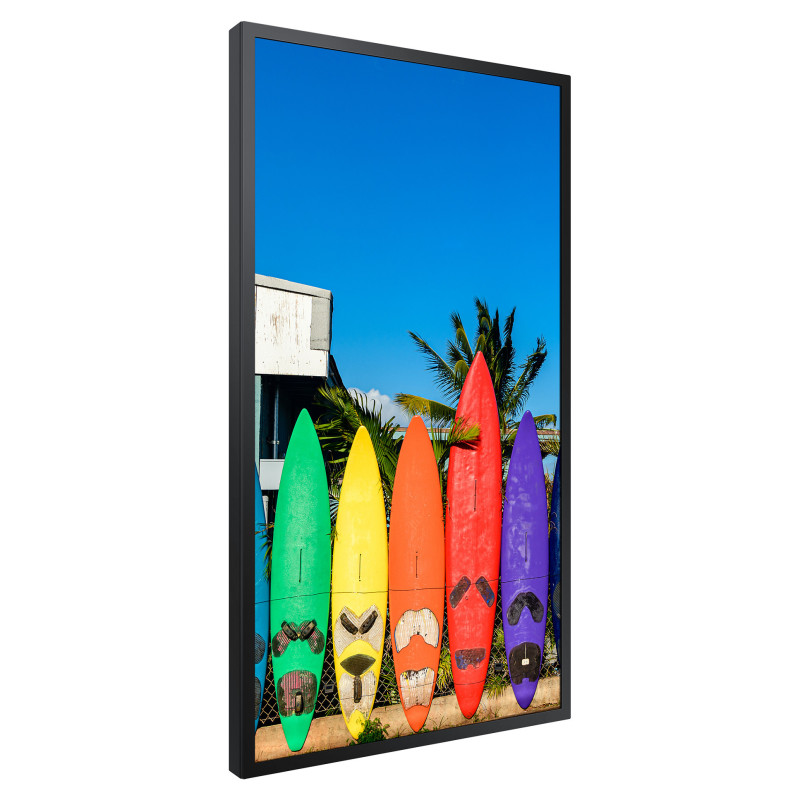

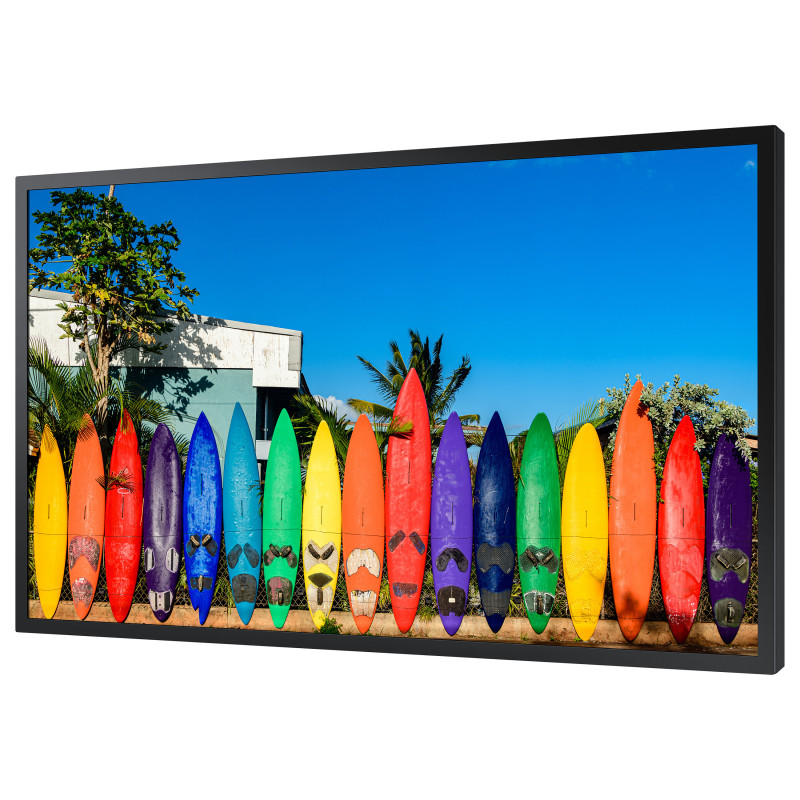

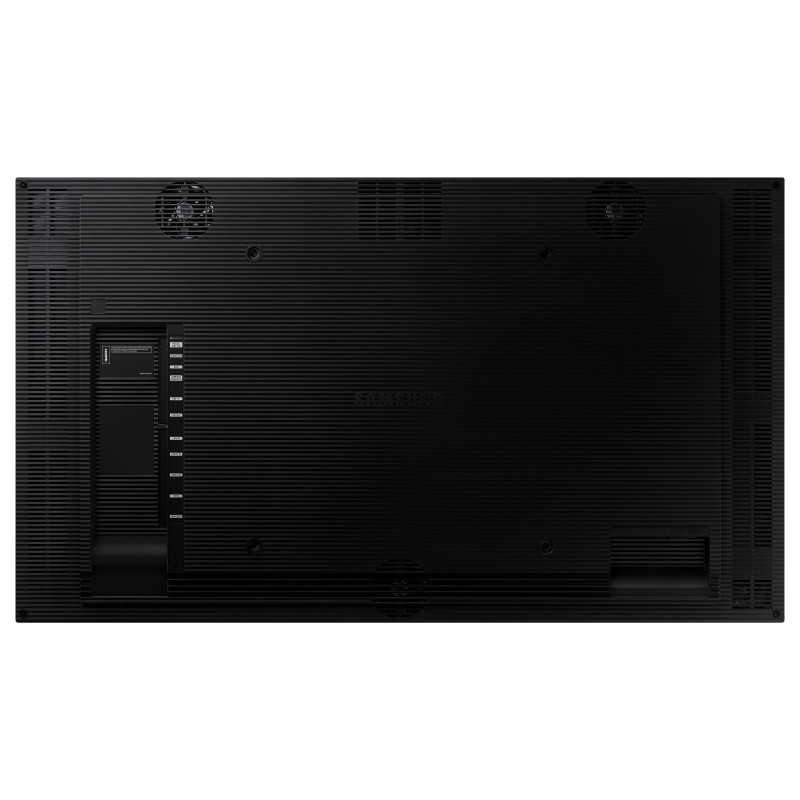

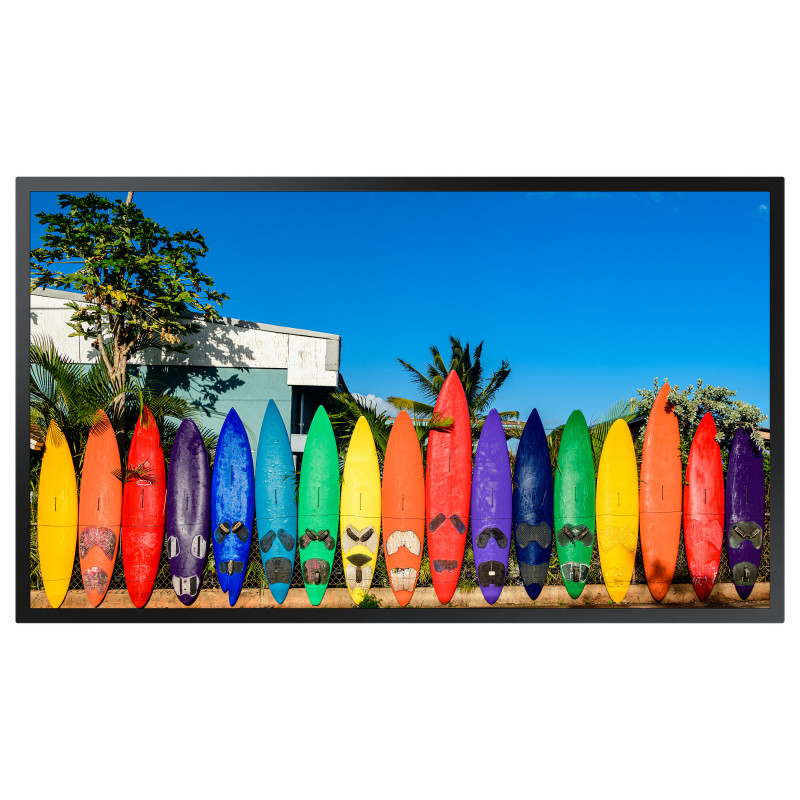

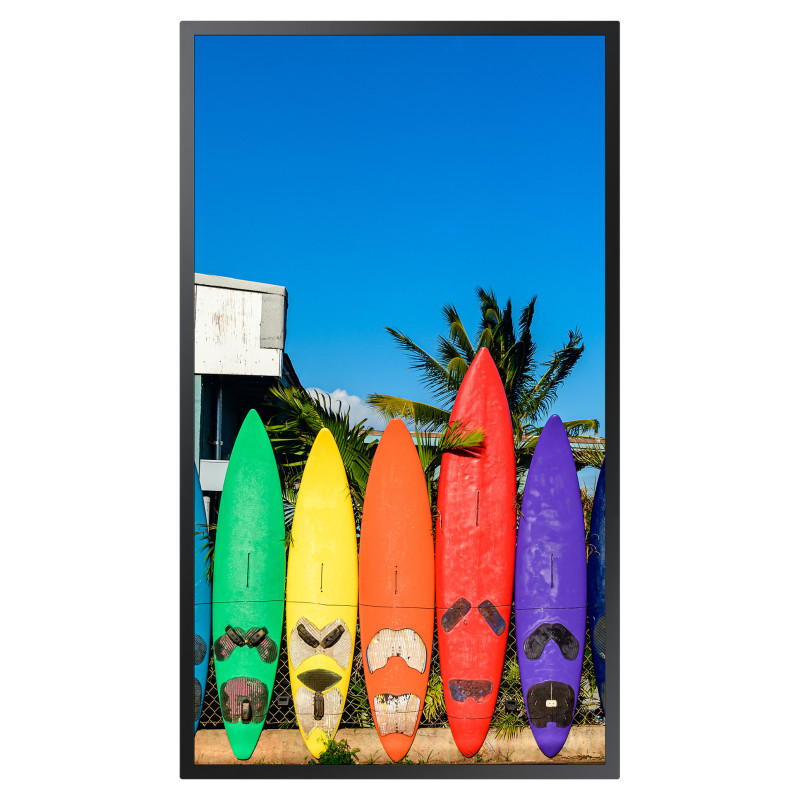

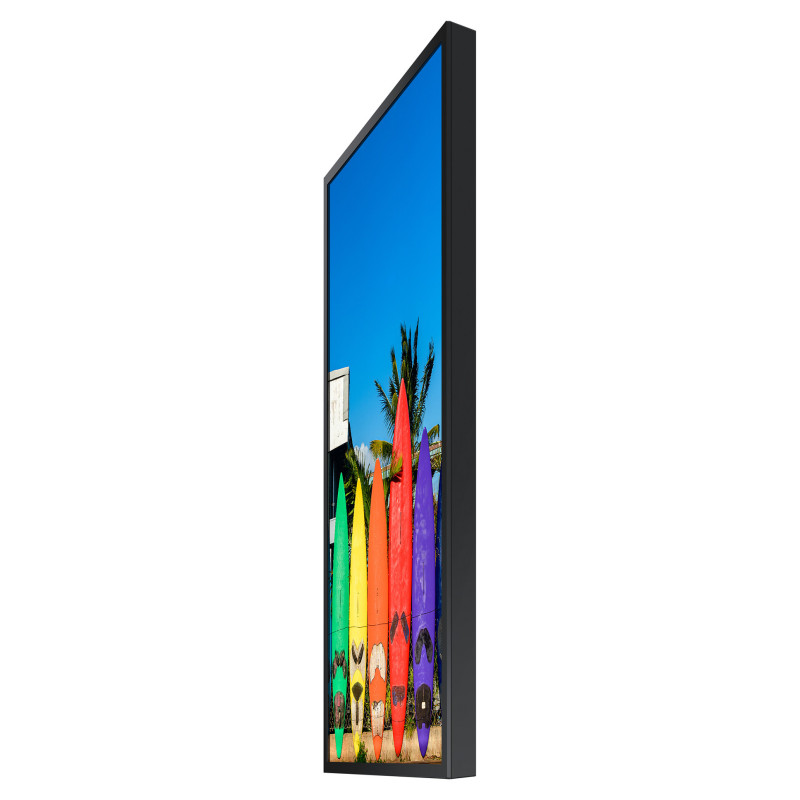

Samsung OM55B

Samsung OM55B. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 3000 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen 5.0. Product colour: Black

Promote content in any storefront window
Samsung's OM46B was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.

Foster brilliant presentation for all
Even in direct sunlight, the OM46B delivers exceptional picture quality with optimal brightness and high contrast ratio for an uncompromised customer

Marvel at the lifelike colour expression
Dynamic Crystal Display
Immerse your customers in every picture with a wider range of colour. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.

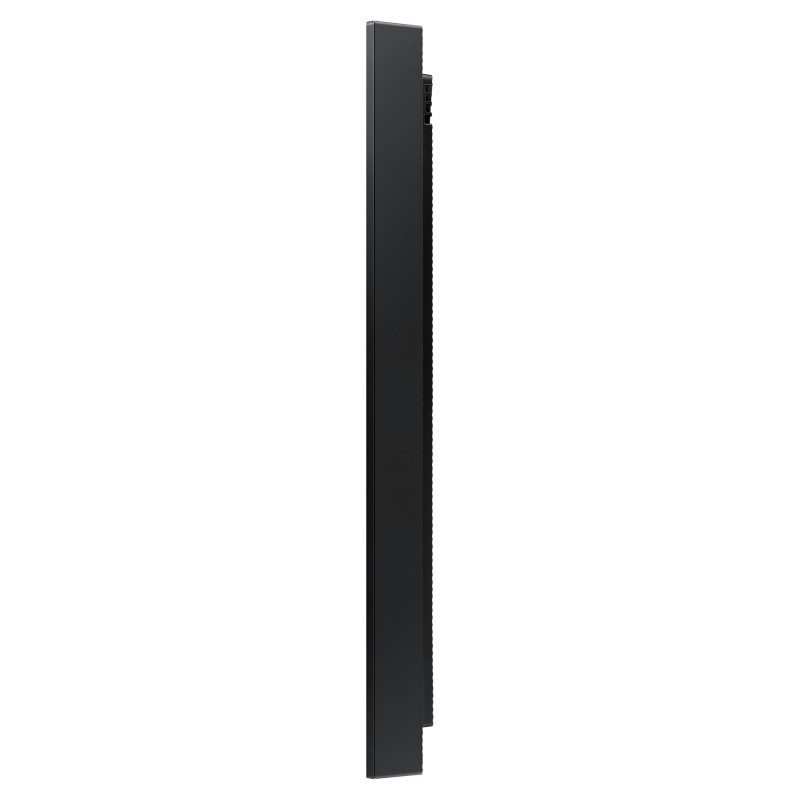

Modernise space with slim design
Supporting the best-in-class picture quality is a slim design that complements the surroundings of any retail environment, while freeing up valuable space for all those latest products.

Streamline content management
Samsung's embedded MagicINFO Player boosts performance, simplifies content management and offers seamless content playback.

Durable Performance
With IP5X-validated dust protection and embedded, proprietary functionality that mitigates overheating, the OMB series continuously provides robust durability.

Clutter-Free Configuration
Cable guide and embedded Wi-Fi provide clean, organised look and allow for content and firmware updates without the need for additional messy cables.

Display

Panel type: ADS
Display diagonal: 139.7 cm (55")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 3000 cd/m²
HD type: 4K Ultra HD
Response time: 8 ms
Contrast ratio (typical): 1200:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.315 x 0.315 mm
Horizontal scan range: 15 - 135 kHz
Vertical scan range: 24 - 75 Hz
Haze rate: 1%
Pixel frequency (max): 594 MHz
RGB colour space: NTSC
Colour gamut: 72%

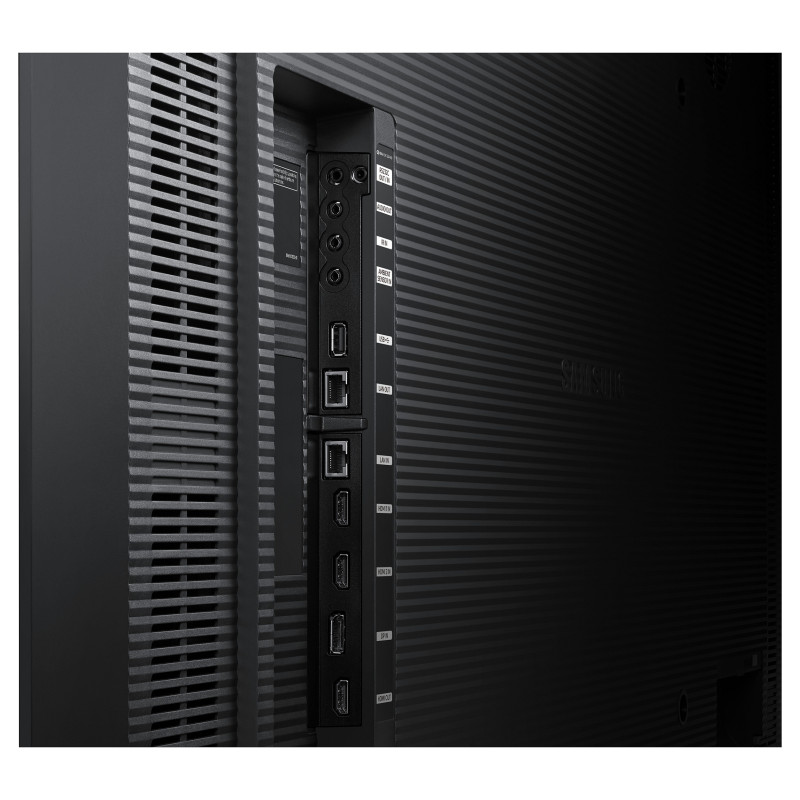

Ports & interfaces

HDMI ports quantity: 2
HDMI version: 2.0
HDMI input ports quantity: 2
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1

Design

Product design: Digital signage flat panel
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Bezel width (bottom): 1.91 cm
Bezel width (side): 1.91 cm
Bezel width (top): 1.91 cm
Bezel colour: Dark Blue Gray

Performance

Purpose: Universal
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2

Power

Power consumption (typical): 450 W
Power consumption (sleep): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 / 60 Hz

Computer system

Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen 5.0

Weight & dimensions

Display width: 1253.4 mm
Display depth: 54.5 mm
Display height: 724.2 mm
Display weight: 23.1 kg

Packaging data

Package width: 1420 mm
Package depth: 178 mm
Package height: 879 mm
Package weight: 29.1 kg

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%

Certificates

Certification: EMC Class A, Safety 60950-1

Network

Feature: Ethernet LAN
Feature: Wi-Fi

Features

Feature: Wall mountable

Technical details

Audio out (mini jack): Yes

Other features

Flash memory: 8000 MB
RS-232 input ports: 1
RS-232 output ports: 1
Video out: Yes
RJ-45 input ports: 1
RJ-45 output ports: 1
