Samsung OH75A

Samsung OH75A. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display resolution: 3840 x 2160 pixels, Display brightness: 3500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black

Display

Panel type: ADS
Display diagonal: 190.5 cm (75")
Display resolution: 3840 x 2160 pixels
Display brightness: 3500 cd/m²
HD type: 4K Ultra HD
Response time: 14 ms
Contrast ratio (typical): 1200:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 429.6 x 429.6 mm
Active display area (W x H): 927.94 x 1649.66 mm
Horizontal scan range: 30 - 135 kHz
Vertical scan range: 30 - 75 Hz
Haze rate: 2.5%
Pixel frequency (max): 77 MHz
Glass thickness: 5 mm
Glass film: SR Film
Colour gamut: 72%

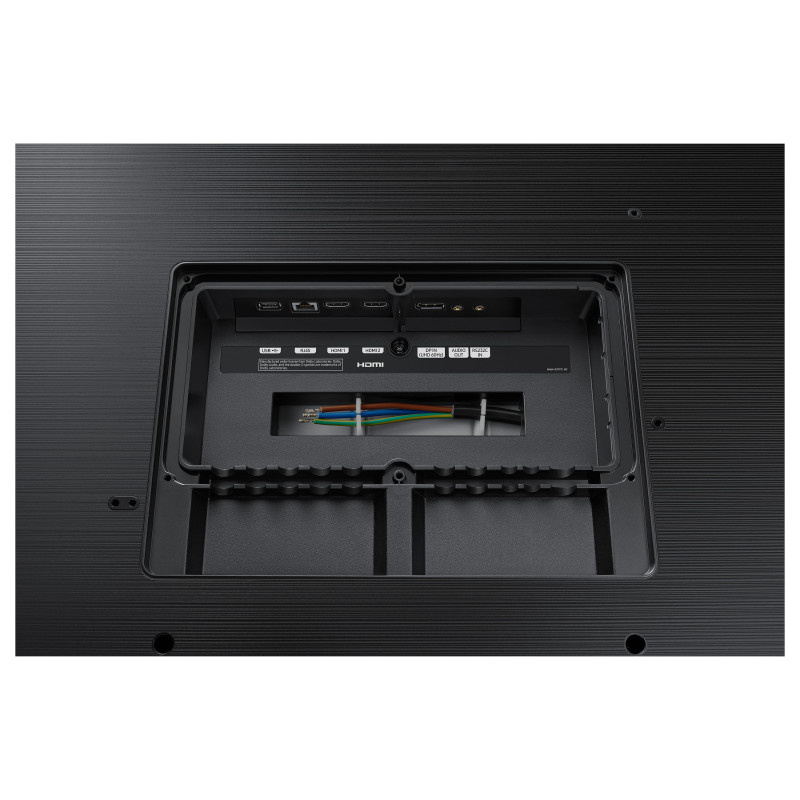

Ports & interfaces

HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 1
Feature: RS-232 interface
Feature: RS-232C
Feature: PC Audio out
Power output: No

Design

Product design: Digital signage flat panel
Product colour: Black
Bezel width (bottom): 5.98 cm
Bezel colour: Black

Performance

Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2

Power

Power consumption (typical): 1200 W
Power consumption (sleep): 0.5 W
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz

Computer system

Internal memory: 8 GB

Weight & dimensions

Display width: 1774.8 mm
Display depth: 130 mm
Display height: 1053.4 mm
Display weight: 134 kg
Width: 1774.8 mm
Depth: 130 mm
Height: 1053.4 mm
Weight: 134 kg

Packaging data

Package width: 1932 mm
Package depth: 367 mm
Package height: 1251 mm
Package weight: 150 kg

Packaging content

Feature: Remote control included
Cables included: AC

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Operating relative humidity (H-H): 10 - 80%

Logistics data

Harmonized System (HS) code: 85285210

Network

Feature: Ethernet LAN

Other features

Aspect ratio: 16:9
Audio input: N
Audio output: Y
Video out: No
Response time: 14 s
Housing material: Aluminium, Metal
