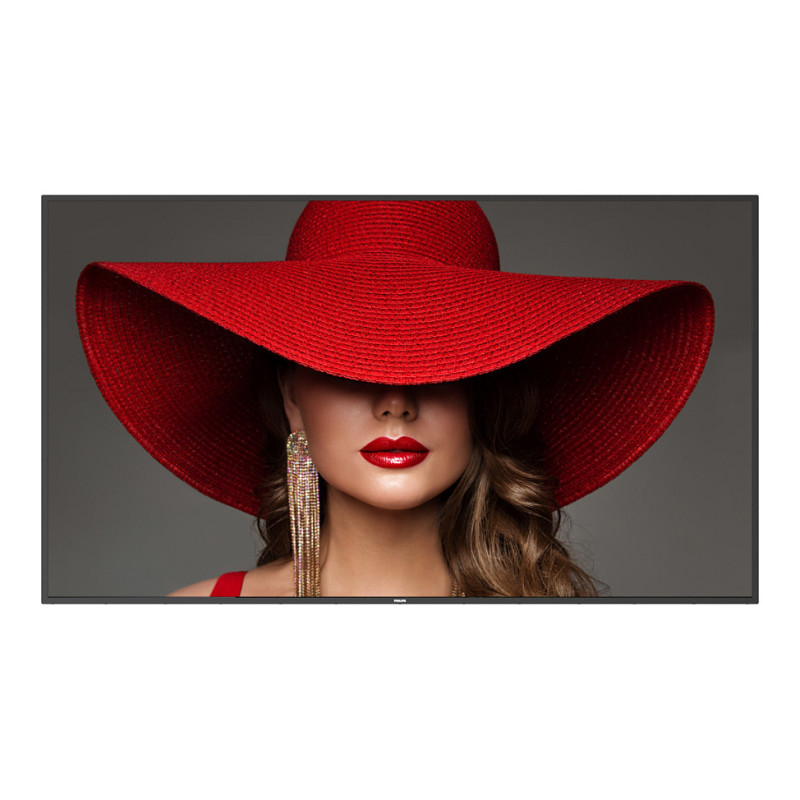

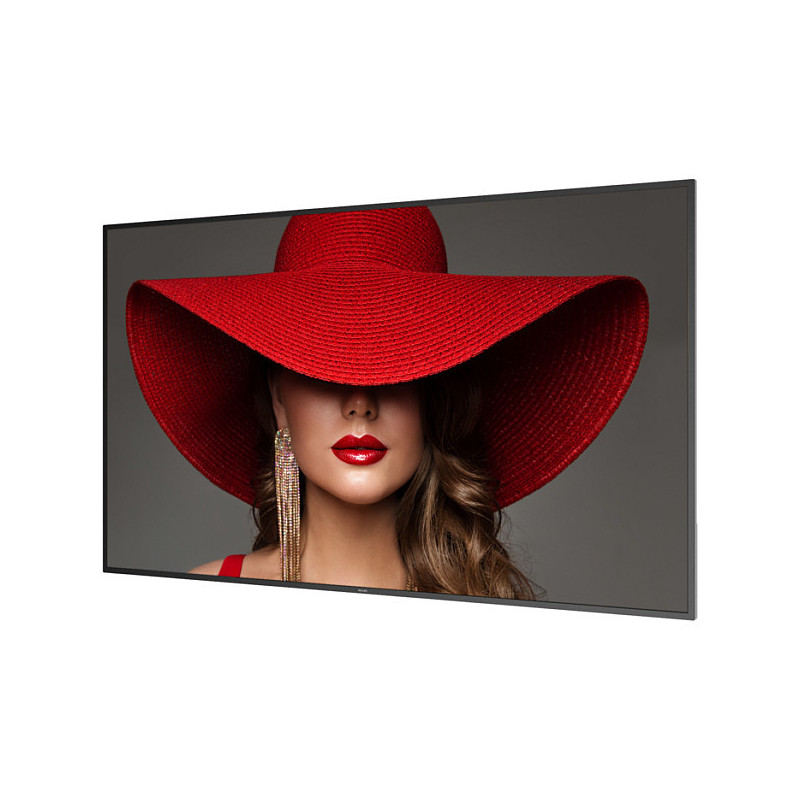

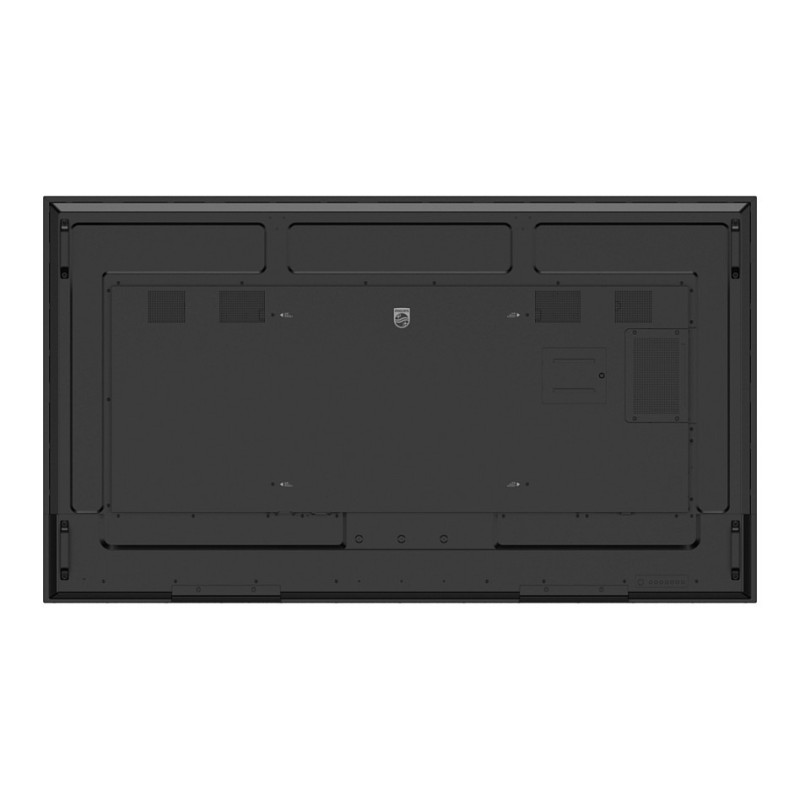

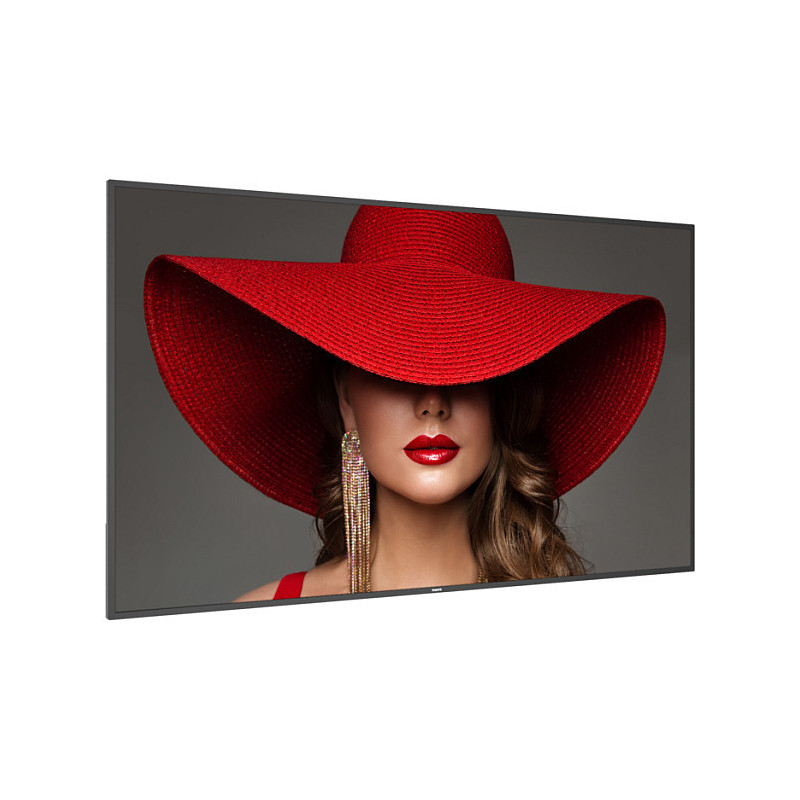

Philips 86BDL4650D

Philips 86BDL4650D. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

Smart and modular for an even longer lifetime

Philips D-Line is designed to engage your audience and delight customers. Powered by Android 11 for easy software integrations, this versatile display is suitable for impact in any setting.

Save and play content with internal memory
Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

4G/LTE optional module for reliable connection
Select our optional 4G/LTE module for more predictable bandwidth and faster download speeds, providing you with a reliable backup connection in case of 24/4 work requirements or where local network connections are not possible.

FailOver. Ensure your display never goes blank
Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of a media player failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Modularity - longer product lifetime
Extend your display into the future with our modular approach. Bringing opportunities for longer product lifetime with easily detached and replaced components, and a firm focus on sustainability, with reduced WEEE disposal.

Android SoC processor. Native and web apps
Powered by Android 11 and with integrated WiFi, your Philips D-Line delivers the ultimate, most secure and connected display experience. Optimised for native Android apps, and enabling you to install web apps and software directly onto the display, eliminating the need for an external media player.

Connect and control your content via the cloud
Connect and control your content via the cloud with our integrated HTML5, Chromium-based browser. Design your content online and connect a single display, or your entire network, either landscape or portrait, in 4k UHD resolution. Simply connect to the internet via WiFi or with an RJ45 cable.

Catch the Wave for revolutionary results
Unlock the power, versatility and intelligence inside your Philips D-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy and environmental impact.

Display

Panel type: VA
Display diagonal: 2.18 m (86")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 4000:1
Contrast ratio (dynamic): 500000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.4935 x 0.4935 mm
Display diagonal (metric): 217.4 cm
Native refresh rate: 60 Hz
Haze rate: 25%

Ports & interfaces

HDMI ports quantity: 2
HDMI version: 2.0
HDMI input ports quantity: 2
Feature: DVI port
DVI-I ports quantity: 1
DisplayPorts quantity: 2
DisplayPorts in: 1
DisplayPorts out: 1
Feature: USB port
USB ports quantity: 4
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: Micro-USB, USB Type-A
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Feature: Infrared data port

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm
Bezel width (bottom): 1.55 cm
Bezel width (side): 1.55 cm
Bezel width (top): 1.55 cm

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
Operating hours (hours/days): 24/7
Mean time between failures (MTBF): 50000 h

Power

Power consumption (standby): 0.5 W
Energy efficiency class (SDR): G
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Processor family: ARM Cortex
Processor architecture: ARM Cortex-A53+Cortex-A72
Internal memory: 4 GB
Internal storage capacity: 32 GB
Operating system installed: Android 11

Weight & dimensions

Display width: 1929 mm
Display depth: 69.5 mm
Display height: 1100 mm
Display weight: 50.4 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC, IR sensor, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%

Network

Feature: Ethernet LAN
Feature: Wi-Fi

Other features

Feature: Quick start guide
Audio input: 1
Audio output: 1
Feature: Bluetooth
Bluetooth version: 5.2
