LG 55UM5N-H

LG 55UM5N-H. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black

UHD Signage Display with LG webOS Platform and Advanced Security

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Convenient webOS Platform
The UM5N-H is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability
Optimized for business environments, the UM5N-H is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

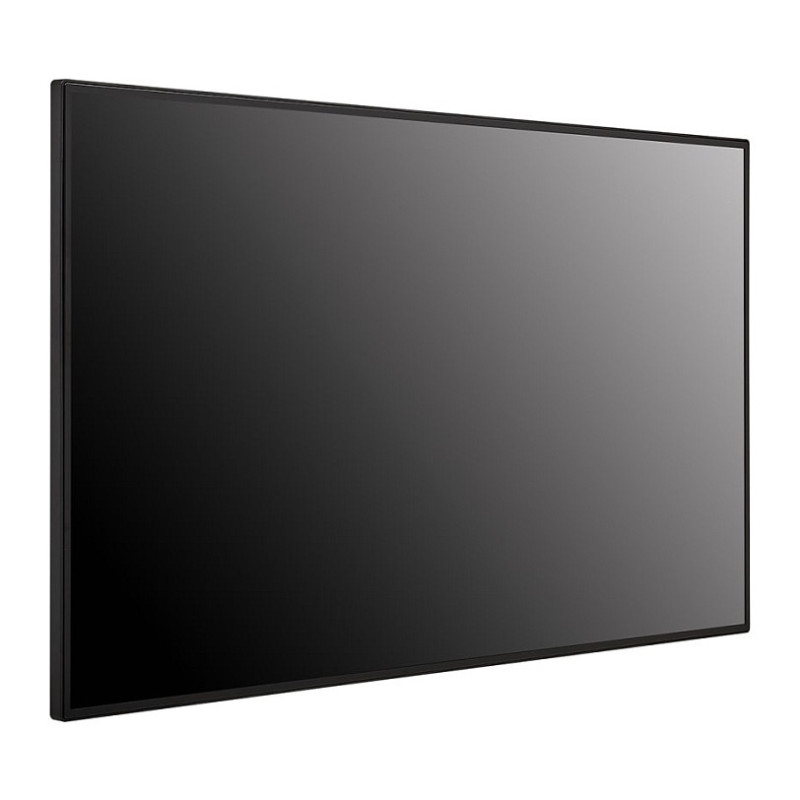

Design for Space Utilization

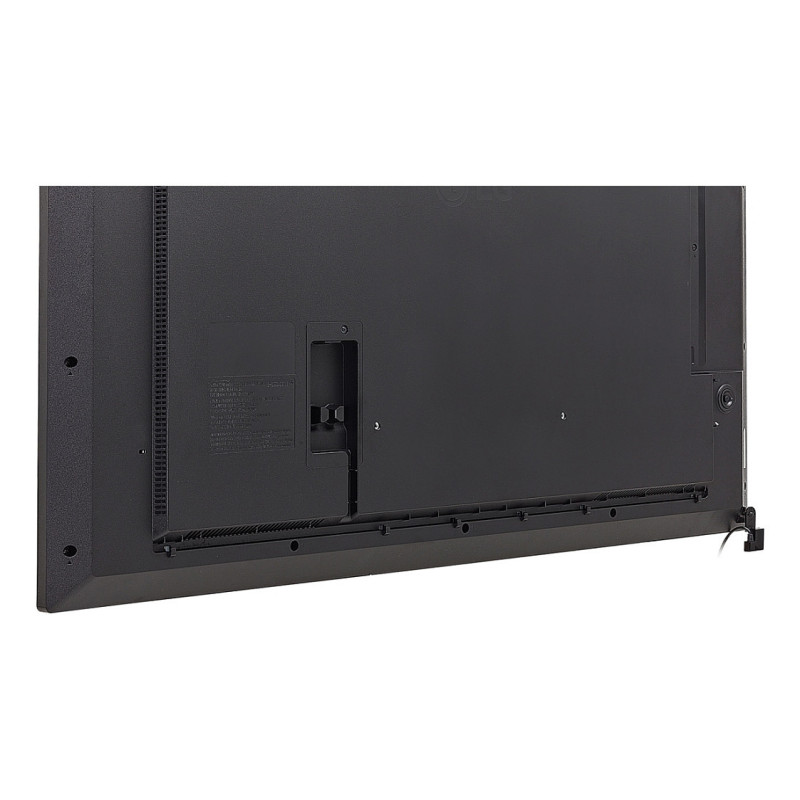

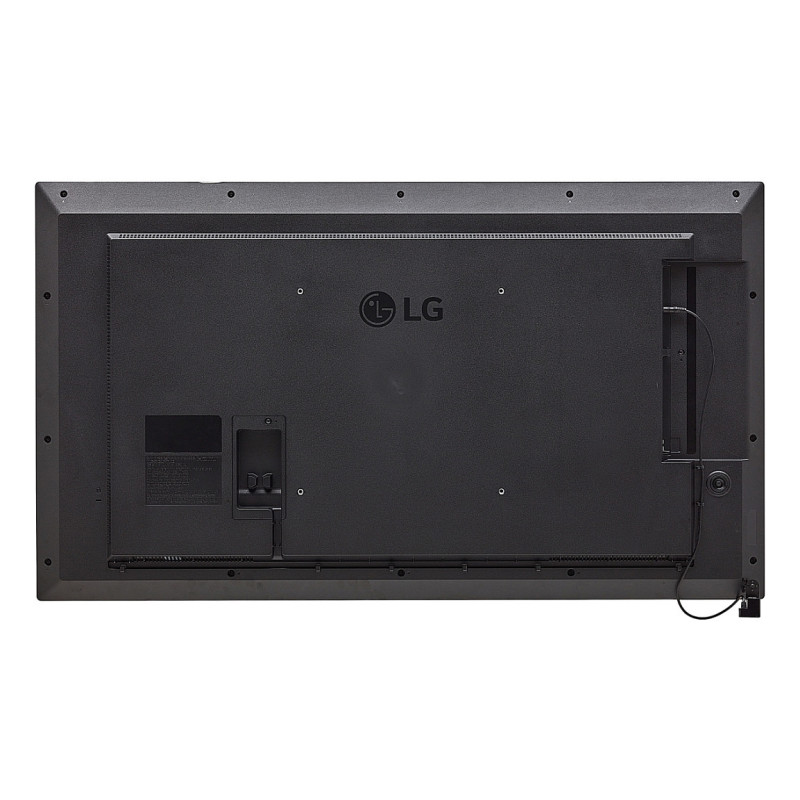

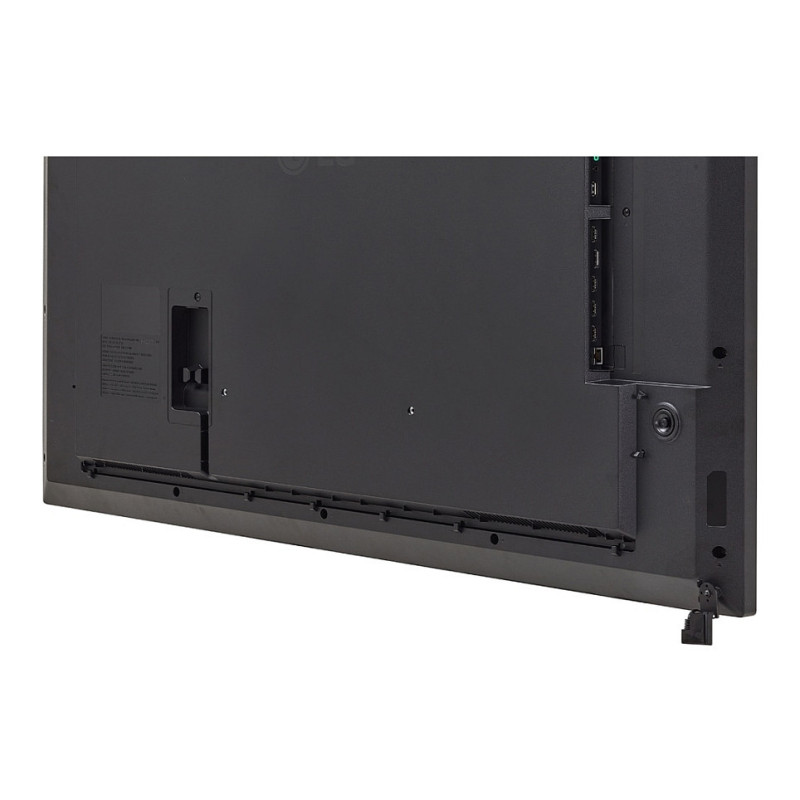

Designed with thin bezels and simple cable management, the UM5N-H saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

Enhanced Security Features
The UM5N-H provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Display

Panel type: IPS
Feature: LED backlight
LED backlighting type: Direct-LED
Display diagonal: 139.7 cm (55")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1100:1
Contrast ratio (dynamic): 1000000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Panel life: 50000 h
Colour depth: 10 bit
Native refresh rate: 60 Hz
Haze rate: 28%
Colour gamut: 95%

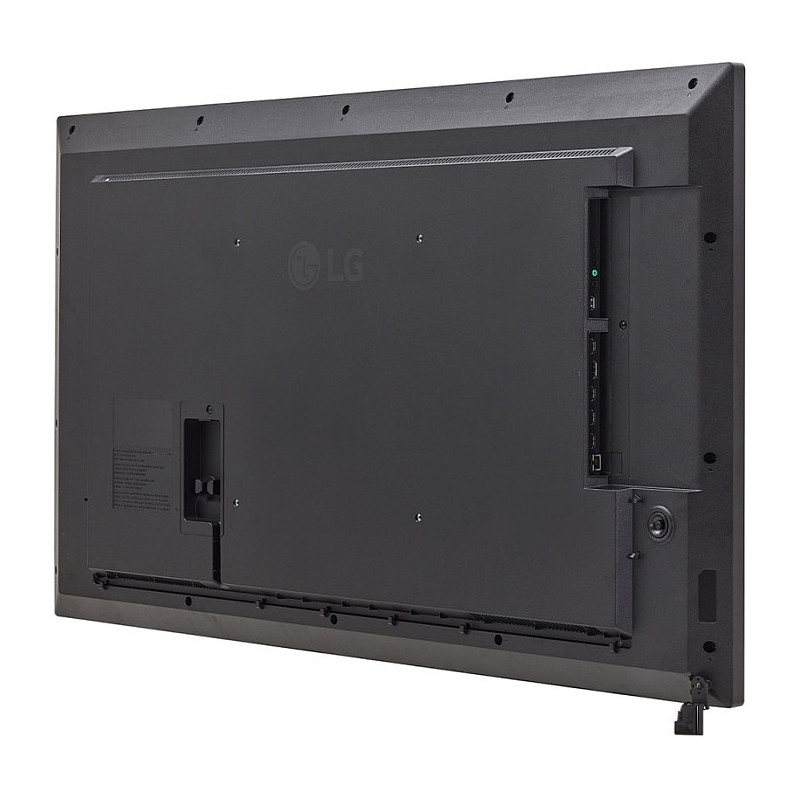

Ports & interfaces

HDMI ports quantity: 4
HDMI input ports quantity: 3
HDMI output ports quantity: 1
DisplayPorts quantity: 1
Feature: USB port
USB ports quantity: 1
USB version: 2.0
USB connector type: USB Type-A
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Remote (IR) input: 1

Audio

Feature: Built-in speaker(s)

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat

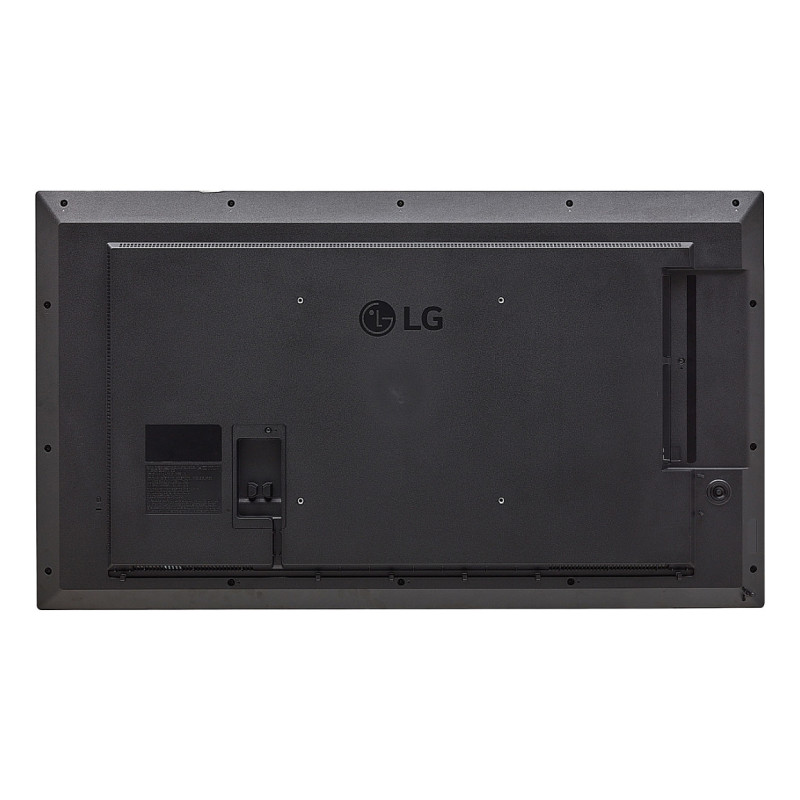

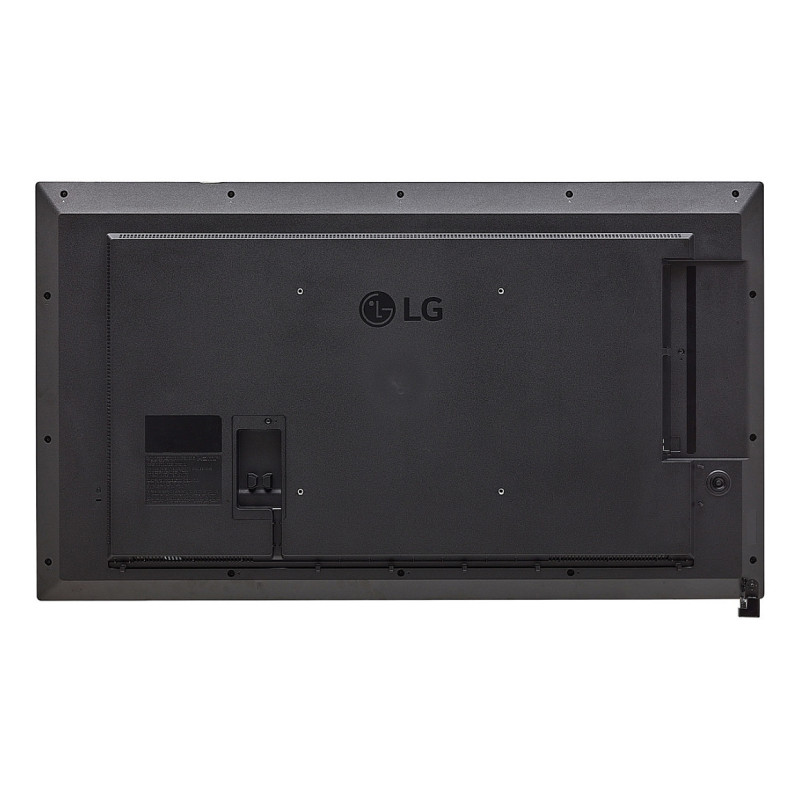

Feature: VESA mounting
Panel mounting interface: 300 x 300 mm
Bezel width (bottom): 1.24 cm
Bezel width (side): 1.14 cm
Bezel width (top): 1.24 cm

Performance

Purpose: Universal
Digital signal format system: Not supported
Feature: Picture-in-Picture
Feature: On Screen Display (OSD)
Operating hours (hours/days): 24/7
Feature: HDCP
Feature: Automatic brightness control
International Protection (IP) code: IP5X
HDCP version: 1.4/2.2/2.3

Power

Power consumption (typical): 130 W
Power consumption (standby): 0.5 W
Power consumption (max): 180 W
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz

Computer system

Feature: Computer system
Computer system type: System on Chip (SoC)
Internal memory: 16 GB
Operating system installed: WebOS
Operating system version: 6.0

Weight & dimensions

Display width: 1237 mm
Display depth: 57.7 mm
Display height: 710 mm
Display weight: 14.2 kg

Packaging data

Package width: 1360 mm
Package depth: 162 mm
Package height: 810 mm
Package weight: 18.9 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC, Phone

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%

Network

Feature: Ethernet LAN
Feature: Wi-Fi

Technical details

Feature: Real Time Clock (RTC)
Warranty period: 2 year(s)

Other features

Audio output: 1
Power consumption (PowerSave): 91 W
Feature: Plug and Play
