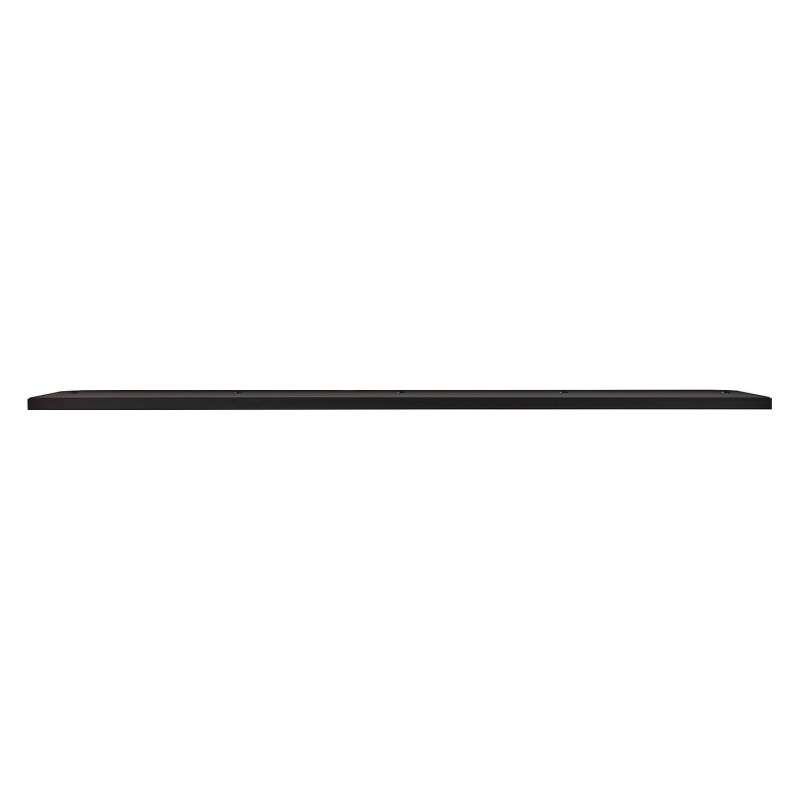

LG 43UH7N-E informacinis ekranas

LG 43UH7N-E. Product design: Digital signage flat panel. Display diagonal: 109.2 cm (43"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 700 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Convenient webOS Platform
The UH7N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability
Optimized for business environments, the UH7N-E is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

Design for Space Utilization
Designed with thin bezels and simple cable management, the UH7N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket. Bezels accessories can also be used to convert it into an art frame, making it a stylish interior element that matches customers' interior spaces.

* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
* Bezel accessories are sold separately at an additional cost.

Enhanced Security Features
The UH7N-E provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

Sustainability
Recycled resins are used to manufacture back covers for digital signage product* and LG plans to expand this practice to other models as well. In addition, recycled cardboard was partially used to produce packaging materials, and the printing information on the packaging materials was written by only black ink.

* Digital signage product refers "UH7N-E" model

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Display

Panel type: IPS
LED backlighting type: Edge-LED
Display diagonal: 109.2 cm (43")
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 700 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 1000000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Colour saturation: 95%
Rated lifetime: 50000 h
Native refresh rate: 60 Hz
Haze rate: 25%

Ports & interfaces

HDMI ports quantity: 2
DisplayPorts quantity: 2
DisplayPorts in: 1
DisplayPorts out: 1
Feature: USB port
USB ports quantity: 2
USB connector type: USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) out: 1
Feature: RS-232C
Remote (IR) input: 1

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 1.29 cm
Bezel width (side): 8.9 mm
Bezel width (top): 8.9 mm
Feature: Anti-glare screen
Mounting type: Wall

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 21
Operating hours (hours/days): 24/7
Feature: HDCP
International Protection (IP) code: IP5X

Power

Power consumption (typical): 80 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.5 W
Power consumption (max): 120 W

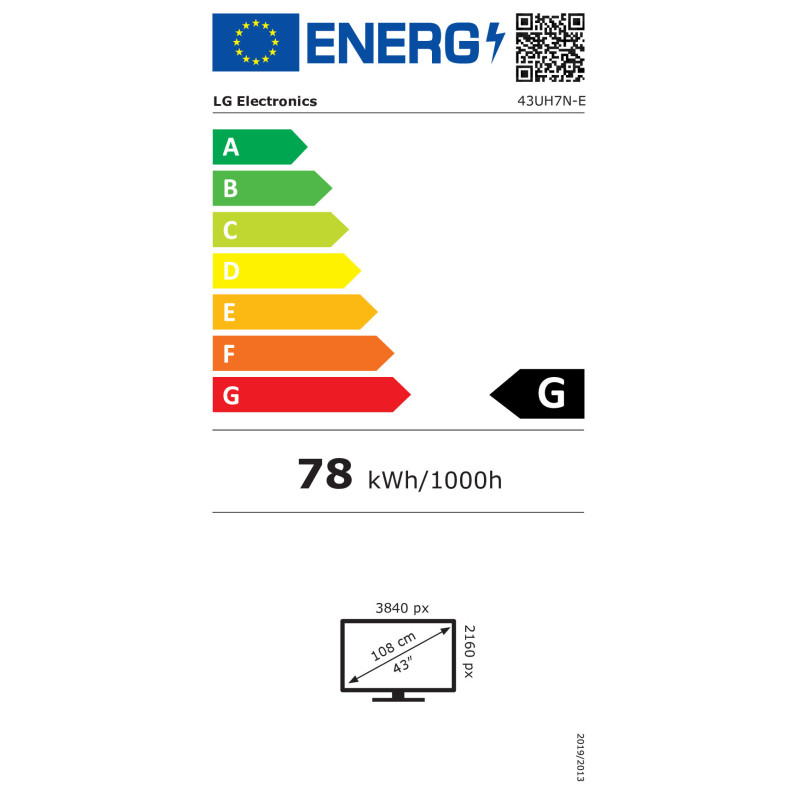

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 77.5 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Computer system

Feature: Computer system
Feature: Built-in processor
Internal memory: 16 GB
Operating system installed: WebOS
Operating system version: webOS 6.0

Weight & dimensions

Display width: 963 mm
Display depth: 29.7 mm
Display height: 556.2 mm
Display weight: 11.1 kg

Packaging data

Package width: 1055 mm
Package depth: 142 mm
Package height: 660 mm
Package weight: 12.8 kg

Packaging content

Tilt angle: 30°
Feature: Remote control included
Cables included: USB Type-C
Feature: Tilt adjustment

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%

Certificates

Certification: CB / NRTLEMCePEAT (US Only)ErP / Energy StarISTA6Carbon Trust

Network

Feature: Ethernet LAN
Feature: Wi-Fi

Other features

Power supply type: Internal
