„iiyama TW2223AS-B3P“ informacinis ekranas

iiyama TW2223AS-B3P. Product design: Interactive flat panel. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, Display brightness: 450 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

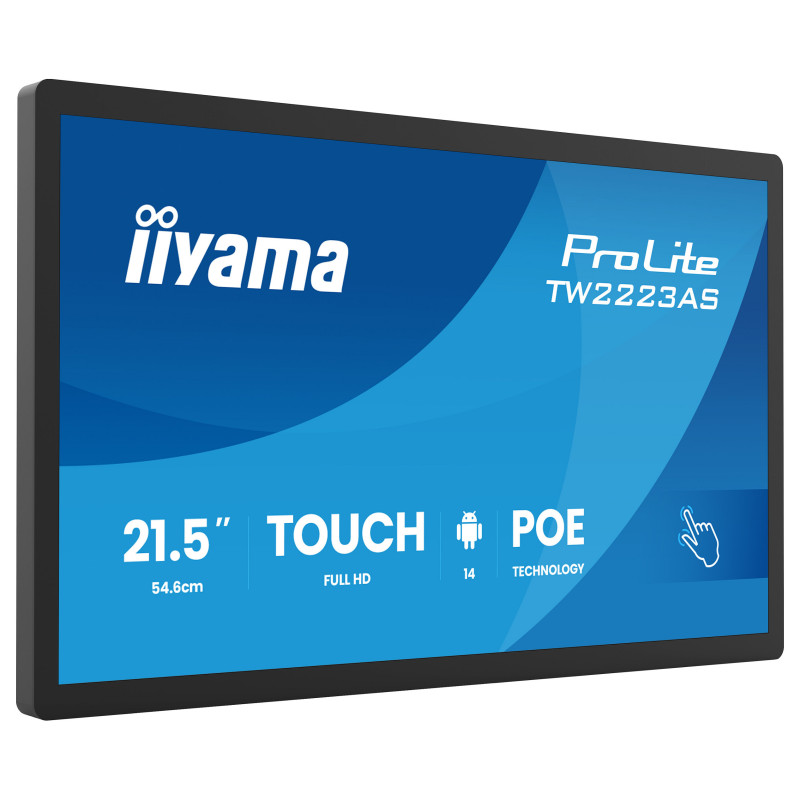

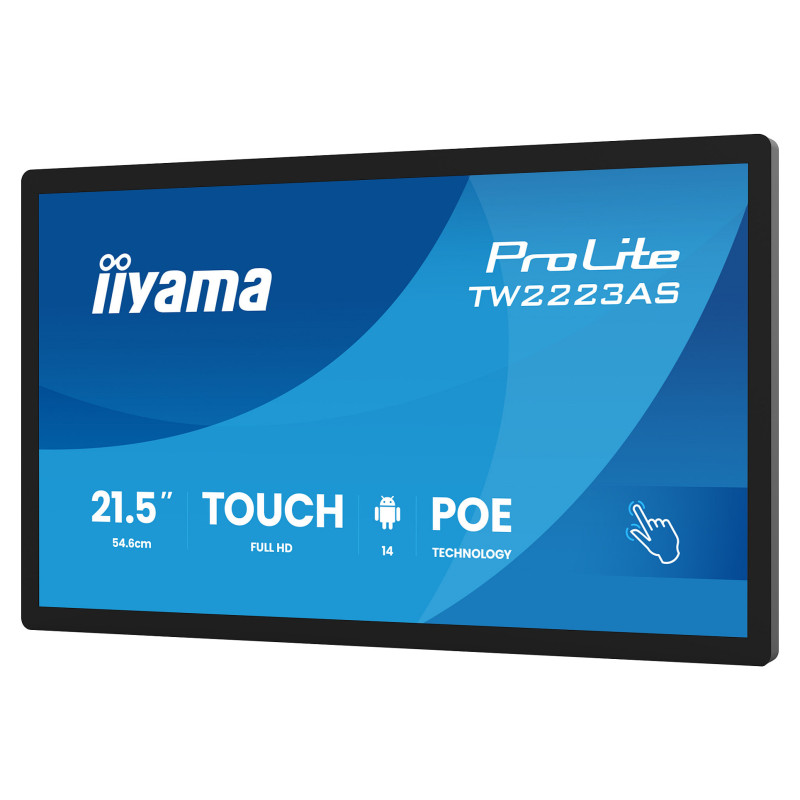

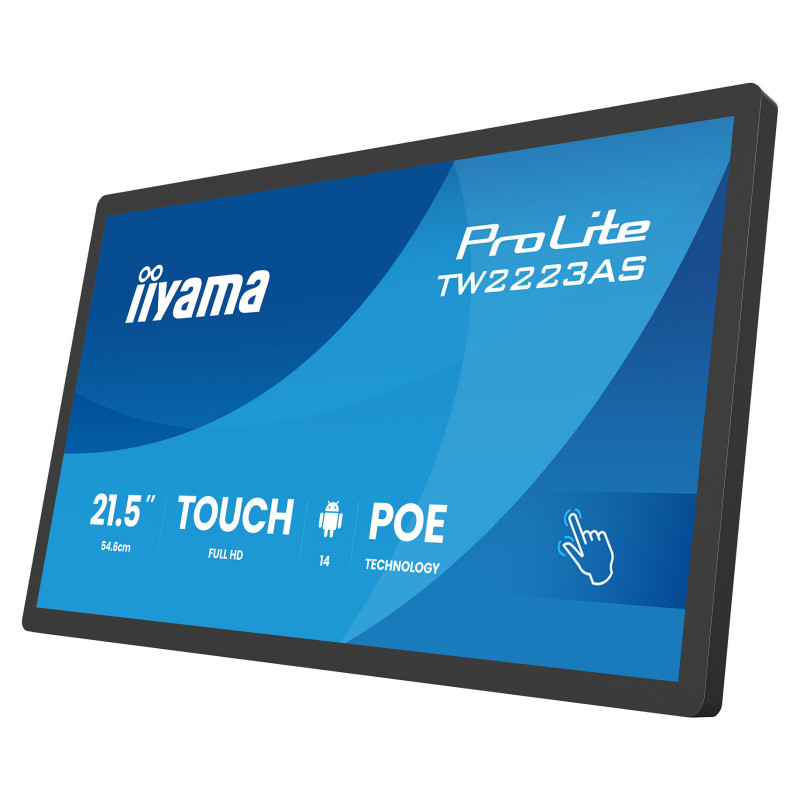

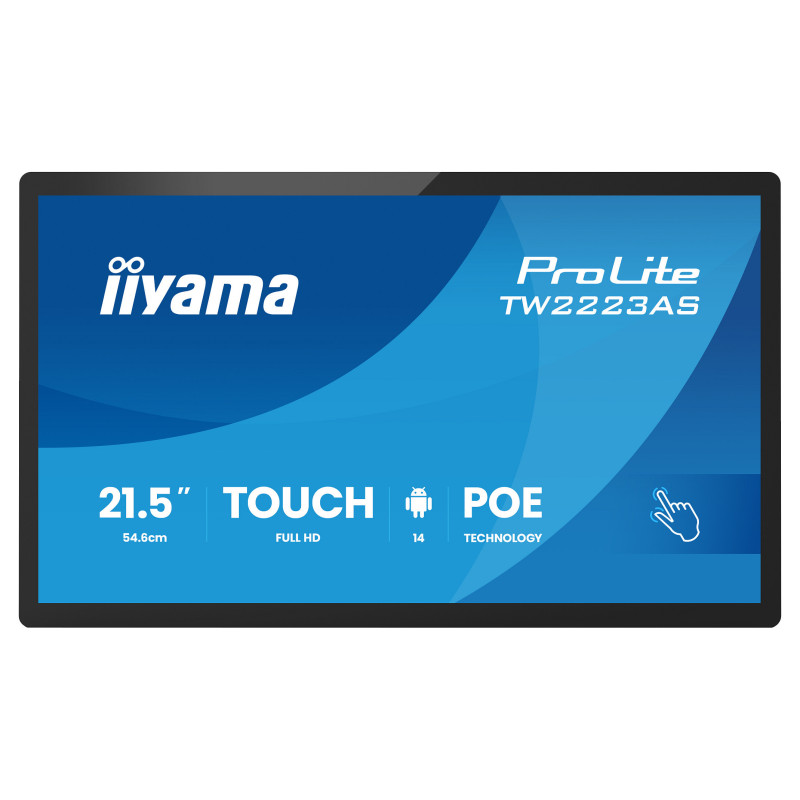

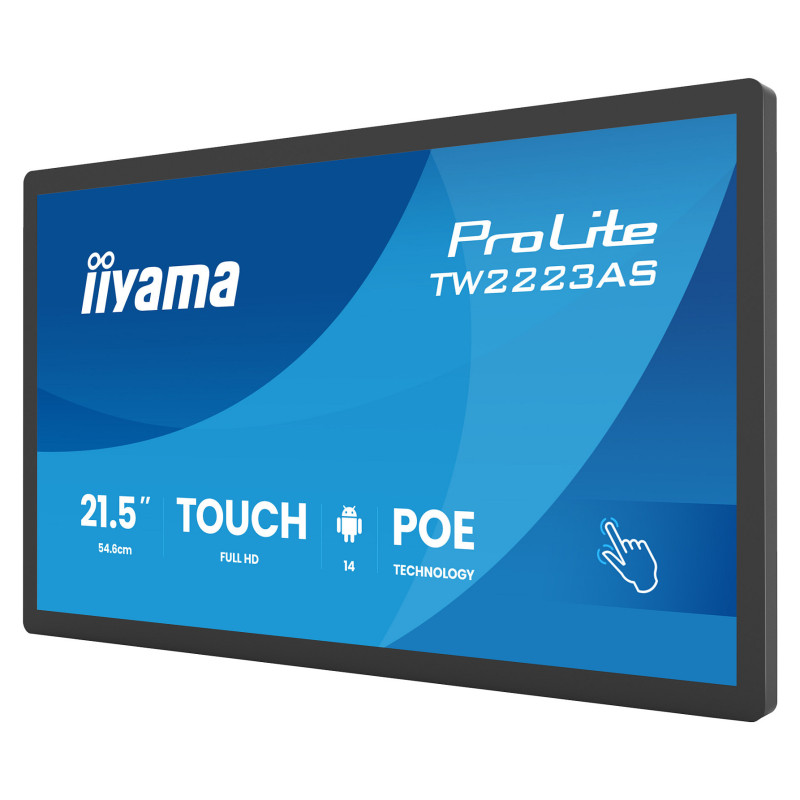

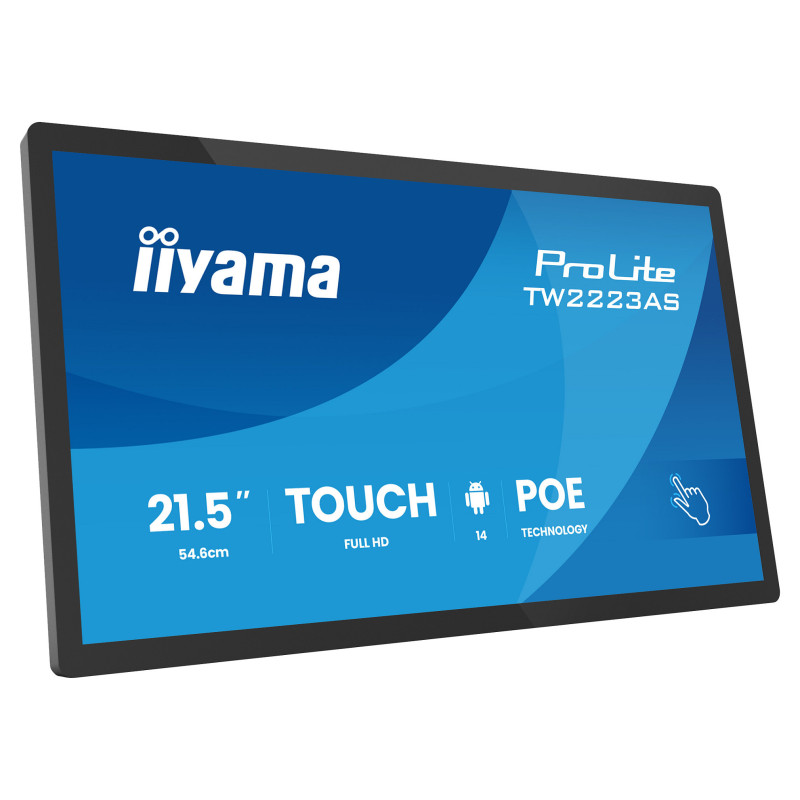

The ProLite TW2223AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage² , iiyama's Content Management System (CMS), giving you full control over your messages and advertising.

Display

Panel type: IPS
Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
Display brightness: 450 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 16:9
Response time: 14 ms
Contrast ratio (typical): 1500:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.248 x 0.248 mm
Active display area (W x H): 476.1 x 267.8 mm
Display diagonal (metric): 54.6 cm
Horizontal scan range: 31 - 83 kHz
Colour depth: 8 bit
Surface hardness: 6H
Glass thickness: 2.9 mm

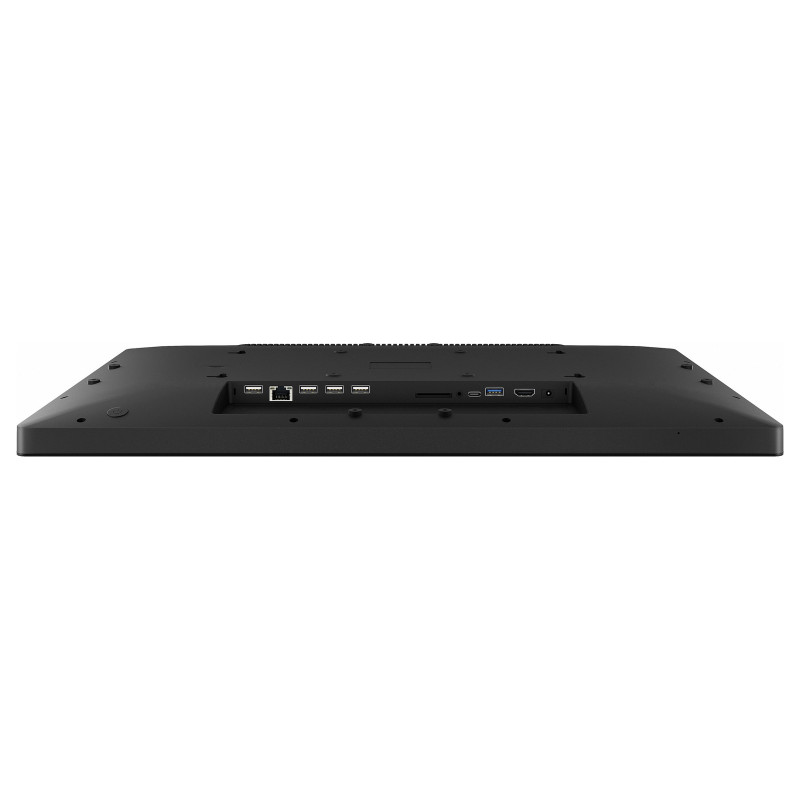

Ports & interfaces

Feature: USB port
USB ports quantity: 3
USB connector type: USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 2
Feature: Microphone in
Feature: Card reader integrated
Compatible memory cards: SD

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 4 W

Design

Product design: Interactive flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat

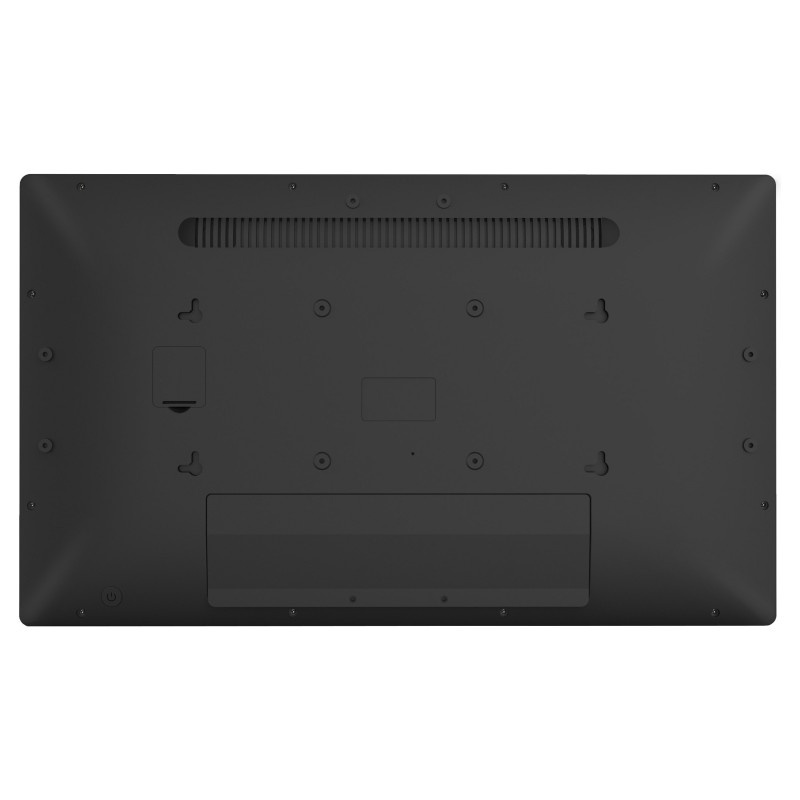

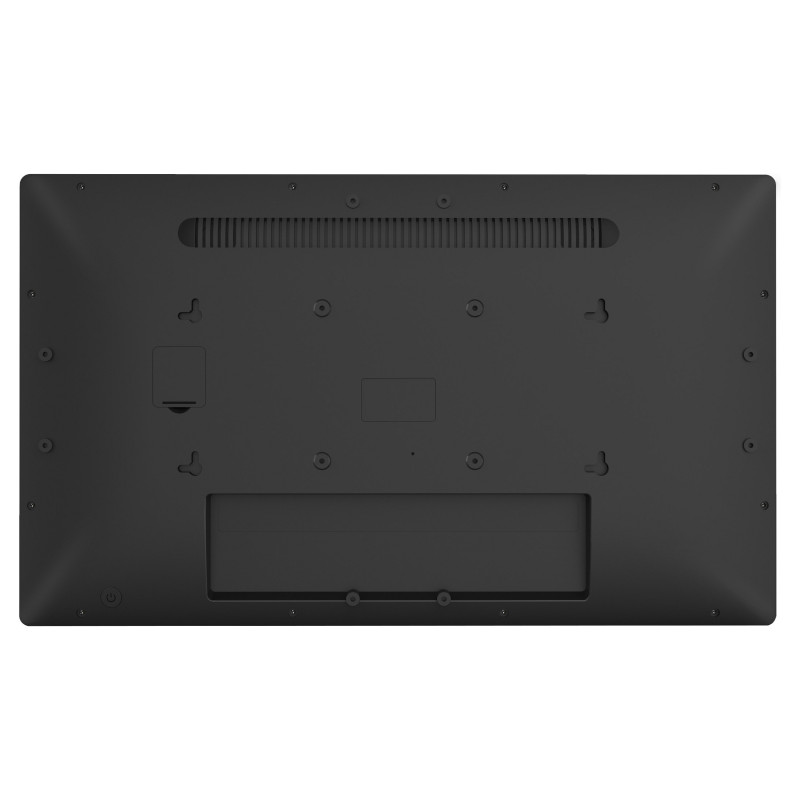

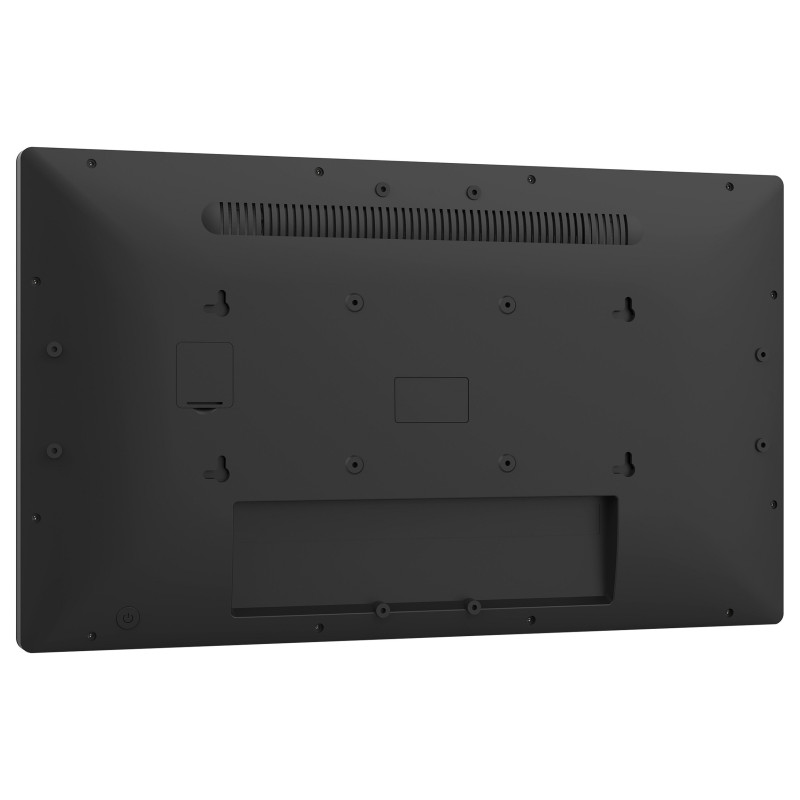

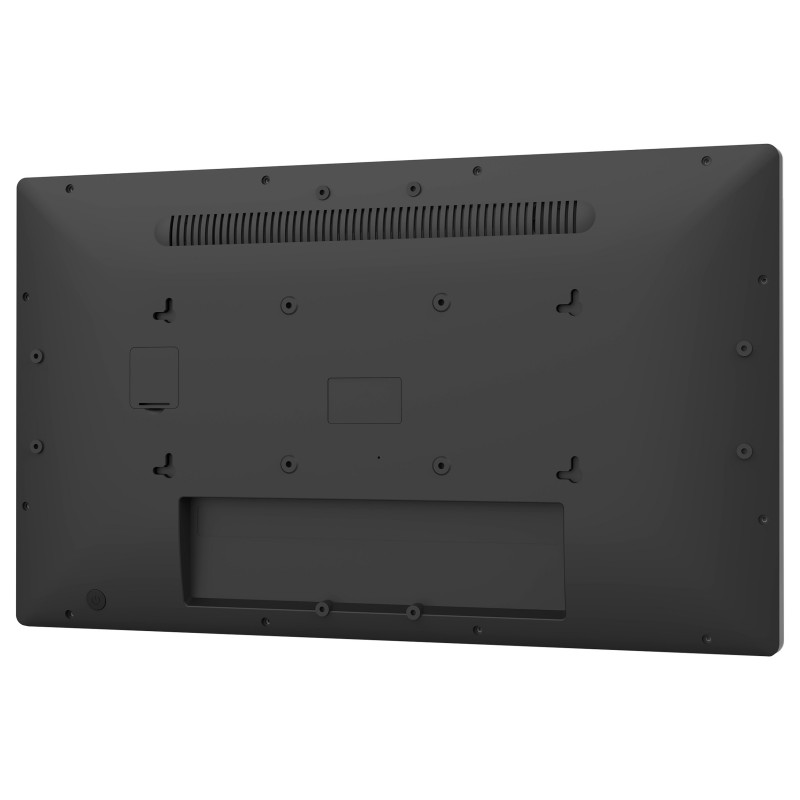

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel colour: Black

Performance

Purpose: Universal
Operating hours (hours/days): 24/7
Feature: HDCP
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 15.4 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Feature: Power over Ethernet (PoE)

Computer system

Feature: Computer system
Feature: Built-in processor
Processor family: ARM Rockchip
Processor model: Rockchip RK3576
Internal memory: 4 GB
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Google applications: Google Chrome, Gmail, Google Calendar

Weight & dimensions

Display width: 504.5 mm

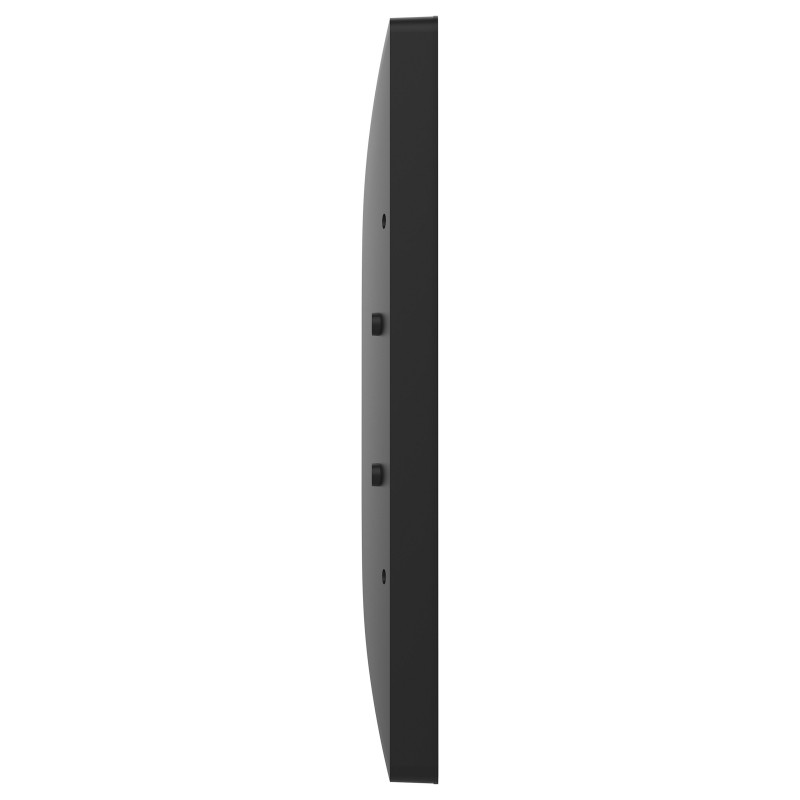

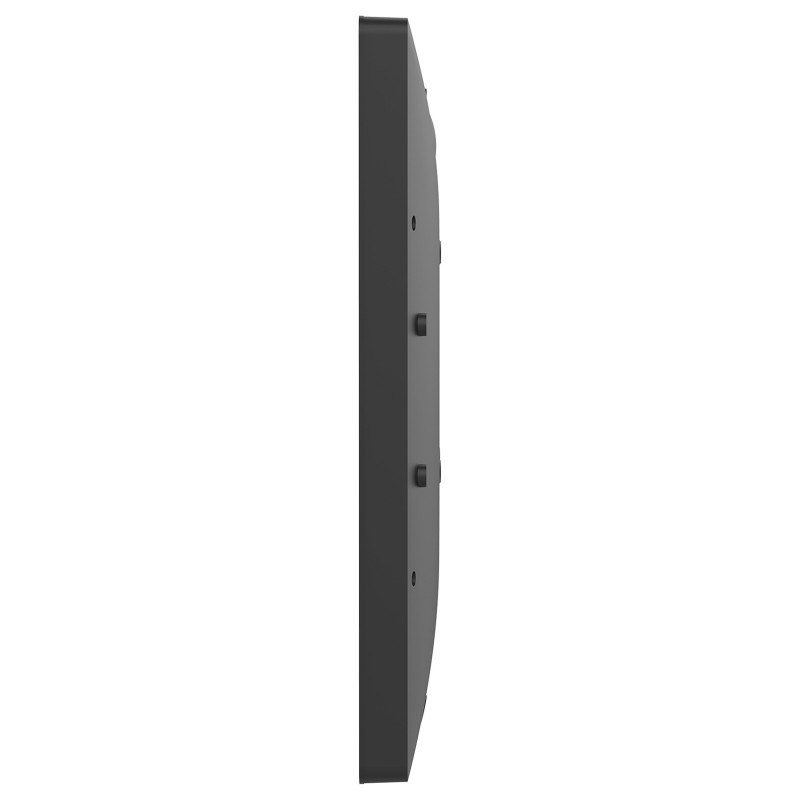

Display depth: 32 mm
Display height: 302 mm
Display weight: 3.64 kg
Width: 504.5 mm
Depth: 32 mm
Height: 302 mm
Weight: 3.64 kg
Width (with stand): 504.5 mm
Depth (with stand): 32 mm
Height (with stand): 302 mm
Weight (with stand): 3.64 kg

Packaging data

Package width: 580 mm
Package depth: 375 mm
Package height: 126 mm
Package weight: 6 kg

Packaging content

Cables included: AC

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b

Technical details

User controls: Power switch, volume/ button +, volume/ button -
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE

Other features

Feature: Quick start guide
Feature: AC adapter included
Feature: Bluetooth
Bluetooth version: 5.3
Viewable size, horizontal: 47.6 cm
Viewable size, vertical: 26.8 cm
Brightness: 450 cd/m²
Power supply type: External
Feature: Cable management
