„iiyama TW1023ASC-B3P“ informacinis ekranas

iiyama TW1023ASC-B3P. Product design: Kiosk design. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Display brightness: 385 cd/m², HD type: WXGA, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

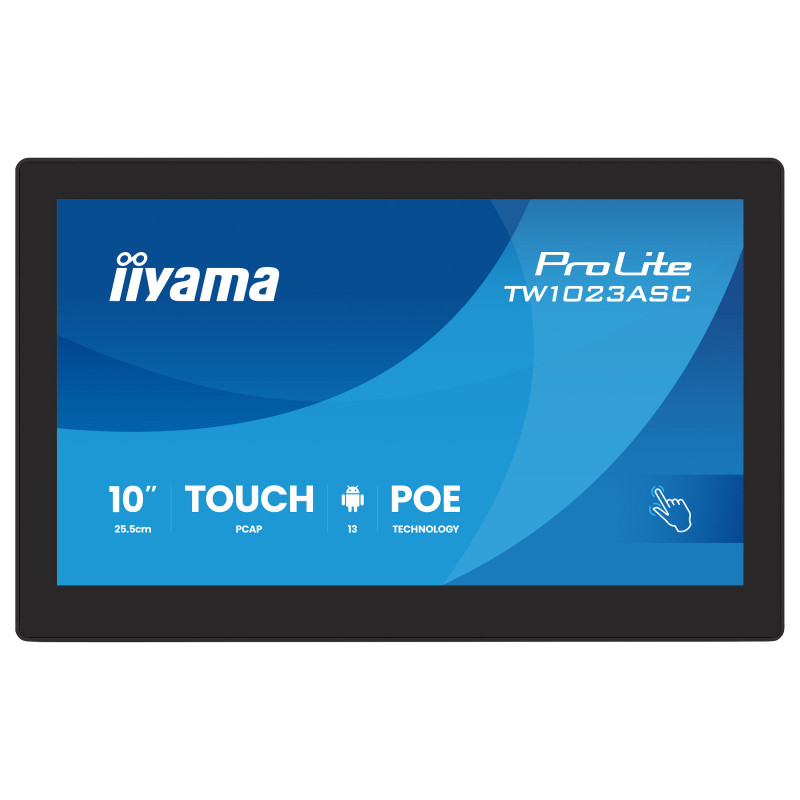

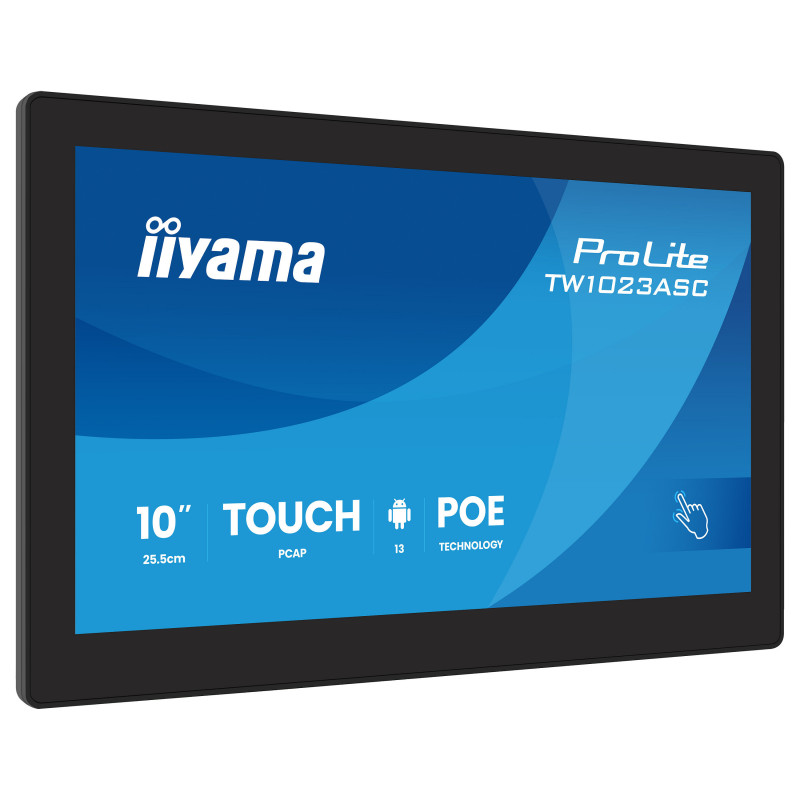

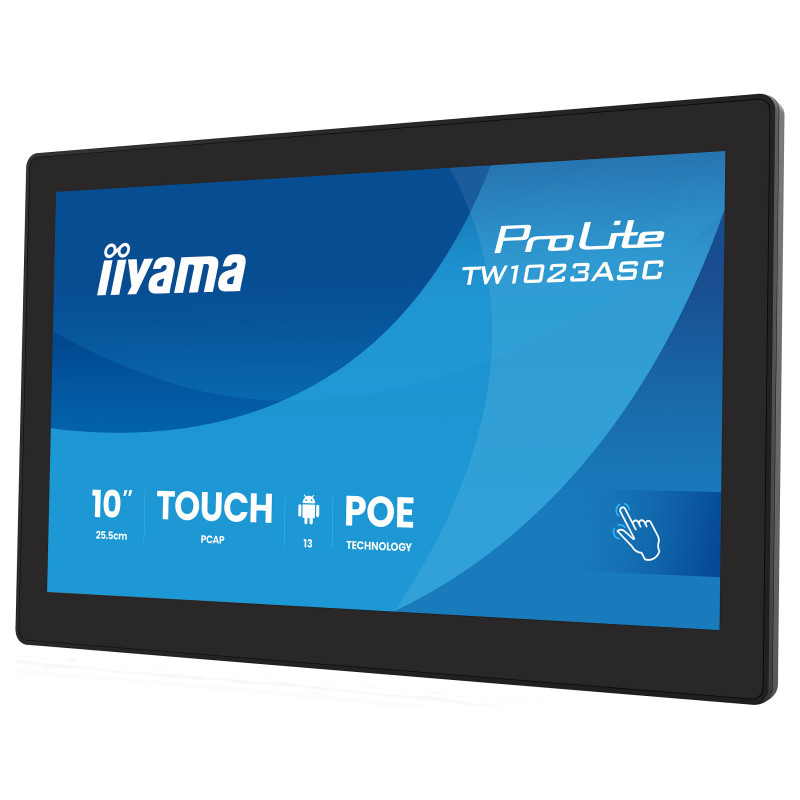

The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 16, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama's Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.

Display

Panel type: IPS
Display diagonal: 25.6 cm (10.1")
Display resolution: 1280 x 800 pixels
Display brightness: 385 cd/m²
HD type: WXGA
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Multi-touch: Yes
Native aspect ratio: 16:10
Response time: 25 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 160°
Viewing angle, vertical: 160°
Display number of colours: 16.7 million colours
Pixel pitch: 0.1692 x 0.1692 mm
Active display area (W x H): 216.6 x 135.4 mm
Display diagonal (metric): 25.5 cm
Colour depth: 8 bit
Surface hardness: 6H
Glass thickness: 1.25 mm

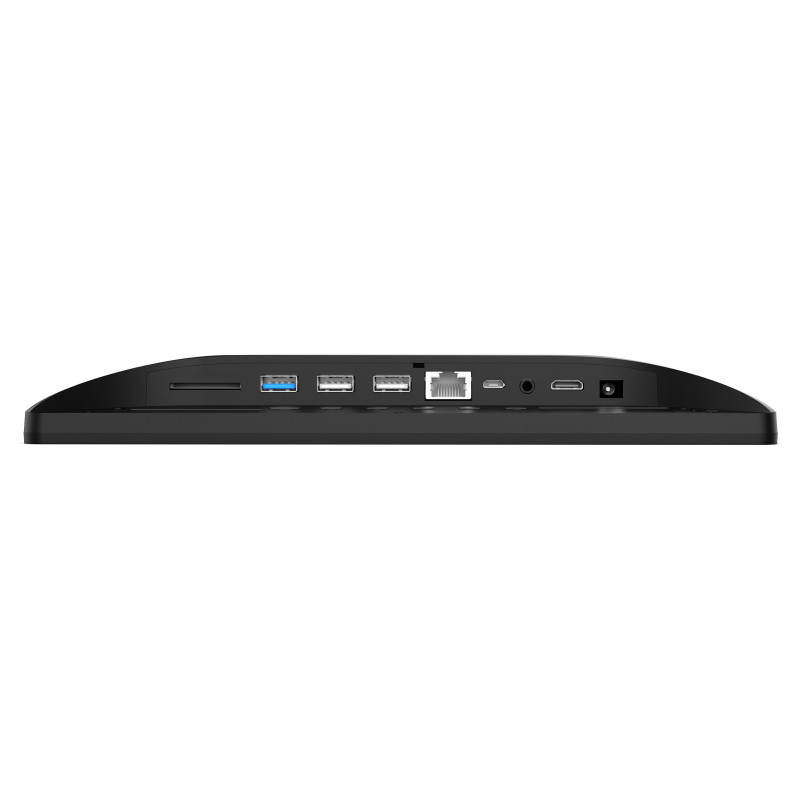

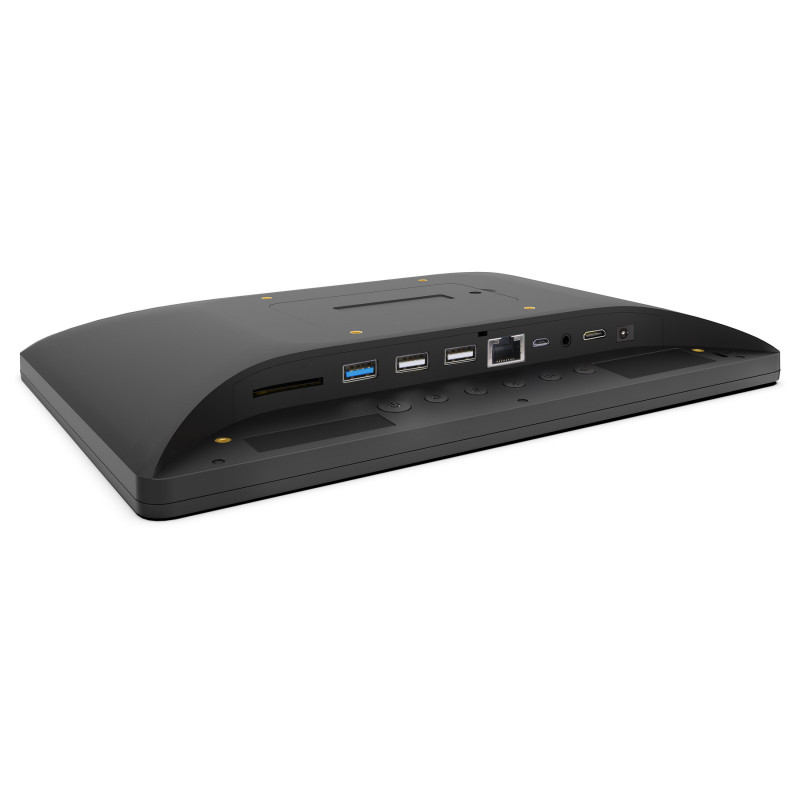

Ports & interfaces

HDMI input ports quantity: 1
Mini HDMI ports quantity: 1
DVI port: No
USB port: Yes
USB ports quantity: 4
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: Micro-USB, USB Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PC Audio in: Yes
Card reader integrated: Yes
Compatible memory cards: SD
DC-in jack: Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 3 W

Design

Product design: Kiosk design

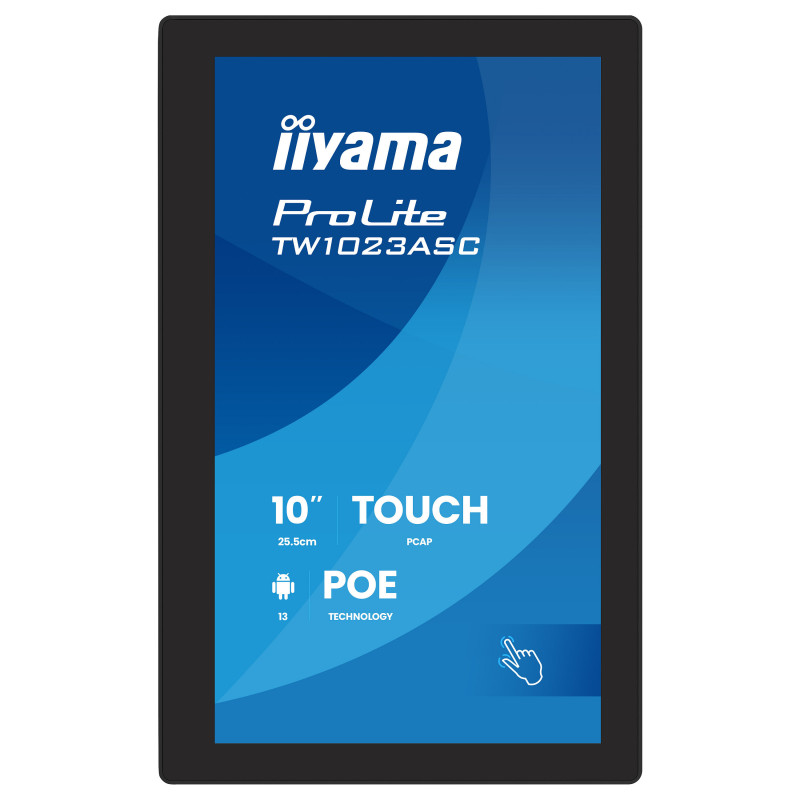

Orientation: Horizontal/Vertical
Product colour: Black
VESA mounting: Yes
Bezel colour: Black
Fingerprint resistant: Yes

Performance

Purpose: Universal
Operating hours (hours/days): 24/7
Number of microphones: 1

Power

Power consumption (typical): 18 W
Power consumption (standby): 0.5 W
Input voltage: 12 V
Power consumption (off): 0.3 W

Computer system

Built-in processor: Yes
Processor manufacturer: Rockchip
Processor family: ARM Rockchip
Processor model: RK3568
Processor frequency: 2 GHz
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: Mali-G52 MC1
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 13
Google applications: Google Chrome, Gmail, Google Calendar

Weight & dimensions

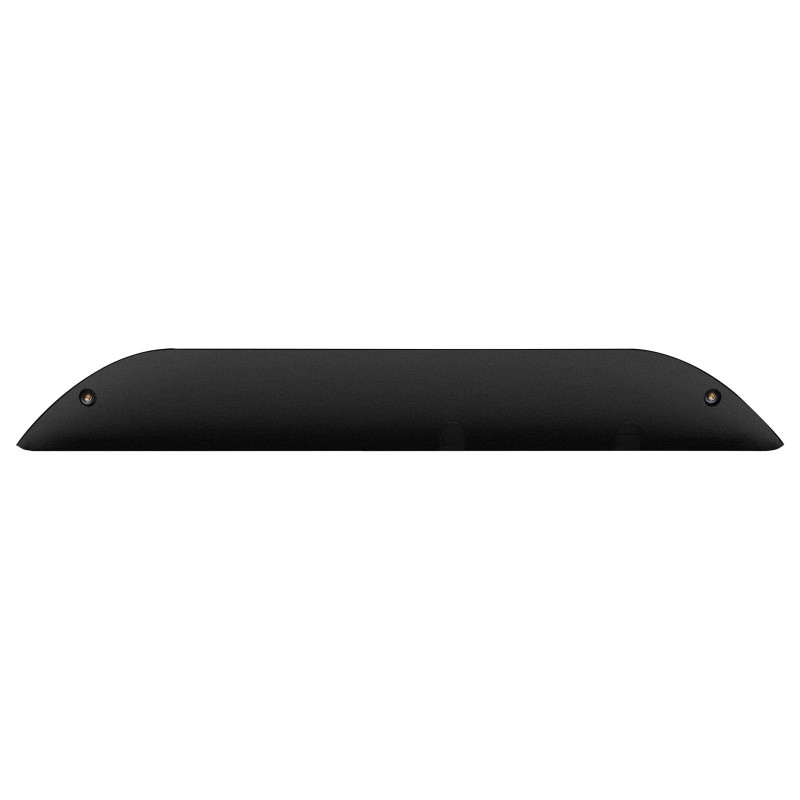

Display width: 255 mm
Display depth: 30.5 mm
Display height: 172 mm
Display weight: 800 g
Width: 255 mm
Depth: 30.5 mm
Height: 172 mm
Weight: 800 g
Width (with stand): 255 mm
Depth (with stand): 30.5 mm
Height (with stand): 172 mm
Weight (with stand): 800 g

Packaging data

Package width: 398 mm
Package depth: 68 mm
Package height: 223 mm
Package weight: 1.36 kg

Packaging content

Power adapter included: Yes
Cables included: AC

Certificates

Certification: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA

Logistics data

Products per pallet: 256 pc(s)
Pallet gross length: 100 cm
Pallet gross width: 2.15 m
Pallet gross height: 120 cm

Network

Ethernet LAN: Yes
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b

Features

Suitable for indoor use: Yes

Technical details

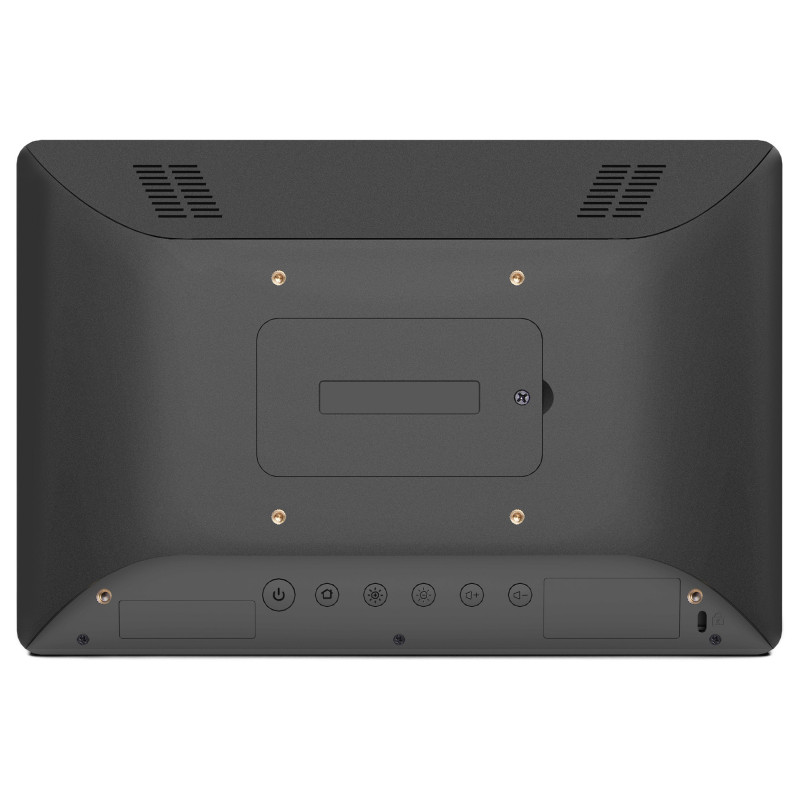

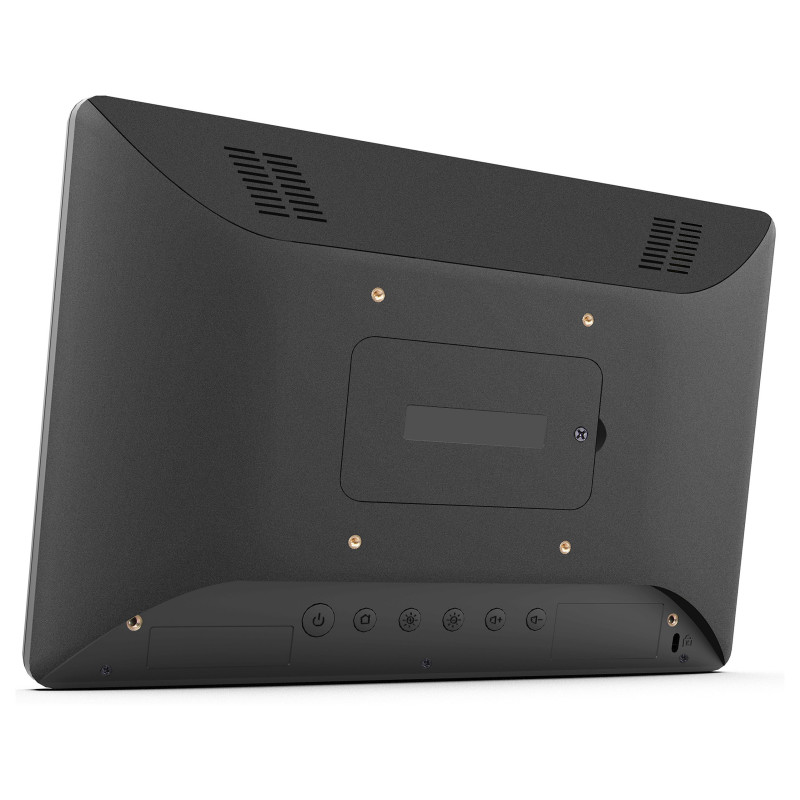

User controls: Power, home, brightness +, brightness -, volume +, volume -
Internal memory: 32000 MB
Audio in (mini jack): Yes
Sustainability certificates: ErP
Pallet net height: 120 cm
Pallet net length: 2.15 m
Pallet net width: 100 cm
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE

Other features

Micro-USB ports quantity: 1
Quick start guide: Yes
AC adapter included: Yes
Audio input: Y
Bluetooth: Yes
Bluetooth version: 5.2
Built-in microphone: Yes
Megapixel (approx.): 5 MP
RJ-45 ports quantity: 1
USB 2.0 ports quantity: 2
Viewable size, horizontal: 21.7 cm
Viewable size, vertical: 13.5 cm
Brightness: 385 cd/m²
Power supply type: External
Cable management: Yes
Built-in camera: Yes
