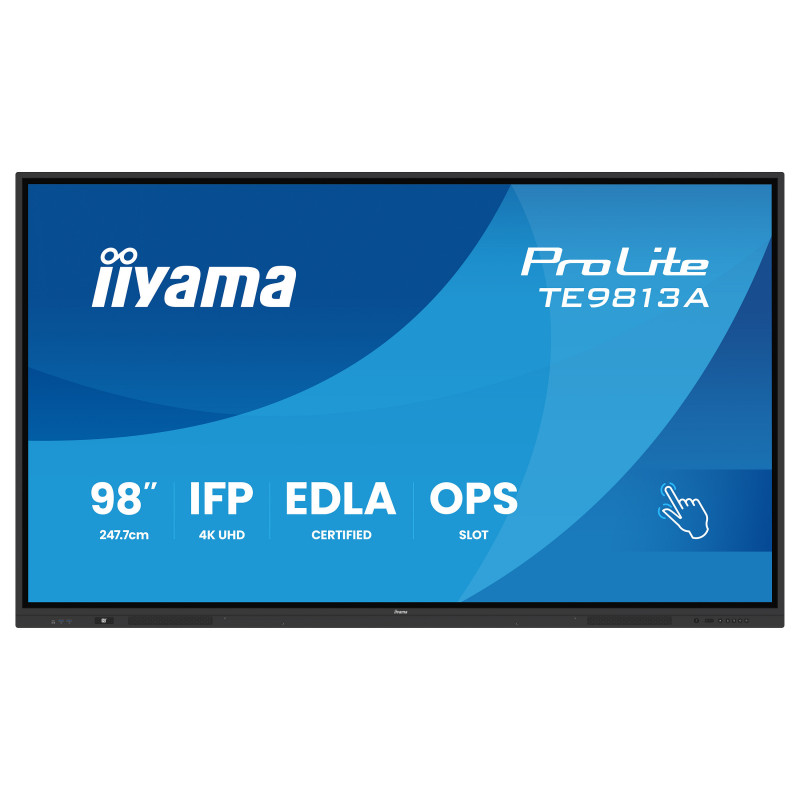

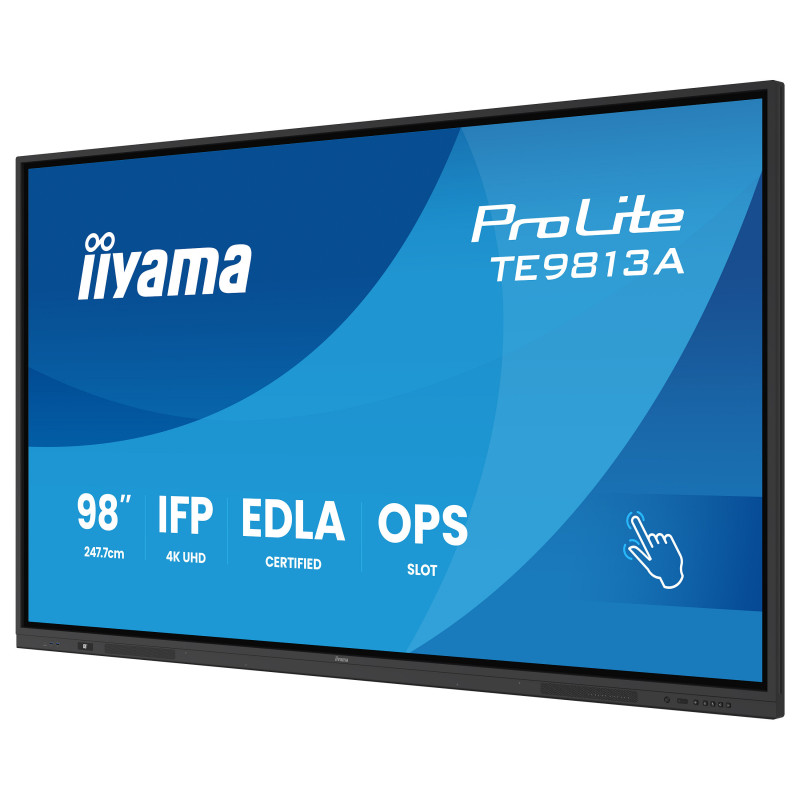

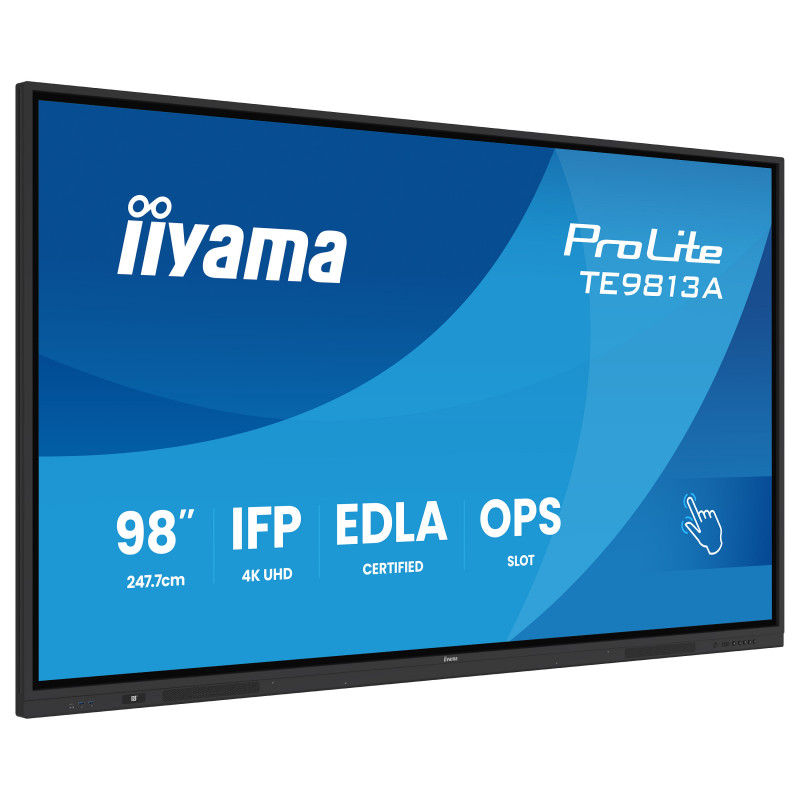

„iiyama TE9813A-B2AG“ informacinis ekranas

iiyama TE9813A-B2AG. Product design: Kiosk design. Display diagonal: 2.48 m (97.5"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

The TE9813A-B2AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with Bluetooth 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.

Display

Panel type: IPS
Display diagonal: 2.48 m (97.5")
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: PureTouch-IR
Number of simultaneous touchpoints: 40
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.562 x 0.562 mm
Active display area (W x H): 2159 x 1214 mm
Display diagonal (metric): 247.7 cm
Horizontal scan range: 30 - 135 kHz
Native refresh rate: 60 Hz
Surface hardness: 7H
Touch response time: 5 ms
Glass thickness: 4 mm

Ports & interfaces

HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 1
HDMI output ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 5
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-B, USB Type-C
USB 2.0 Type-B ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232C
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Feature: OPS module slot
Feature: Audio Return Channel (ARC)

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 60 W

Design

Product design: Kiosk design
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black

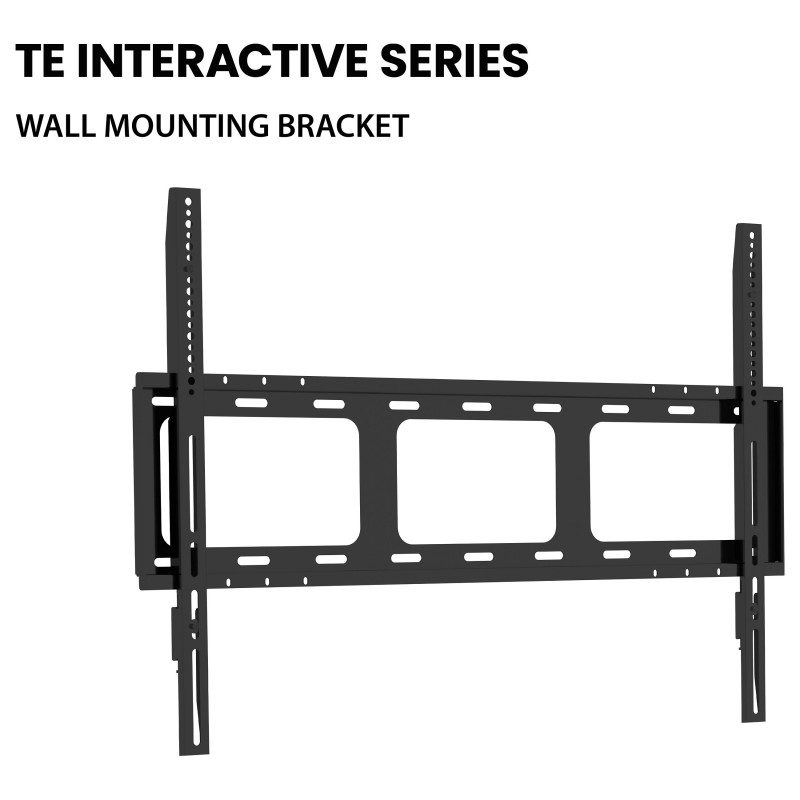

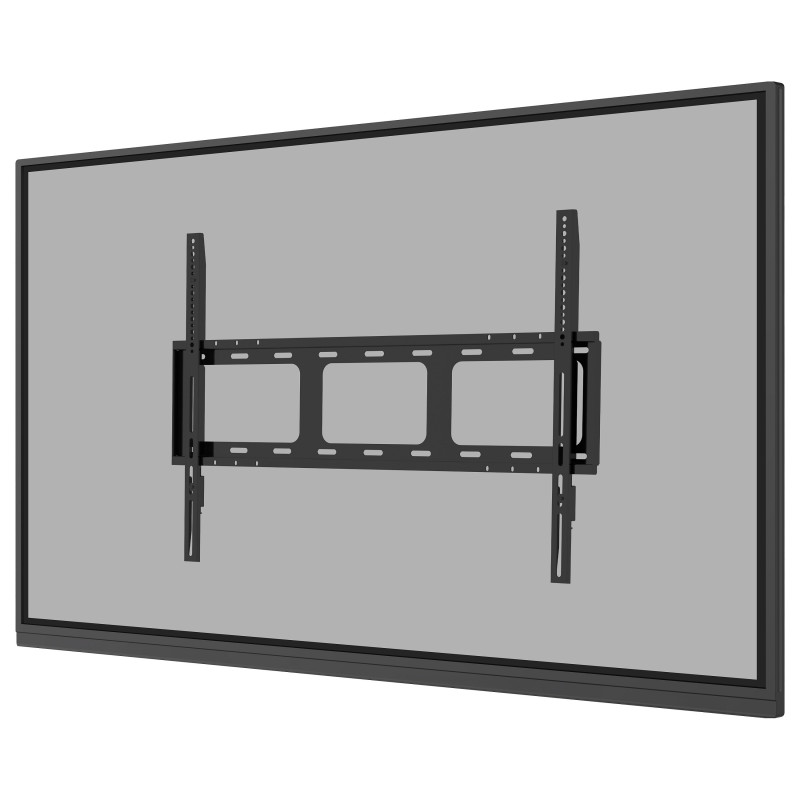

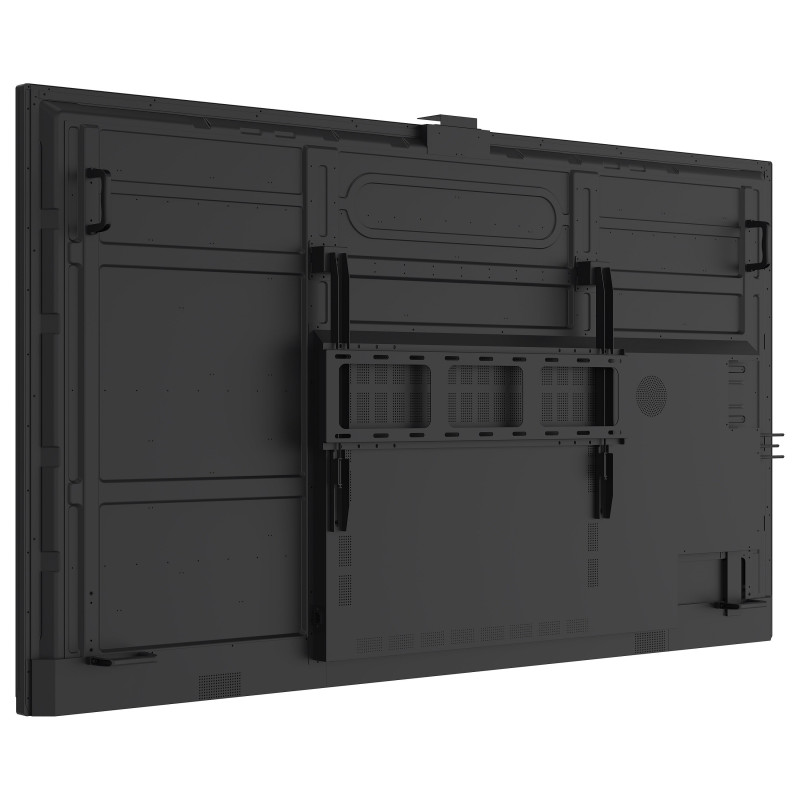

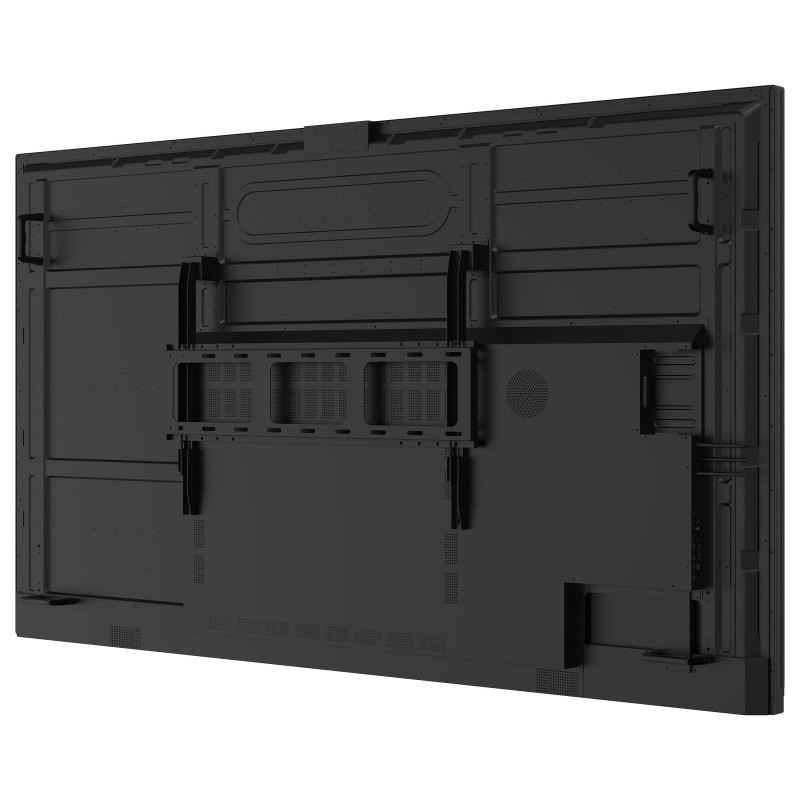

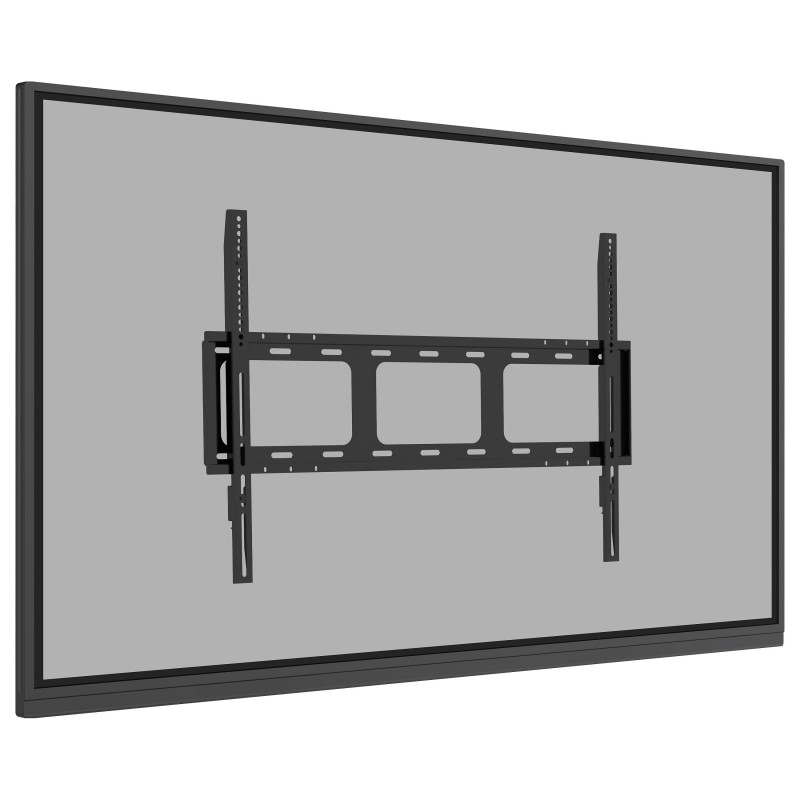

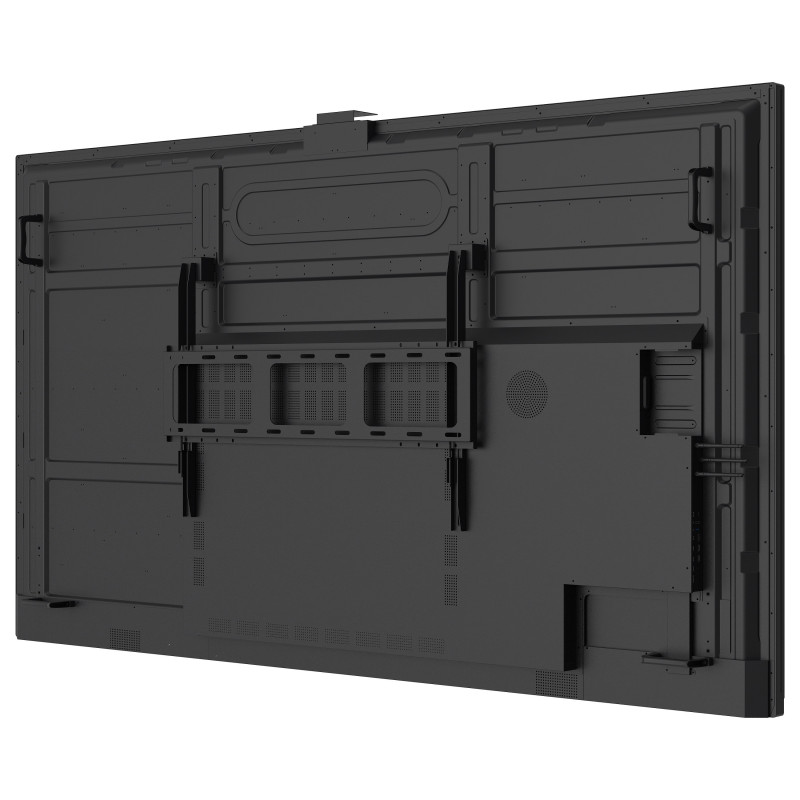

Feature: VESA mounting

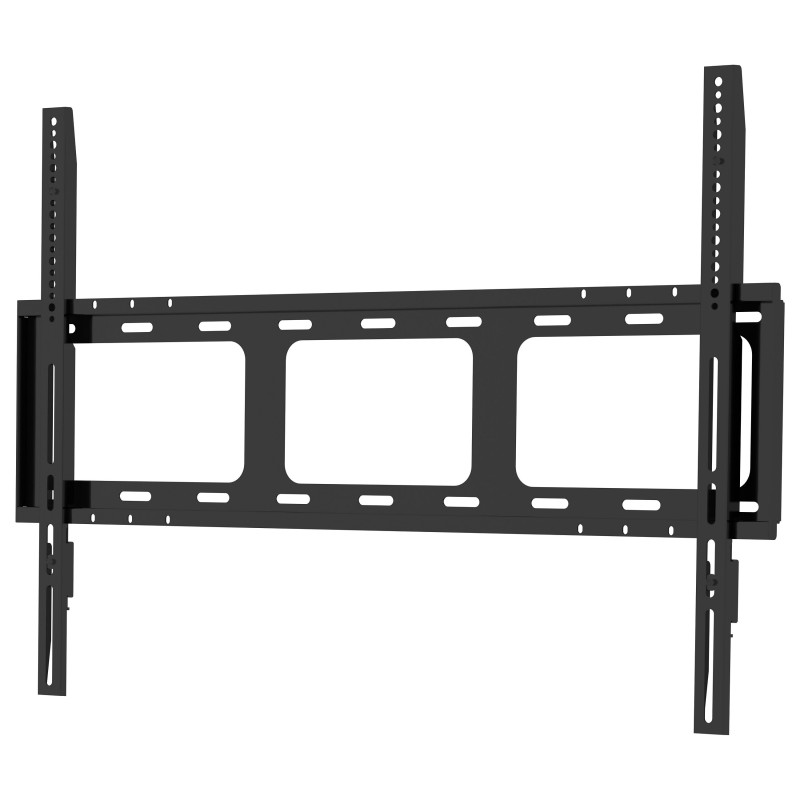

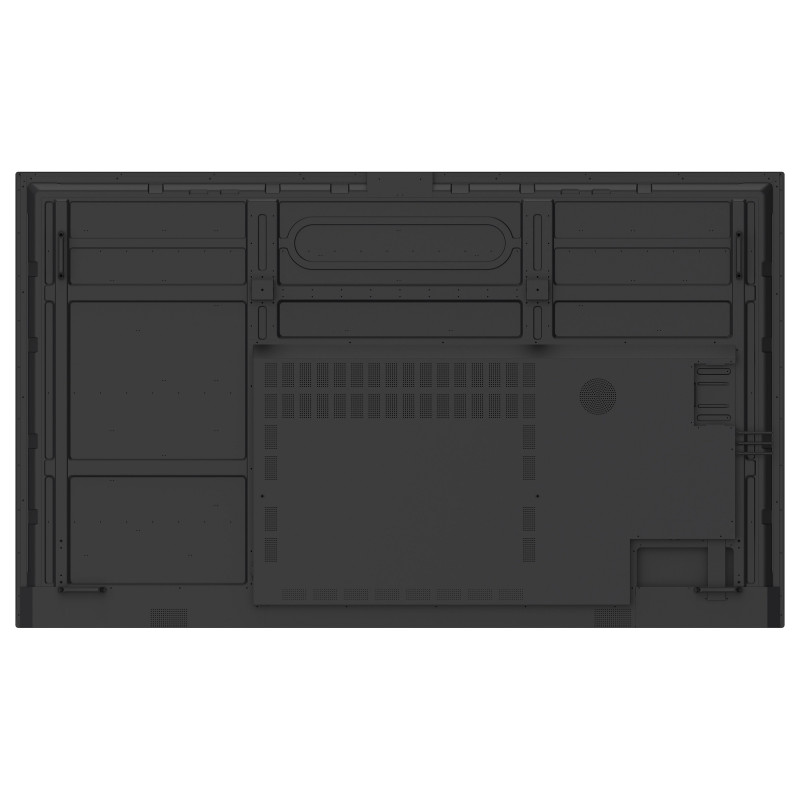

Panel mounting interface: 800 x 600 mm
Bezel width (bottom): 4.1 cm
Bezel width (side): 1.65 cm
Bezel width (top): 1.65 cm
Bezel colour: Black
Feature: Anti-glare screen
Positioning accuracy: 1 mm

Performance

Purpose: Education
Feature: On Screen Display (OSD)
Number of OSD languages: 13
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 303 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 266 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Computer system
Feature: Built-in processor
Processor architecture: ARM Cortex-A53+Cortex-A72
Processor cores: 8
Internal memory: 8 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 14

Weight & dimensions

Display width: 2235.4 mm

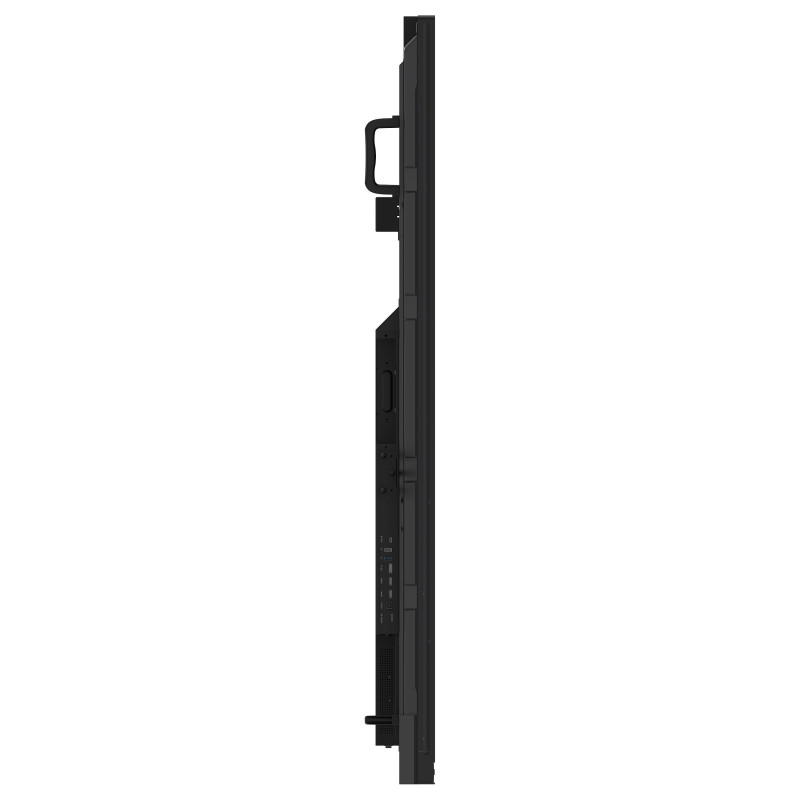

Display depth: 103 mm
Display height: 1326 mm
Display weight: 109.6 kg
Width: 2235.4 mm
Depth: 103 mm
Height: 1326 mm
Weight: 109.6 kg

Packaging data

Package width: 2360 mm
Package depth: 280 mm
Package height: 1445 mm
Package weight: 132.2 kg

Packaging content

Feature: Remote control included

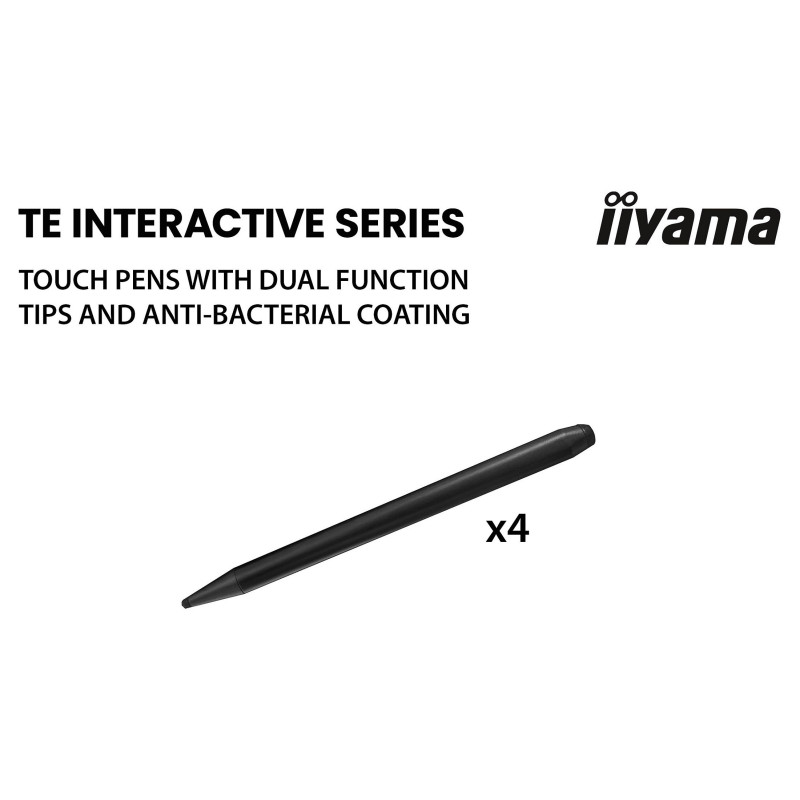

Feature: Stylus pen
Number of stylus pens: 4
Cables included: AC, USB, HDMI

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Logistics data

Products per pallet: 4 pc(s)

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11b, 802.11a

Technical details

Feature: Audio in (mini jack)
OPS slot: 1
Playback media: Y
Sustainability certificates: ErP
Warranty period: 5 year(s)
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE

Other features

Feature: Quick start guide
Brightness: 500 cd/m²
Power supply type: Internal
