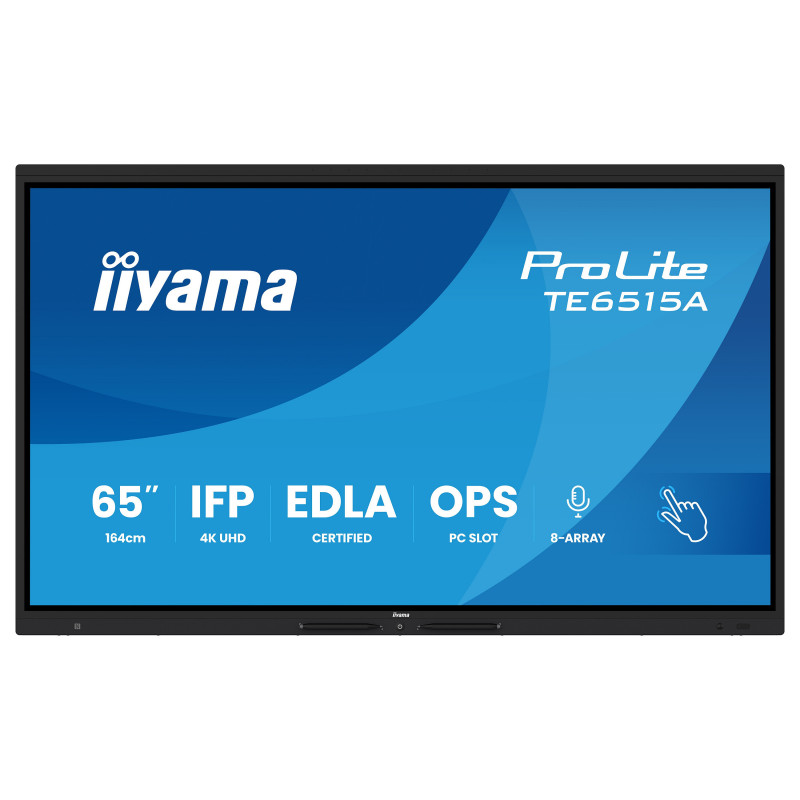

iiyama TE6515A-B1AG ženklų ekranas

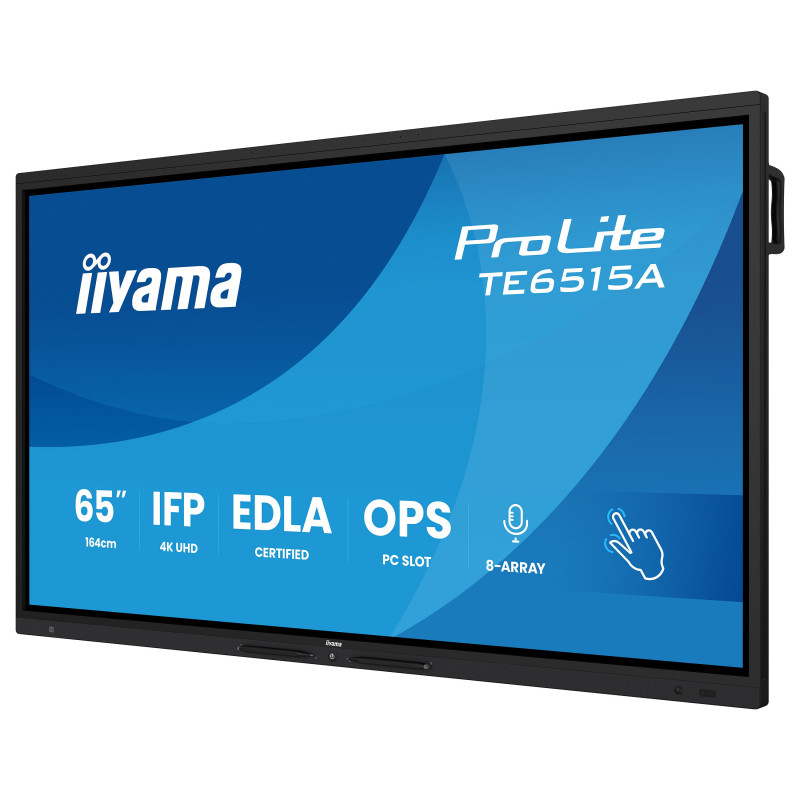

iiyama TE6515A-B1AG. Product design: Interactive flat panel. Display diagonal: 163.8 cm (64.5"), Display resolution: 3840 x 2160 pixels, Display brightness: 550 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating system installed: Android. Product colour: Black

Elegance and functionality come together in the ProLite TE6515A-B1AG. This 65" 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE6515A elevates the visual experience of any room. It's more than a tool—it's part of your space. Coupled with DeepContrast-IR+ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi6, Bluetooth 5.0 and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE6515A promotes seamless teamwork—whether you're presenting, teaching, or brainstorming. The TE6515A-B1AG isn't just an interactive display—it's a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.

Display

Panel type: IPS
Display diagonal: 163.8 cm (64.5")
Display resolution: 3840 x 2160 pixels
Display brightness: 550 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Infrared
Number of simultaneous touchpoints: 40
Feature: Multi-touch
Number of simultaneous touchpoints (Android): 32
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.372 x 0.372 mm
Active display area (W x H): 1428.5 x 803.5 mm
Display diagonal (metric): 163.9 cm
Native refresh rate: 60 Hz
Surface hardness: 7H
Glass thickness: 3.2 mm

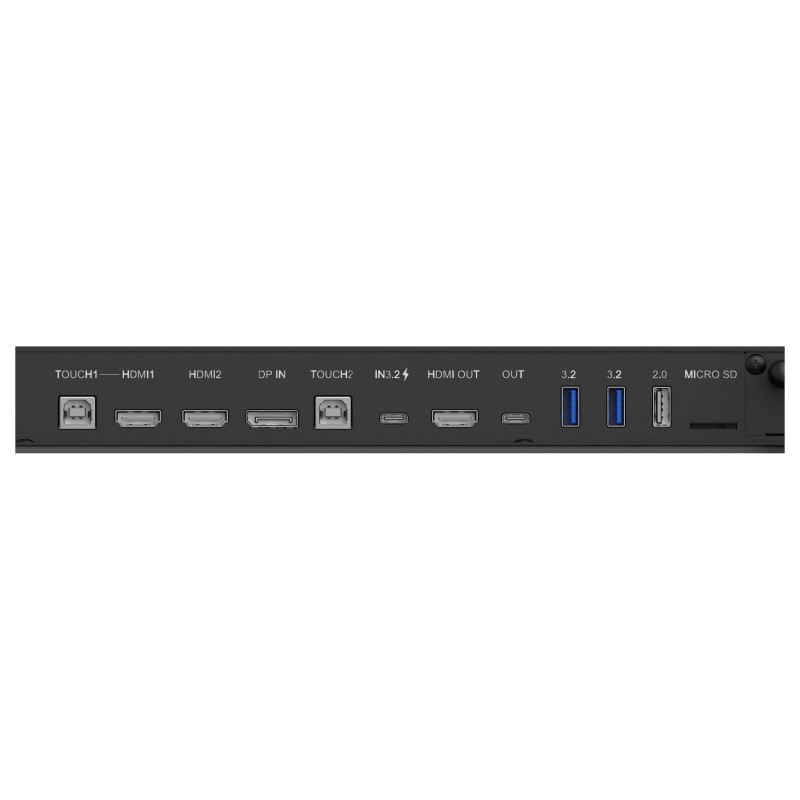

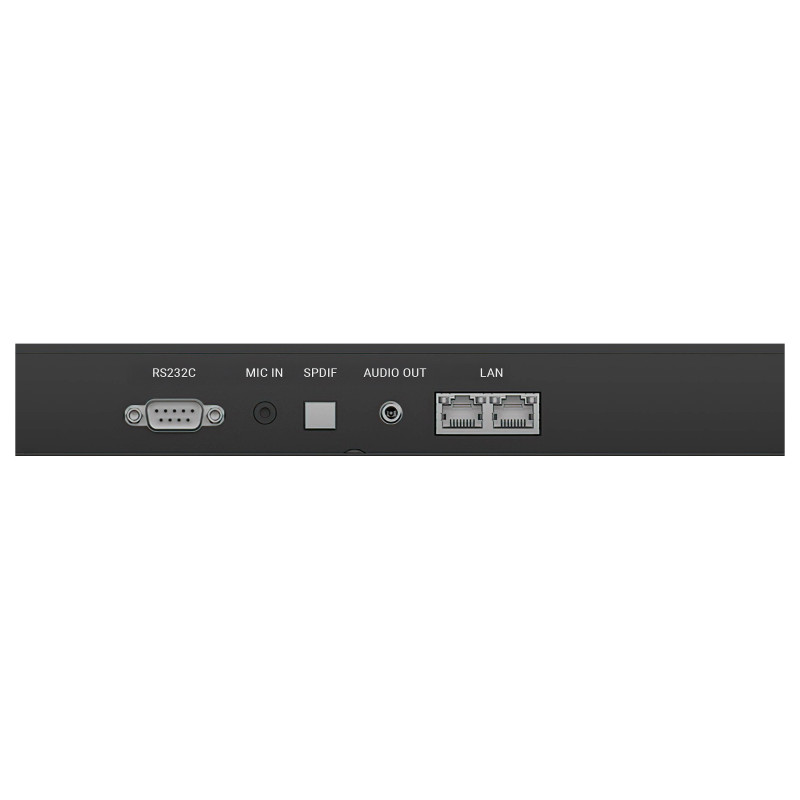

Ports & interfaces

HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 1
HDMI output ports quantity: 1
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 4
USB connector type: USB Type-A, USB Type-C
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232C
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Feature: OPS module slot
Feature: Audio Return Channel (ARC)

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 60 W

Design

Product design: Interactive flat panel
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black
Screen shape: Flat

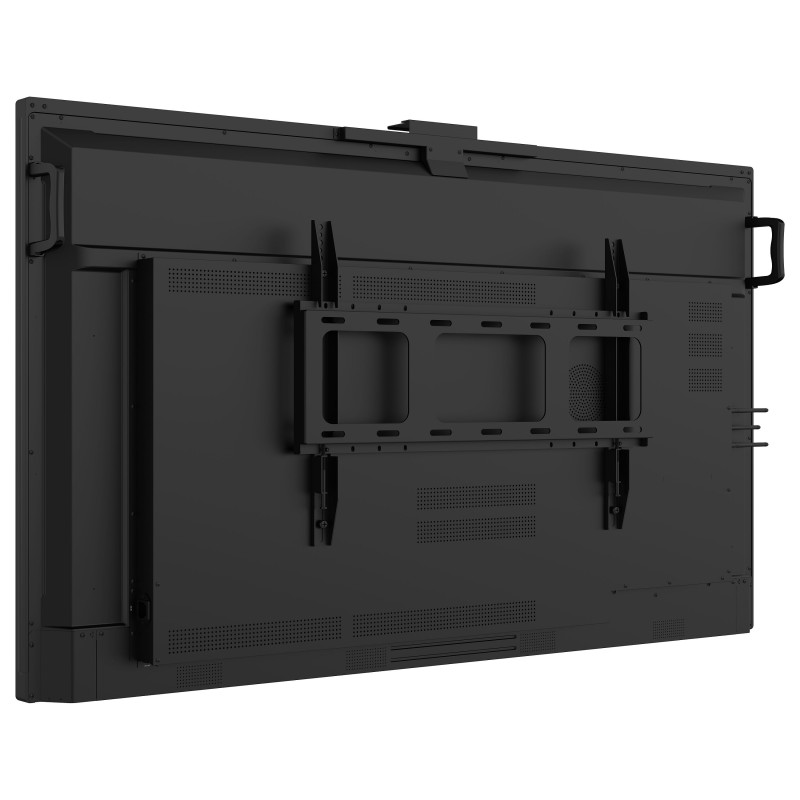

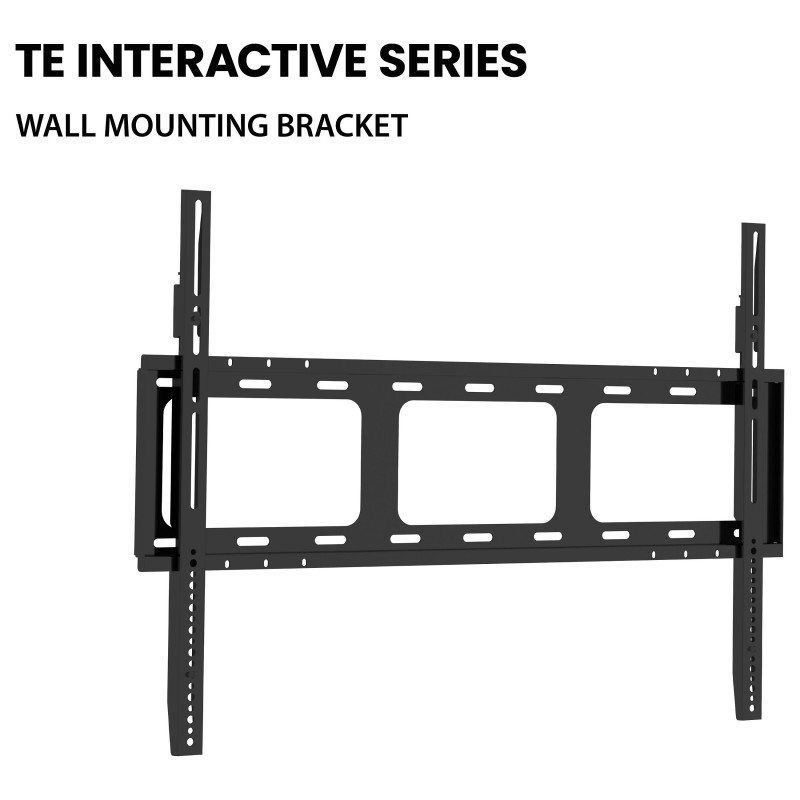

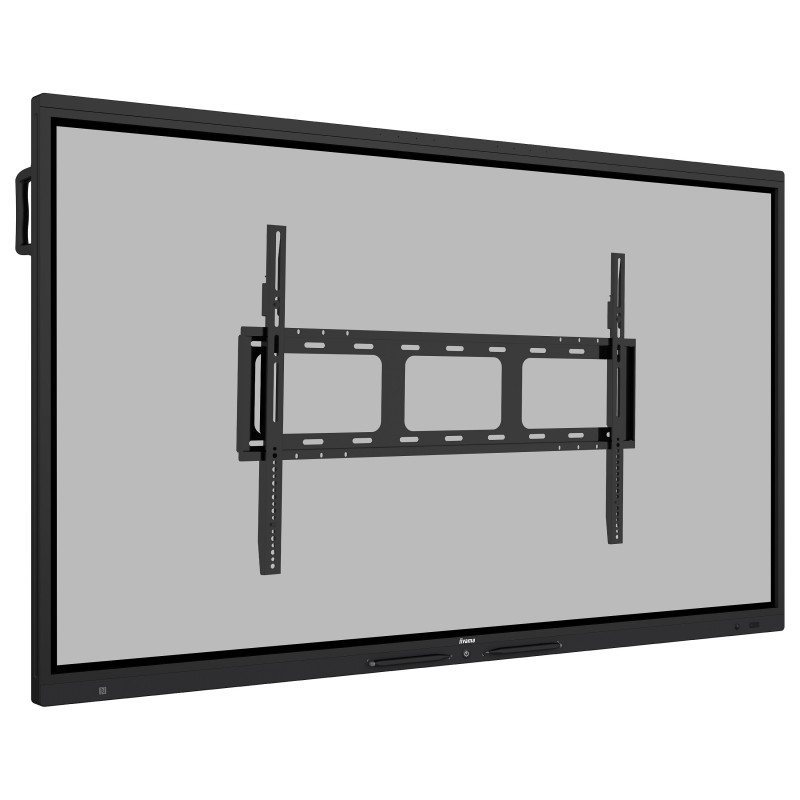

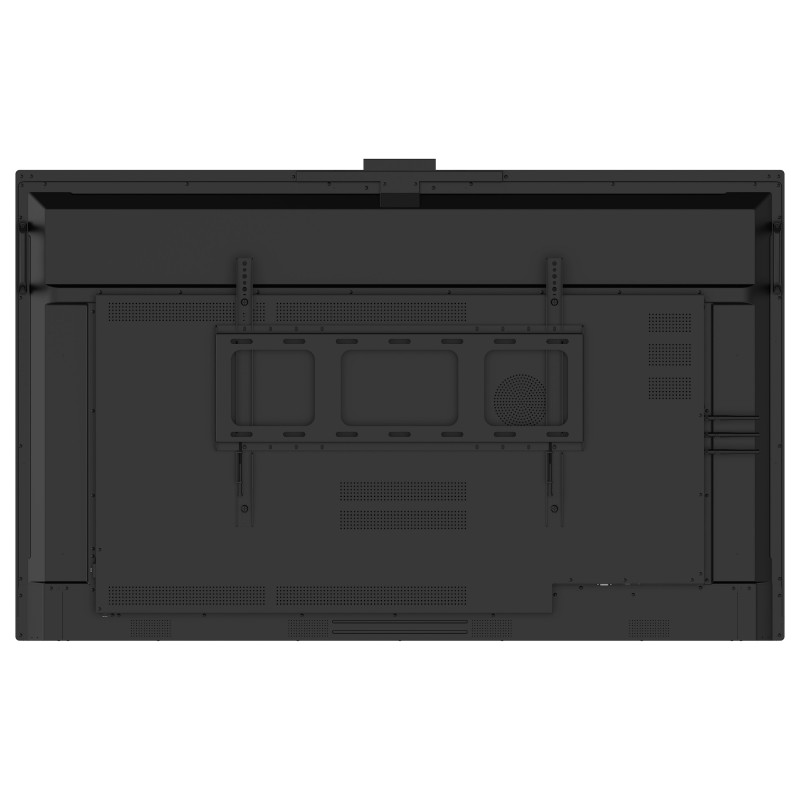

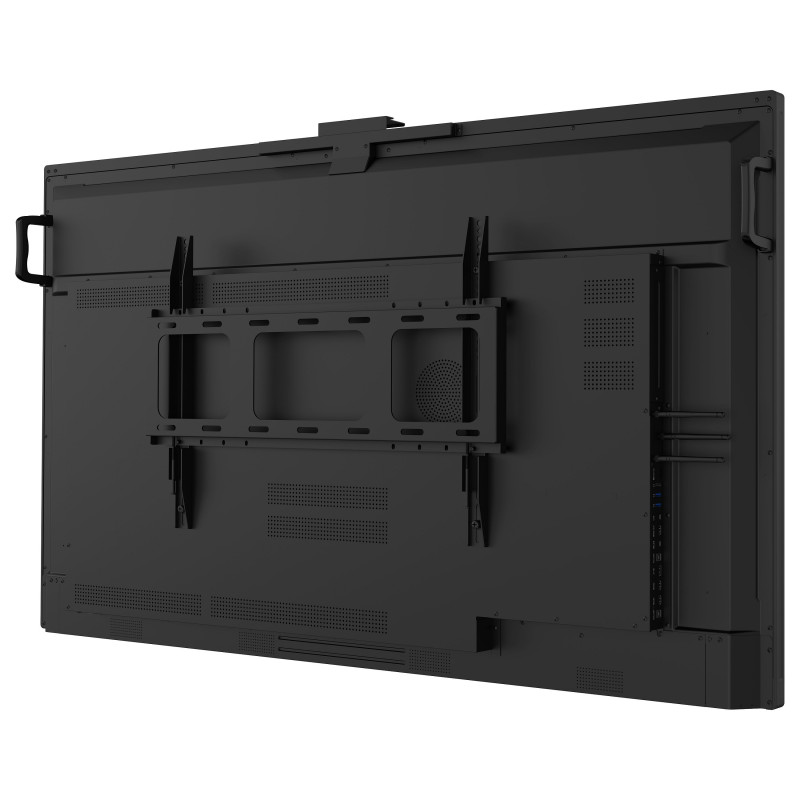

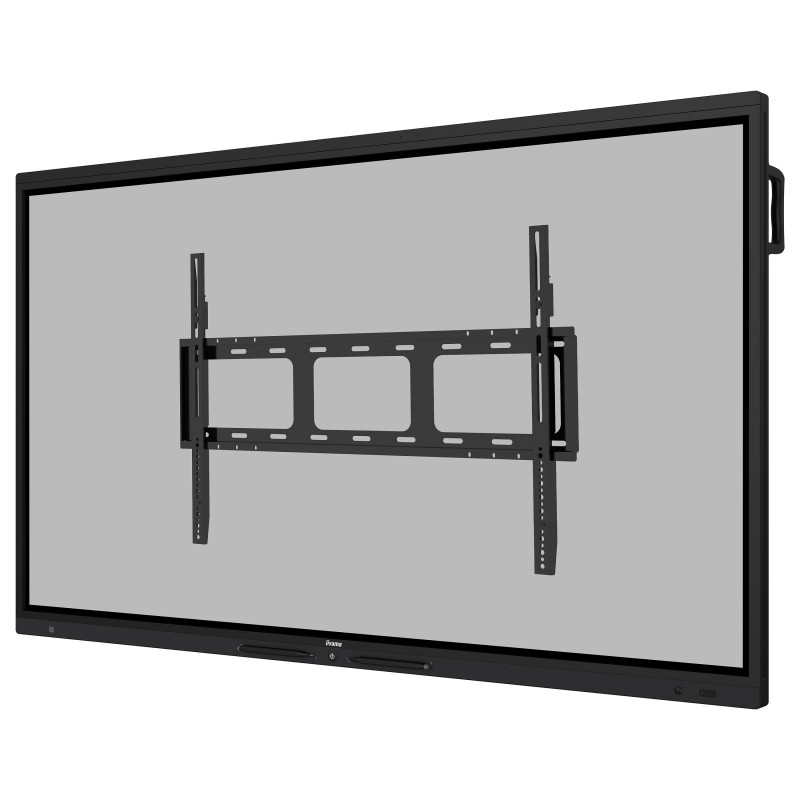

Feature: VESA mounting
Panel mounting interface: 600 x 400 mm
Bezel colour: Black
Feature: Anti-glare screen

Performance

Purpose: Universal
Feature: Picture-in-Picture
Feature: On Screen Display (OSD)
Number of OSD languages: 14
On Screen Display (OSD) languages: CAT, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 195 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 195 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Built-in processor
Processor manufacturer: ARM
Processor architecture: ARM Cortex-A53+Cortex-A72
Processor cores: 7
Internal memory: 16 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 14

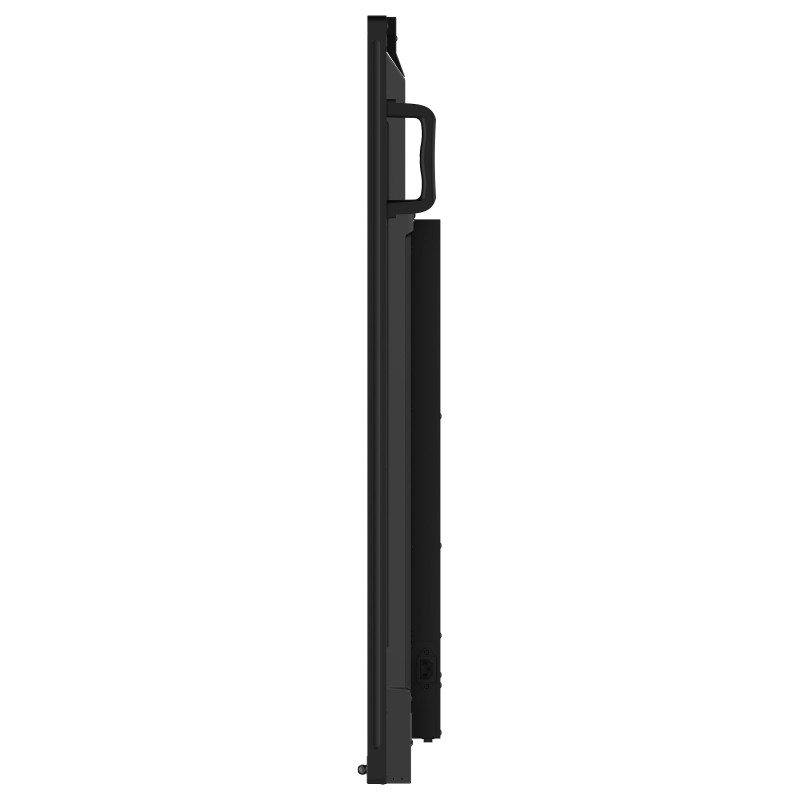

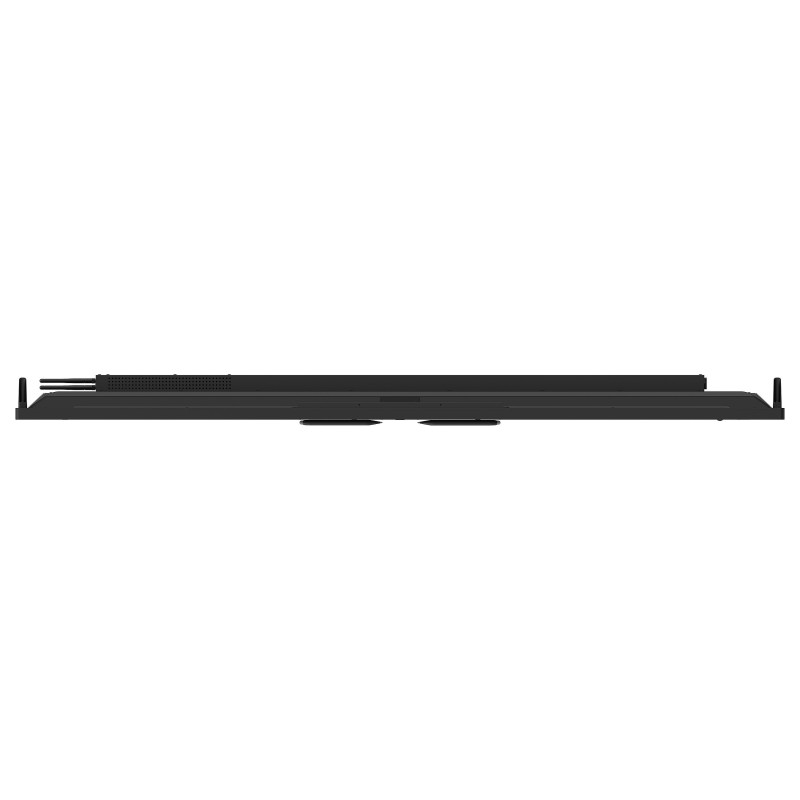

Weight & dimensions

Display width: 1489.1 mm
Display depth: 87.1 mm
Display height: 911.8 mm
Display weight: 43.5 kg
Width: 1489.1 mm
Depth: 87.1 mm
Height: 911.8 mm
Weight: 43.5 kg

Packaging data

Package width: 1640 mm
Package depth: 185 mm
Package height: 1010 mm
Package weight: 47.4 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Feature: Stylus pen
Number of stylus pens: 4

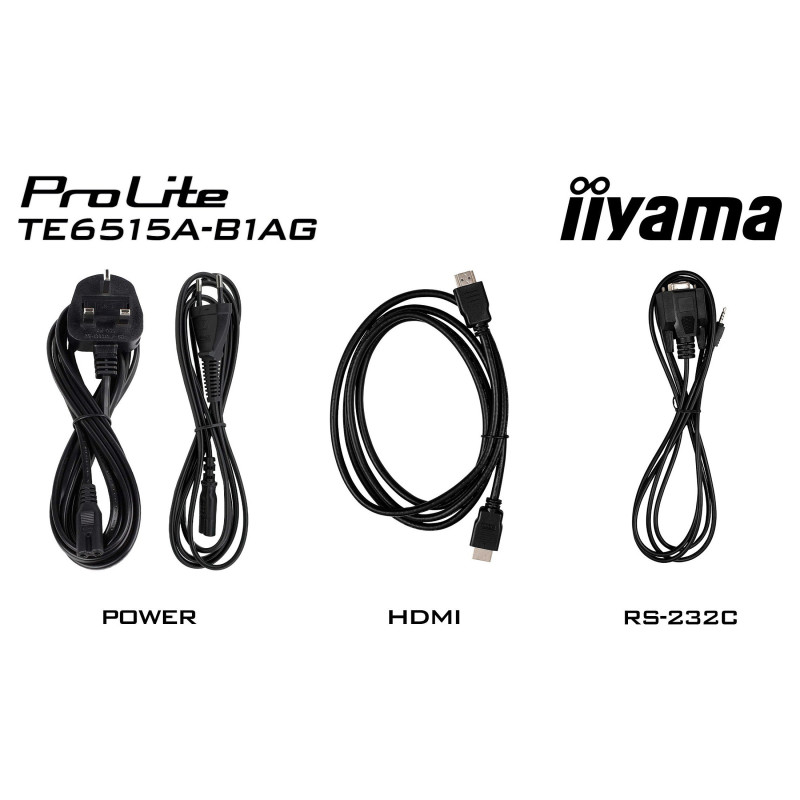

Cables included: AC, USB, HDMI
Feature: Mounting kit

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): -20 - 60%

Certificates

Certification: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS), EPEAT

Sensors

Feature: Ambient light sensor
Feature: Motion sensor

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax)

Technical details

Feature: Audio in (mini jack)
OPS slot: 1
Playback media: Y
Sustainability certificates: EPEAT, ErP, EPEAT Bronze
Warranty period: 5 year(s)
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE

Other features

Feature: Quick start guide
Audio input: Mini jack
Audio output: Mini jack
Feature: Bluetooth
Bluetooth version: 5.0
Feature: Built-in microphone
Power supply type: Internal
