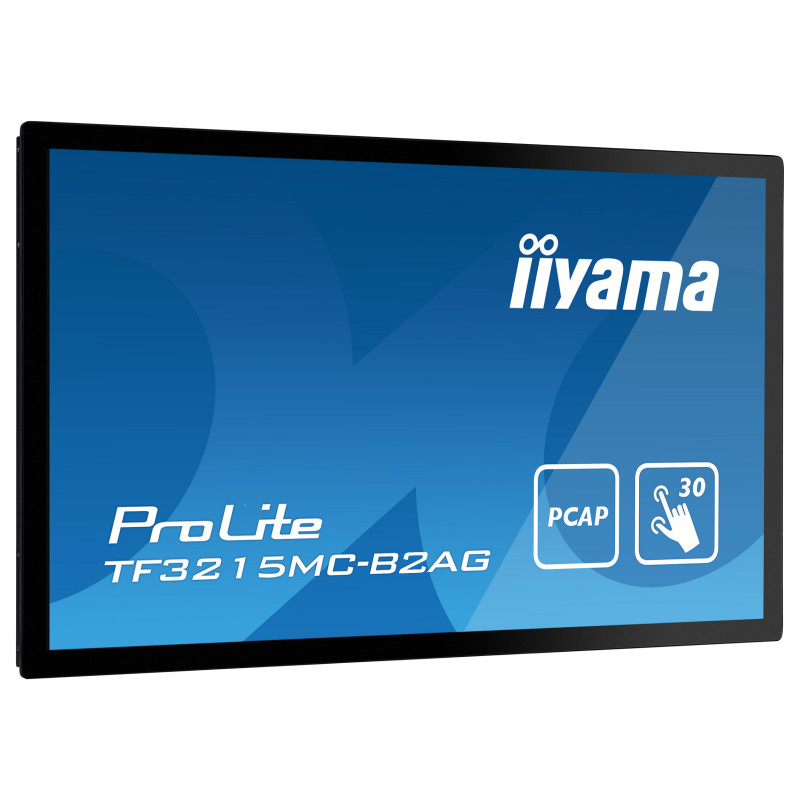

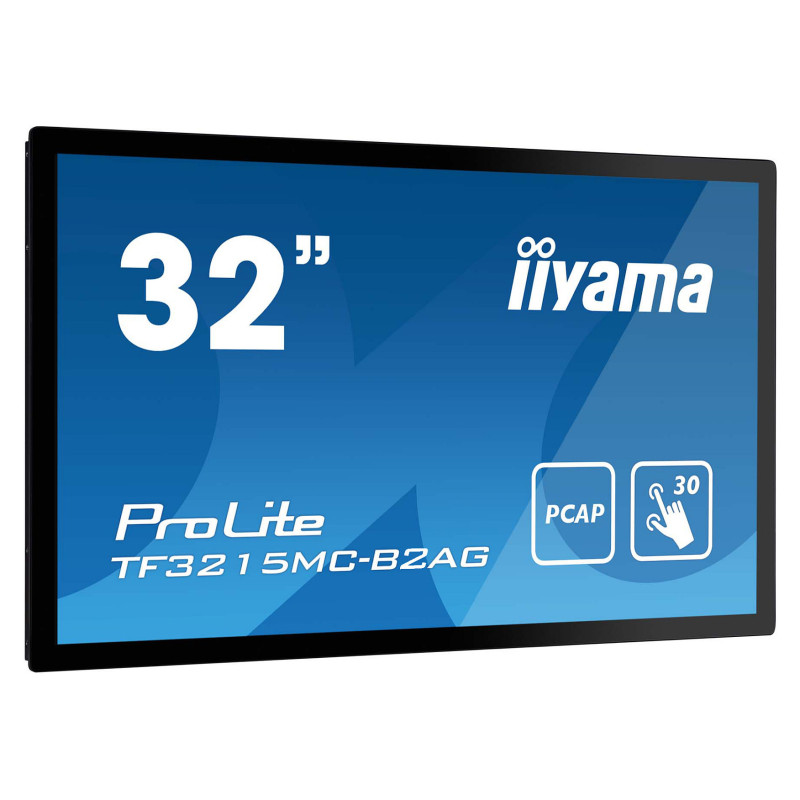

„iiyama ProLite TF3215MC-B2AG“ kompiuterio monitorius

iiyama ProLite TF3215MC-B2AG. Display diagonal: 80 cm (31.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

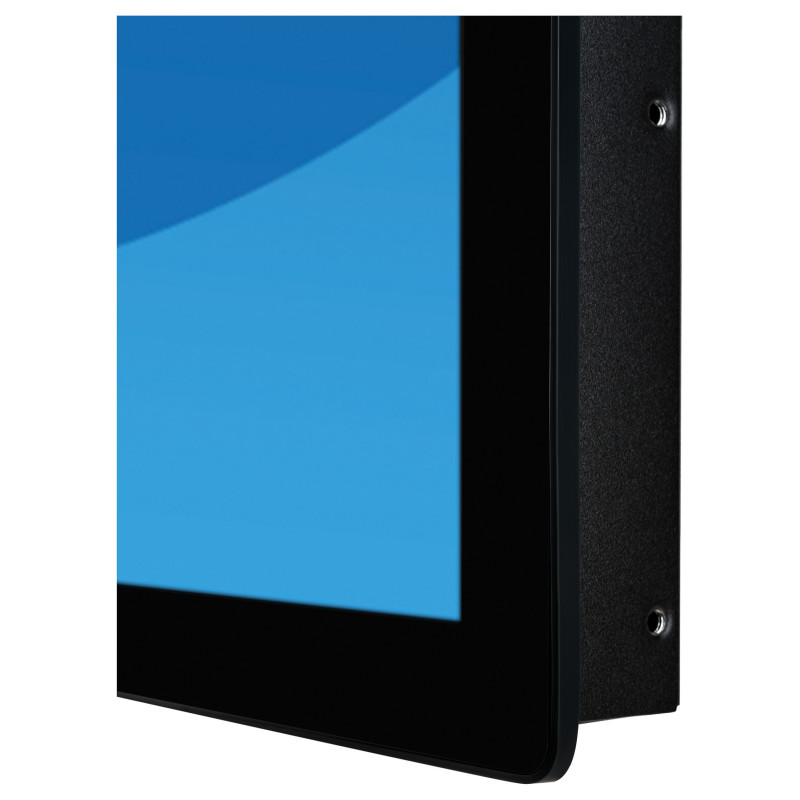

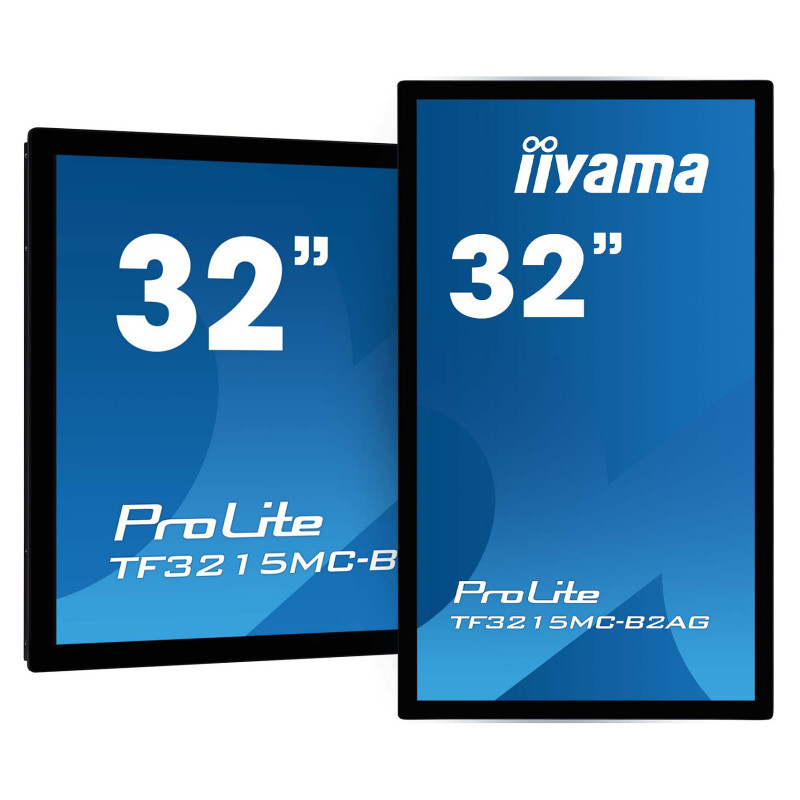

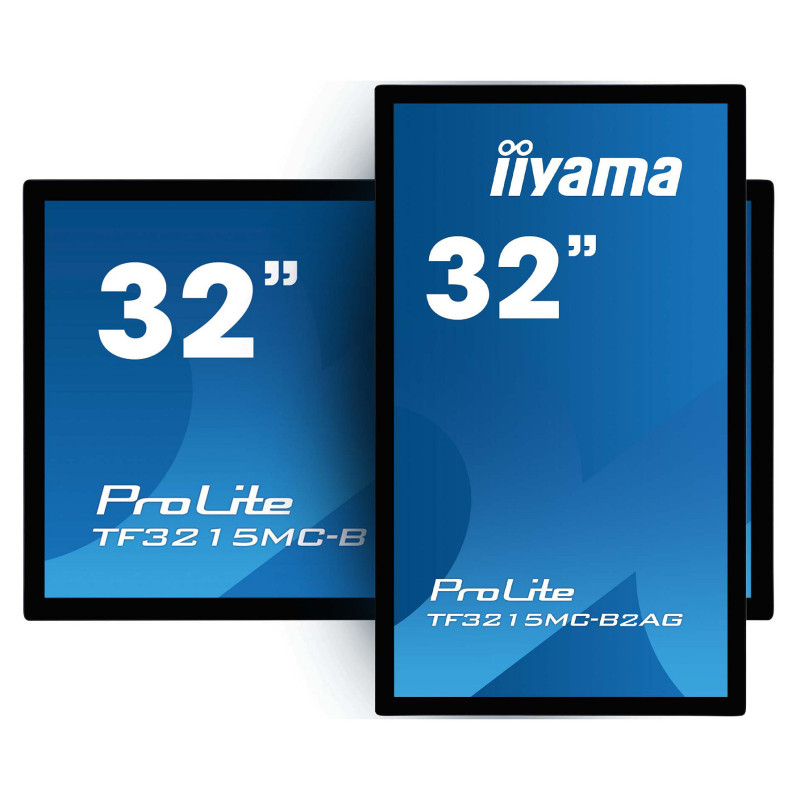

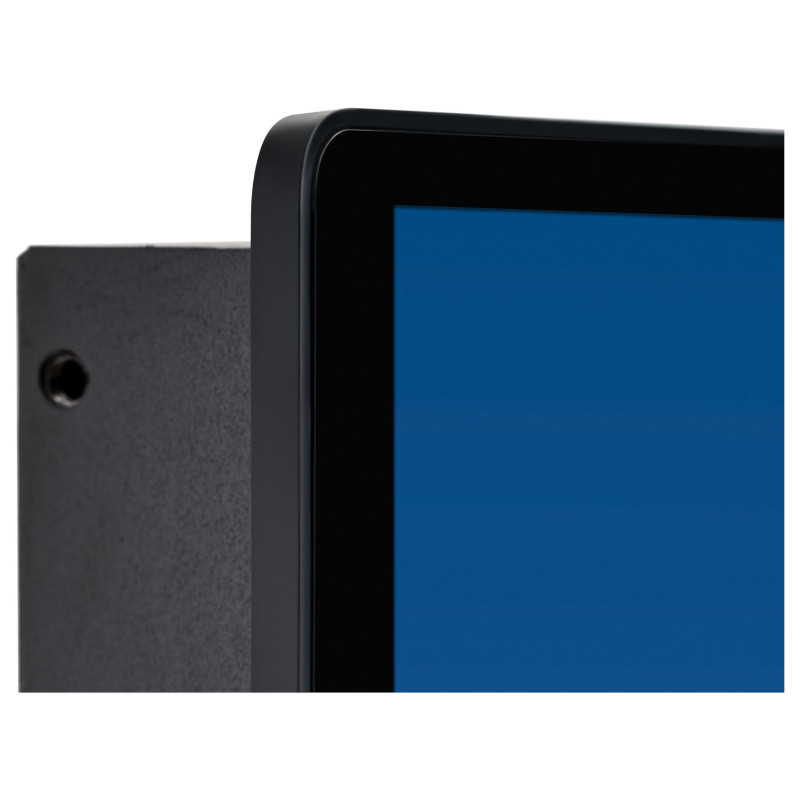

The ProLite TF3215MC-B2AG uses PCAP Touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B2AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display

Display diagonal: 80 cm (31.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: VA
Feature: Touchscreen
Touchscreen type: Kiosk
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 30
Display brightness (typical): 500 cd/m²
Display brightness: 425 cd/m²
Response time: 8 ms
Response time measurement type: GTG (Gray to Gray)
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 3000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.3637 x 0.3637 mm
Horizontal scan range: 30 - 68 kHz
Viewable size, horizontal: 69.8 cm
Viewable size, vertical: 39.3 cm
Digital horizontal frequency: 30 - 68 kHz
Display diagonal (metric): 80 cm
Surface hardness: 6H
Colour depth: 8 bit

Performance

Operating hours (hours/days): 24/7

Design

Market positioning: Business
Product colour: Black
Housing material: Metal
Front bezel colour: Black
Glass thickness: 6 mm

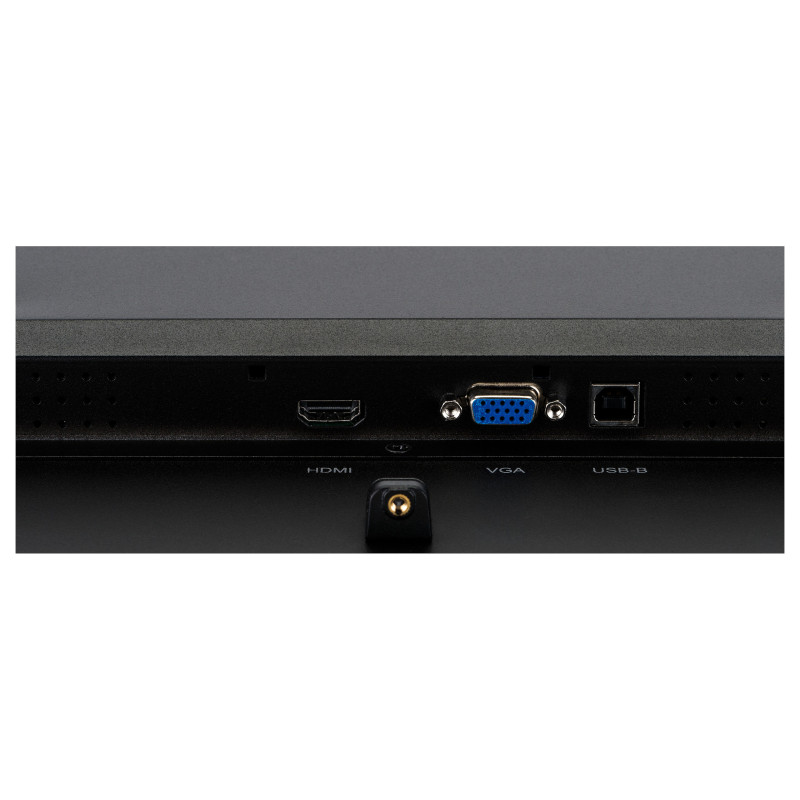

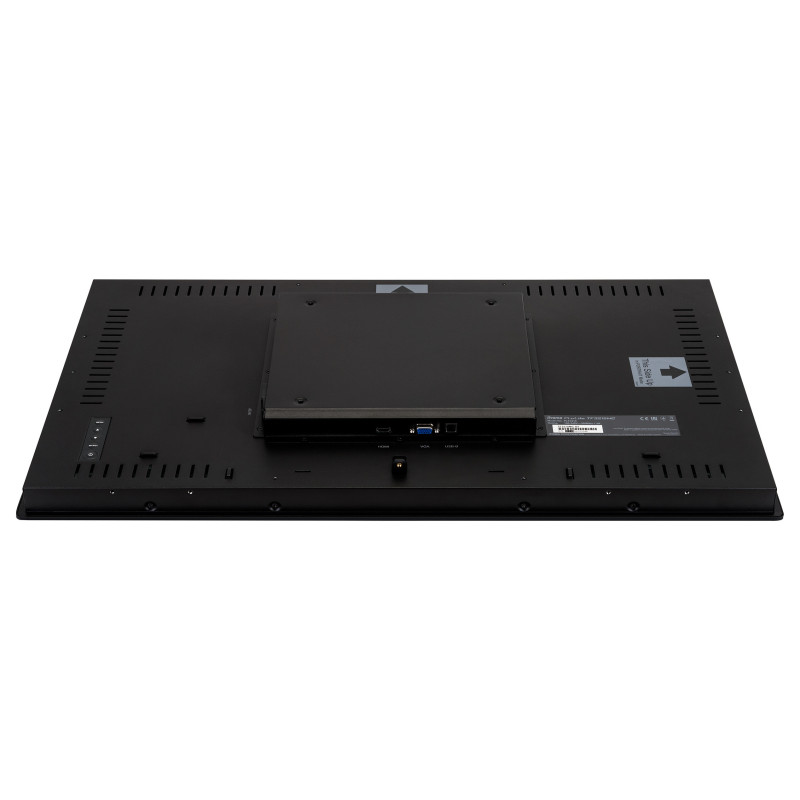

Ports & interfaces

Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP

Ergonomics

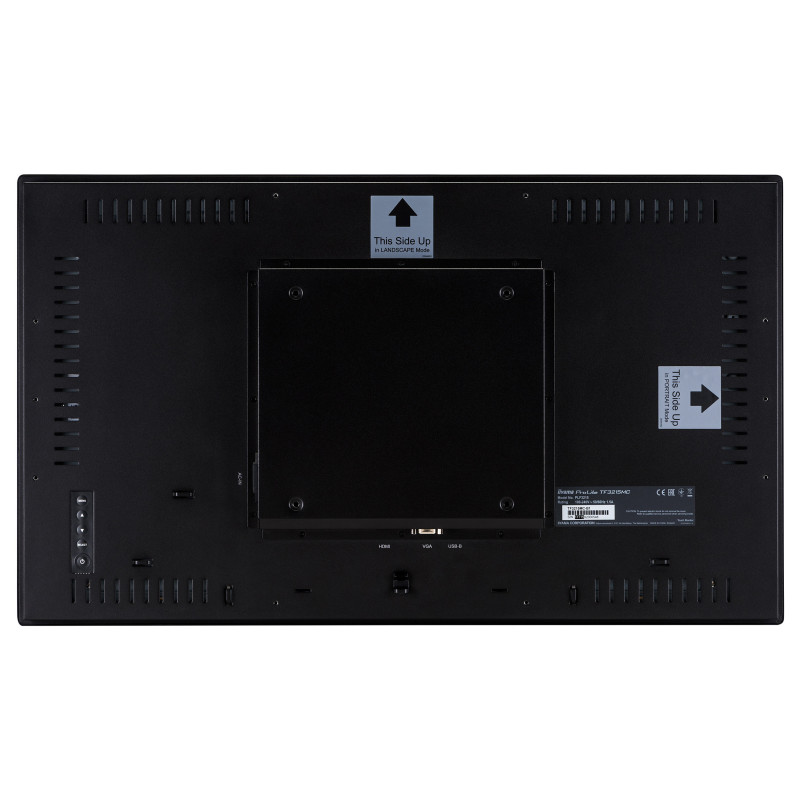

Feature: VESA mounting
Panel mounting interface: 200 x 200 mm

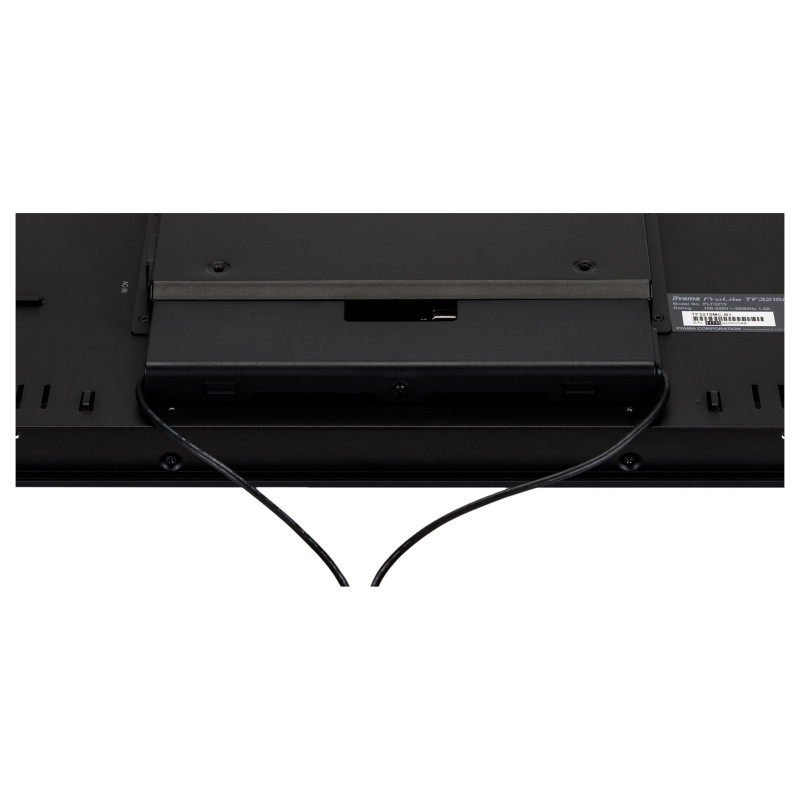

Feature: Cable management
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Feature: Plug and Play

Power

Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 27.4 kWh
Power consumption (typical): 32 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width (with stand): 743 mm
Depth (with stand): 61 mm
Height (with stand): 437 mm
Weight (with stand): 10 kg
Width (without stand): 745.5 mm
Depth (without stand): 61 mm
Height (without stand): 437 mm
Weight (without stand): 10 kg

Packaging data

Package width: 890 mm
Package depth: 155 mm
Package height: 630 mm
Package weight: 12.8 kg

Packaging content

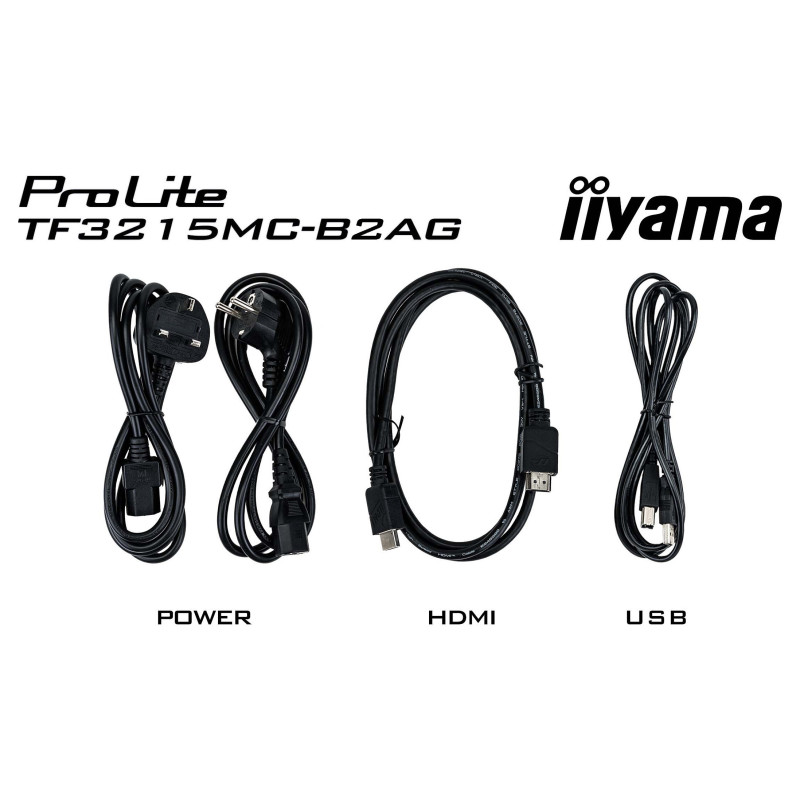

Cables included: AC, USB, HDMI
Feature: Quick start guide

Other features

International Protection (IP) code: IP65
IK code: IK07
Positional accuracy: 2 mm
Brightness: 425 cd/m²
Packaging content: Touch Panel Driver Disk (CD-ROM)
Active display area (W x H): 698.4 x 392.8 mm
Touch method: finger, glove (latex), capacitive stylus
Weight: 10 kg
Height: 437 mm
Width: 743 mm
Depth: 61 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: REACH
Mean time between failures (MTBF): 50000 h

Logistics data

Products per pallet: 21 pc(s)
Pallet net width: 100 cm
Pallet net length: 120 cm
Pallet net height: 2.04 m
