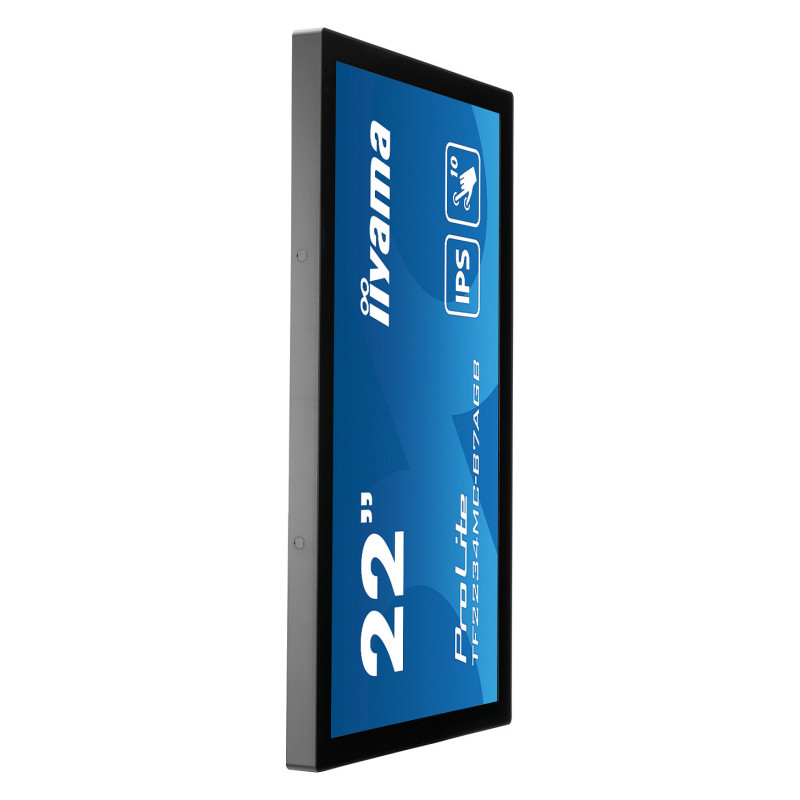

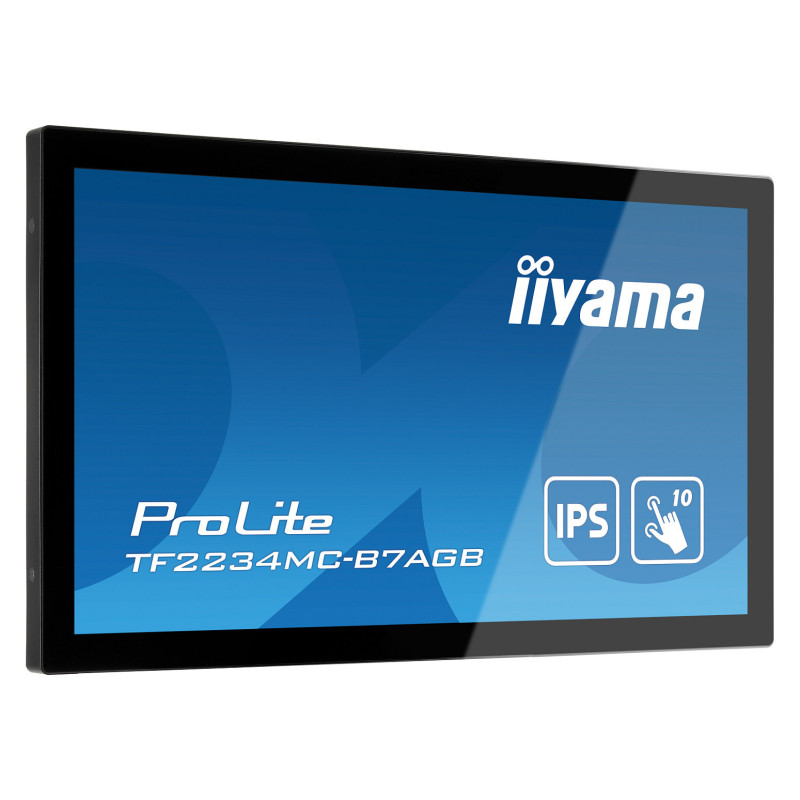

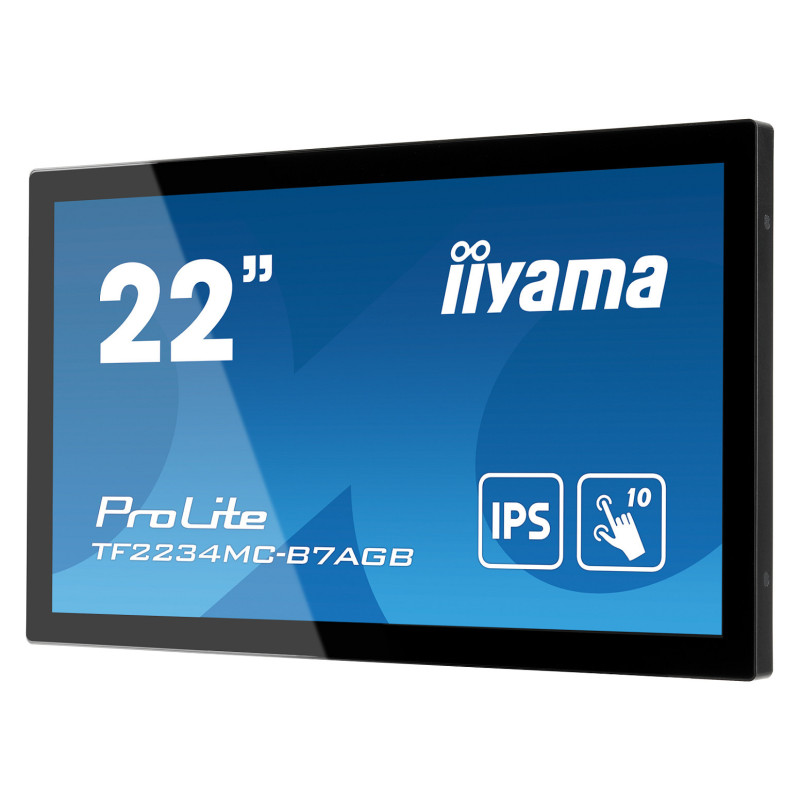

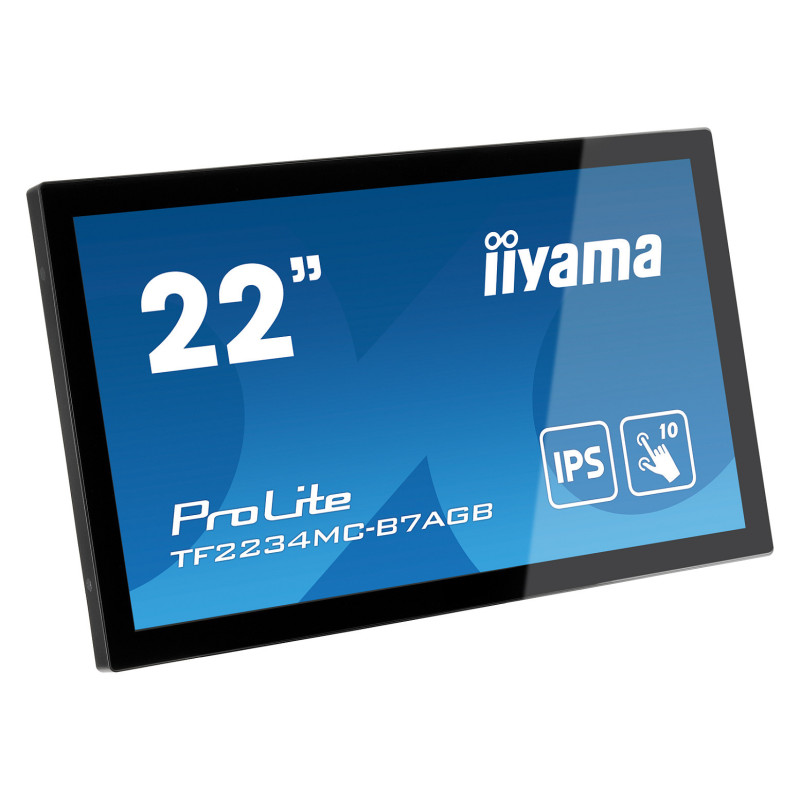

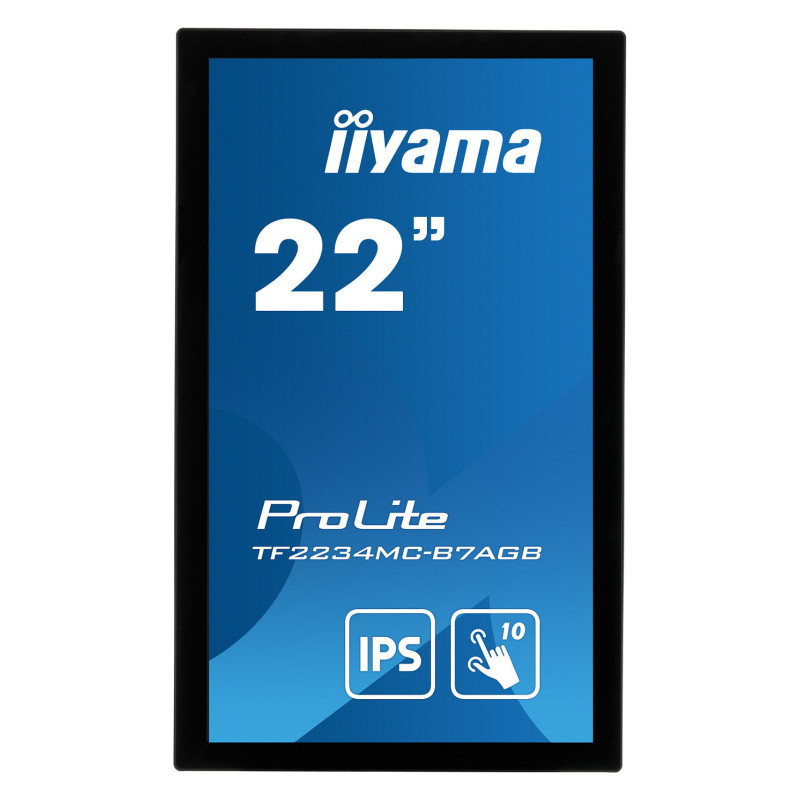

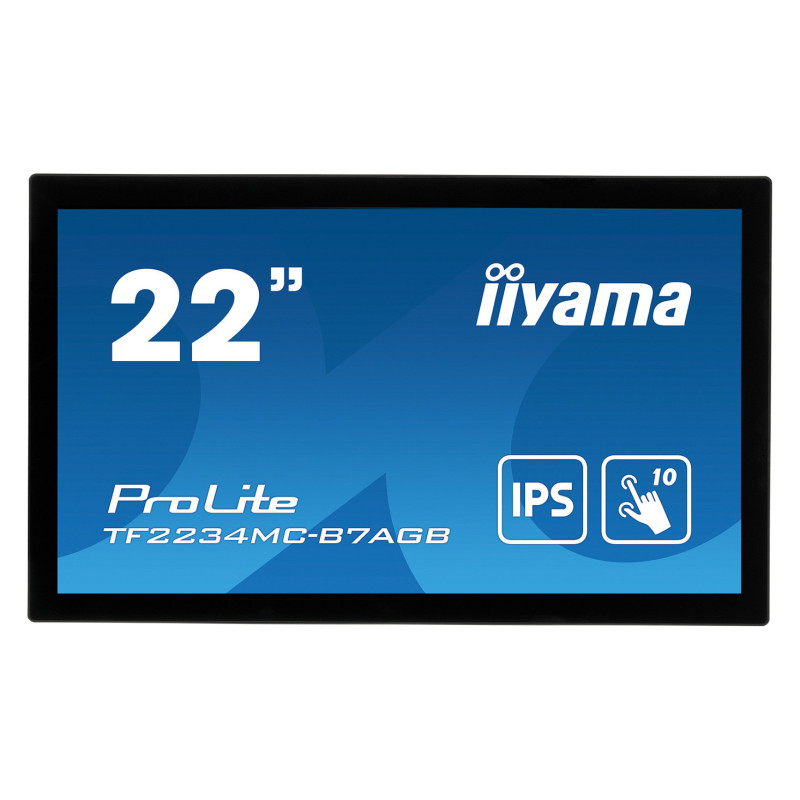

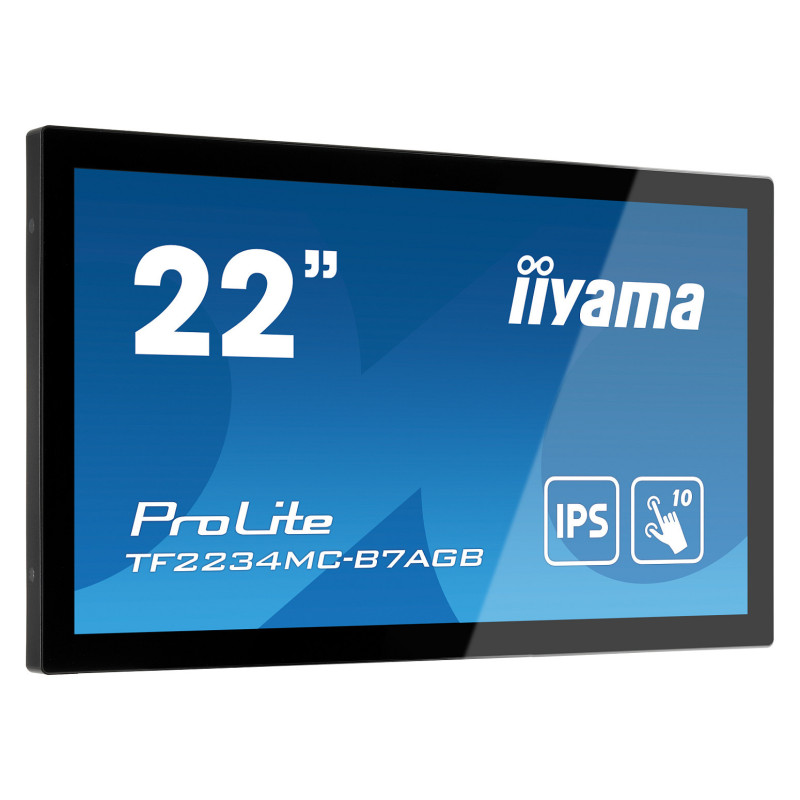

„iiyama ProLite TF2234MC-B7AGB“ kompiuterio monitorius

iiyama ProLite TF2234MC-B7AGB. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

The ProLite TF2234MC-B7AGB uses PCAP Touch technology, and it is built into an eye-catching bezel with edge-to-edge glass. Featuring IPS LCD Screen technology, it offers exceptional colour performance and wide viewing angles. The higher brightness ensures crispy and clear images, even in a bright environment. In addition to the superb image quality, the screen is suitable for demanding environments. It comes with a rugged bezel and IP65 rating, meaning the monitor is dust and water resistant from the front. The Anti Glare Glass helps to avoid issues with reflections and external light sources affecting contrast and sharpness. The ProLite TF2234MC-B7AGB is the ideal screen for kiosk integrators and a superb display for use as Interactive Digital Signage, Instore Retail and Interactive Presentation display. For ease of integration, this monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Feature: Touchscreen
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Display brightness: 300 cd/m²
Response time: 8 ms
Response time measurement type: GTG (Gray to Gray)
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.247 x 0.247 mm
Horizontal scan range: 30 - 84 kHz
Viewable size, horizontal: 47.6 cm
Viewable size, vertical: 26.8 cm
Display diagonal (metric): 54.6 cm
Surface hardness: 6H

Performance

Feature: Palm rejection

Design

Product colour: Black
Front bezel colour: Black
Glass thickness: 1.5 mm

Ports & interfaces

Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP

Ergonomics

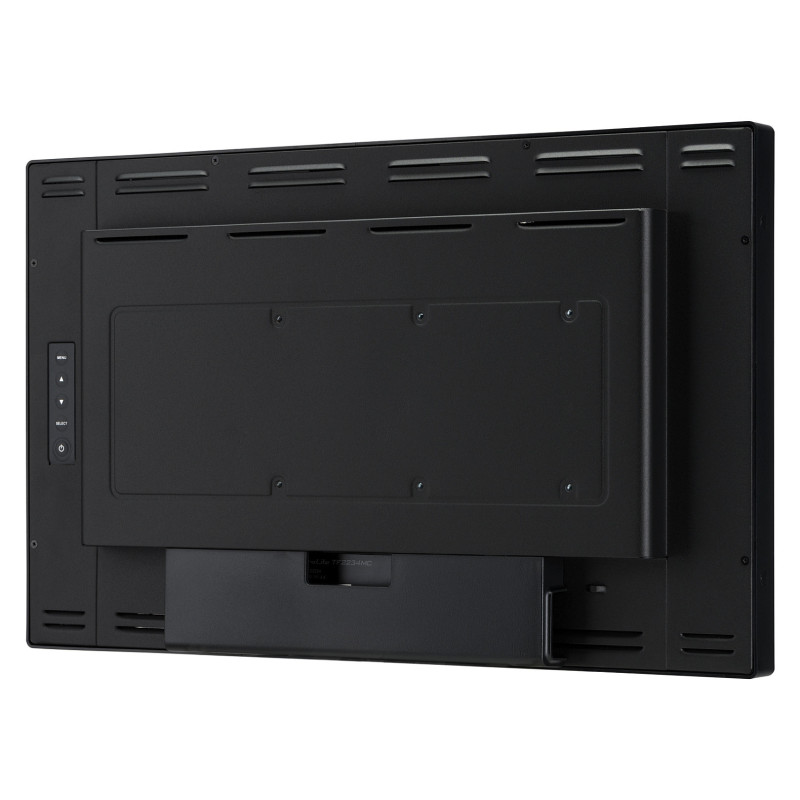

Feature: VESA mounting

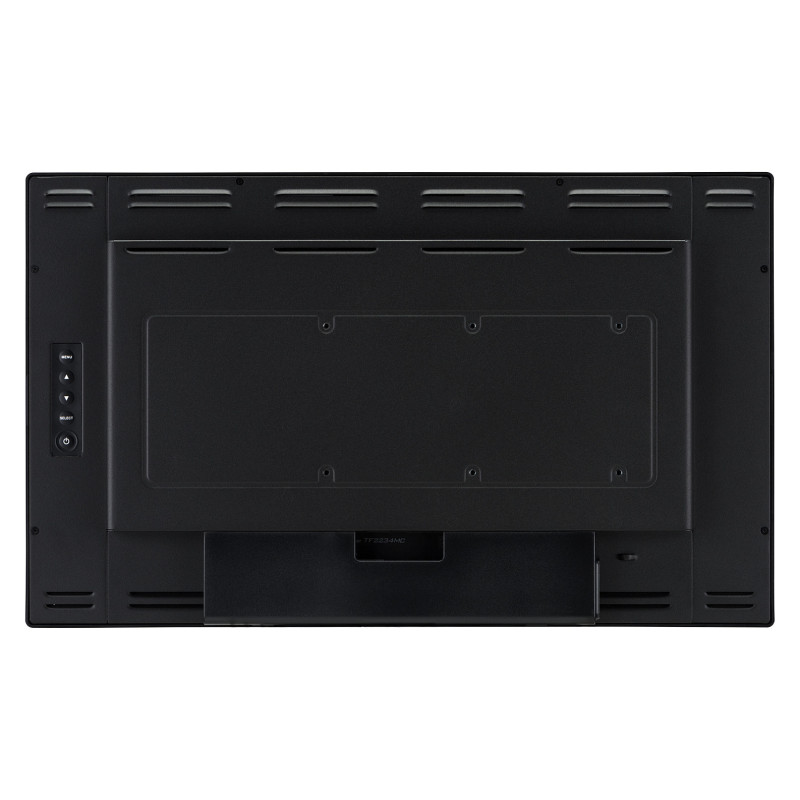

Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian
Number of OSD languages: 9

Power

Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 19 kWh
Power consumption (typical): 18 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Weight & dimensions

Width (with stand): 517.5 mm
Depth (with stand): 46 mm
Height (with stand): 313.5 mm
Weight (with stand): 4.4 kg
Width (without stand): 517.5 mm
Depth (without stand): 46 mm
Height (without stand): 313.5 mm
Weight (without stand): 4.4 kg

Packaging data

Package width: 610 mm
Package depth: 160 mm
Package height: 405 mm
Package weight: 6.8 kg

Packaging content

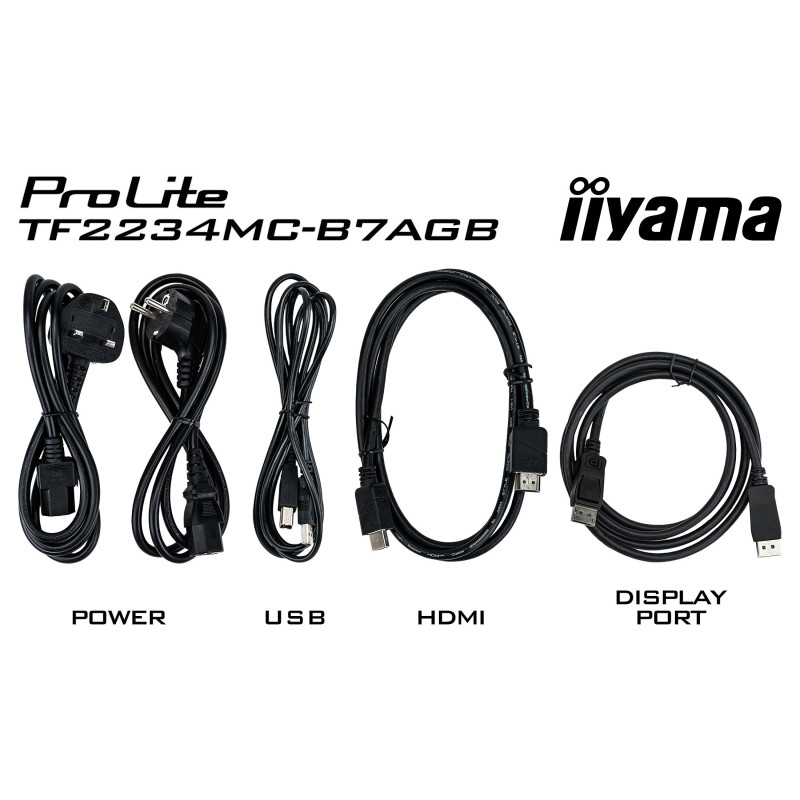

Cables included: AC, USB, HDMI, DisplayPort
Feature: Quick start guide

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Feature: AC adapter included
Display viewable area (HxV): 476 x 267.7 mm
Placement supported: Horizontal/Vertical
Brightness: 300 cd/m²
Packaging content: AC adapter
Active display area (W x H): 476 x 267.7 mm
Touch method: stylus, finger, glove (latex)
Weight: 4.4 kg
Height: 313.5 mm
Width: 517.5 mm
Depth: 46 mm

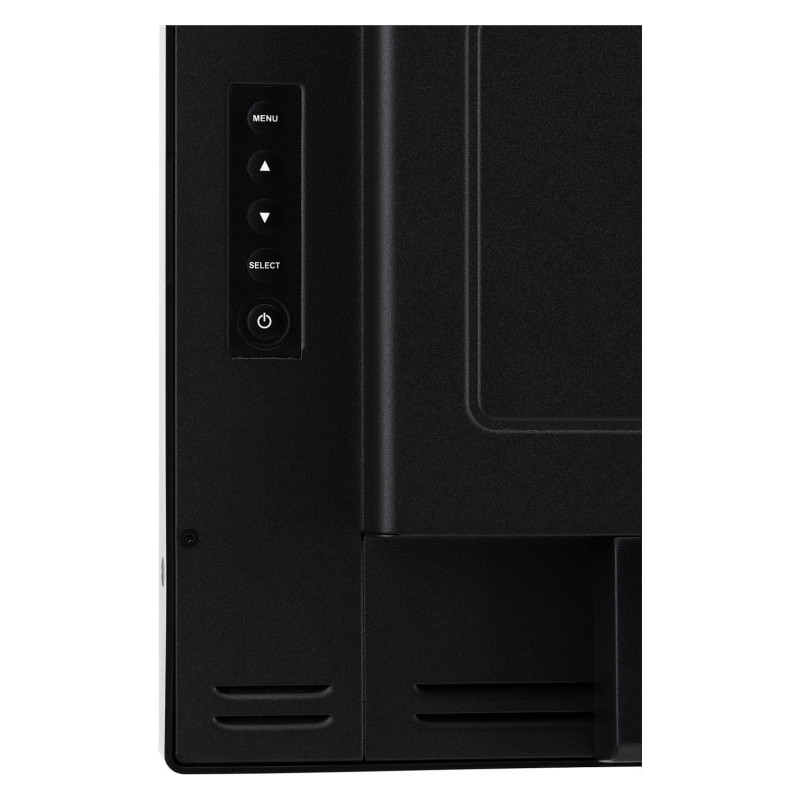

Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, WEEE

Logistics data

Products per pallet: 48 pc(s)
Pallet net width: 109 cm
Pallet net length: 192.7 cm
Pallet net height: 109 cm
Harmonized System (HS) code: 85285210
